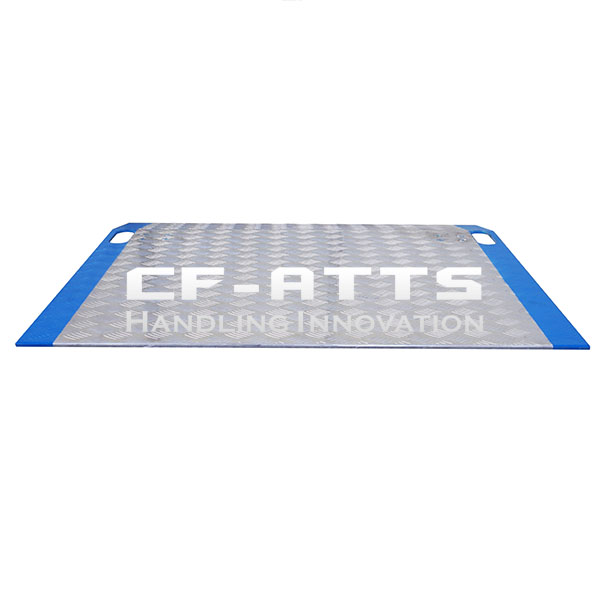

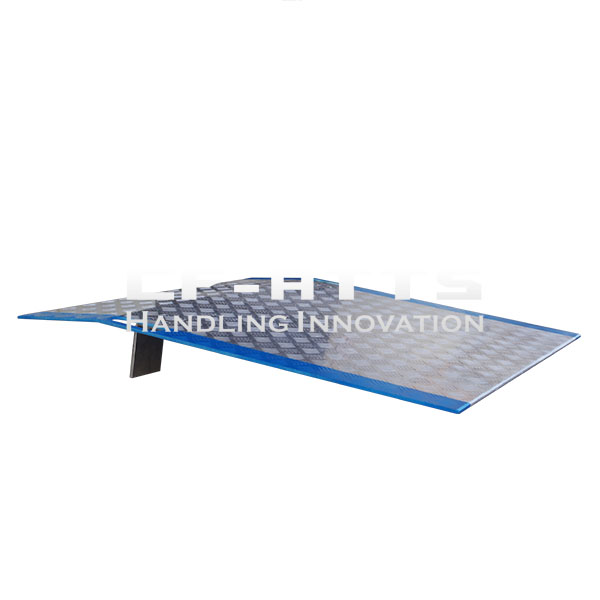

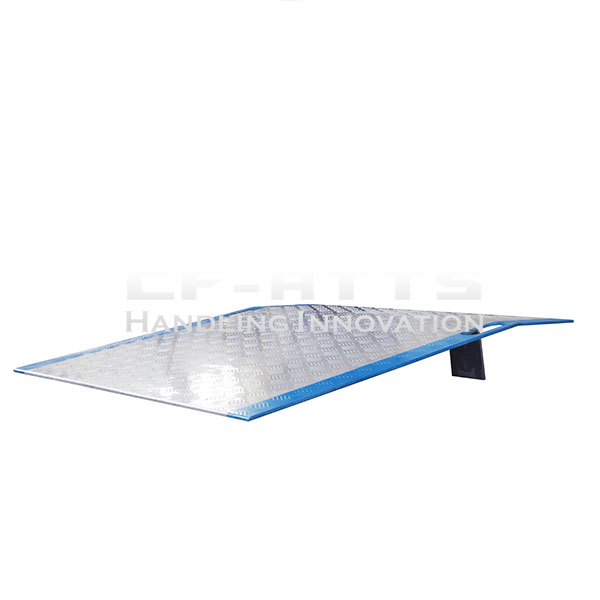

Aluminum Dock Plates (Not For Forklift Use)

• Gradual 11° bend keeps edges flush with dock.

• Aluminum diamond dock plate is skid resistant in all kinds of weather.

• Safety legs secure plate between dock and trailer.

• Portable. Hand holes for easy moving.

• For hand, platform or pallet trucks only.


Aliminum Dock Plates

Model No.	Overall Size W x L	Capacity(kg)	WT.(kg)	Height Differential
CF-1832	36 x 600mm	2140	21	25mm
CF-2742	36 x 750mm	1773	25	50mm
CF-1285	36 x 900mm	1467	29	75mm
CF-1833	36 x 1220mm	800	36	125mm
CF-2743	48 x 600mm	2814	26	25mm
CF-1215	48 x 900mm	1986	36	50mm
CF-1216	48 x 1220mm	1082	45	75mm
CF-1539	48 x 1520mm	750	53	125mm
CF-3678	60 x 600mm	2846	31	25mm
CF-1540	60 x 900mm	2400	40	50mm
CF-1286	60 x 1220mm	1431	52	75mm
CF-3679	60 x 1520mm	1094	71	125mm

*Capacity = Combined weight of your maximum pallet load and hand truck
**Vertical distance between dock floor and truck bed
