CF-ATTS

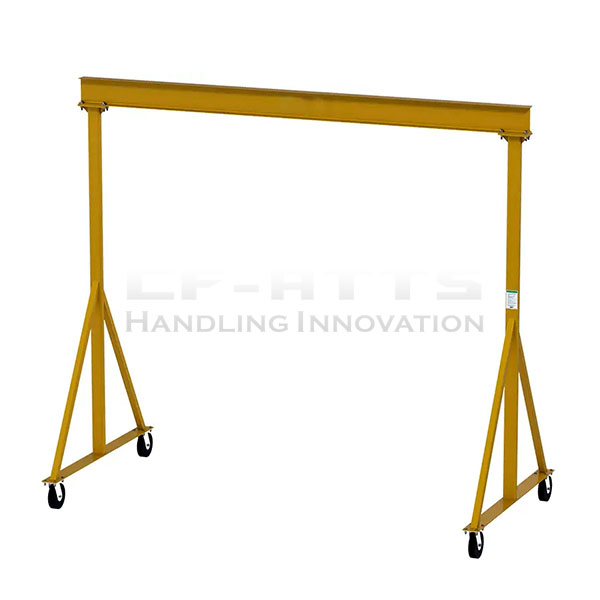

This type gantry cranes are heavy-duty, industrial-grade cranes designed for long service life.
■ Made from high-strength square mechanical tubing.
■ Fully-braced uprights for solid I-beam positioning.
■ Equipped with swivel casters with durable moldon polyurethane wheels for easy rolling and excellent floor protection.

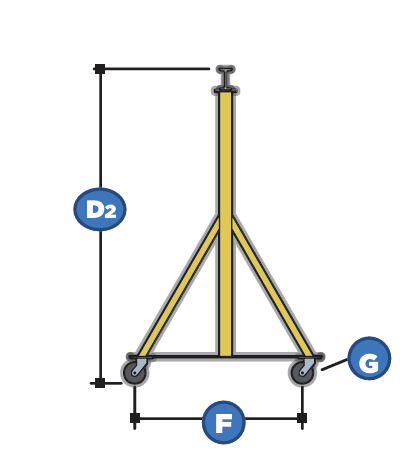

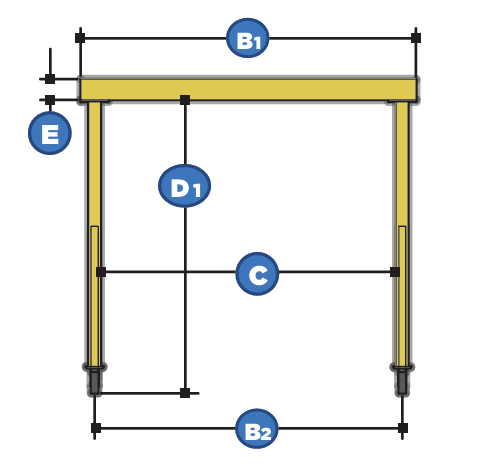

| A Capacity | MODEL | B1 Overall Span | B2 Max. Span Between Wheel Centers | C Clear Span | D1 Height Under Beam | D2 Overall Height | E1 Beam Size | E2 Flange Width | F Tread | G Caster Dia. | NET WT. | |||
| Min. | Max. | Min. | Max. | Min. | Max. | |||||||||
| 1 Ton | 1AW1007 | 3500mm | 3300mm | 1220mm | 3200mm | 1320mm | 2130mm | 1470mm | 2290mm | S150mm×12.5# | 90mm | 1220mm | 150mm | 160kg |
| 1AW1009 | 3500mm | 3300mm | 1520mm | 3200mm | 1630mm | 2710mm | 1780mm | 2900mm | S150mm×12.5# | 90mm | 1520mm | 150mm | 180kg | |
| 1AW1010 | 3500mm | 3300mm | 1680mm | 3200mm | 1780mm | 3050mm | 1930mm | 3200mm | S150mm×12.5# | 90mm | 1680mm | 150mm | 190kg | |
| 1AW1012 | 3500mm | 3300mm | 1980mm | 3200mm | 2080mm | 3660mm | 2240mm | 3810mm | S150mm×12.5# | 90mm | 1980mm | 150mm | 200kg | |
| 1AW1014 | 3500mm | 3300mm | 2290mm | 3200mm | 2390mm | 4270mm | 2540mm | 4420mm | S150mm×12.5# | 90mm | 2290mm | 150mm | 230kg | |
| 2 Ton | 2AW1007 | 3500mm | 3300mm | 1220mm | 3200mm | 1370mm | 2180mm | 1570mm | 2390mm | S200mm×18.4# | 100mm | 1220mm | 200mm | 200kg |
| 2AW1009 | 3500mm | 3300mm | 1520mm | 3200mm | 1680mm | 2790mm | 1880mm | 3000mm | S200mm×18.4# | 100mm | 1520mm | 200mm | 220kg | |
| 2AW1010 | 3500mm | 3300mm | 1680mm | 3200mm | 1830mm | 3100mm | 2030mm | 3300mm | S200mm×18.4# | 100mm | 1680mm | 200mm | 240kg | |
| 2AW1012 | 3500mm | 3300mm | 1980mm | 3200mm | 2130mm | 3710mm | 2340mm | 3910mm | S200mm×18.4# | 100mm | 1980mm | 200mm | 270kg | |
| 2AW1014 | 3500mm | 3300mm | 2290mm | 3180mm | 2440mm | 4320mm | 2640mm | 4520mm | S200mm×18.4# | 100mm | 2290mm | 200mm | 340kg | |
| 3 Ton | 3AW1007 | 3500mm | 3300mm | 1220mm | 3200mm | 1320mm | 2130mm | 1570mm | 2390mm | S250mm×25.4# | 120mm | 1220mm | 200mm | 250kg |
| 3AW1009 | 3500mm | 3300mm | 1520mm | 3200mm | 1630mm | 2710mm | 1880mm | 3000mm | S250mm×25.4# | 120mm | 1520mm | 200mm | 300kg | |
| 3AW1010 | 3500mm | 3300mm | 1680mm | 3200mm | 1780mm | 3050mm | 2030mm | 3300mm | S250mm×25.4# | 120mm | 1680mm | 200mm | 315kg | |
| 3AW1012 | 3500mm | 3300mm | 1980mm | 3200mm | 2080mm | 3660mm | 2340mm | 3910mm | S250mm×25.4# | 120mm | 1980mm | 200mm | 360kg | |
| 3AW1014 | 3500mm | 3300mm | 2290mm | 3200mm | 2130mm | 4270mm | 2640mm | 4520mm | S250mm×25.4# | 120mm | 2290mm | 200mm | 400kg | |
This type gantry cranes are heavy-duty, industrial-grade cranes designed for long service life.
■ Made from high-strength square mechanical tubing.
■ Fully-braced uprights for solid I-beam positioning.
■ Equipped with swivel casters with durable moldon polyurethane wheels for easy rolling and excellent floor protection.
| A Capacity | MODEL | B1 Overall Span | B2 Max. Span Between Wheel Centers | C Clear Span | D1 Height Under Beam | D2 Overall Height | E1 Beam Size | E2 Flange Width | F Tread | G Caster Dia. | NET WT. | |||
| Min. | Max. | Min. | Max. | Min. | Max. | |||||||||
| 1 Ton | 1AW1007 | 3500mm | 3300mm | 1220mm | 3200mm | 1320mm | 2130mm | 1470mm | 2290mm | S150mm×12.5# | 90mm | 1220mm | 150mm | 160kg |
| 1AW1009 | 3500mm | 3300mm | 1520mm | 3200mm | 1630mm | 2710mm | 1780mm | 2900mm | S150mm×12.5# | 90mm | 1520mm | 150mm | 180kg | |
| 1AW1010 | 3500mm | 3300mm | 1680mm | 3200mm | 1780mm | 3050mm | 1930mm | 3200mm | S150mm×12.5# | 90mm | 1680mm | 150mm | 190kg | |
| 1AW1012 | 3500mm | 3300mm | 1980mm | 3200mm | 2080mm | 3660mm | 2240mm | 3810mm | S150mm×12.5# | 90mm | 1980mm | 150mm | 200kg | |
| 1AW1014 | 3500mm | 3300mm | 2290mm | 3200mm | 2390mm | 4270mm | 2540mm | 4420mm | S150mm×12.5# | 90mm | 2290mm | 150mm | 230kg | |
| 2 Ton | 2AW1007 | 3500mm | 3300mm | 1220mm | 3200mm | 1370mm | 2180mm | 1570mm | 2390mm | S200mm×18.4# | 100mm | 1220mm | 200mm | 200kg |
| 2AW1009 | 3500mm | 3300mm | 1520mm | 3200mm | 1680mm | 2790mm | 1880mm | 3000mm | S200mm×18.4# | 100mm | 1520mm | 200mm | 220kg | |
| 2AW1010 | 3500mm | 3300mm | 1680mm | 3200mm | 1830mm | 3100mm | 2030mm | 3300mm | S200mm×18.4# | 100mm | 1680mm | 200mm | 240kg | |
| 2AW1012 | 3500mm | 3300mm | 1980mm | 3200mm | 2130mm | 3710mm | 2340mm | 3910mm | S200mm×18.4# | 100mm | 1980mm | 200mm | 270kg | |
| 2AW1014 | 3500mm | 3300mm | 2290mm | 3180mm | 2440mm | 4320mm | 2640mm | 4520mm | S200mm×18.4# | 100mm | 2290mm | 200mm | 340kg | |
| 3 Ton | 3AW1007 | 3500mm | 3300mm | 1220mm | 3200mm | 1320mm | 2130mm | 1570mm | 2390mm | S250mm×25.4# | 120mm | 1220mm | 200mm | 250kg |
| 3AW1009 | 3500mm | 3300mm | 1520mm | 3200mm | 1630mm | 2710mm | 1880mm | 3000mm | S250mm×25.4# | 120mm | 1520mm | 200mm | 300kg | |
| 3AW1010 | 3500mm | 3300mm | 1680mm | 3200mm | 1780mm | 3050mm | 2030mm | 3300mm | S250mm×25.4# | 120mm | 1680mm | 200mm | 315kg | |
| 3AW1012 | 3500mm | 3300mm | 1980mm | 3200mm | 2080mm | 3660mm | 2340mm | 3910mm | S250mm×25.4# | 120mm | 1980mm | 200mm | 360kg | |
| 3AW1014 | 3500mm | 3300mm | 2290mm | 3200mm | 2130mm | 4270mm | 2640mm | 4520mm | S250mm×25.4# | 120mm | 2290mm | 200mm | 400kg | |
