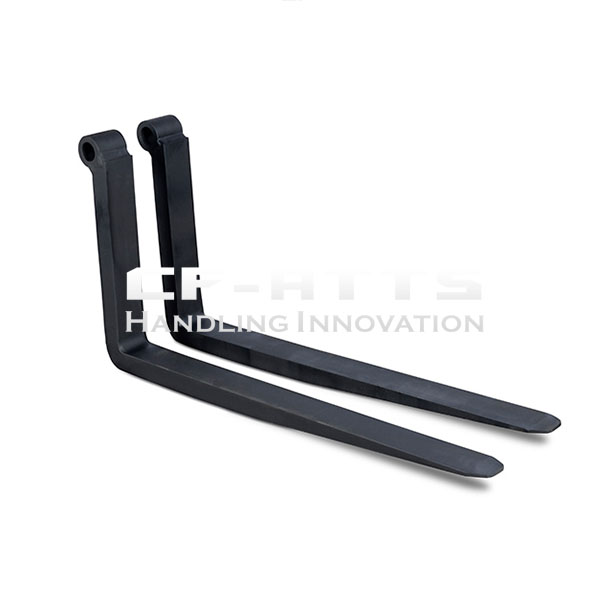

CF-ATTS Shaft Mounted Forks for Forklift-Pin Type Forks

These shaft-mounted forks suit all pin-type carriages for telehandlers and rough-terrain forklifts.
Availability:
Quantity:
Inquire

  • CF-SF Series

  • CF-ATTS

  • Designed to precisely fit each individual machine

  • Forged from heat-treated premium carbon-steel

  • Greater strength and resistance to bending

  • Fork life is rated to at least 1 million lift cycles  Including general purpose and block forks


ModelDimensions
CollarShaftRated Capacity/pair
CF-SF5950mm×50mm×1220mm×615mmCL

5mm offset 100mm wide

55mm1000kg
CF-SF60

60mm×100mm×1220mm×615mmCL

5mm offset55mm
6000kg
CF-SF6150mm×150mm×1500mm×615mmCL5mm offset55mm6000kg
CF-SF6250mm×150mm×1830mm×615mmCL5mm offset55mm6000kg
CF-SF6350mm×150mm×2440mm×615mmCL5mm offset55mm6000kg
CF-SF6450mm×50mm×1220mm×700mmCLInline50mm
1000kg
CF-SF6550mm×125mm×1220mm×700mmCLInline50mm5000kg
CF-SF6650mm×125mm×1500mm×700mmCLInline50mm5000kg
CF-SF67
50mm×125mm×1830mm×700mmCLInline50mm5000kg
CF-SF6850mm×125mm×2440mm×700mmCLInline50mm5000kg
CF-SF6950mm×50mm×1220mm×560mmCL10mm×100mm wide60mm1000kg
CF-SF7050mm×125mm×1220mm×560mmCL10mm×100mm wide60mm5000kg
CF-SF7150mm×125mm×1500mm×560mmCL10mm×100mm wide60mm5000kg
CF-SF7250mm×125mm×1830mm×560mmCL10mm×100mm wide60mm5000kg
CF-SF73
50mm×125mm×2440mm×560mmCL10mm×100mm wide60mm5000kg
CF-SF74
50mm×50mm×1220mm×615mmCL25mm offset
50mm
1000kg
CF-SF7555mm×100mm×1220mm×615mmCL25mm offset50mm6000kg
CF-SF7650mm×150mm×1500mm×615mmCL25mm offset50mm6000kg
CF-SF7750mm×150mm×1830mm×615mmCL25mm offset50mm6000kg
CF-SF7850mm×150mm×2440mm×615mmCL25mm offset50mm6000kg
CF-SF8055mm×100mm×1220mm×615mmCL25mm offset55mm6000kg
CF-SF8150mm×150mm×1500mm×615mmCL25mm offset55mm6000kg
CF-SF8250mm×150mm×1830mm×615mmCL25mm offset55mm6000kg
CF-SF8350mm×150mm×2440mm×615mmCL25mm offset55mm6000kg
