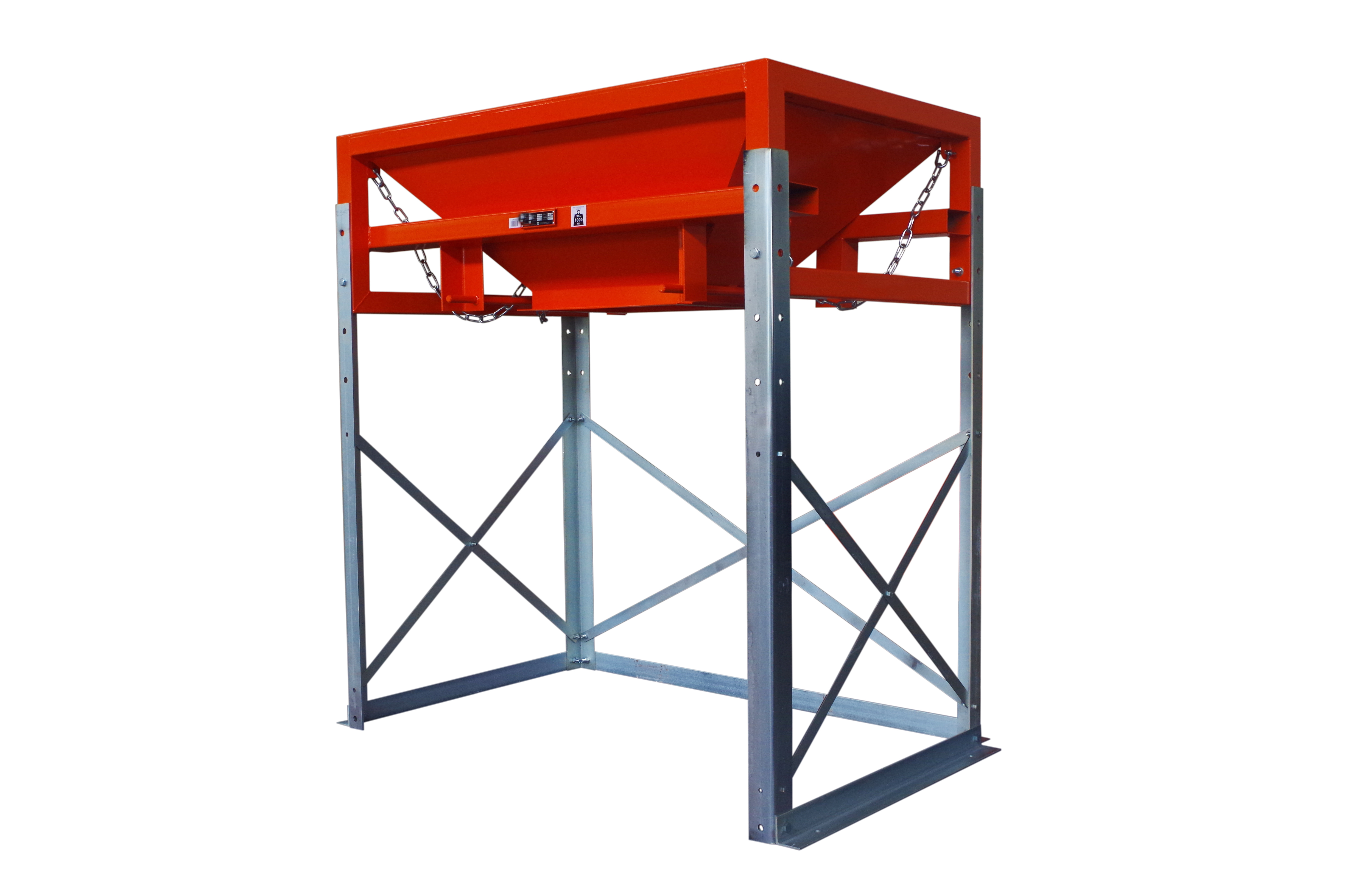

CF-BFH250 Bulk Bag Filling Hopper With Frame

The CF-BFH250 BULK BAG FILLING HOPPER saves hours of labour and reduces risk of injury. This frame is designed to safely hook open a bulk bag and fill with free-flowing bulk products such as sand and gravel, removing the need for the operator to hold the bag open or manually fill themselves.


SPECIFICATIONS:

• 4 safety swivel hooks hold bulk bag in position whilst filling

• Adjustable bag restraining chains position bulk bag at correct height

• 3 adjustable height settings to suit your operational requirements

• Fork pockets fitted for easy transport

• Optional clamshell gate (BFH250CS) for control over flow rate

• Optional spill guard (BFH250SG) prevents overspill

• Upper hopper assembly enamel paint finish. Support frame zinc finich

• Working Load Limit (WLL): 1000kg

• Overall Dimensions; 1800 x 1150mm

• Hopper Opening: 554 x 400mm

• Unit Weight: 270kg * Unit weight does not include optional clamshell gate or spill guard

• Fork Pocket Size: 140 x 65mm

• Fork Pocket Centres: 850mm
