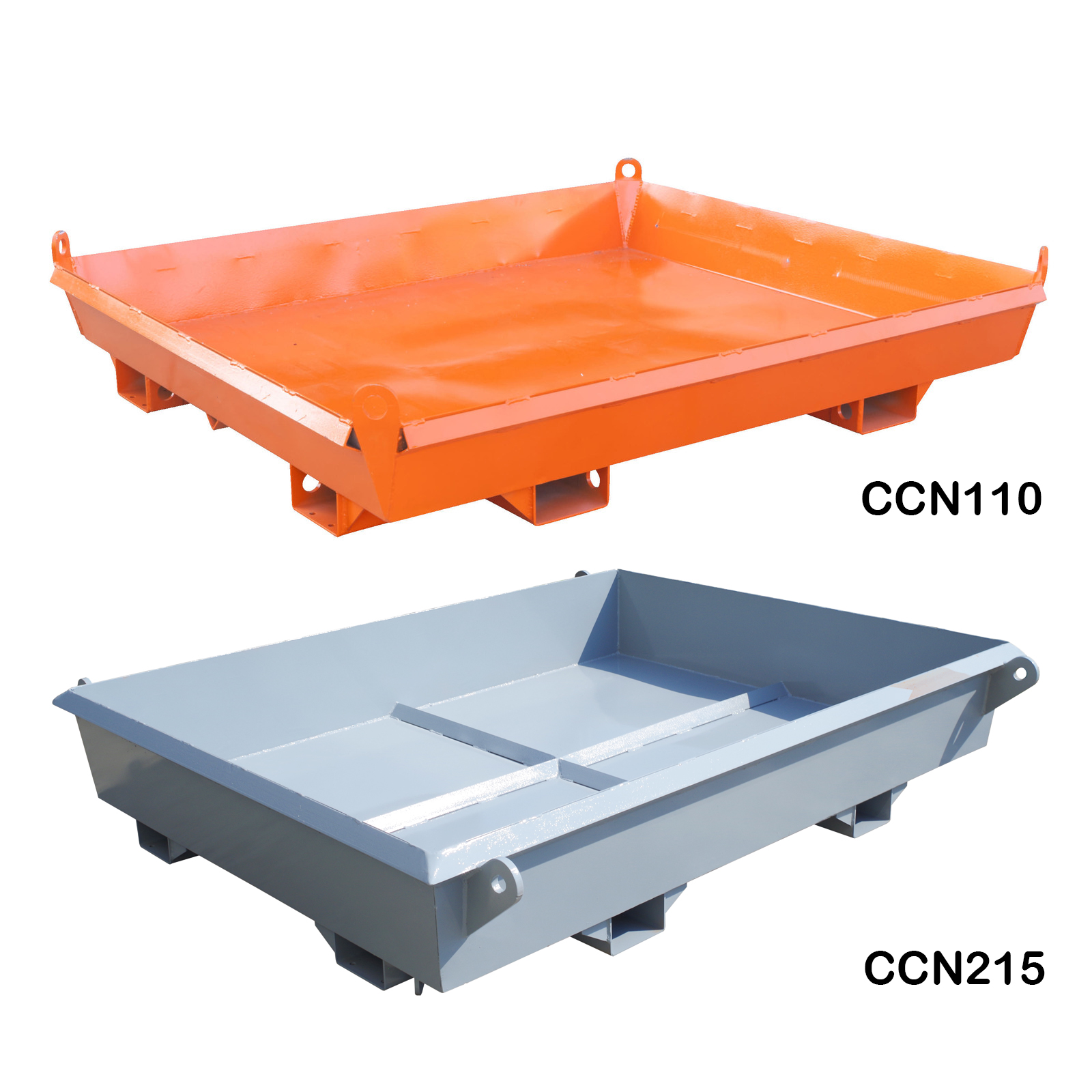

CF-CCT110/CF-CCT215
CF-ATTS

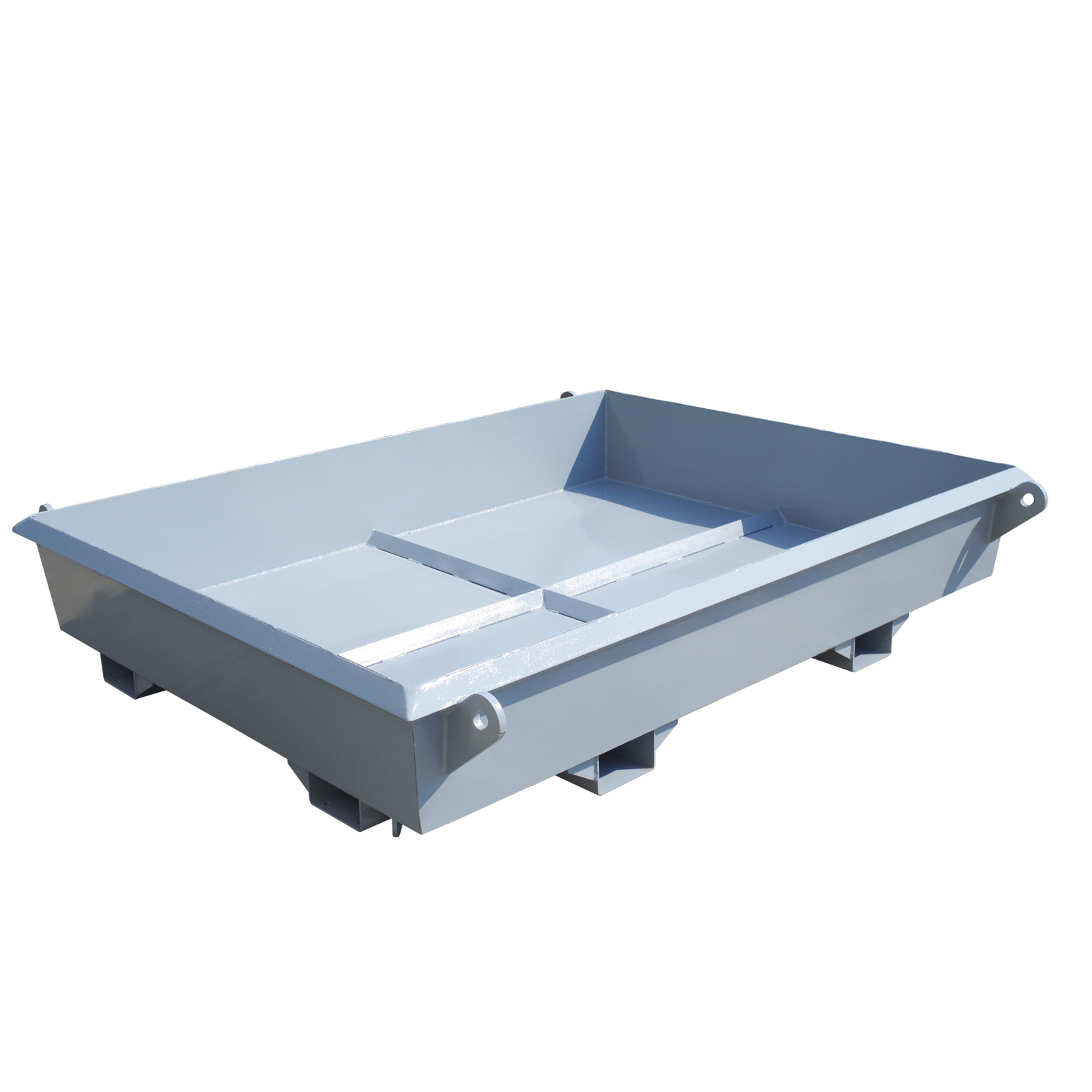

The Concrete Collection Trays are designed to limit environmental damage wherever a concrete pump is being used on site. This low profile tray fits under the concrete pump to collect spillage washout water and concrete waste.
· Low profile tray with tapered sides
· Reinforced base and sides
· Fitted with crane lifting and up-ending lugs
· 4-way fork pockets allowing access from all sides
· Optional disposable plastic liner (CCTDPL)
· Enamel paint finish
Model | Working Load Limit | Capacity | Overall Dimensions (LxWxH) | Fork Pocket Size | Fork Pocket Centres | Unit Weight |
CF-CCT110 | 1000kg | 0.5 cu.m | 1860x1560x360mm | 170 x 85mm | 880mm | 150kg |
CF-CCT215 | 1500kg | 0.85 cu.m | 2070x1765x400mm | 160 x 75mm / 160 x 95mm | 870mm | 215kg |
The Concrete Collection Trays are designed to limit environmental damage wherever a concrete pump is being used on site. This low profile tray fits under the concrete pump to collect spillage washout water and concrete waste.
· Low profile tray with tapered sides
· Reinforced base and sides
· Fitted with crane lifting and up-ending lugs
· 4-way fork pockets allowing access from all sides
· Optional disposable plastic liner (CCTDPL)
· Enamel paint finish
Model | Working Load Limit | Capacity | Overall Dimensions (LxWxH) | Fork Pocket Size | Fork Pocket Centres | Unit Weight |
CF-CCT110 | 1000kg | 0.5 cu.m | 1860x1560x360mm | 170 x 85mm | 880mm | 150kg |
CF-CCT215 | 1500kg | 0.85 cu.m | 2070x1765x400mm | 160 x 75mm / 160 x 95mm | 870mm | 215kg |
