CF-CQM
CF-ATTS

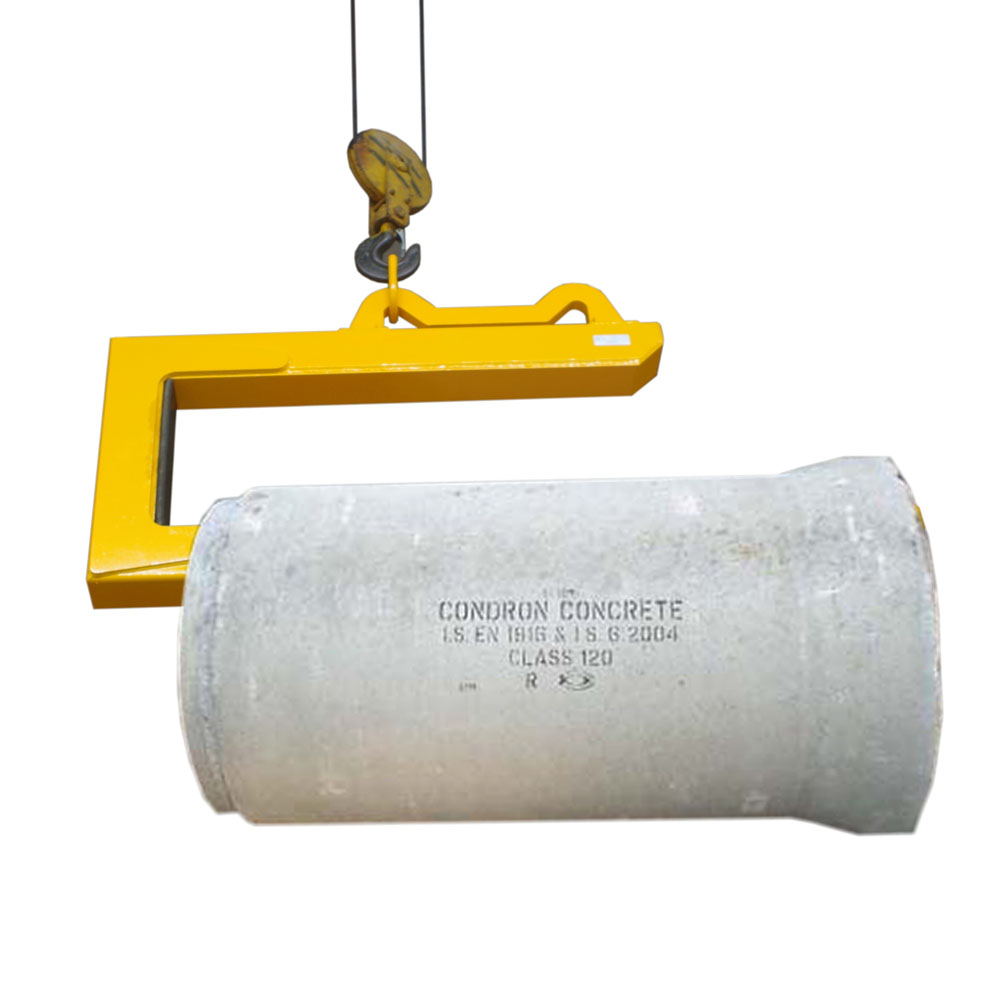

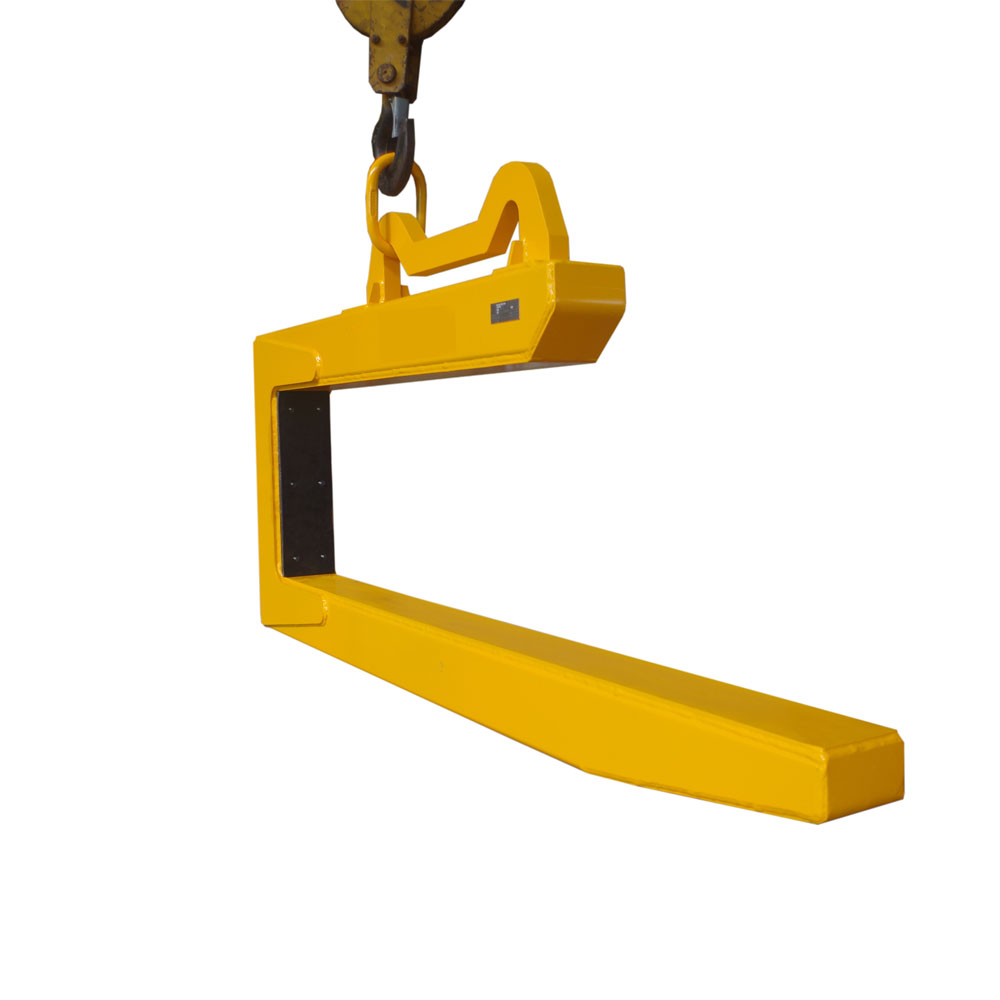

The CF-CQM Concrete Pipe Lifters are designed to safely handle concrete pipe sections or similar by overhead crane.
FEATURES:
For use with concrete pipes
Lifts, transports and places pipe sections with a length of 2450mm
Load is balanced by moving the lifting ring between the loaded or unloaded positions
Rubber buffer pads are fitted to prevent damage to the pipe
Zinc finish
Load Centre: 1200mm
Inside Clearance: 500mm
Model | Working Load Limit | Clear Hook Arm Length | Unit Weight |
| CF-CQM125 | 1250kg | 1985mm | 160kg |
| CF-CQM150 | 2500kg | 2000mm | 250kg |
The CF-CQM Concrete Pipe Lifters are designed to safely handle concrete pipe sections or similar by overhead crane.
FEATURES:
For use with concrete pipes
Lifts, transports and places pipe sections with a length of 2450mm
Load is balanced by moving the lifting ring between the loaded or unloaded positions
Rubber buffer pads are fitted to prevent damage to the pipe
Zinc finish
Load Centre: 1200mm
Inside Clearance: 500mm
Model | Working Load Limit | Clear Hook Arm Length | Unit Weight |
| CF-CQM125 | 1250kg | 1985mm | 160kg |
| CF-CQM150 | 2500kg | 2000mm | 250kg |
