CF-DBB
CF-ATTS

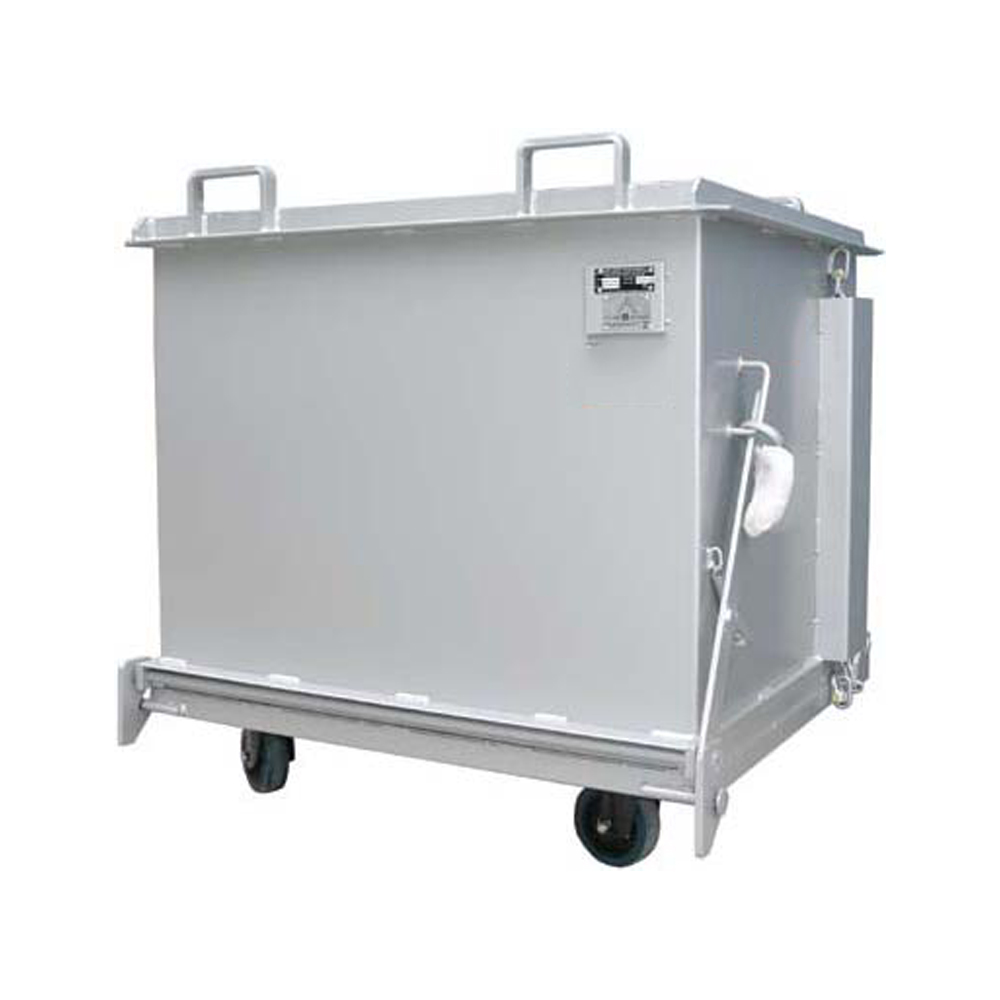

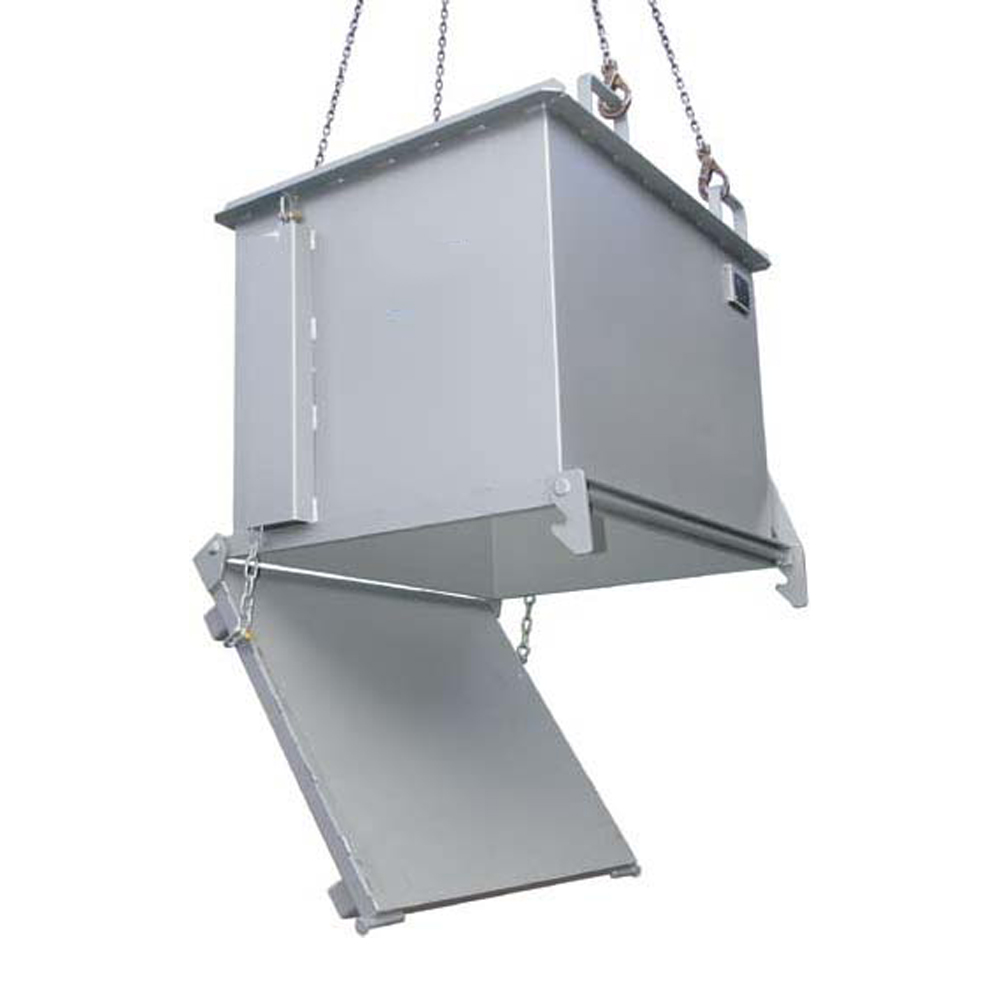

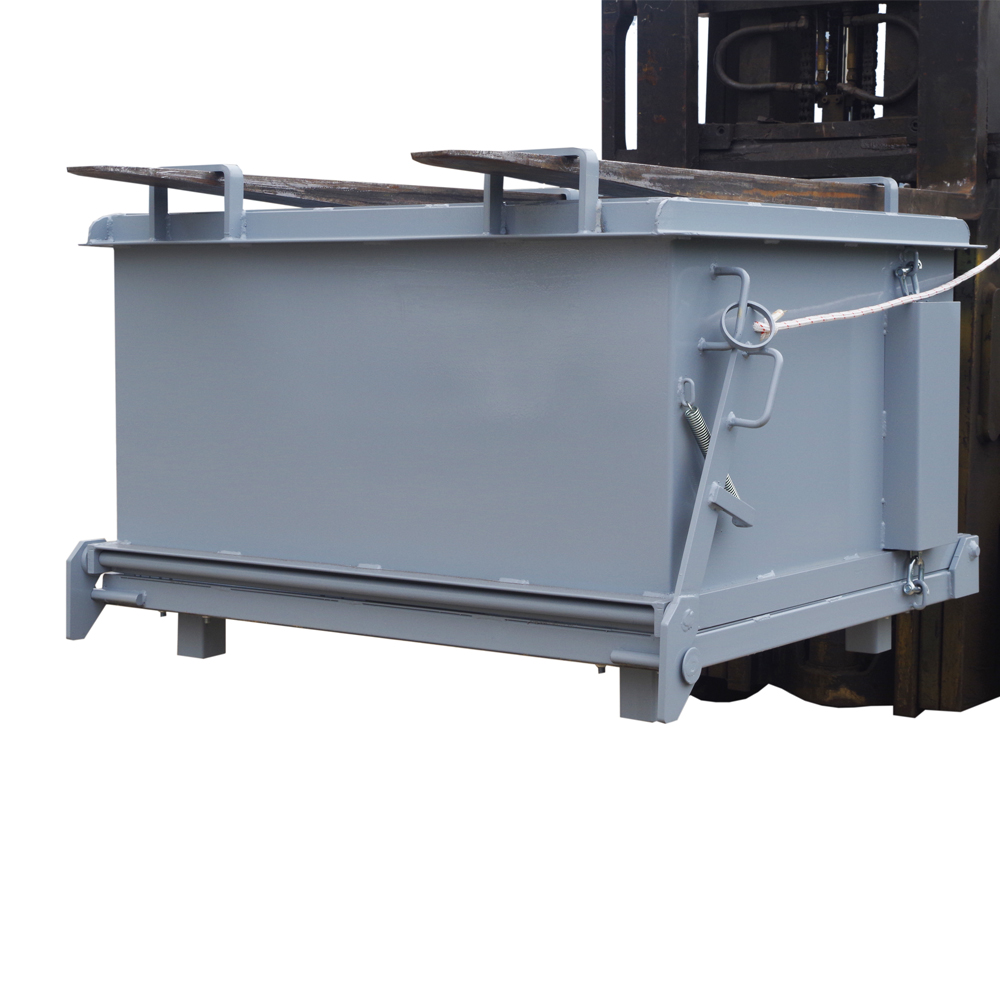

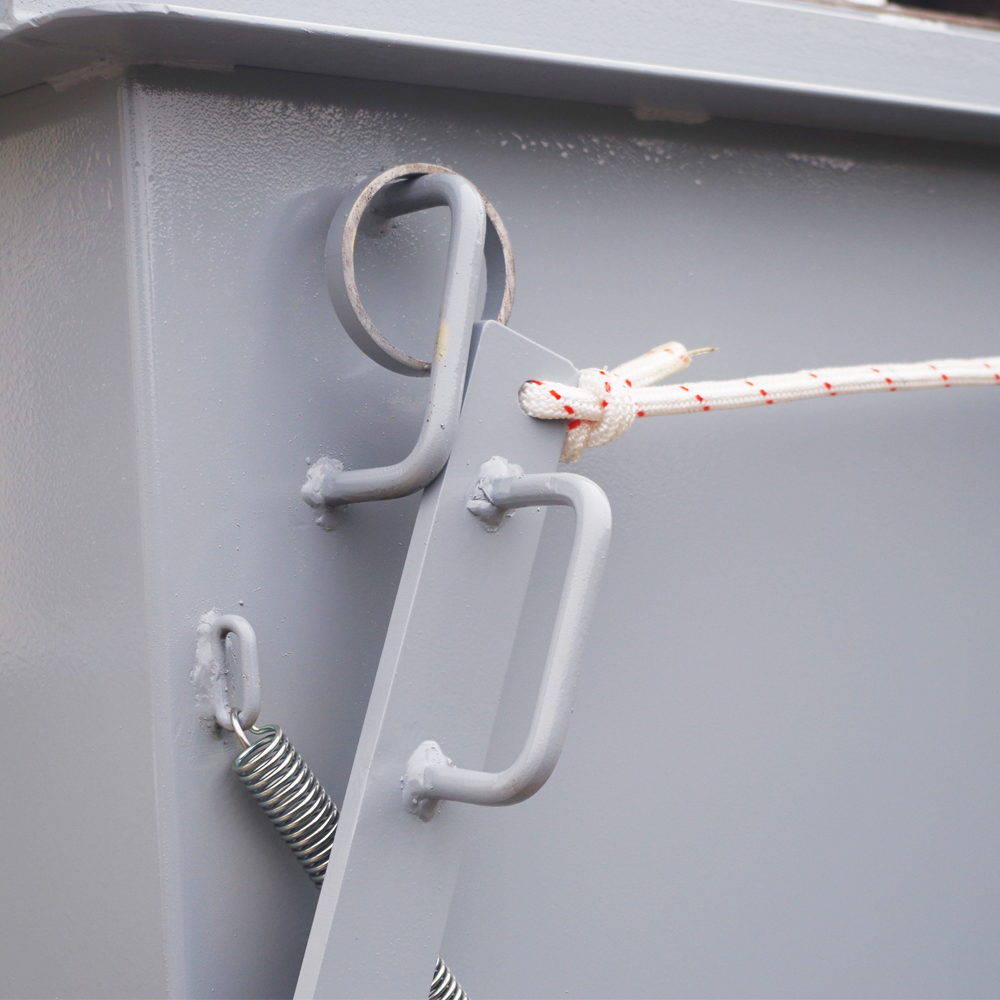

The CF-DBB Drop Bottom Bin is a heavy duty unit manufactured from 3mm plate and is reinforced to handle all types of solid waste product. Able to be transported by either forklift or crane, the "Drop Floor Empty" function is activated by a lever and remains within the footprint of the bin. This makes it ideal for space-restricted situations where other bins cannot be used. The lever release can be used with a rope for emptying from the seat of your forklift. Shock absorbing system removes all impact from forklift or crane during emptying. Enamel painted finish.
Model | Volume | Capacity | Overall Length | Overall Width | Overall Height | Fork Pocket Size | Fork Pocket Center | Weight |
m³ | kg | mm | mm | mm | mm | mm | kg | |
CF-DBB 500 | 0.5 | 1000 | 1025 | 1200 | 745 | 160x65 | 684 | 200 |
CF-DBB 800 | 0.8 | 1000 | 1025 | 1200 | 1045 | 160x65 | 684 | 225 |
CF-DBB 1100 | 1.1 | 1000 | 1025 | 1200 | 1345 | 160x65 | 684 | 250 |
The CF-DBB Drop Bottom Bin is a heavy duty unit manufactured from 3mm plate and is reinforced to handle all types of solid waste product. Able to be transported by either forklift or crane, the "Drop Floor Empty" function is activated by a lever and remains within the footprint of the bin. This makes it ideal for space-restricted situations where other bins cannot be used. The lever release can be used with a rope for emptying from the seat of your forklift. Shock absorbing system removes all impact from forklift or crane during emptying. Enamel painted finish.
Model | Volume | Capacity | Overall Length | Overall Width | Overall Height | Fork Pocket Size | Fork Pocket Center | Weight |
m³ | kg | mm | mm | mm | mm | mm | kg | |
CF-DBB 500 | 0.5 | 1000 | 1025 | 1200 | 745 | 160x65 | 684 | 200 |
CF-DBB 800 | 0.8 | 1000 | 1025 | 1200 | 1045 | 160x65 | 684 | 225 |
CF-DBB 1100 | 1.1 | 1000 | 1025 | 1200 | 1345 | 160x65 | 684 | 250 |
