CF-DCQH8-16
CF-ATTS

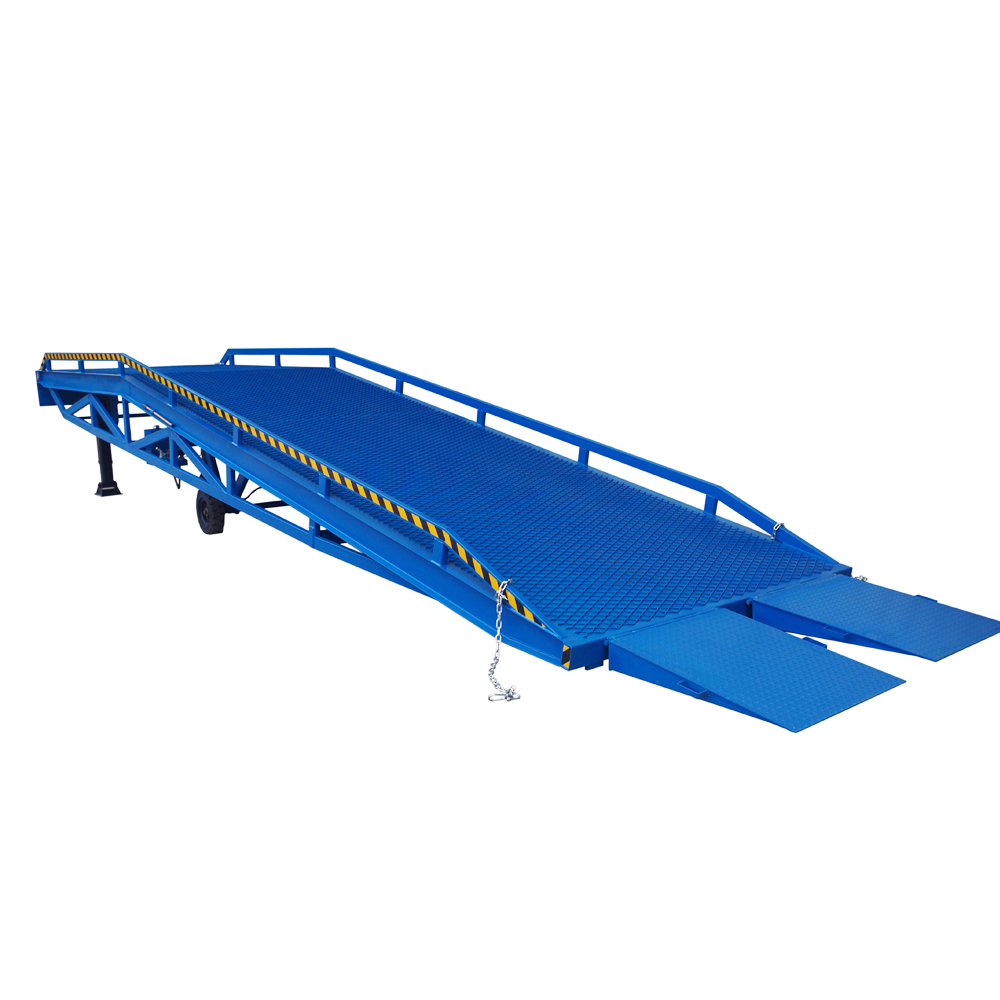

Yard Ramps, also called Portable Loading Ramps or Portable Loading Docks, are a safe and cost effective answer to many loading dock issues. We have more experience and has built more yard ramps than anyone, by far. Our standard design translates into a custom solution that is quickly delivered to your job site and lasts for many years.
We can supply 8-16T yard ramp

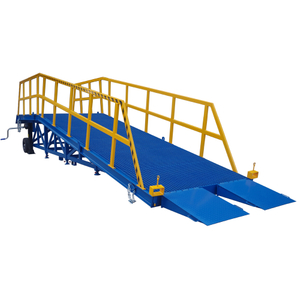

Hand rails are optional
Fork pockets boths side make it easier to move the yard ramp by forklift
Each yard ramp has lifting eye for loading and trasportation.

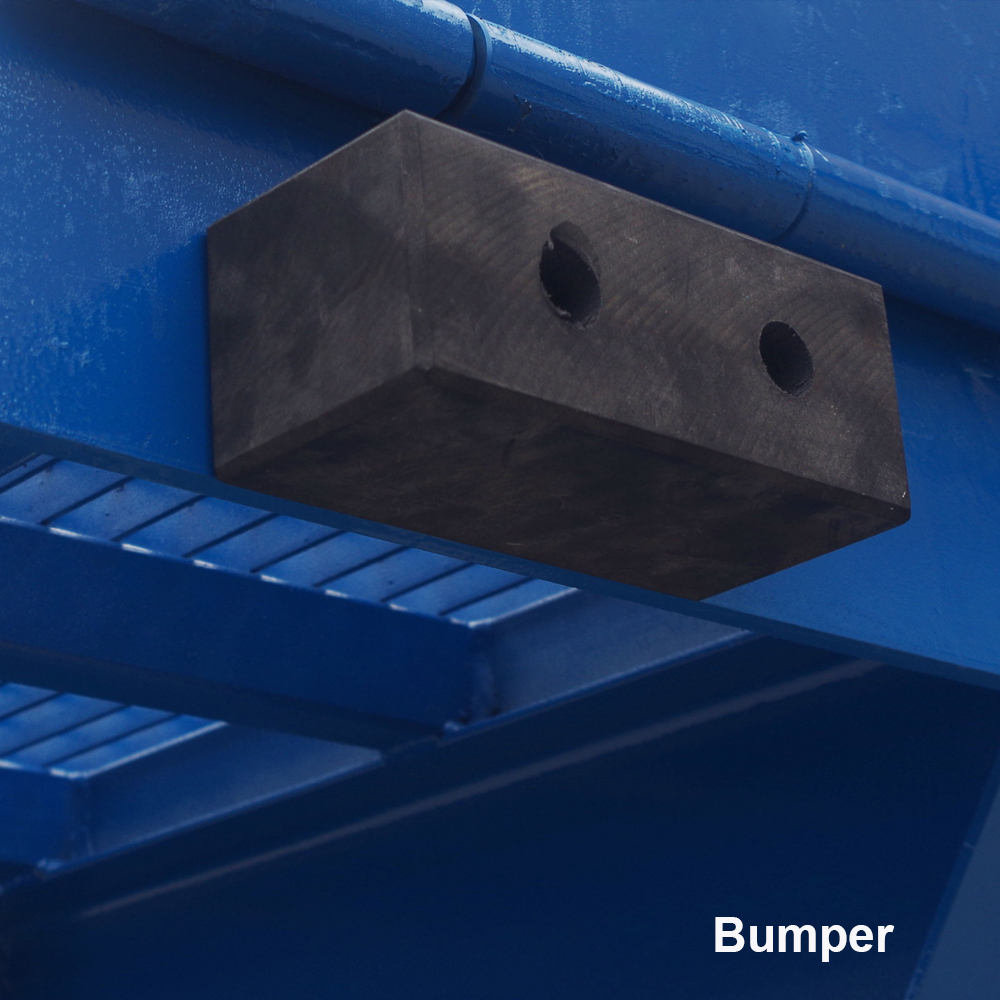

Bumpers ahead can protect both truck or ramps
| Model | Weight (kg) | Overall Length in mm (including approach plate) | Dimensions (Platform + Ramp L x W x H including a 1000mm approach plate) |
| CF-DCQH8T-GS-HR | 3090 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH8T-GS-L | 3090 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH8T-GS-L-HR | 3346 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH10T-GS | 2880 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH10T-GS-HR | 3136 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH10T-GS-L | 3130 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH10T-GS-L-HR | 3386 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH12T-GS | 3100 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH12T-GS-HR | 3320 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH12T-GS-L | 3400 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH12T-GS-L-HR | 3656 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH16T-GS | 3300 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH16T-GS-HR | 3520 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH16T-GS-L | 3710 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH16T-GS-L-HR | 3966 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
Yard Ramps, also called Portable Loading Ramps or Portable Loading Docks, are a safe and cost effective answer to many loading dock issues. We have more experience and has built more yard ramps than anyone, by far. Our standard design translates into a custom solution that is quickly delivered to your job site and lasts for many years.
We can supply 8-16T yard ramp
Hand rails are optional
Fork pockets boths side make it easier to move the yard ramp by forklift
Each yard ramp has lifting eye for loading and trasportation.
Bumpers ahead can protect both truck or ramps
| Model | Weight (kg) | Overall Length in mm (including approach plate) | Dimensions (Platform + Ramp L x W x H including a 1000mm approach plate) |
| CF-DCQH8T-GS-HR | 3090 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH8T-GS-L | 3090 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH8T-GS-L-HR | 3346 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH10T-GS | 2880 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH10T-GS-HR | 3136 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH10T-GS-L | 3130 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH10T-GS-L-HR | 3386 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH12T-GS | 3100 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH12T-GS-HR | 3320 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH12T-GS-L | 3400 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH12T-GS-L-HR | 3656 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH16T-GS | 3300 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH16T-GS-HR | 3520 | 10000mm | 3000mm + 7000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH16T-GS-L | 3710 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
| CF-DCQH16T-GS-L-HR | 3966 | 13000mm | 3000mm + 9000mm x 2200mm x 1200mm-1680mm |
