CF-FSC
CF-ATTS

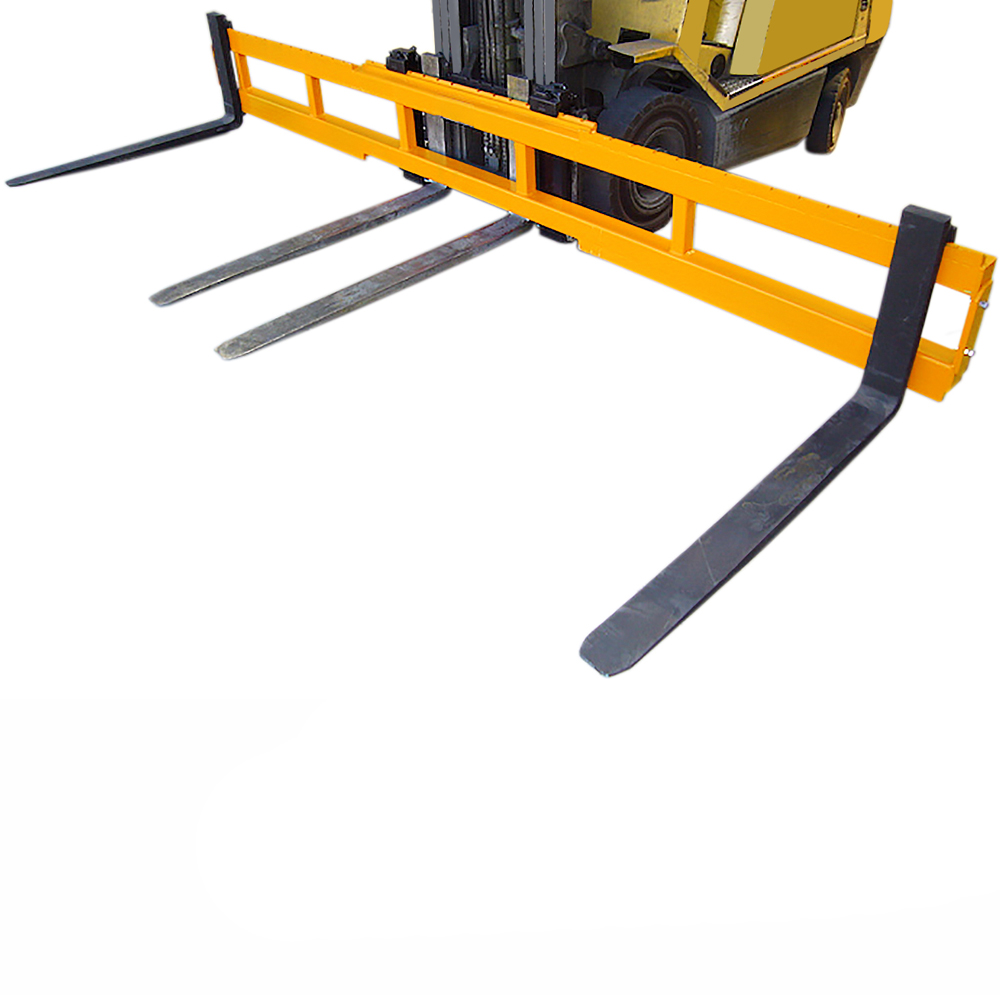

The CF-FSC Carriage Mounted Fork Spreader is designed to safely lift extra wide or flexible loads without the risk of damage to products such as plasterboard, roof sheeting, timber or plastic tubing.
FEATURES:
• 3.64m wide spreader
• Evenly distributes the load over its full length
• Carriage connection to the forklift without requiring slippers
• Adjustable hook-on points allow fork arms to be positioned in optimum position
• Quick release bottom hooks ensure safe and easy connection to forklift truck
• Supplied with outer forks 1070mm long
• Outer forks are adjustable between 1300 and 3500mm centres allowing use with wide loads
• Enamel paint finish
| Model | Mounting Class | WLL @ LC (kg @ mm) | Overall Width (mm) | Fork Arms (mm) | Lost Load (mm) | Unit Weight (kg) |
|---|---|---|---|---|---|---|
| CF-FSC236 | Class II | 2500 @ 600 | 3640 | 125 x 35 x 1070 | 160 | 280 |
| CF-FSC336 | Class III | 3000 @ 600 | 3640 | 125 x 50 x 1070 | 205 | 430 |
