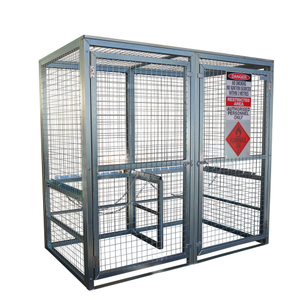

CF-GC-CM2 Gas Cylinder Storage Cage

The type CF-GC-CM2 Gas Cylinder Storage Cage has been designed primarily as a secure storage unit for building sites and mines. The lockable gate, mesh sides and roof sheeting ensure cylinder and gear security. The Cage is fitted with a 4 point Crane lift and Forklift pockets underneath for transport. The internal loadbinder prevents cylinder movement during transport.

The CF-GC-CM2 Gas Cylinder Storage Cage can be supplied either welded fully assembled (type CF-GC-CM2A) or as a flatpack (CF-GC-CM2F).

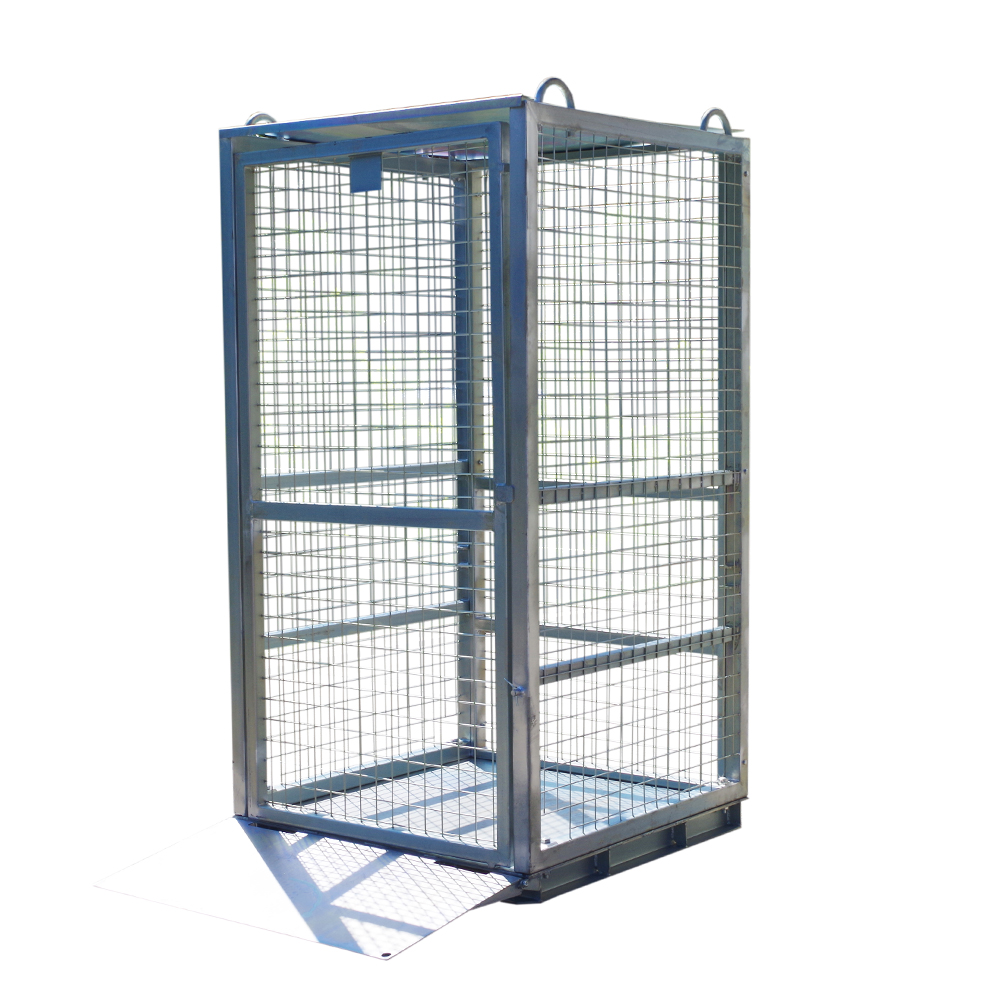

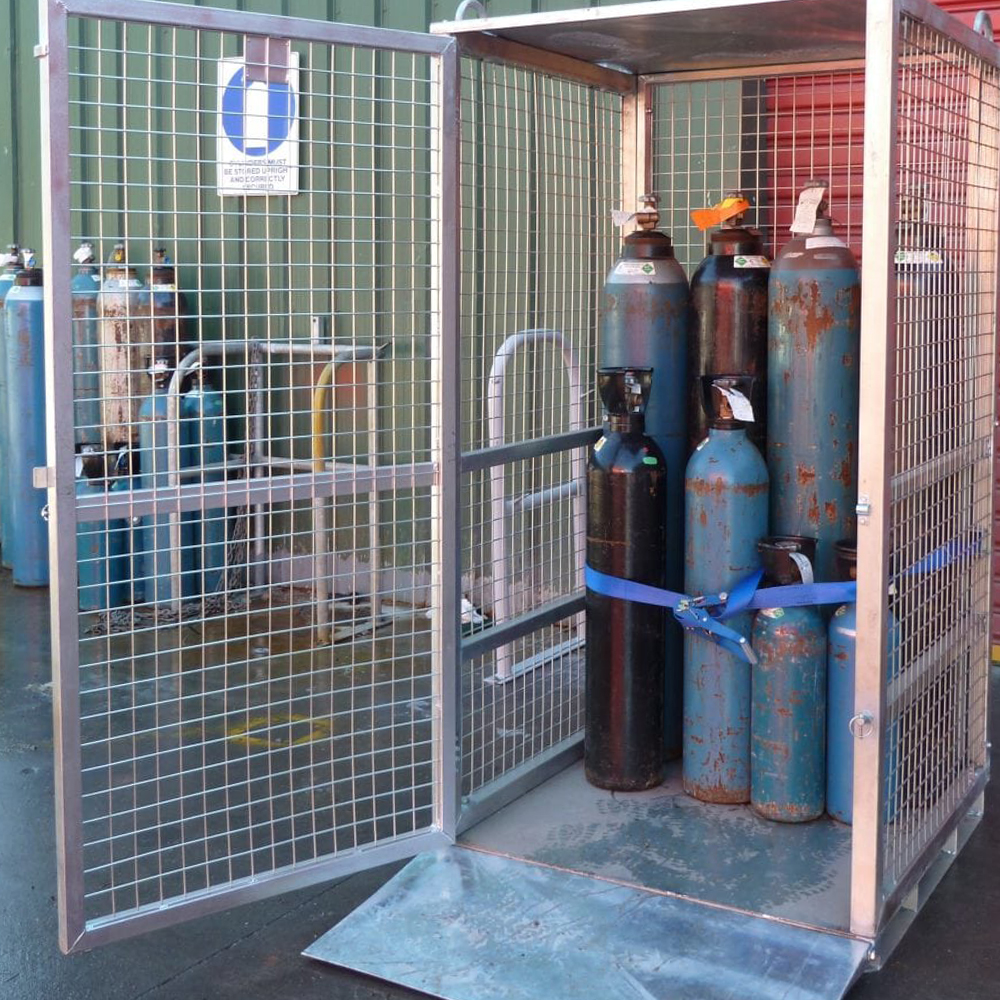

We also offer a model fitted with a fold down ramp that allows for easy movement of cylinders.

Part numbers are CF-GB-CM2-RPA (Ramp model / Assembled) or CF-GC-CM2-RPF (Ramp model /Flatpacked).

The standard finish is Zinc Plated.

·        Safe Working Load: 750kg

·        Load Centre: 515mm

·        HCG: 600mm

·        Overall Size (WxDxH): 1060x1060x1900mm

·        Internal Size (WxDxH): 930x930x1850mm

·        Fork Pocket Size: 165x65mm

·        Fork Pocket Centre: 665mm

·        Unit Weight: 180kg
