CF-NWB-T1/2
CF-ATTS

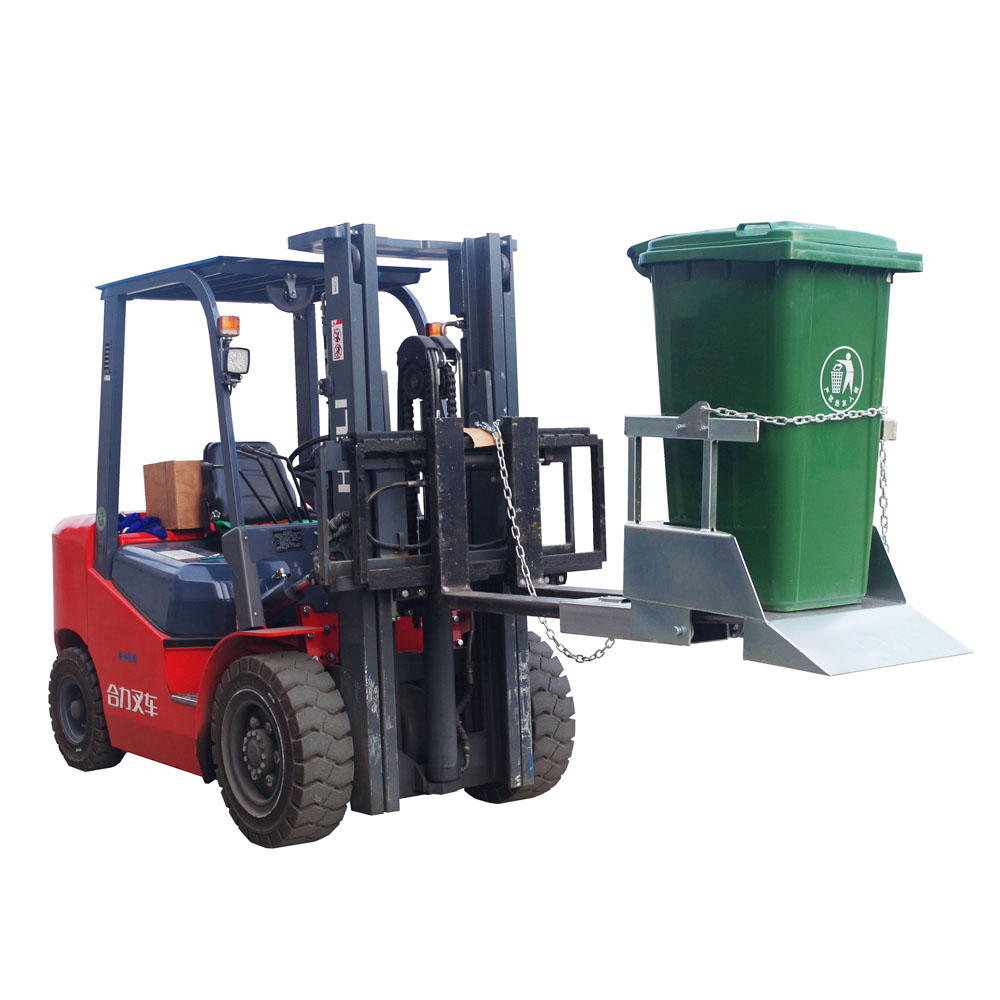

The type CF-WBT-1 Wheelie Bin Tipper is designed for emptying a standard 240-litre plastic bin. The bin is secured in the cradle and by a safety chain, allowing it to be lifted or transported about the workplace, and emptied. The tipping operation is simple and safe, with the operator never having to leave his seat.

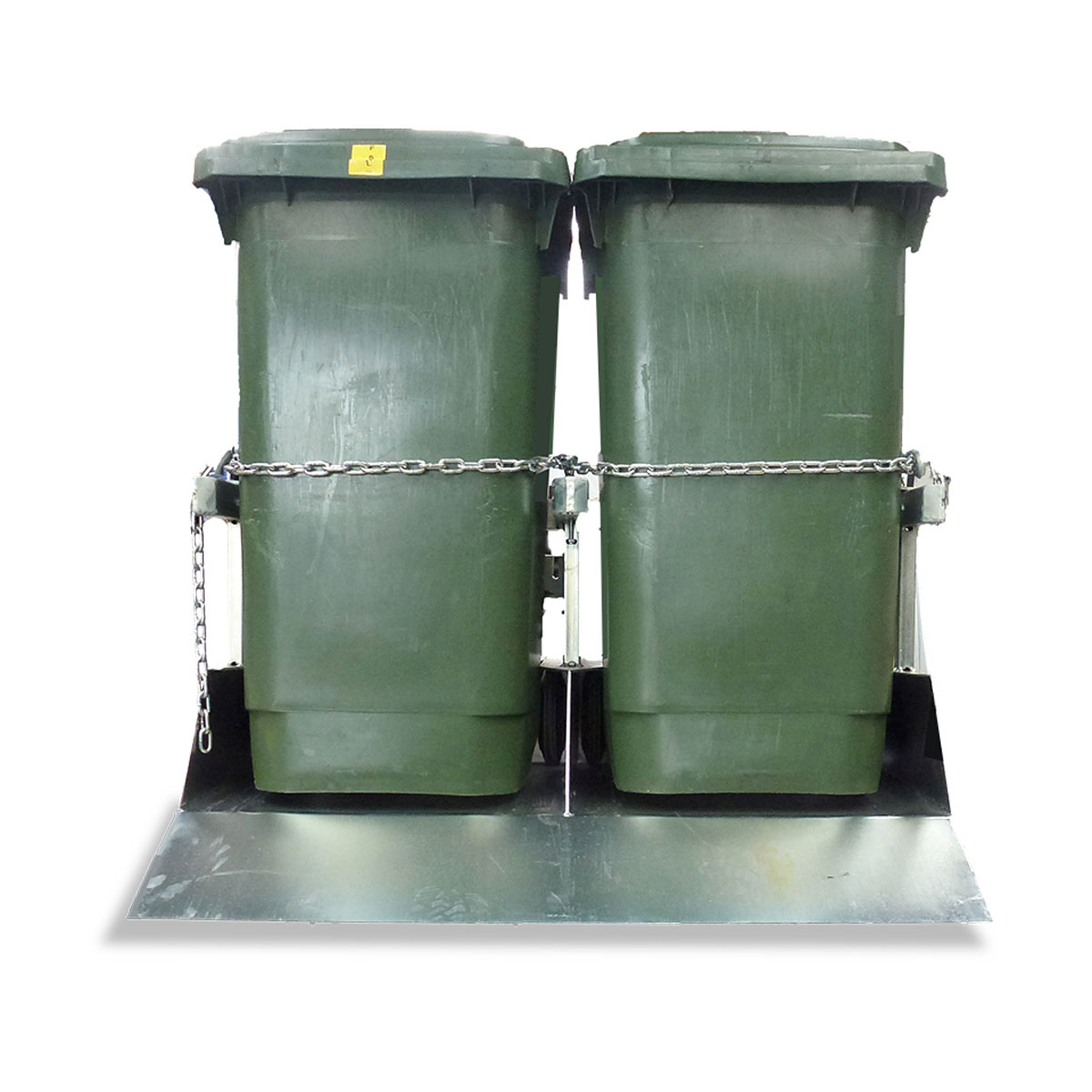

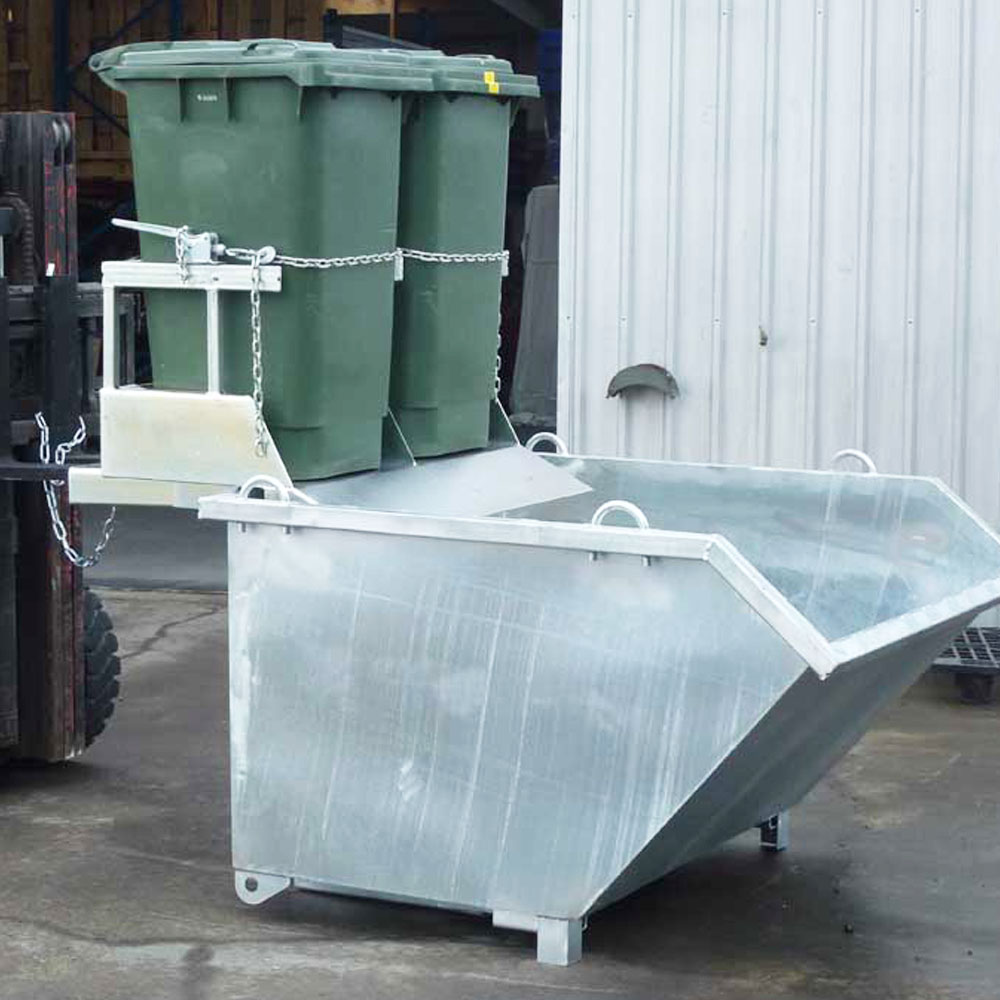

The type CF-WBT-2 Wheelie Bin Tipper is designed for emptying 1 or 2 standard 240-litre plastic bins. Similar to CF-WBT-1.
Ramp fitted for wheeling bin into position
Safety Chain and backrest used to secure bin in cradie

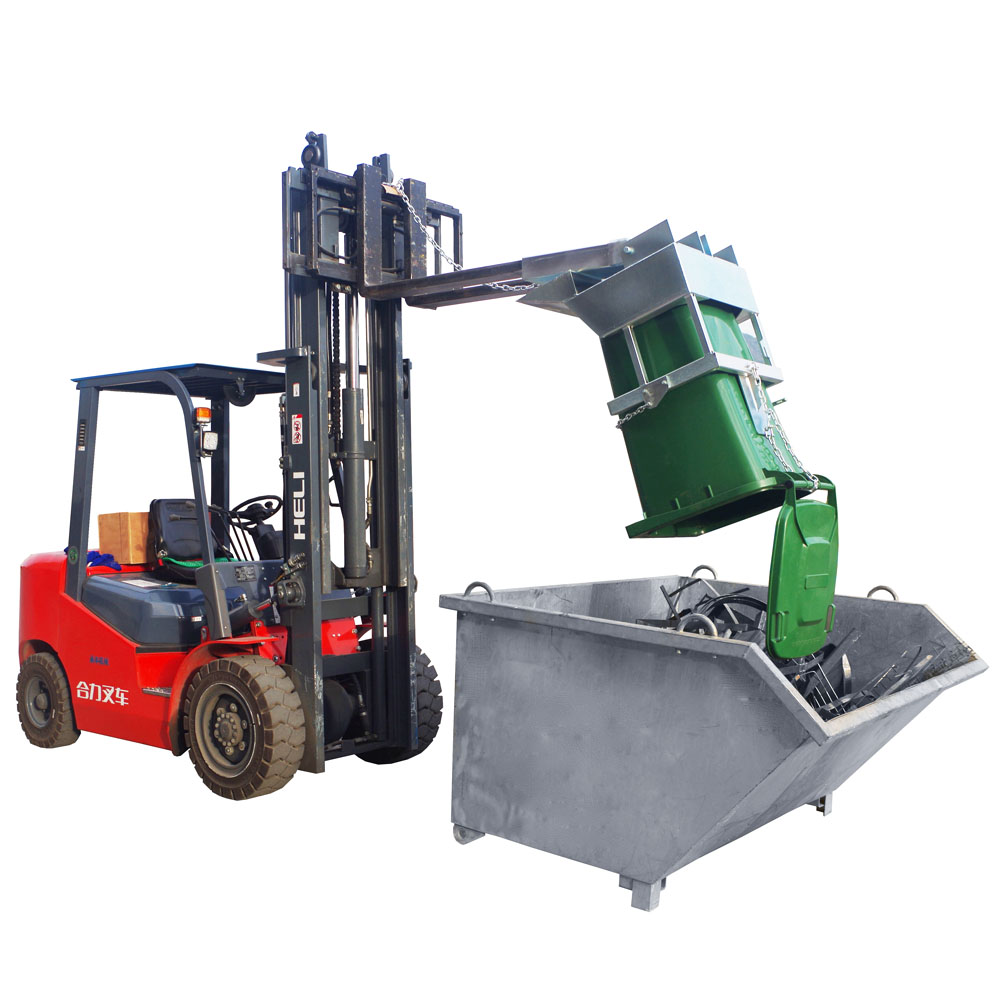

Simple tipping action
Silp-on attachment allows quick connection to a forklift
| Model | No. of Bins | SWL | Fork Pocket Centres | Fork Pocket Size | Load Centre | Unit Weight |
| (kg) | (mm) | (mm) | (mm) | (kg) | ||
| CF-WBT-1 | 1x240 litre | 500 | 310 | 165x65 | 1200 | 100 |
| CF-WBT-2 | 2x240 litre | 1000 | 310 | 165x65 | 1200 | 150 |
