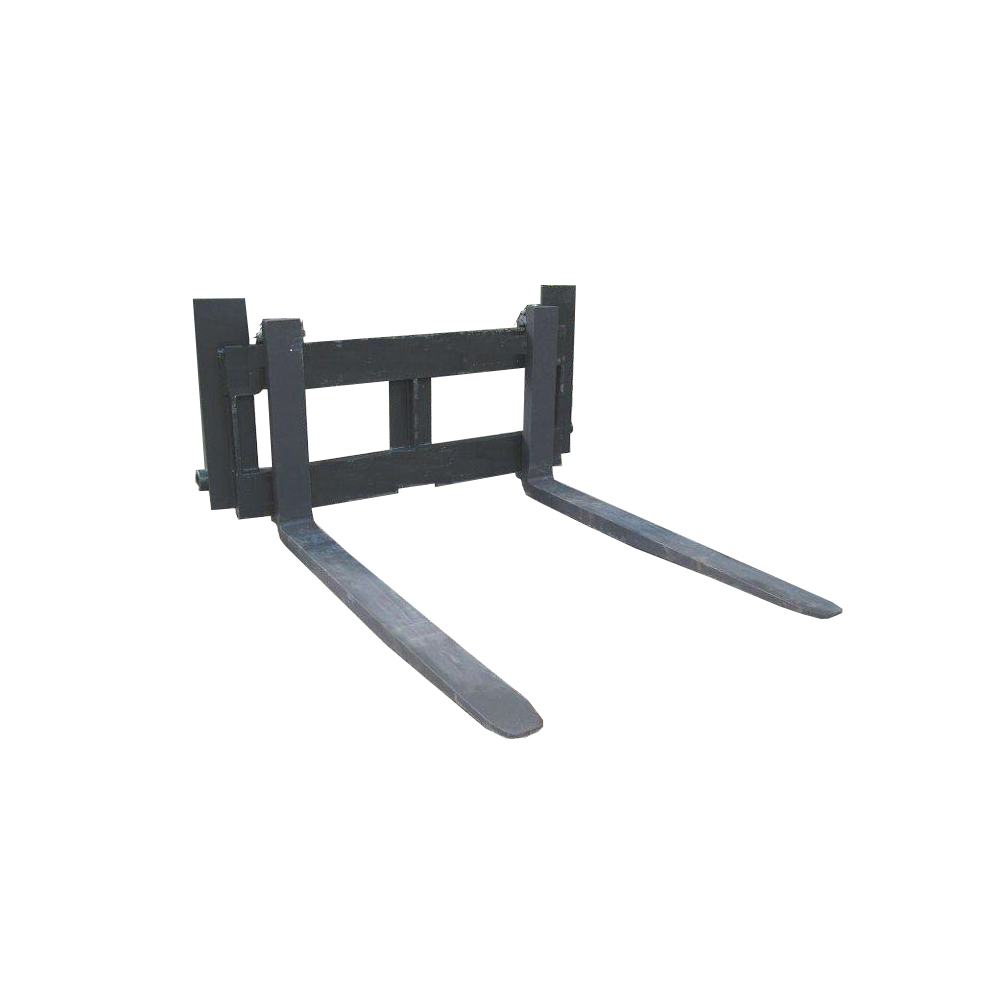

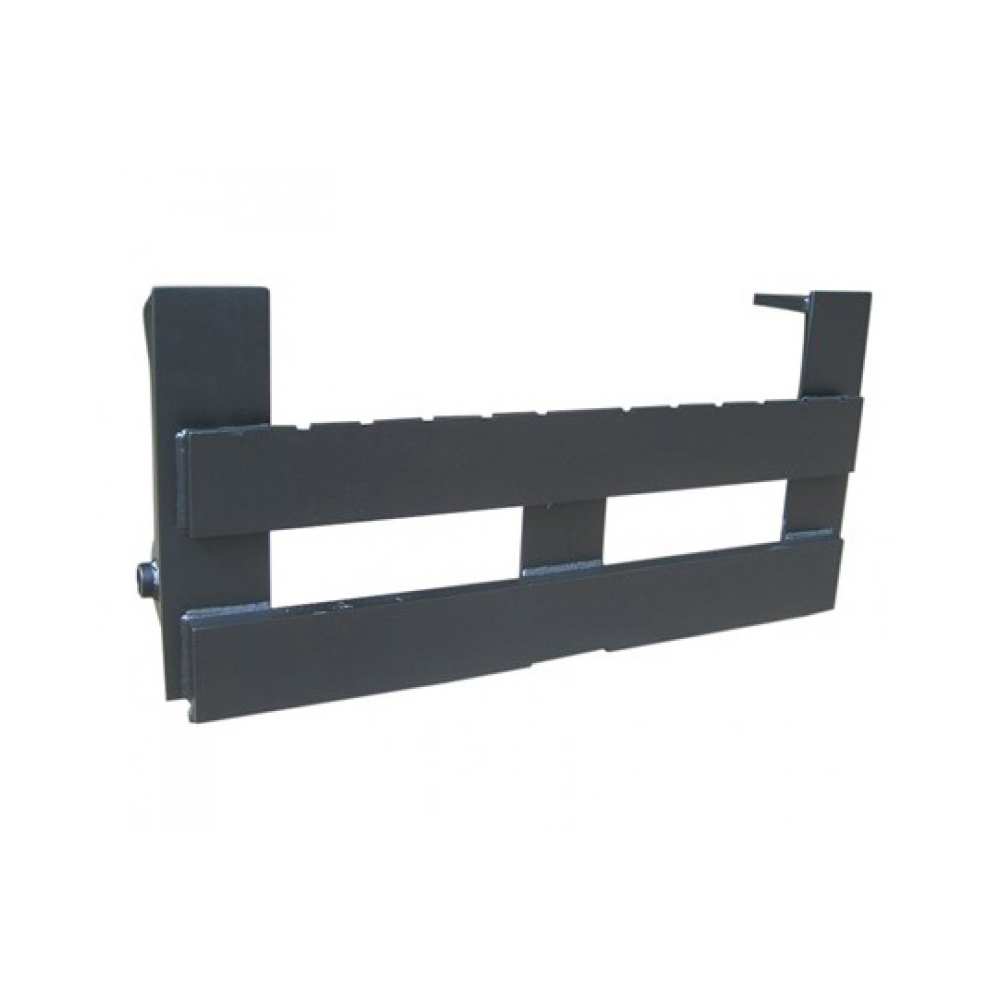

CFP Pallet Fork Carriages

This Pallet Fork Carriage is designed suit a variety of Pallet Forks and Machines. For industrial type pallet

forks, our CFP39 and CFP40 carriages are available.

For forks which fit over a fixed bar (E.g. Merlo Forks), we have our CFP32 and for forks that fit on a floating bar (E.g.  JCB Forks), we have our CFP41.

All Pallet Fork Carriages come with brackets as standard with the option of being supplied with our without the  pallet forks they are designed to carry.

Features:

• Spread, all of our carriages are as wide as possible, allowing a wide spread of  the forks.

• Strength, built to the highest standards, our carriages are built to maintain as  much of the machines lift capacity as possible.

• Quick and Simple, built with brackets as standard, our carriages can be easily  detached when you want to use an attachment.

• Compact, designed and built to be as compact as possible to your machine,  helping to keep your load centres as close as possible.










  Model	Description	Capacity(kg)	Width(mm)	Height(mm)	Depth(mm)
  CFP39EC	Class ITA 2	1500	1000	400	55
  CFP39	Class ITA 2	2000	1168	406	62
  CFP40	Class ITA 3	4000	1168	508	62
  CFP50	Class ITA 4	5500	1168	508	62
  CFP41	JCB 50mm Bar Fork Carriage	3500	1250	1165	310
  CFP51	JCB 58mm Bar Fork Carriage	5500	1250	1165	310
  CFP32	Merlo Fork Carriage	3500	1225	600	120
