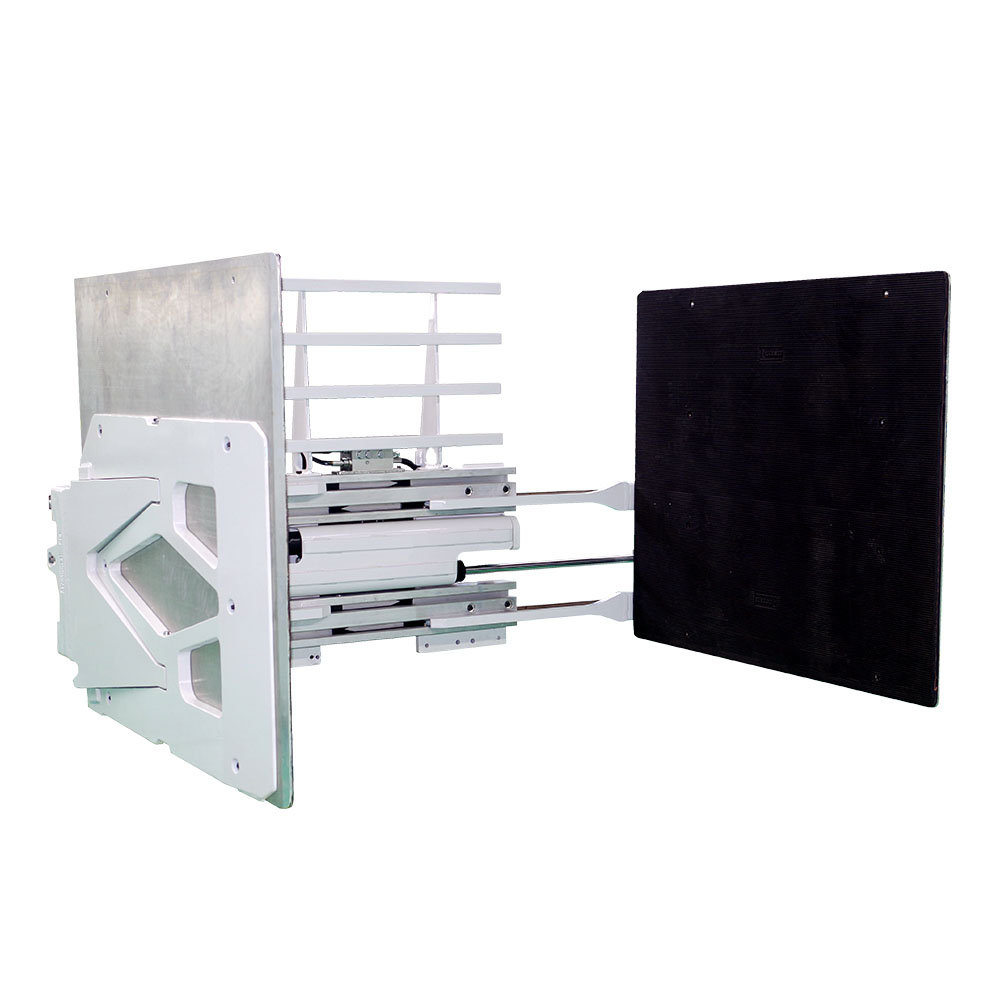

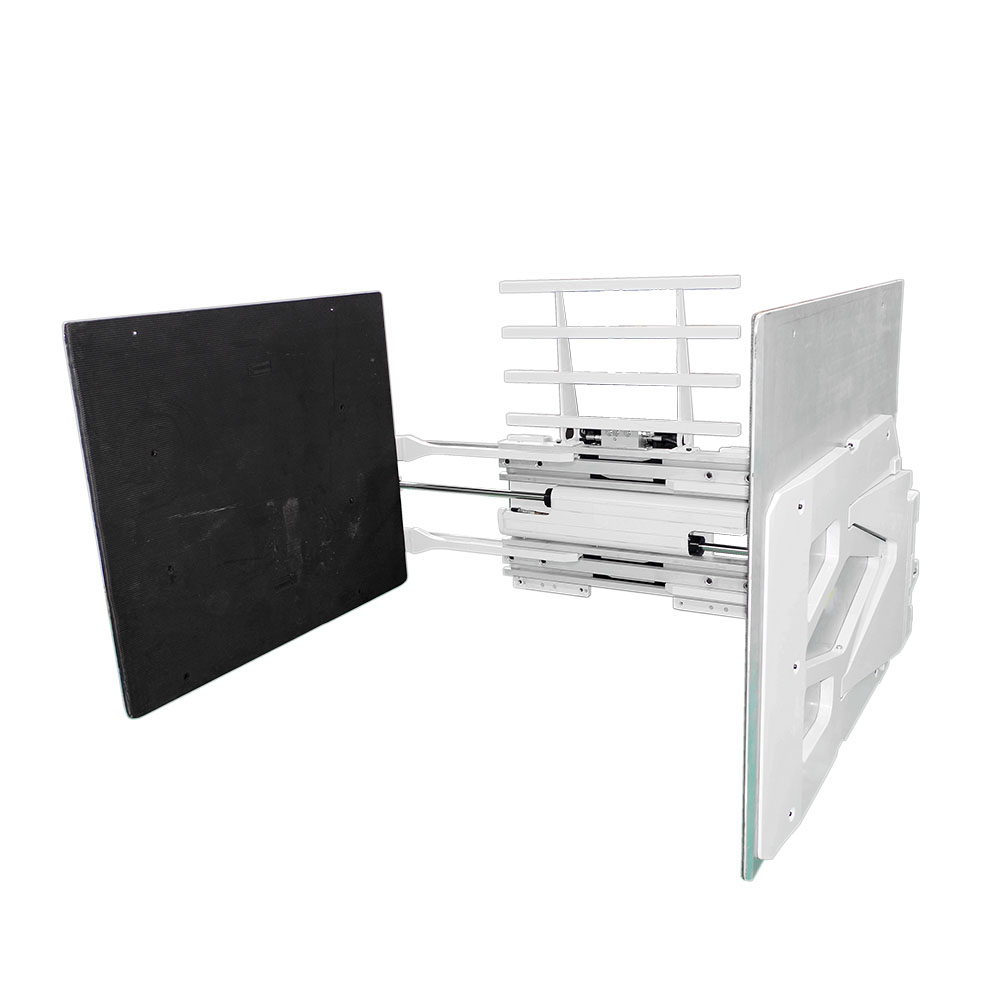

Forklift Carton Clamp

Carton clamps are mainly used to handle household appliances and some light weight and large carton packaging goods, such as refrigerators, TVs, washing machines, etc.
Availability:
Quantity:
  • CF-D Series

  • CF-ATTS

Carton clamps are mainly used to handle household appliances and some light weight and large carton packaging goods, such as refrigerators, TVs, washing machines, etc. Carton clamp adopts hook type installation, which follows the international standard ISO2328. The surface of the carton clamp's arms were coated with rubber, which increases the friction coefficient when handling cartons, so that the splint can be safer to clamp the goods and prevent the goods from falling off. Carton clamp is mainly used in logistics centers, warehouses.

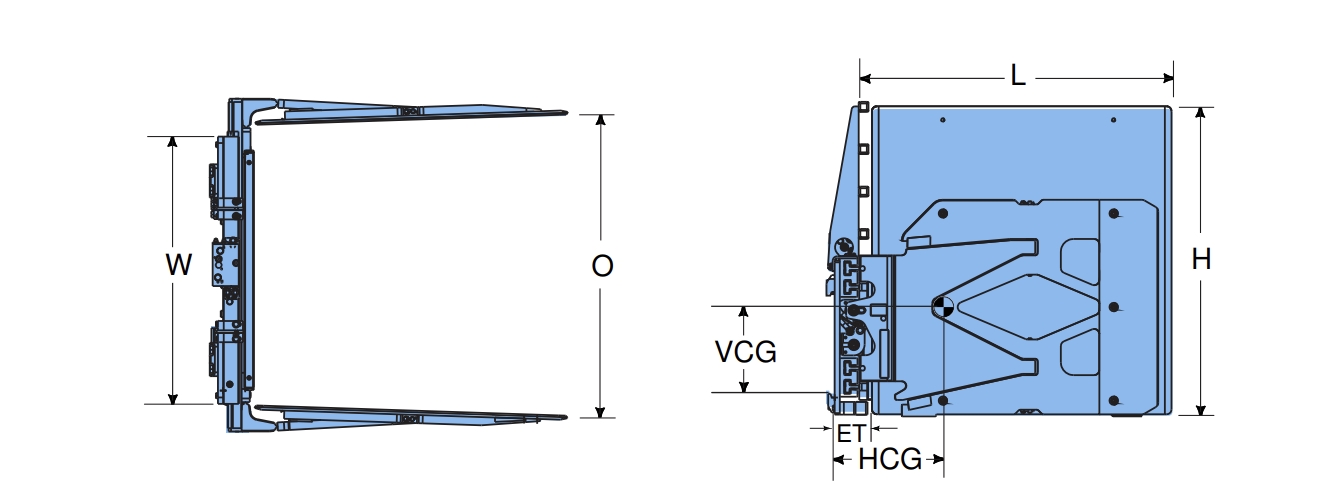

微信截图_20240225154559

Model

Capacity

(kg/mm)

Mounting

Class

Opening

Range

(mm)

Arm

Height

(mm)

Arm

Length

(mm)

Weight

(kg)

ET(mm)

CC-1.4TD-S1950-01

1400/500

II

550-1950

1200

1220

705

125

CC-1.4TD-S1950-02

1400/500

II

550-1950

1200

1420

790

125

CC-1.4TD-S2180-01

1400/500

II

570-2180

1200

1220

750

125

CC-1.4TD-S2180-02

1400/500

II

570-2180

1200

1420

840

125

CC-2TD-S1930-01

2000/500

II

560-1930

1200

1220

700

125

CC-2TD-S1930-02

2000/500

II

560-1930

1200

1420

770

125

CC-2TD-S1930-03

2000/500

II

560-1930

1520

1370

795

125

CC-2TD-S2360

2000/500

II

960-2360

1200

1525

925

125

CC-2.3TD-S1850-01

2300/600

III

530-1850

1520

1170

950

150

CC-2.3TD-S1850-01

2300/600

III

530-1850

1520

1220

955

150
