CF-K/G/H Series
CF-ATTS

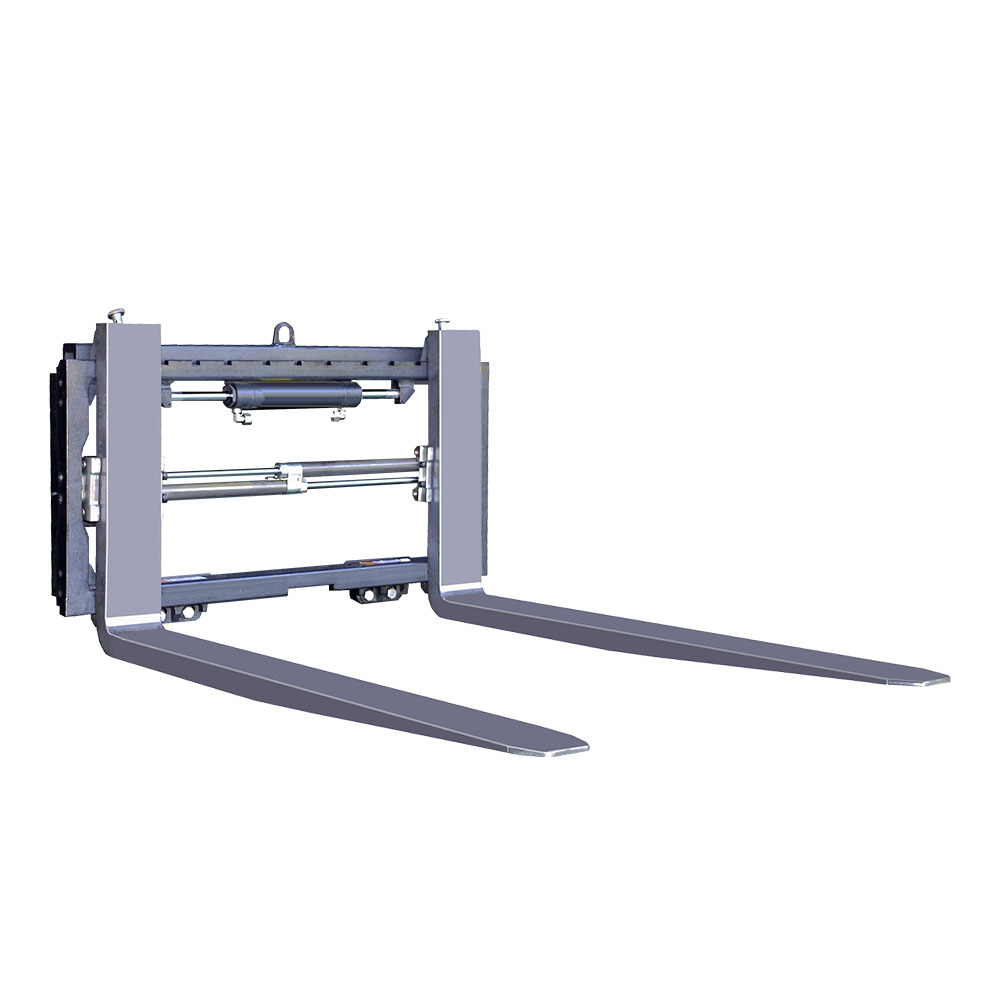

Fork positioners are one of the most important forklift attachments for diesel and electric forklift trucks.Fork positioner attachment allow forklift operators to adjust forks quickly and accurately to handle different width material. Forklift operators are able to operate forklift control levers to adjust forks distances without getting off forklift truck and leaving their seats. Side shifting function is optional.Riggerte fork positioners can be installed on all brands forklifts.

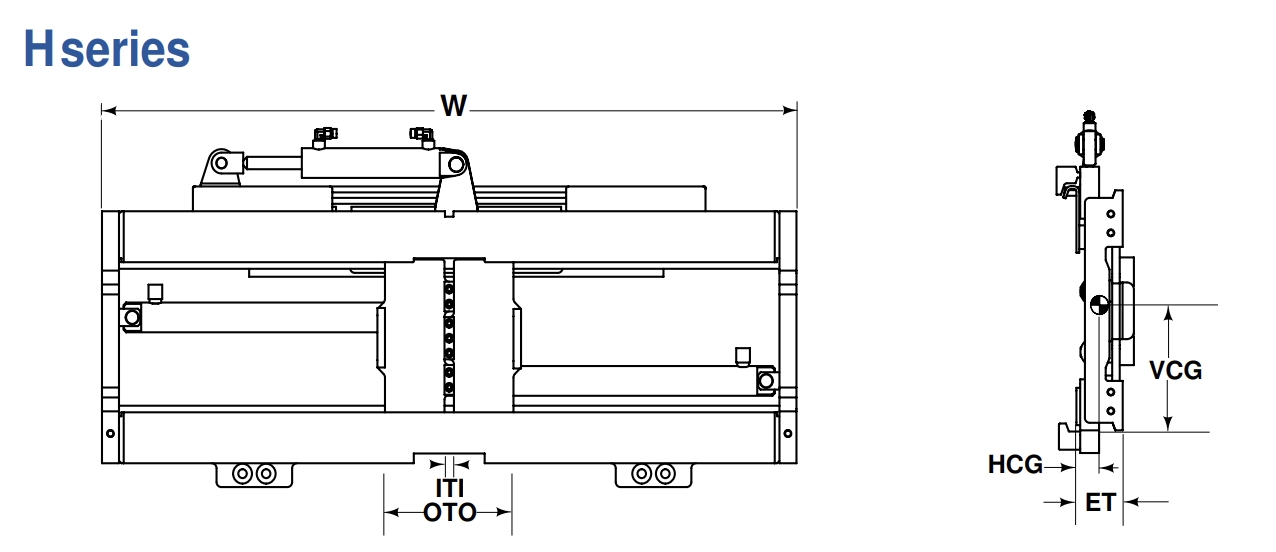

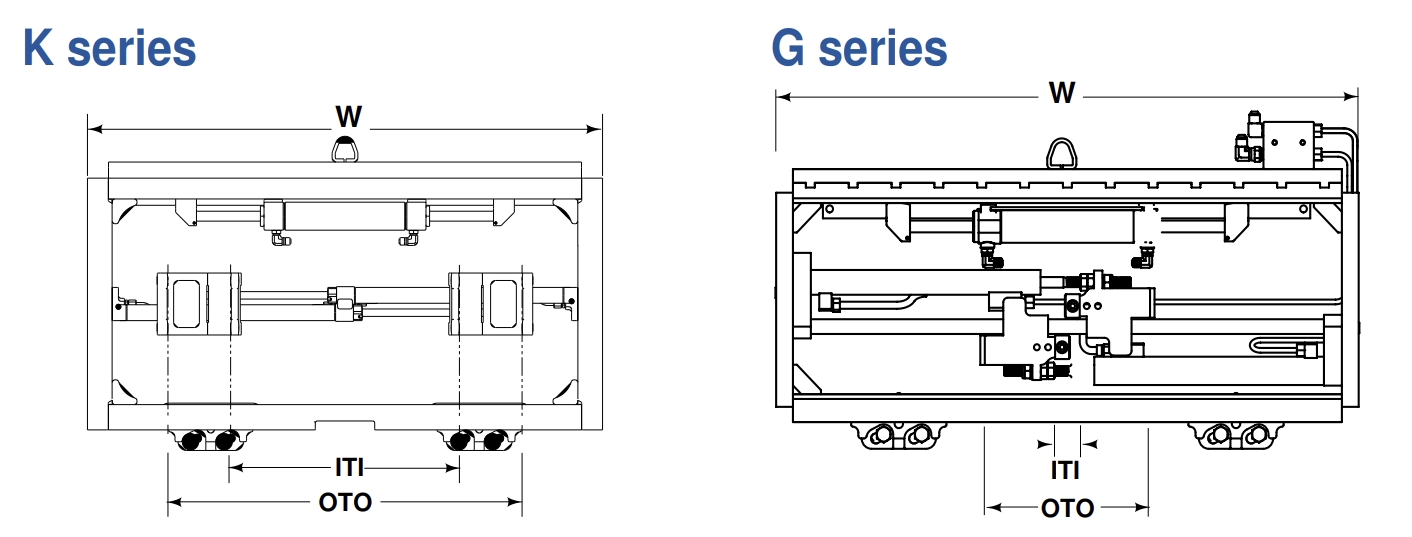

Model | Capacity (kg@mm) | Mounting Class | Opening Range (mm) | Carriage Width(mm) | Min. Carriage Width (mm) | VCG (mm) | Weight (kg) | Effective Thickness(mm) | HCG(mm) |
CF-FP-2.5TK-S1000 | 2500@600 | II | 50-876 | 1000 | 895 | 225 | 65 | 60 | 30 |
CF-FP-2.5TK-S1040 | 2500@600 | II | 50-910 | 1040 | 895 | 225 | 68 | 60 | 30 |
CF-FP-3TK-S1070 | 3000@600 | III | 50-946 | 1070 | 935 | 250 | 83 | 65 | 30 |
| CF-FP-3TK-S1100 | 3000@600 | III | 50-976 | 1100 | 935 | 250 | 88 | 65 | 30 |
CF-FP-2.5TG-S1020 | 2500@600 | II | 310-925 | 1020 | 895 | 225 | 75 | 61 | 25 |
CF-FP-2.5TG-S1040 | 2500@600 | II | 310-945 | 1040 | 895 | 225 | 78 | 61 | 25 |
CF-FP-3TG-S1100 | 3000@600 | III | 340-975 | 1100 | 935 | 293 | 93 | 66 | 30 |
CF-FP-4.5TH-S1250 | 42500@600 | III | 350-1160 | 1250 | 1040 | 300 | 215 | 90 | 45 |
CF-FP-4.5TH-S1550 | 4500@600 | III | 350-1460 | 1550 | 1250 | 300 | 259 | 90 | 45 |
CF-FP-4.6TH-S1200 | 3000@600 | III | 50-946 | 1200 | 1000 | 303 | 205 | 90 | 45 |
| CF-FP-4.6TH-S1500 | 3000@600 | III | 50-976 | 1500 | 1215 | 303 | 252 | 90 | 45 |
CF-FP-5.5TH-S1550 | 5500@600 | IV | 310-925 | 1550 | 1250 | 430 | 280 | 107 | 57 |
CF-FP-5.5TH-S1830 | 5500@600 | IV | 310-945 | 1830 | 1550 | 430 | 330 | 107 | 57 |
CF-FP-7TH-S2180 | 7000@600 | IV | 340-975 | 2180 | 1830 | 450 | 490 | 138 | 59 |
CF-FP-8TH-S2400 | 8000@600 | IV | 340-975 | 2400 | 2150 | 450 | 520 | 138 | 59 |
Fork positioners are one of the most important forklift attachments for diesel and electric forklift trucks.Fork positioner attachment allow forklift operators to adjust forks quickly and accurately to handle different width material. Forklift operators are able to operate forklift control levers to adjust forks distances without getting off forklift truck and leaving their seats. Side shifting function is optional.Riggerte fork positioners can be installed on all brands forklifts.
Model | Capacity (kg@mm) | Mounting Class | Opening Range (mm) | Carriage Width(mm) | Min. Carriage Width (mm) | VCG (mm) | Weight (kg) | Effective Thickness(mm) | HCG(mm) |
CF-FP-2.5TK-S1000 | 2500@600 | II | 50-876 | 1000 | 895 | 225 | 65 | 60 | 30 |
CF-FP-2.5TK-S1040 | 2500@600 | II | 50-910 | 1040 | 895 | 225 | 68 | 60 | 30 |
CF-FP-3TK-S1070 | 3000@600 | III | 50-946 | 1070 | 935 | 250 | 83 | 65 | 30 |
| CF-FP-3TK-S1100 | 3000@600 | III | 50-976 | 1100 | 935 | 250 | 88 | 65 | 30 |
CF-FP-2.5TG-S1020 | 2500@600 | II | 310-925 | 1020 | 895 | 225 | 75 | 61 | 25 |
CF-FP-2.5TG-S1040 | 2500@600 | II | 310-945 | 1040 | 895 | 225 | 78 | 61 | 25 |
CF-FP-3TG-S1100 | 3000@600 | III | 340-975 | 1100 | 935 | 293 | 93 | 66 | 30 |
CF-FP-4.5TH-S1250 | 42500@600 | III | 350-1160 | 1250 | 1040 | 300 | 215 | 90 | 45 |
CF-FP-4.5TH-S1550 | 4500@600 | III | 350-1460 | 1550 | 1250 | 300 | 259 | 90 | 45 |
CF-FP-4.6TH-S1200 | 3000@600 | III | 50-946 | 1200 | 1000 | 303 | 205 | 90 | 45 |
| CF-FP-4.6TH-S1500 | 3000@600 | III | 50-976 | 1500 | 1215 | 303 | 252 | 90 | 45 |
CF-FP-5.5TH-S1550 | 5500@600 | IV | 310-925 | 1550 | 1250 | 430 | 280 | 107 | 57 |
CF-FP-5.5TH-S1830 | 5500@600 | IV | 310-945 | 1830 | 1550 | 430 | 330 | 107 | 57 |
CF-FP-7TH-S2180 | 7000@600 | IV | 340-975 | 2180 | 1830 | 450 | 490 | 138 | 59 |
CF-FP-8TH-S2400 | 8000@600 | IV | 340-975 | 2400 | 2150 | 450 | 520 | 138 | 59 |
