CF-G Series
CF-ATTS

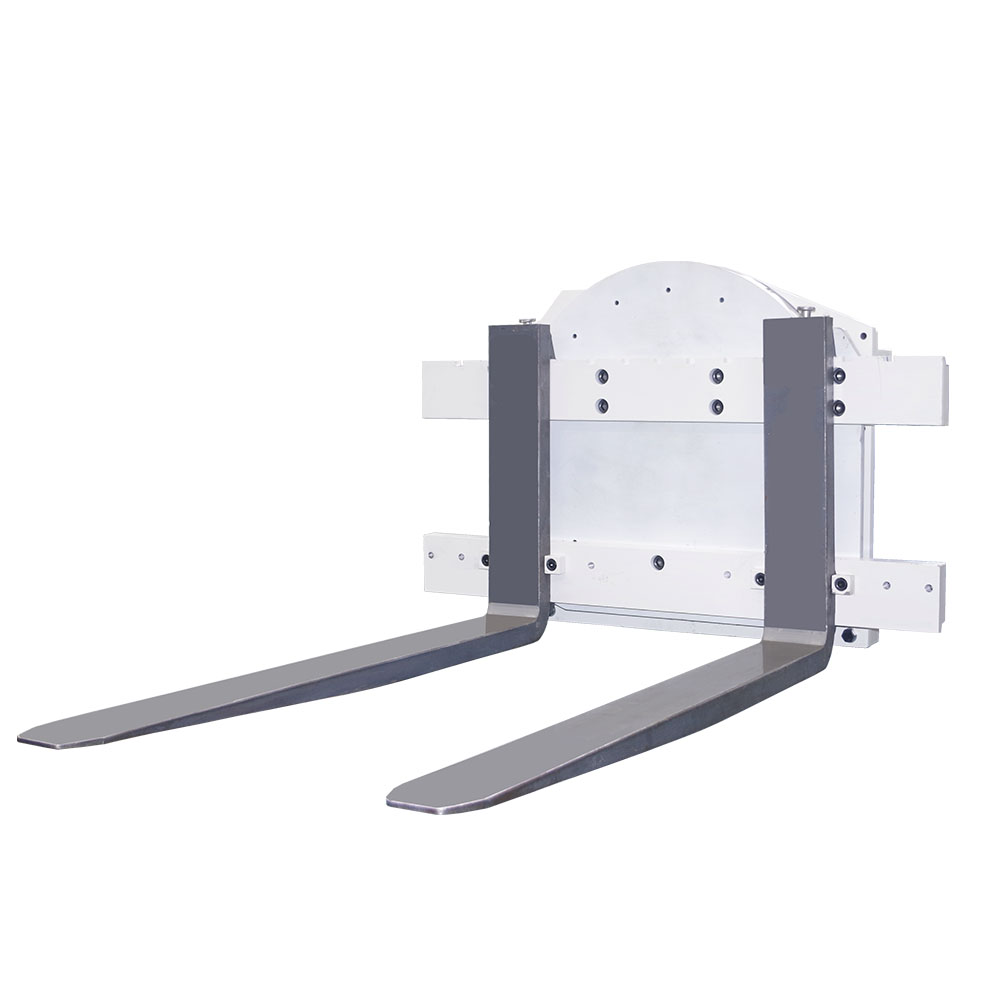

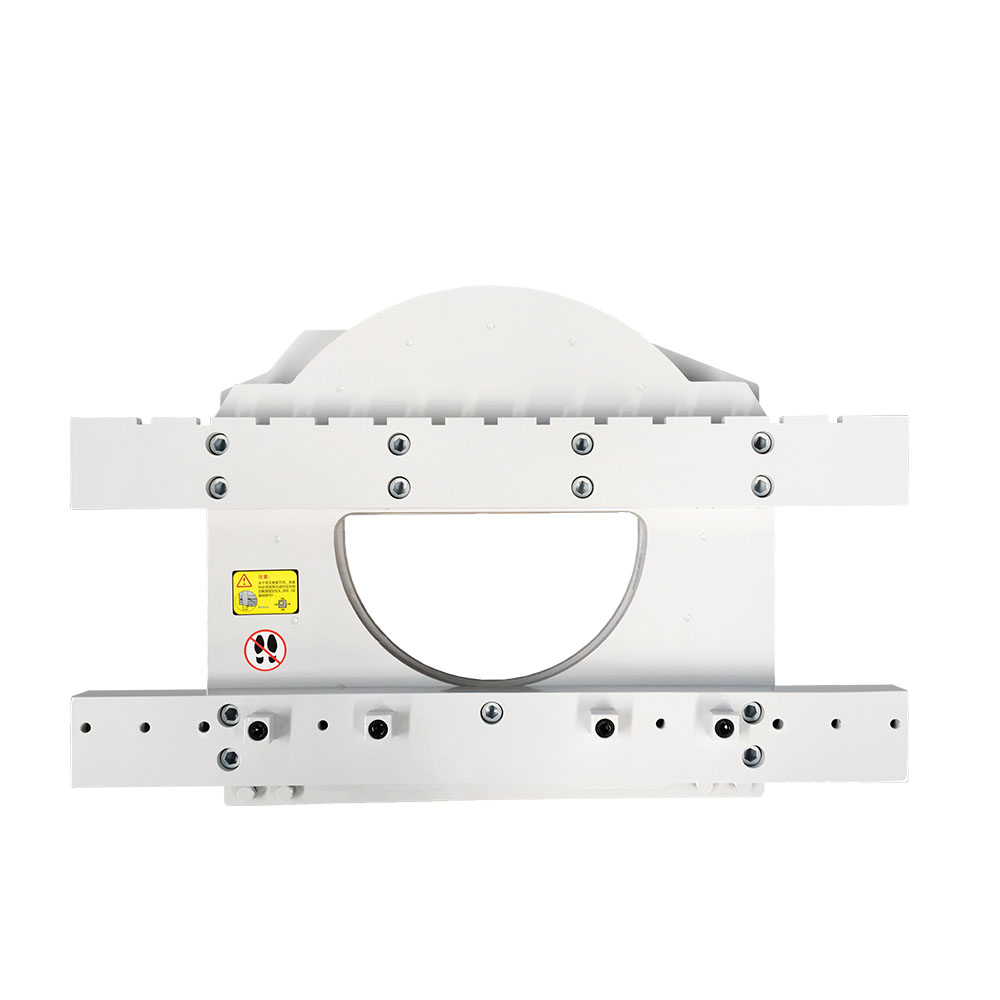

Rotator is a basic and most usefull forklift attachment that can offer 360 degree revolving operation which allows forklift operators to dump, tip or hand pick in a safe and efficient way. The revolving function makes rotator forklift attachment popular in manufacturing, agricultural, automotive, plastic, and recycling industries as well as in lumber mills, feed plants, foundries, food processing plants, and waste disposal.

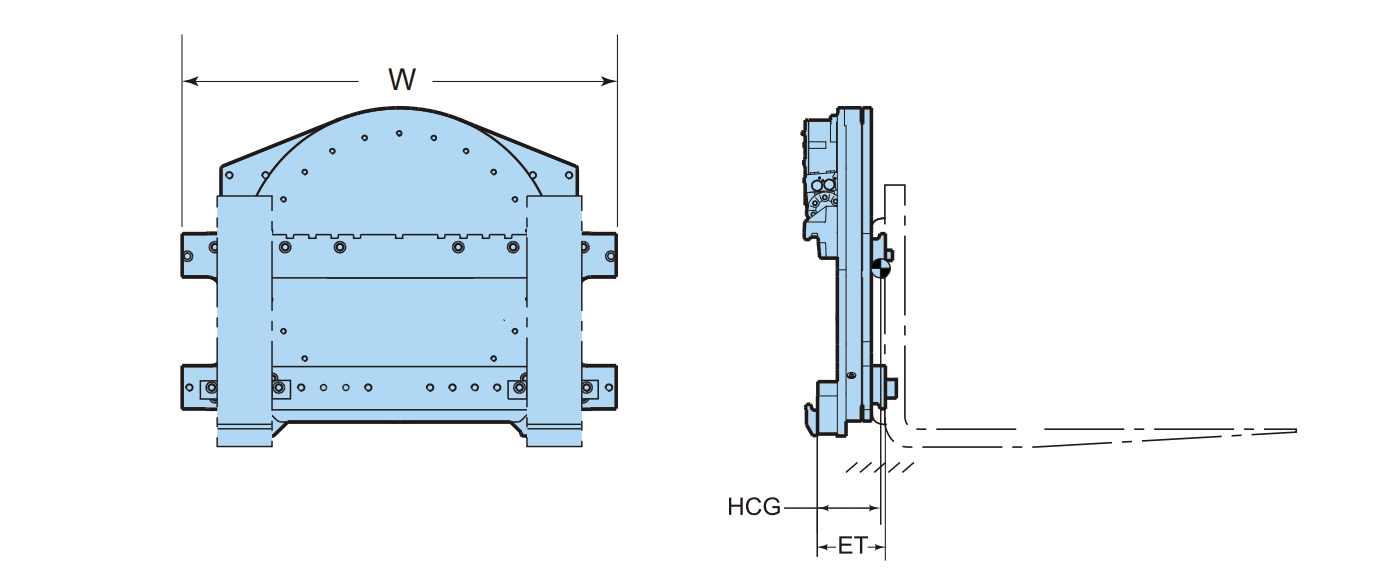

Model No. | Capacity (kg/mm) | Rotator Mounting Class | Fork Mounting Class | Carriage Width (mm) | Mininum Truck Carriage Width (mm) | Weight (kg) | ET(mm) |
CF-RTT-2.5TG-860 | 2500/500 | II | II | 860 | 810 | 280 | 155 |
CF-RTT-2.5TG-1000 | 2500/500 | II | II | 1000 | 810 | 285 | 155 |
CF-RTT-3TG-1000 | 3000/500 | III | III | 1000 | 810 | 290 | 155 |
CF-RTT-3TG-1120 | 3000/500 | III | III | 1120 | 810 | 295 | 155 |
CF-RTT-3.5TG-1120 | 3500/500 | III | III | 1120 | 810 | 360 | 200 |
CF-RTT-3.5TG-1270 | 3500/500 | III | III | 1270 | 810 | 365 | 200 |
CF-RTT-4.5TG-1060 | 4500/600 | III | III | 1060 | 940 | 475 | 160 |
CF-RTT-4.5TG-1520 | 4500/600 | III | III | 1520 | 940 | 525 | 160 |
CF-RTT-5.4TG-1250 | 5400/600 | IV | IV | 1250 | 1040 | 735 | 170 |
CF-RTT-5.4TG-1550 | 5400/600 | IV | IV | 1550 | 1040 | 790 | 170 |
CF-RTT-5.4TG-1850 | 5400/600 | IV | IV | 1850 | 1040 | 850 | 170 |
CF-RTT-6.8TG-1250 | 6800/600 | IV | IV | 1250 | 1040 | 930 | 215 |
CF-RTT-6.8TG-1550 | 6800/600 | IV | IV | 1550 | 1040 | 990 | 215 |
CF-RTT-6.8TG-1850 | 6800/600 | IV | IV | 1850 | 1040 | 1050 | 215 |
Rotator is a basic and most usefull forklift attachment that can offer 360 degree revolving operation which allows forklift operators to dump, tip or hand pick in a safe and efficient way. The revolving function makes rotator forklift attachment popular in manufacturing, agricultural, automotive, plastic, and recycling industries as well as in lumber mills, feed plants, foundries, food processing plants, and waste disposal.
Model No. | Capacity (kg/mm) | Rotator Mounting Class | Fork Mounting Class | Carriage Width (mm) | Mininum Truck Carriage Width (mm) | Weight (kg) | ET(mm) |
CF-RTT-2.5TG-860 | 2500/500 | II | II | 860 | 810 | 280 | 155 |
CF-RTT-2.5TG-1000 | 2500/500 | II | II | 1000 | 810 | 285 | 155 |
CF-RTT-3TG-1000 | 3000/500 | III | III | 1000 | 810 | 290 | 155 |
CF-RTT-3TG-1120 | 3000/500 | III | III | 1120 | 810 | 295 | 155 |
CF-RTT-3.5TG-1120 | 3500/500 | III | III | 1120 | 810 | 360 | 200 |
CF-RTT-3.5TG-1270 | 3500/500 | III | III | 1270 | 810 | 365 | 200 |
CF-RTT-4.5TG-1060 | 4500/600 | III | III | 1060 | 940 | 475 | 160 |
CF-RTT-4.5TG-1520 | 4500/600 | III | III | 1520 | 940 | 525 | 160 |
CF-RTT-5.4TG-1250 | 5400/600 | IV | IV | 1250 | 1040 | 735 | 170 |
CF-RTT-5.4TG-1550 | 5400/600 | IV | IV | 1550 | 1040 | 790 | 170 |
CF-RTT-5.4TG-1850 | 5400/600 | IV | IV | 1850 | 1040 | 850 | 170 |
CF-RTT-6.8TG-1250 | 6800/600 | IV | IV | 1250 | 1040 | 930 | 215 |
CF-RTT-6.8TG-1550 | 6800/600 | IV | IV | 1550 | 1040 | 990 | 215 |
CF-RTT-6.8TG-1850 | 6800/600 | IV | IV | 1850 | 1040 | 1050 | 215 |
