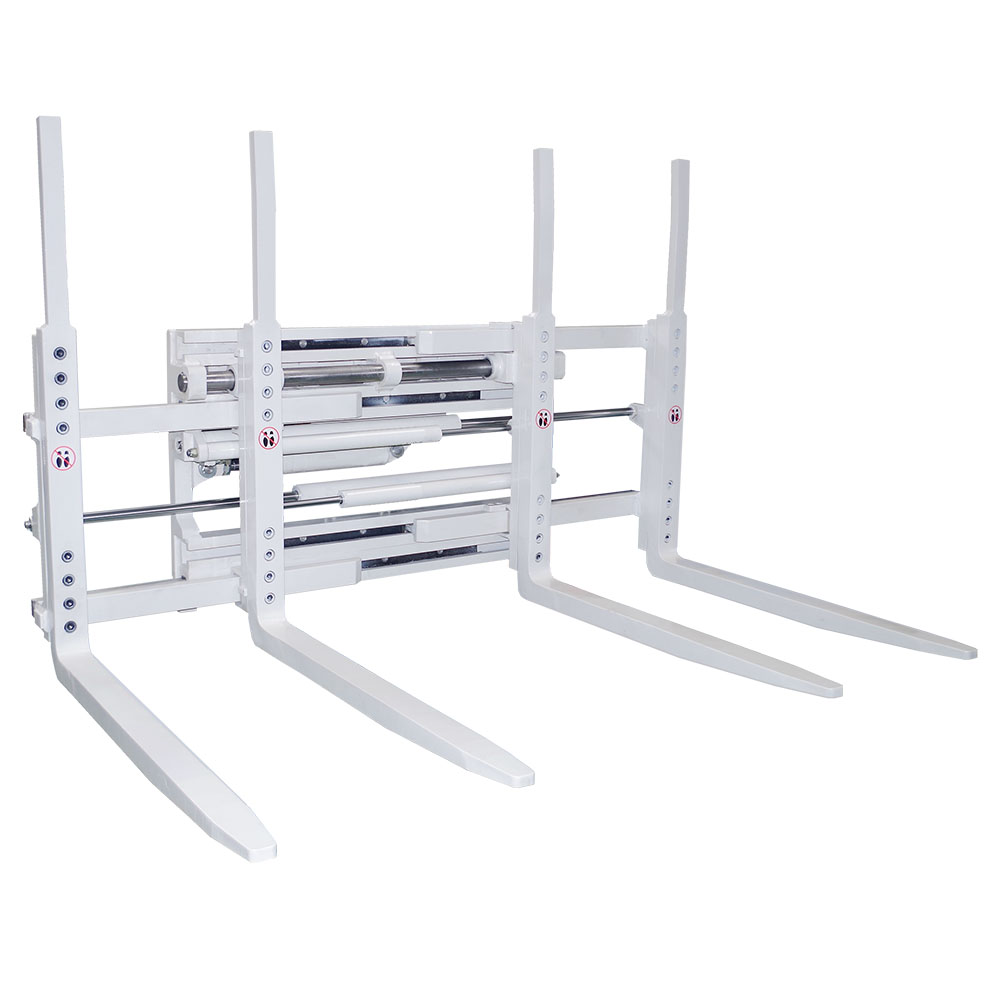

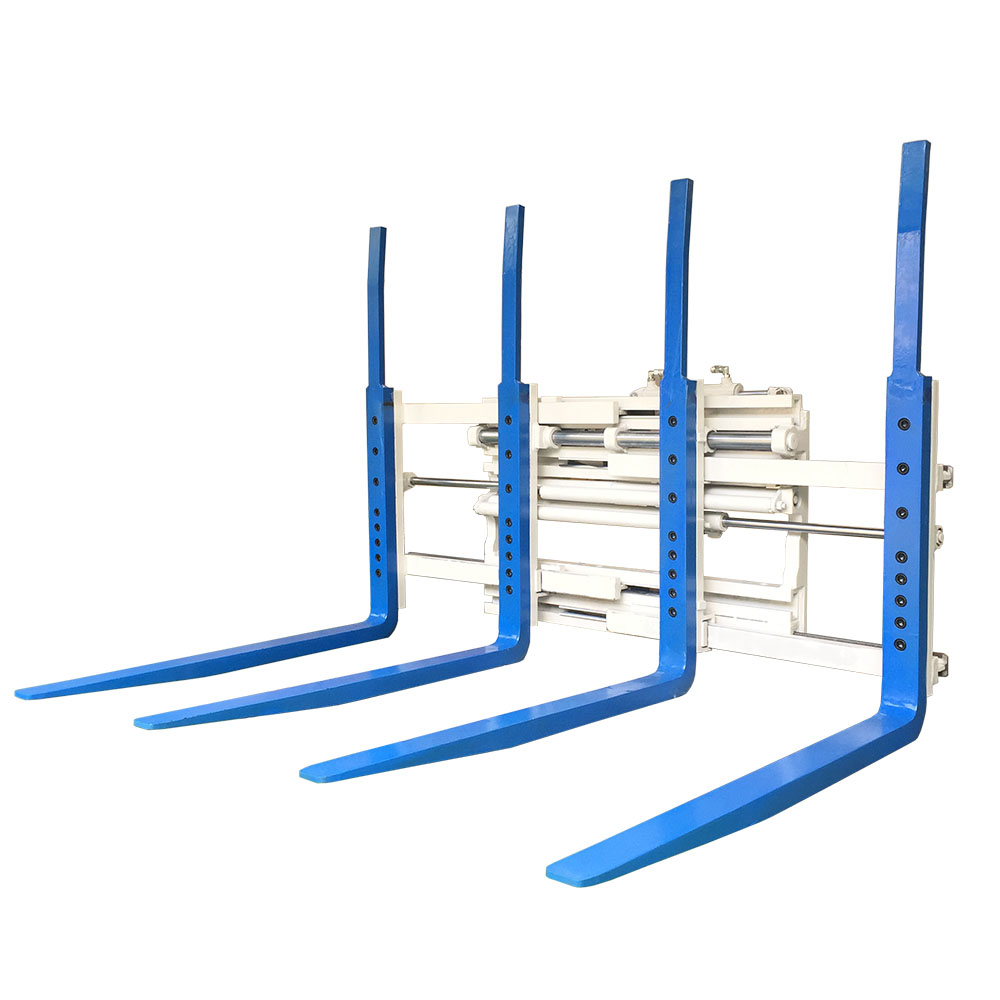

Forklift pallets handling device can handle one or two pallets each time. It’s called single and double pallets handler. With four piece forks in two groups, and each group forks can be spread by hydraulic cylinders. It's suitable for various sizes of pallets. This forklift attachment requests two hydraulic function from forklift, one for forks spreading and the other for side shifting.
Model | Capacity | Mounting Class | Inner Fork Range ITI (mm) | Outer Fork Range OTO (mm) | Fork Size LxWxT(mm) | VCG(mm) | Weight (kg) | ET(mm) | HCG(mm) |
Beverage pallet( 914mm x 914mm) | |||||||||
PHD-2.5TG-S2035-01 | 2500@600 | II | 330-815 | 660-2035 | 920x80x45 | 280 | 490 | 225 | 195 |
PHD-2.5TG-S2035-02 | 2500@600 | III | 330-815 | 660-2035 | 920x80x45 | 280 | 485 | 220 | 190 |
PHD-2.8TG-S2035 | 2800@600 | III | 330-815 | 660-2035 | 920x80x50 | 290 | 510 | 225 | 200 |
PHD-3.2TG-S2035 | 3200@600 | III | 330-815 | 660-2035 | 920x80x50 | 290 | 550 | 225 | 215 |
GMA pallet(1219mm x 1016mm) | |||||||||
PHD-2.2TG-S2100 | 2200@600 | III | 370-730 | 700-1200 | 1070x80x40 | 280 | 510 | 215 | 195 |
PHD-2.5TG-S2100 | 2500@600 | III | 370-730 | 700-1200 | 1070x80x45 | 290 | 525 | 220 | 205 |
PHD-2.8TG-S2100 | 2800@600 | III | 370-730 | 700-1200 | 1070x80x50 | 280 | 545 | 225 | 220 |
PHD-3.2TG-S2100 | 3200@600 | III | 370-730 | 700-1200 | 1070x80x50 | 280 | 565 | 225 | 240 |
Pallet for container (1118mm x 1422mm) | |||||||||
PHD-2.5TG-S2035 | 2500@600 | III | 330-715 | 660-2035 | 1370x80x45 | 250 | 535 | 220 | 280 |
PHD-2.8TG-S2035 | 2800@600 | III | 330-715 | 660-2035 | 1370x80x50 | 260 | 565 | 225 | 300 |
PHD-3.2TG-S2035 | 3200@600 | III | 330-715 | 660-2035 | 1370x80x50 | 250 | 615 | 225 | 320 |
International standard pallet (1200mm x 1000mm) | |||||||||
PHD-2.5TG-S2040 | 2500@600 | III | 330-760 | 660-2040 | 1150x80x45 | 270 | 515 | 220 | 235 |
PHD-2.8TG-S2040 | 2800@600 | III | 330-760 | 660-2040 | 1150x80x50 | 280 | 535 | 225 | 250 |
PHD-3.2TG-S2040 | 3200@600 | III | 330-760 | 660-2040 | 1150x80x50 | 250 | 555 | 235 | |
