Type CF-CDS Cable Drum Spreader Beam with Spindle

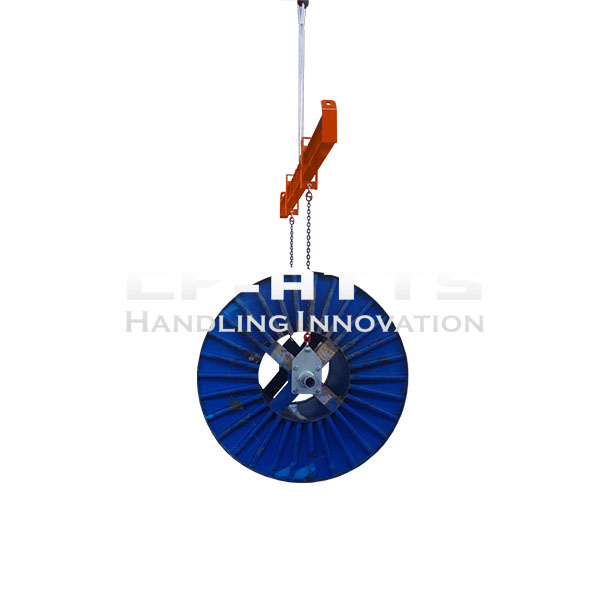

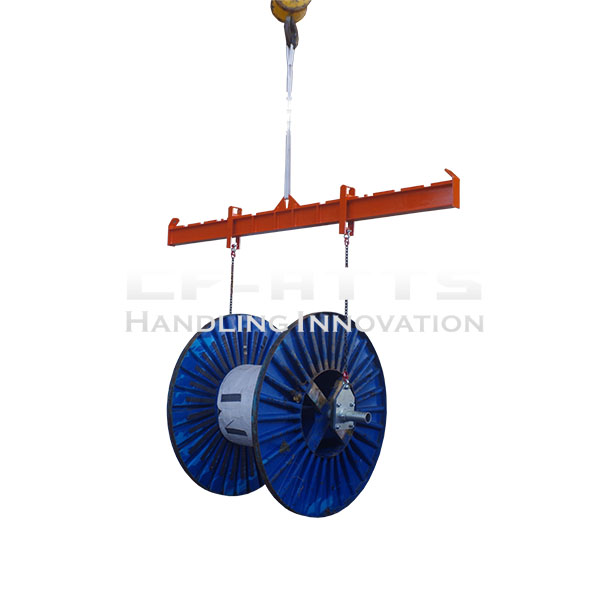

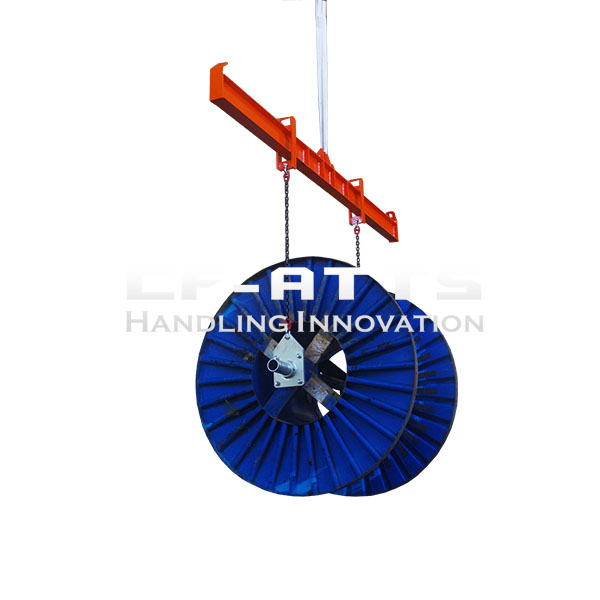

The CF-CDS Cable Drum Spreader Beam is designed for the safe transport of cable drums and payout during installation. The shaft runs through the centre of the drum and is connected at both ends to a spreader beam via two chains. Fitted with bearings, the cable drum freely rotates for smooth unwinding of cables. Available in 2 standard sizes or can be custom made to any length or capacity to suit the application.
Availability:
Quantity:
Inquire

  • CF-CDS

  • CF-ATTS

Features:

  • Suits lifting and dispensing of cables from a drum by crane

  • Adjustable lift positions to suit varying drum sizes

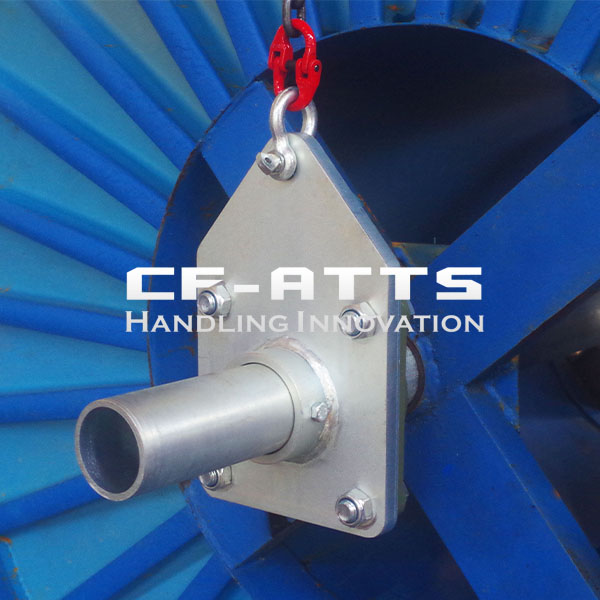

  • Bearings fitted for smooth rotation of cable drums

  • Lightweight steel spindle allows easy placement through drum centre

  • Beam to spindle link chain supplied

  • Enamel paint finish

Specifications:
Working Load Limit (WLL)6000 kg
Drum Width400 - 1800 mm
Max. Drum Diameter2500 mm
Min. Drum Hole Diameter80 mm
Spindle Weight20 kg
Unit Weight175 kg
