Product Introduction:

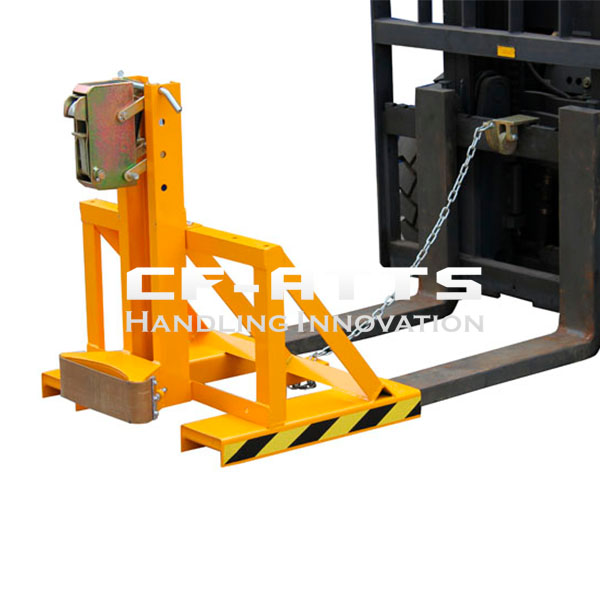

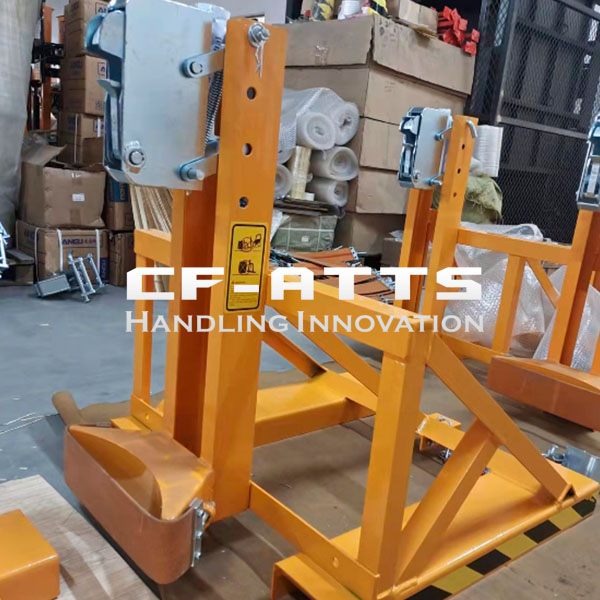

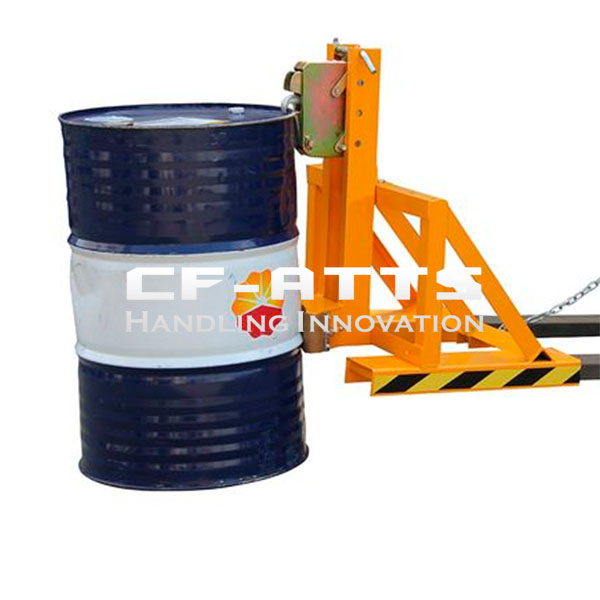

Heavy duty Single Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications
Clamping mechanisms are completely mechanical,requiring no hydraulic or electrical connections
Replaceable soft wear-resistant protective cushion effectively protects drums & absorbs vibration
Positive action jaws insure safe transporting of drums without damage to drum chimes
It enables lift truck operators to install/remove the attachment in seconds without any tools
Quick adjustable heads allow pickup of varrious drum heights
| Model | CF-DG500 |
| Capacity (kg) | 500kg |
| Unit Weight (kg) | 50kg |
| Overall Size (mm) | 910mm×730mm×850mm |
| Load Centre (mm) | 1150mm |
| Grab Min. Height (mm) | 525mm |
| Grab Max. Height (mm) | 750mm |
| Grab Middle Height (mm) | 675-600 |
| Forks Leg (Length*Width) | 150mm×55mm |
| Straddle inner Width (mm) | 450mm |
| Straddle outline Width (mm) | 750mm |
| Straddle Length (mm) | 750mm |
Product Introduction:
Heavy duty Single Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications
Clamping mechanisms are completely mechanical,requiring no hydraulic or electrical connections
Replaceable soft wear-resistant protective cushion effectively protects drums & absorbs vibration
Positive action jaws insure safe transporting of drums without damage to drum chimes
It enables lift truck operators to install/remove the attachment in seconds without any tools
Quick adjustable heads allow pickup of varrious drum heights
| Model | CF-DG500 |
| Capacity (kg) | 500kg |
| Unit Weight (kg) | 50kg |
| Overall Size (mm) | 910mm×730mm×850mm |
| Load Centre (mm) | 1150mm |
| Grab Min. Height (mm) | 525mm |
| Grab Max. Height (mm) | 750mm |
| Grab Middle Height (mm) | 675-600 |
| Forks Leg (Length*Width) | 150mm×55mm |
| Straddle inner Width (mm) | 450mm |
| Straddle outline Width (mm) | 750mm |
| Straddle Length (mm) | 750mm |
