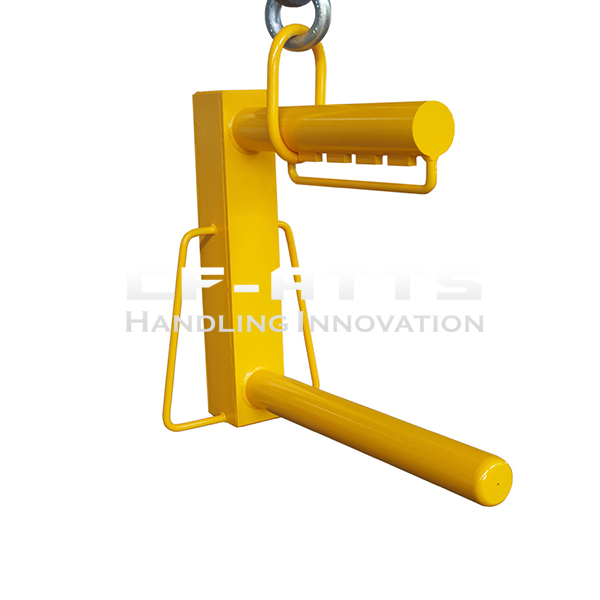

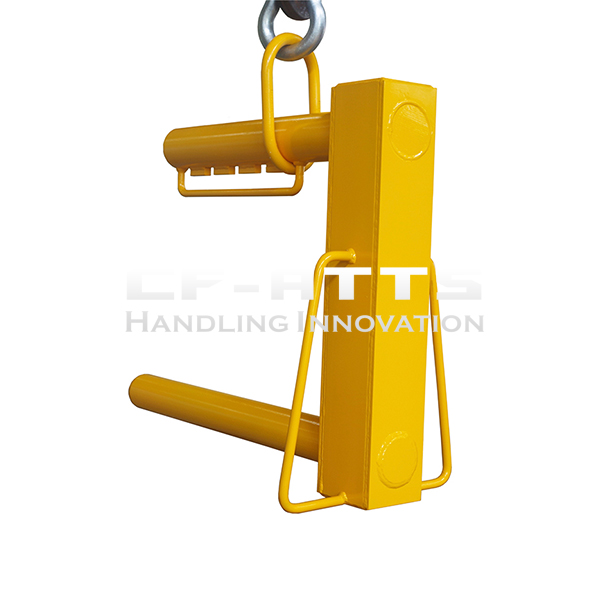

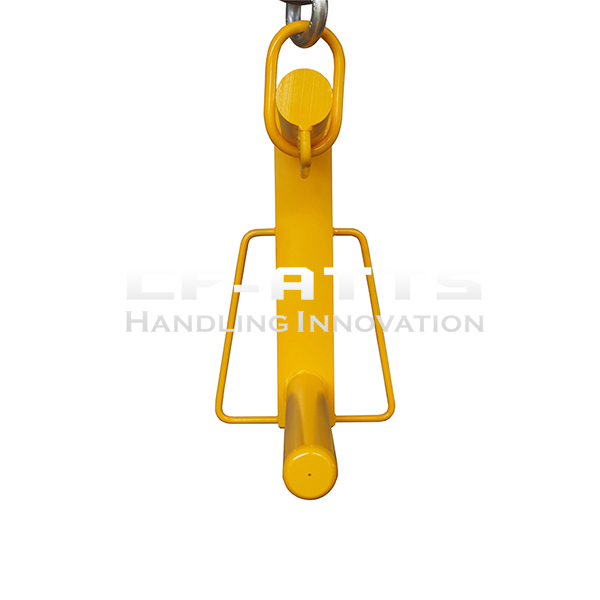

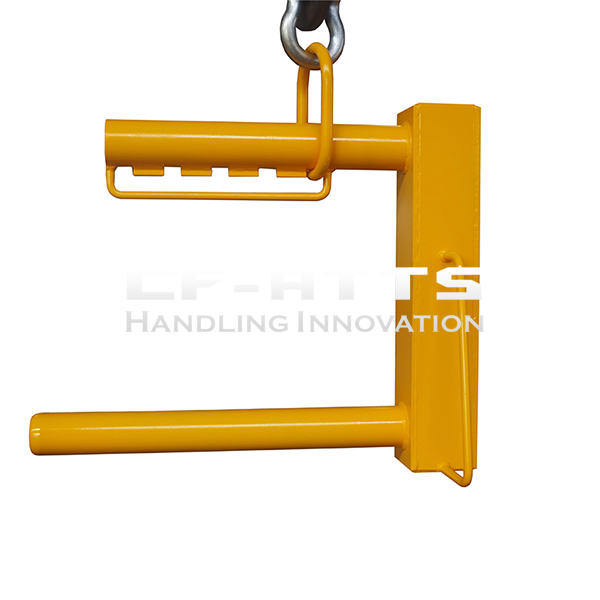

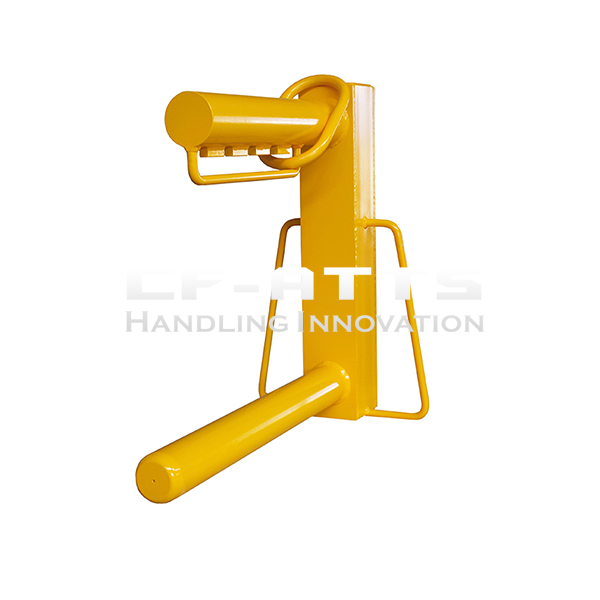

CF-ATTS
The Safe Working Load (SWL) of this unit varies between 1 – 5 tonne (refer chart below) depending on type chosen.

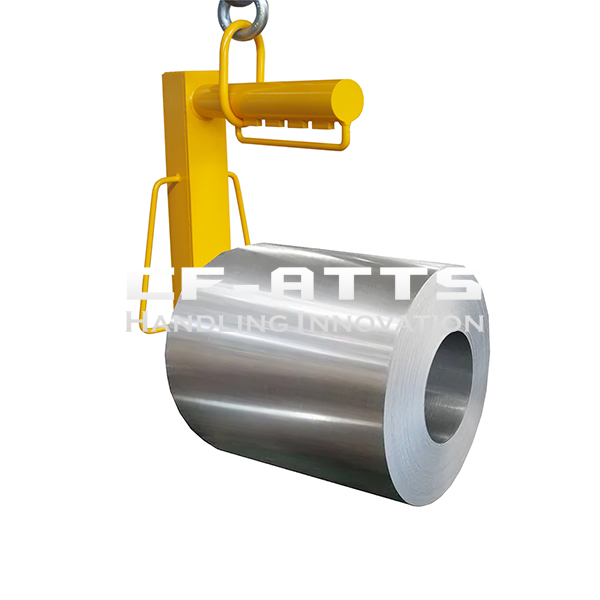

This unit is suitable for lifting coils up to 1200 mm in width.

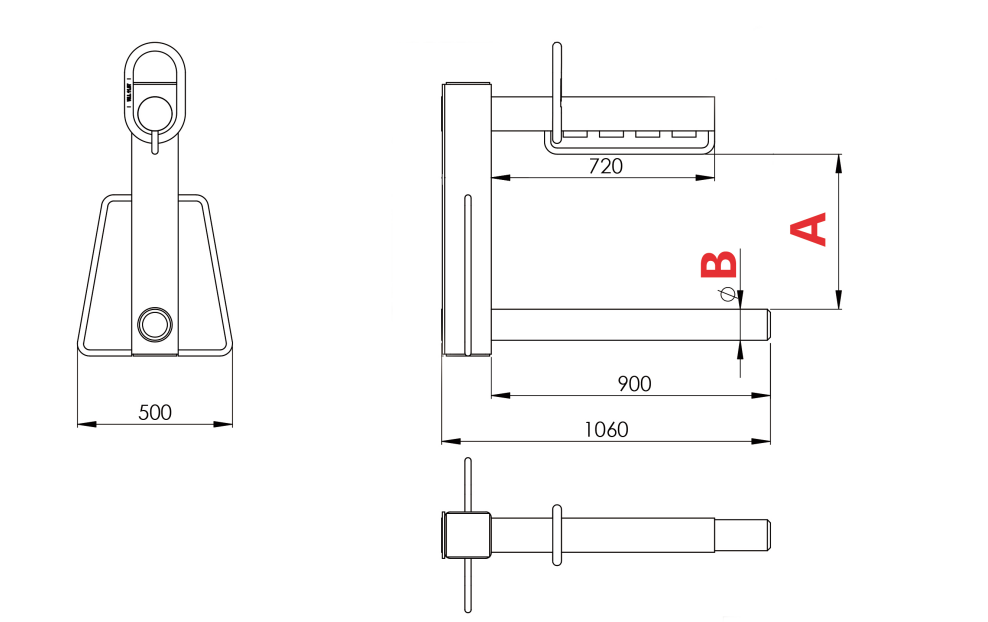

| Model | SWL(t) | Weight(kg) | "A"(mm) | "B"(mm) |
| CL1TR | 1.0 | 130 | 400 | Dia. 70 |
CL2TR | 2.0 | 150 | 500 | Dia. 80 |
| CL3TR | 3.0 | 180 | 600 | Dia. 90 |
| CL5TR | 5.0 | 250 | 800 | Dia. 100 |
The Safe Working Load (SWL) of this unit varies between 1 – 5 tonne (refer chart below) depending on type chosen.
This unit is suitable for lifting coils up to 1200 mm in width.
| Model | SWL(t) | Weight(kg) | "A"(mm) | "B"(mm) |
| CL1TR | 1.0 | 130 | 400 | Dia. 70 |
CL2TR | 2.0 | 150 | 500 | Dia. 80 |
| CL3TR | 3.0 | 180 | 600 | Dia. 90 |
| CL5TR | 5.0 | 250 | 800 | Dia. 100 |
