CF-CKM-00
CF-ATTS

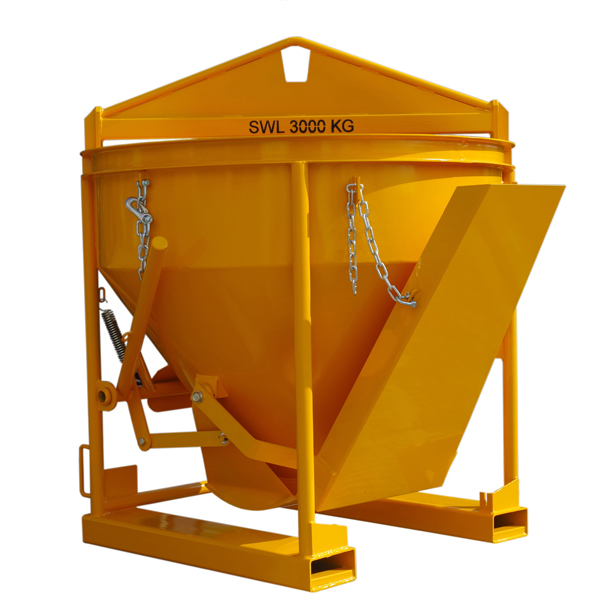

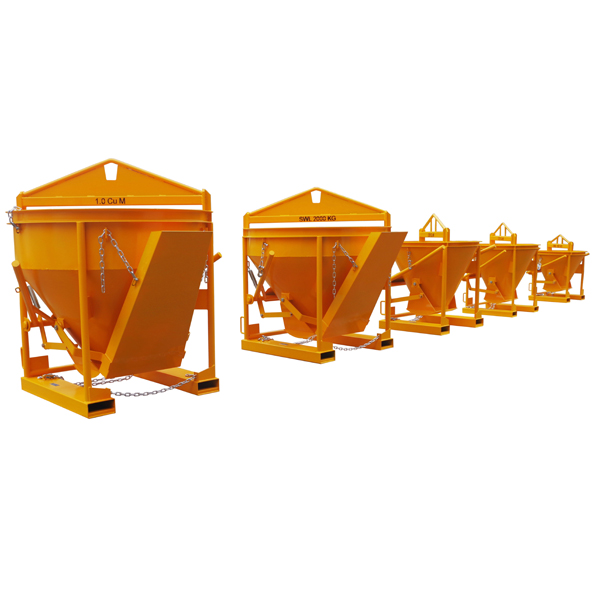

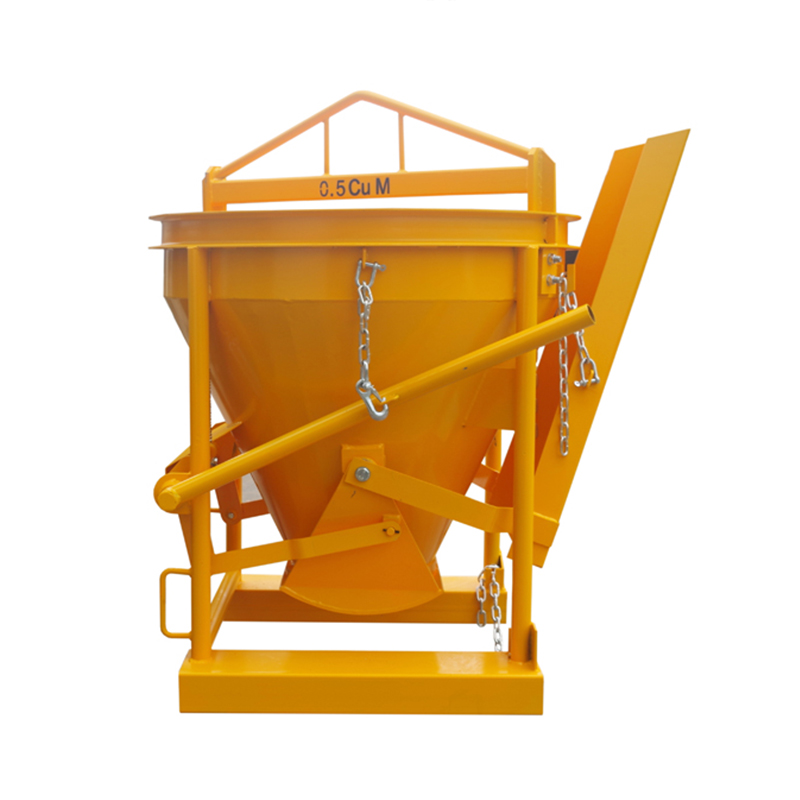

The concrete kibble has been designed for easy transfer of concrete on site by an overhead crane. This lightweight, yet heavy duty kibble can be used for both bottom and side discharge, with the use of the adjustable chute.

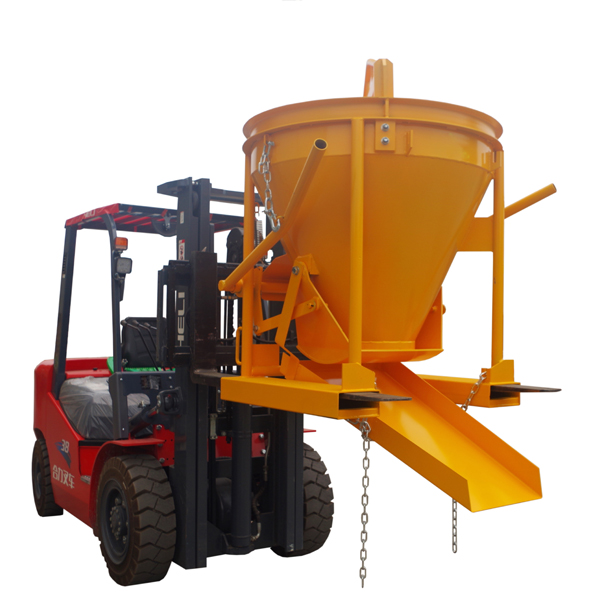

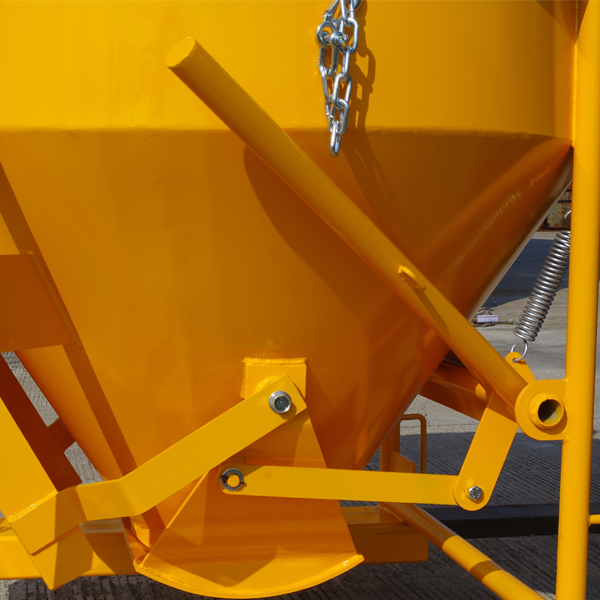

The unit is lever operated from either side for easy flexible operation and heightened user control. Easily transport around a working environment or job site with it's included forklift pockets. This accessory helps facilitate safe and manageable pouring of concrete with an enamel painted finish in Safety Yellow.
SPECIFICATIONS:
• Safe Working Load (SWL) 500-3000kg
• Volume Capacity 0.15-1.0 cubic metres
Data Sheet:

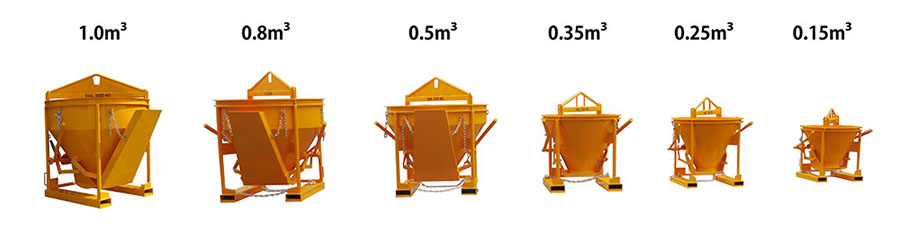

| Model | Capacity(cu.m) | SWL(kg) | Unit Weight(kg) | Fork Pocket Size(mm) | Fork Pocket Center(mm) | Filling Height(mm) | Dimensions(mm) |
| CF-CKM015 | 0.15 cu.m | 500 | 133 | 140x53 | 580 | 605 | 860x956x1080 |
| CF-CKM025 | 0.25 cu.m | 750 | 160 | 140x53 | 695 | 810 | 1020x1098x1265 |
| CF-CKM035 | 0.35 cu.m | 1000 | 215 | 190x65 | 780 | 860 | 1130x1250x1367 |
| CF-CKM05 | 0.5 cu.m | 1500 | 275 | 190x65 | 800 | 1000 | 1365x1250x1500 |
| CF-CKM08 | 0.8 cu.m | 2000 | 315 | 190x65 | 870 | 1050 | 1675x1680x1590 |
| CF-CKM10 | 1.0 cu.m | 3000 | 320 | 190x65 | 870 | 1295 | 1675x1680x1680 |
The concrete kibble has been designed for easy transfer of concrete on site by an overhead crane. This lightweight, yet heavy duty kibble can be used for both bottom and side discharge, with the use of the adjustable chute.
The unit is lever operated from either side for easy flexible operation and heightened user control. Easily transport around a working environment or job site with it's included forklift pockets. This accessory helps facilitate safe and manageable pouring of concrete with an enamel painted finish in Safety Yellow.
SPECIFICATIONS:
• Safe Working Load (SWL) 500-3000kg
• Volume Capacity 0.15-1.0 cubic metres
Data Sheet:
| Model | Capacity(cu.m) | SWL(kg) | Unit Weight(kg) | Fork Pocket Size(mm) | Fork Pocket Center(mm) | Filling Height(mm) | Dimensions(mm) |
| CF-CKM015 | 0.15 cu.m | 500 | 133 | 140x53 | 580 | 605 | 860x956x1080 |
| CF-CKM025 | 0.25 cu.m | 750 | 160 | 140x53 | 695 | 810 | 1020x1098x1265 |
| CF-CKM035 | 0.35 cu.m | 1000 | 215 | 190x65 | 780 | 860 | 1130x1250x1367 |
| CF-CKM05 | 0.5 cu.m | 1500 | 275 | 190x65 | 800 | 1000 | 1365x1250x1500 |
| CF-CKM08 | 0.8 cu.m | 2000 | 315 | 190x65 | 870 | 1050 | 1675x1680x1590 |
| CF-CKM10 | 1.0 cu.m | 3000 | 320 | 190x65 | 870 | 1295 | 1675x1680x1680 |
