CF-GK-00
CF-ATTS

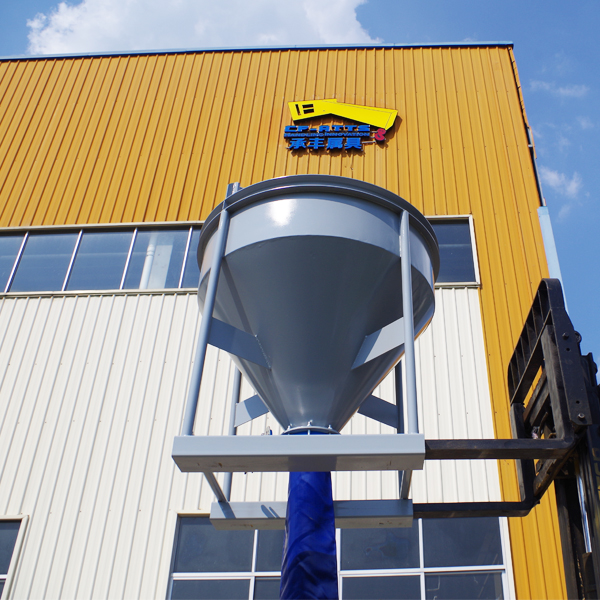

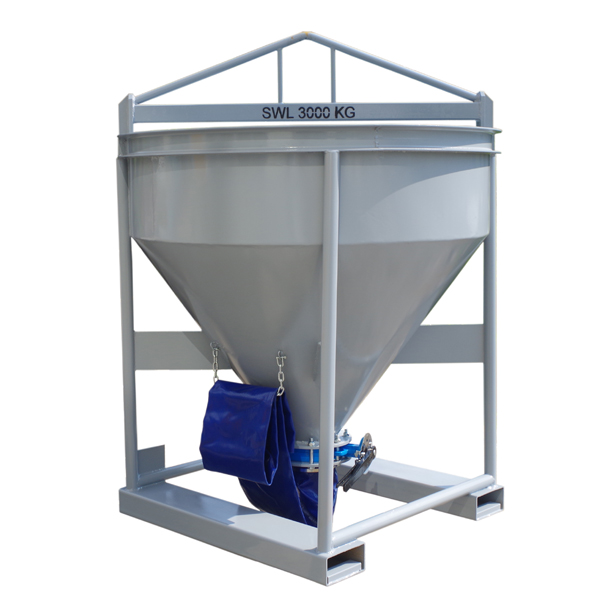

The CF-GK10 Liquid Grout Kibble is designed for the easy transfer of grout or similar materials on-site by overhead crane.
FEATURES:
• Suits use with liquid grout mixes with small aggregate
• Ideal for filling wall cavities, columns and other confined spaces

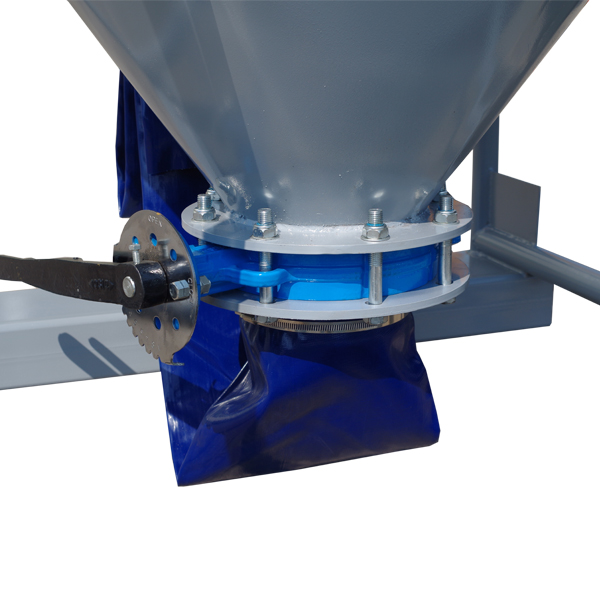

• 200mm diameter butterfly valve allows precise control of flow
• 200mm diameter ‘Lay Flat’ hose for unobstructed operator views
• Fork pockets fitted for transport around the work site
• Smooth interior allows easy discharge and fast cleaning
• Enamel paint finish
Data Sheet:
| Type | Capacity | SWL | Unit Weight | Filling Height | Dimensions |
| CF-GK05 | 0.5 cu.m | 1500kg | 275kg | 1140mm | 1450x1450x1540mm |
| CF-GK10 | 1.0cu.m | 3000kg | 320kg | 1450mm | 1450x1450x1840mm |
The CF-GK10 Liquid Grout Kibble is designed for the easy transfer of grout or similar materials on-site by overhead crane.
FEATURES:
• Suits use with liquid grout mixes with small aggregate
• Ideal for filling wall cavities, columns and other confined spaces
• 200mm diameter butterfly valve allows precise control of flow
• 200mm diameter ‘Lay Flat’ hose for unobstructed operator views
• Fork pockets fitted for transport around the work site
• Smooth interior allows easy discharge and fast cleaning
• Enamel paint finish
Data Sheet:
| Type | Capacity | SWL | Unit Weight | Filling Height | Dimensions |
| CF-GK05 | 0.5 cu.m | 1500kg | 275kg | 1140mm | 1450x1450x1540mm |
| CF-GK10 | 1.0cu.m | 3000kg | 320kg | 1450mm | 1450x1450x1840mm |
