CF-DDP
CF-ATTS

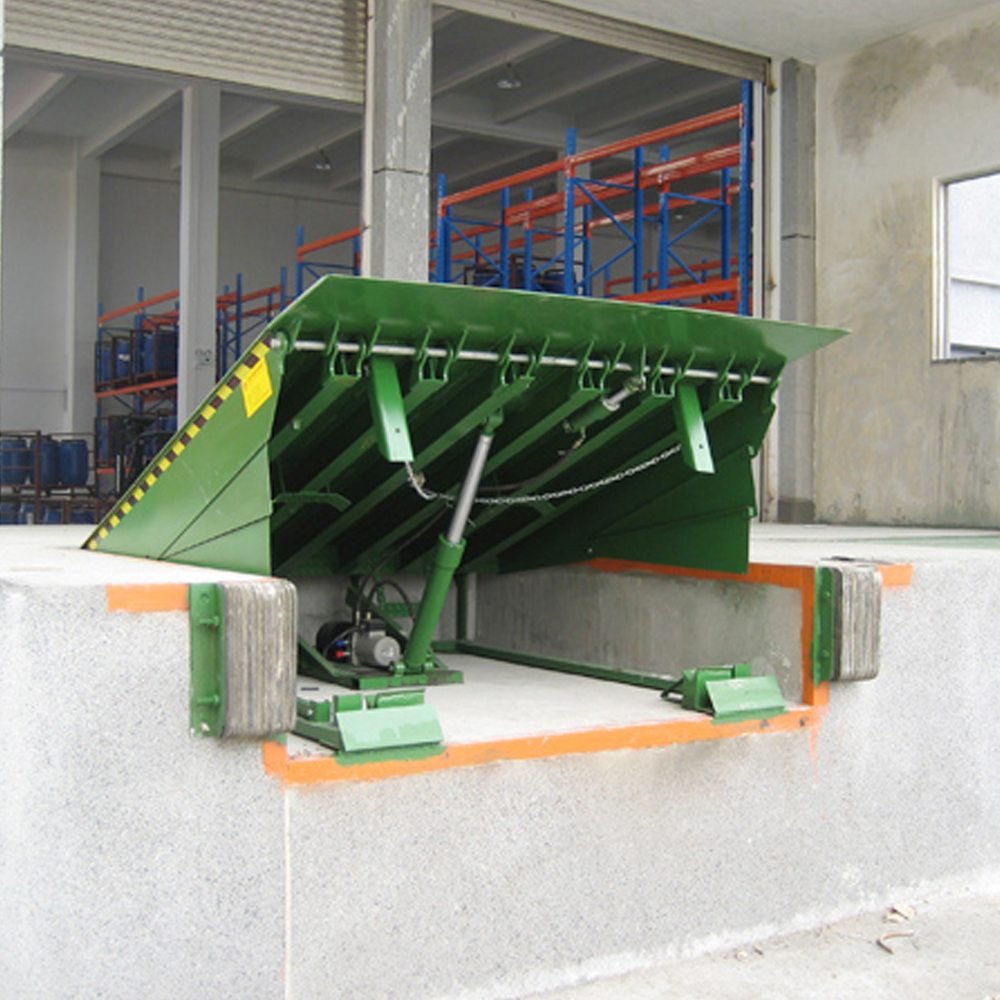

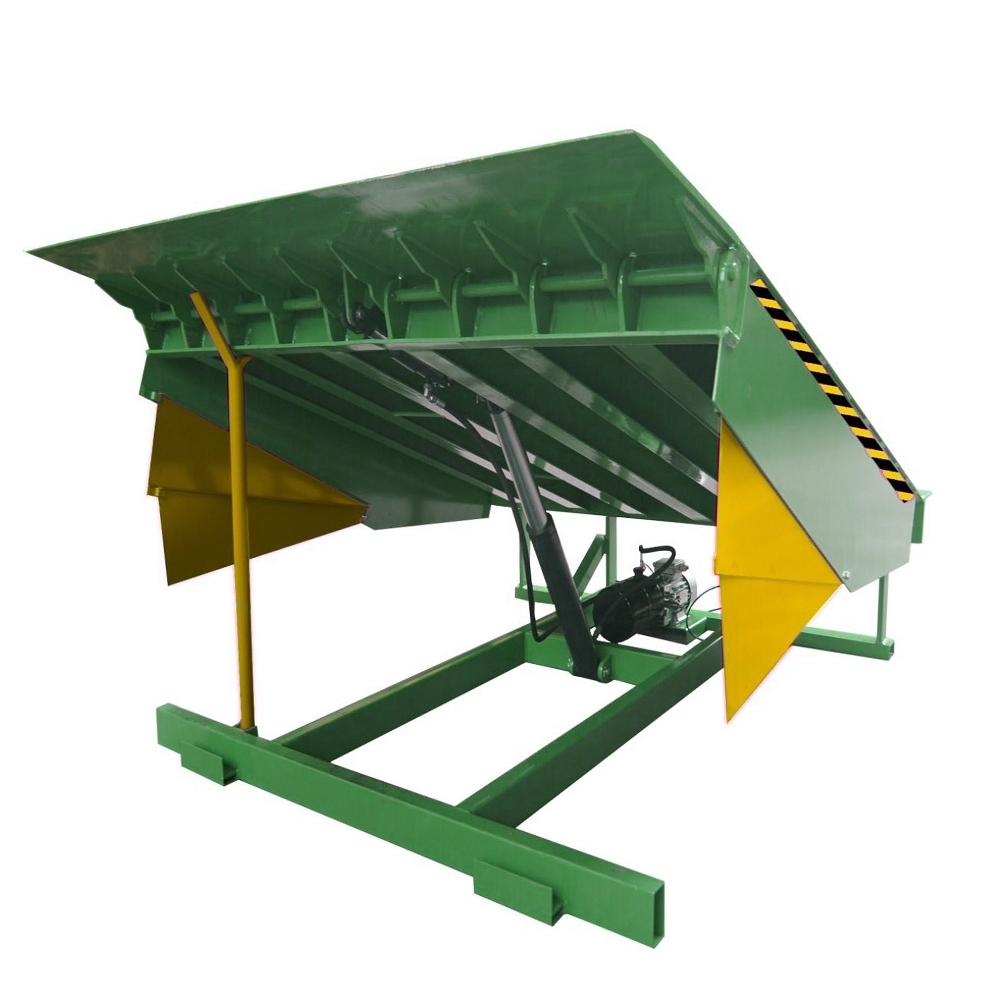

An impressive combination of usability and longevity, This dock levelers are high-performance systems that operate at the touch of a button. Strategically welded enhanced J-beams provide an exceptional level of structural sturdiness, improving product lifetime.
Hydraulic deck and lip cylinders increase operating efficiency and reduce maintenance requirements, resulting in a significantly lower cost of ownership compared to mechanical units. Optional independent lip control is available for all models, decreasing both cycle time and energy use.
Superior craftsmanship, ease of operation, and a robust suite of advanced safety features make the this dock leveler an ideal choice for increased productivity at the loading dock.
| Model | Size(mm) | Lip(mm) | Capacity(kg) | Rabbet Size(mm) | |||
| W(tol) | L(tol) | D(front) | D(back) | ||||
| CF-DDP13E-6x8 | 1830x2438 | 415 | 13000 | 1680(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP15E-6x8 | 1830x2438 | 415 | 15000 | 1680(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP18E-6x8 | 1830x2438 | 415 | 18000 | 1680(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP13E-6x10 | 1830x3048 | 415 | 13000 | 1680(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP15E-6x10 | 1830x3048 | 415 | 15000 | 1680(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP18E-6x10 | 1830x3048 | 415 | 18000 | 1680(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP13E-7x8 | 2130x2438 | 415 | 13000 | 2170(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP15E-7x8 | 2130x2438 | 415 | 15000 | 2170(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP18E-7x8 | 2130x2438 | 415 | 18000 | 2170(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP13E-7x10 | 2130x3048 | 415 | 13000 | 2170(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP15E-7x10 | 2130x3048 | 415 | 15000 | 2170(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP18E-7x10 | 2130x3048 | 415 | 18000 | 2170(-0/+10) | 2825(-0/+10) | 600 | 590 |
An impressive combination of usability and longevity, This dock levelers are high-performance systems that operate at the touch of a button. Strategically welded enhanced J-beams provide an exceptional level of structural sturdiness, improving product lifetime.
Hydraulic deck and lip cylinders increase operating efficiency and reduce maintenance requirements, resulting in a significantly lower cost of ownership compared to mechanical units. Optional independent lip control is available for all models, decreasing both cycle time and energy use.
Superior craftsmanship, ease of operation, and a robust suite of advanced safety features make the this dock leveler an ideal choice for increased productivity at the loading dock.
| Model | Size(mm) | Lip(mm) | Capacity(kg) | Rabbet Size(mm) | |||
| W(tol) | L(tol) | D(front) | D(back) | ||||
| CF-DDP13E-6x8 | 1830x2438 | 415 | 13000 | 1680(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP15E-6x8 | 1830x2438 | 415 | 15000 | 1680(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP18E-6x8 | 1830x2438 | 415 | 18000 | 1680(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP13E-6x10 | 1830x3048 | 415 | 13000 | 1680(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP15E-6x10 | 1830x3048 | 415 | 15000 | 1680(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP18E-6x10 | 1830x3048 | 415 | 18000 | 1680(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP13E-7x8 | 2130x2438 | 415 | 13000 | 2170(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP15E-7x8 | 2130x2438 | 415 | 15000 | 2170(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP18E-7x8 | 2130x2438 | 415 | 18000 | 2170(-0/+10) | 2215(-0/+10) | 500 | 490 |
| CF-DDP13E-7x10 | 2130x3048 | 415 | 13000 | 2170(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP15E-7x10 | 2130x3048 | 415 | 15000 | 2170(-0/+10) | 2825(-0/+10) | 600 | 590 |
| CF-DDP18E-7x10 | 2130x3048 | 415 | 18000 | 2170(-0/+10) | 2825(-0/+10) | 600 | 590 |
