CF-EH25C
CF-ATTS

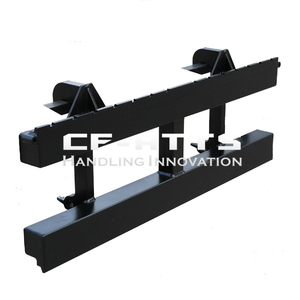

The CF-EH25C EURO Hitch Carriage comes as carriage only and is ready to attach quickly to your machine allowing for easy and safe handling of palletised goods or stilage with spears installed. The carriage has a rated capacity of 2500kg and is designed for use with a tractor or loader fitted with a Euro Quickhitch.
The CF-EH25C carriage has been designed for easy fitment of a large range of optional accessories including fork tines, loadguard, towing hitch, lifting jibs (3 sizes available) and bale spears (3 sizes available).
Suits tractor or loader fitted with a Euro 8 quick hitch
Comes fitted with Euro 8 hitch lugs
Designed for easy fitment of optional CF-EH25C accessories
Specifications: | |
|---|---|
| Working Load Limit (WLL) | 2500 kg |
| Load Centre | 500 mm |
| HCG | 45 mm |
| VCG | 39 mm |
| Dimensions | 12000 x 550 mm |
| Unit Weight | 66 kg |
Accessories available to fit the CF-EH25C include:

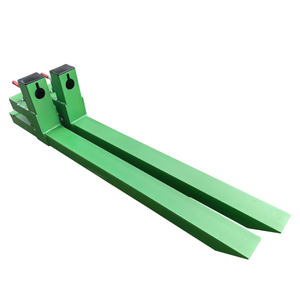

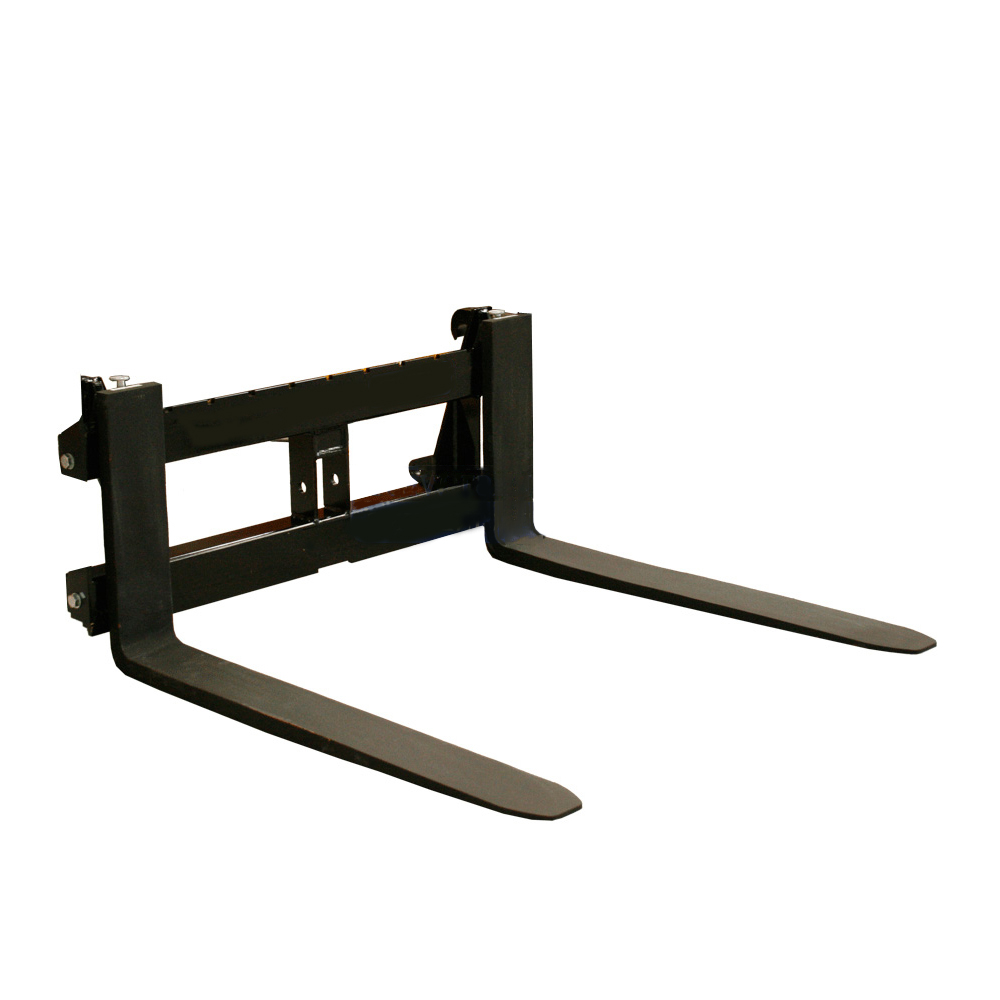

* FA25-107 Fork Tines
* CF-EH25LG Bolt-on Loadguard
* CF-EH25TH Towing hitch complete with towball (WLL1500kg)
* CF-EH25LH 420mm long Lifting Jib with shackle and hook (WLL 2500kg@300mm LC)
* CF-EH25LHX 1000mm long Lifting Jib with shackle and hook (WLL 800kg@800mm LC)
* CF-EH25LHX2 1750mm long Lifting Jib with shackle and hook (WLL 400kg@1600mm LC)

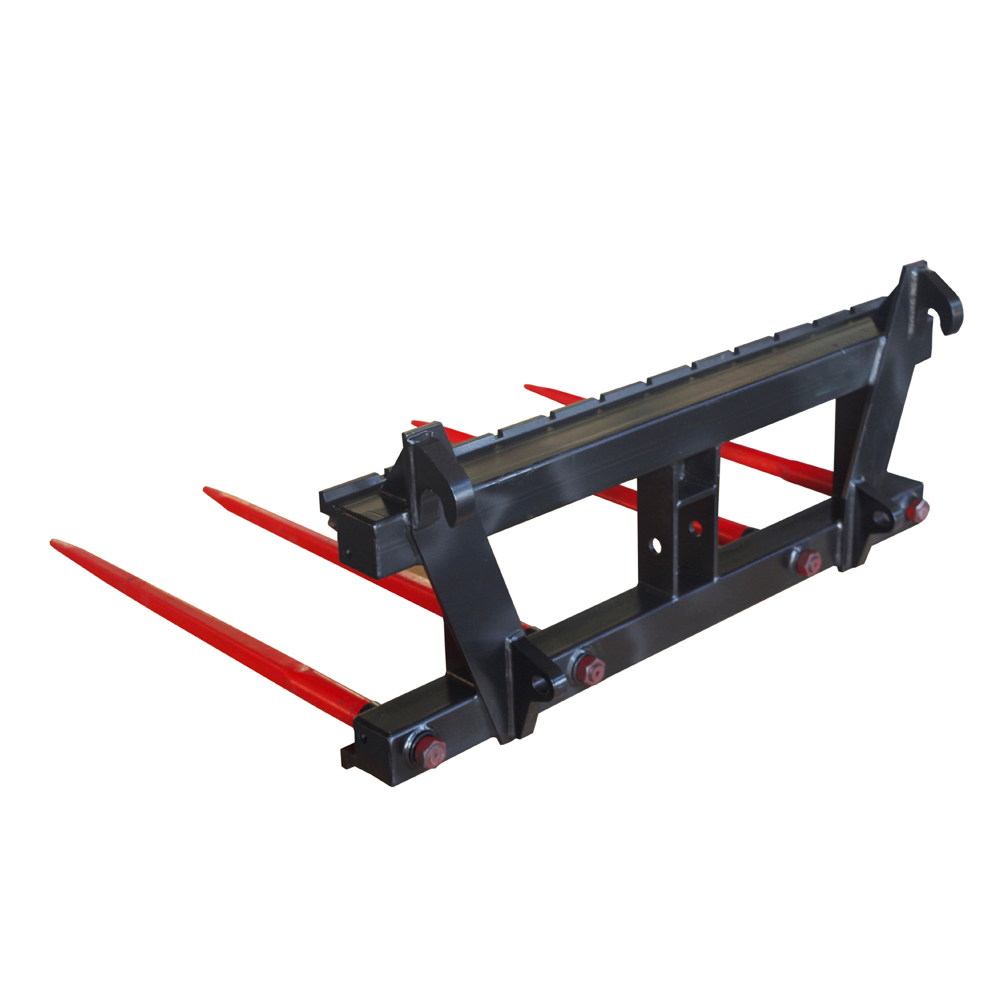

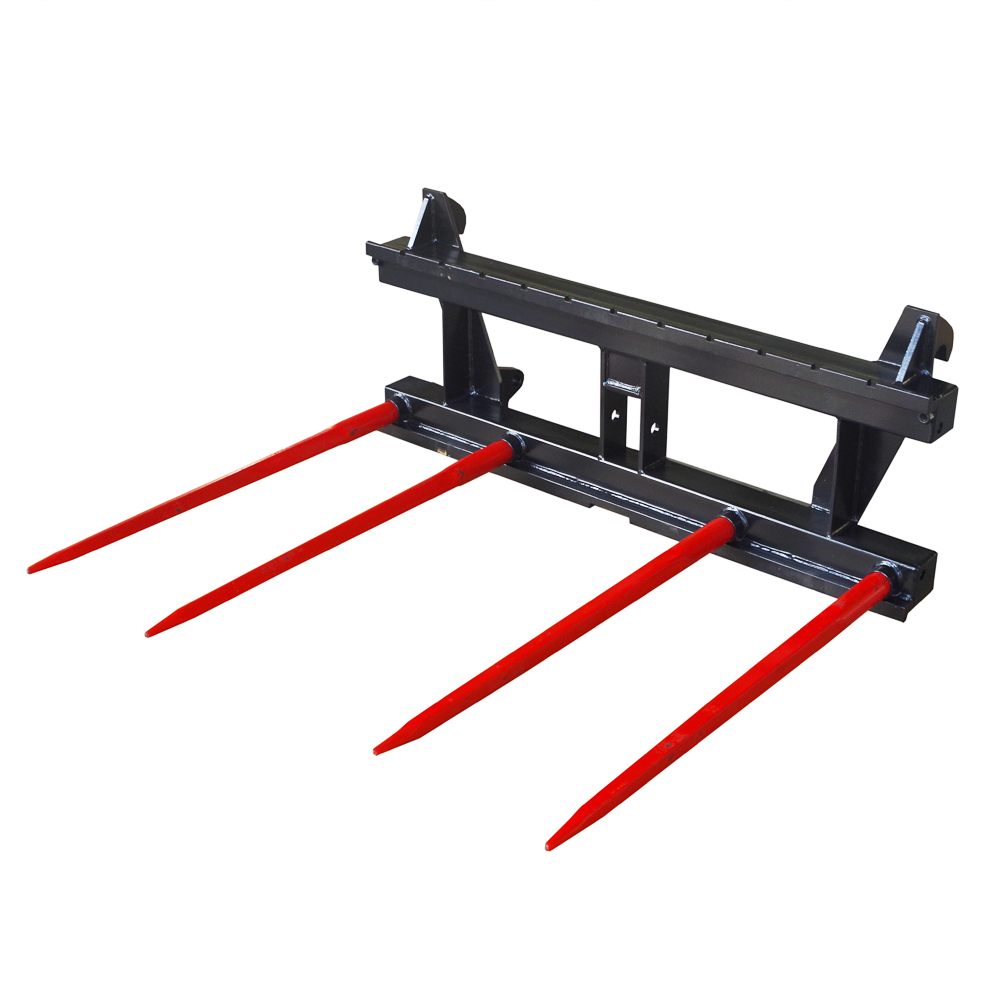

* FSF25-90 Fork Shank and Bale Spear Conus I 36mm dia x 970 clear length
* FSF4-90 Fork Shank and bale spear Conus II 45mm dia x 900 clear length
* FSF4-110 Fork Shank and bale spear Conus II 45mm dia x 1100 clear length
* Conus 2 spears x 4 1120mm length
