CF-F Series
CF-ATTS

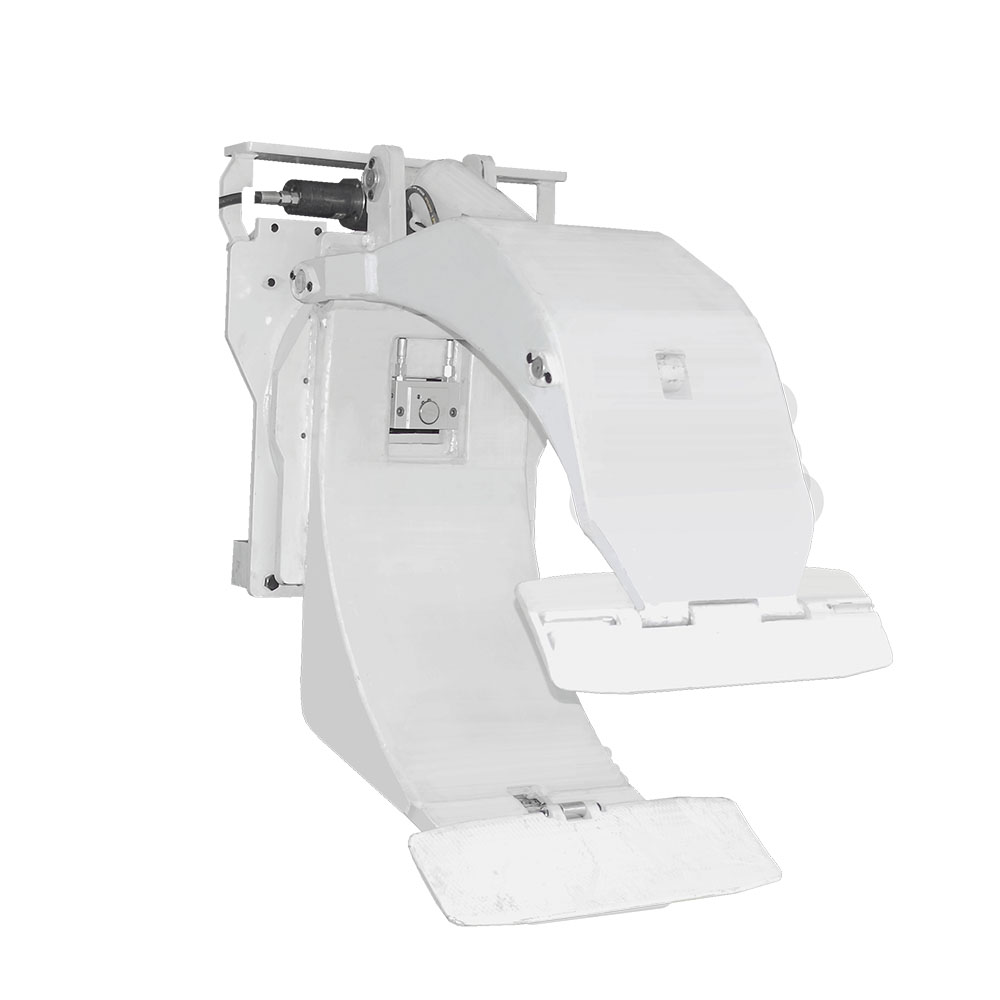

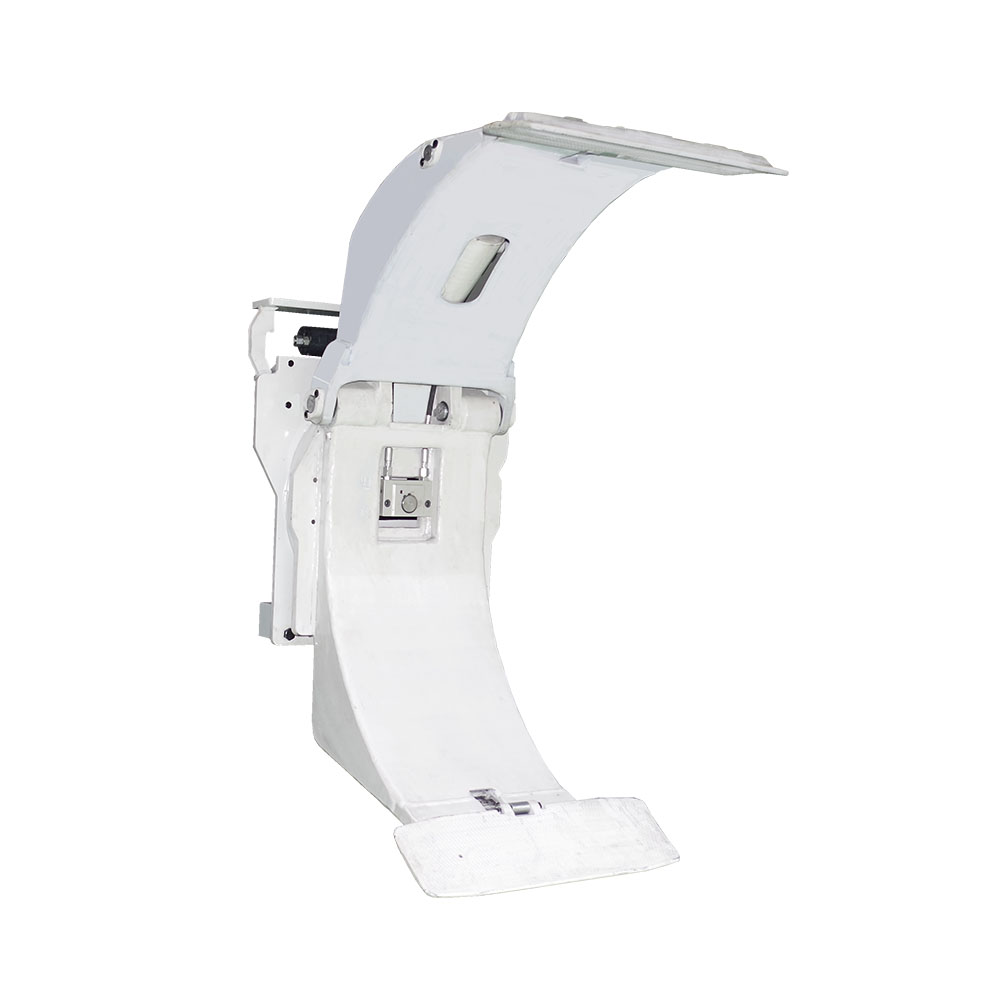

It is a perfect forklift attachment for paper mill,printing and package factory.With this roll clamp,you can easily handling and stacking all kinds of paper rolls without using pallets.This paper roll clamp can meet the need of high efficiency, safety and damage free during roll handling and stacking. Rotating 360 degrees in both direction makes the paper roll clamp more flexible.

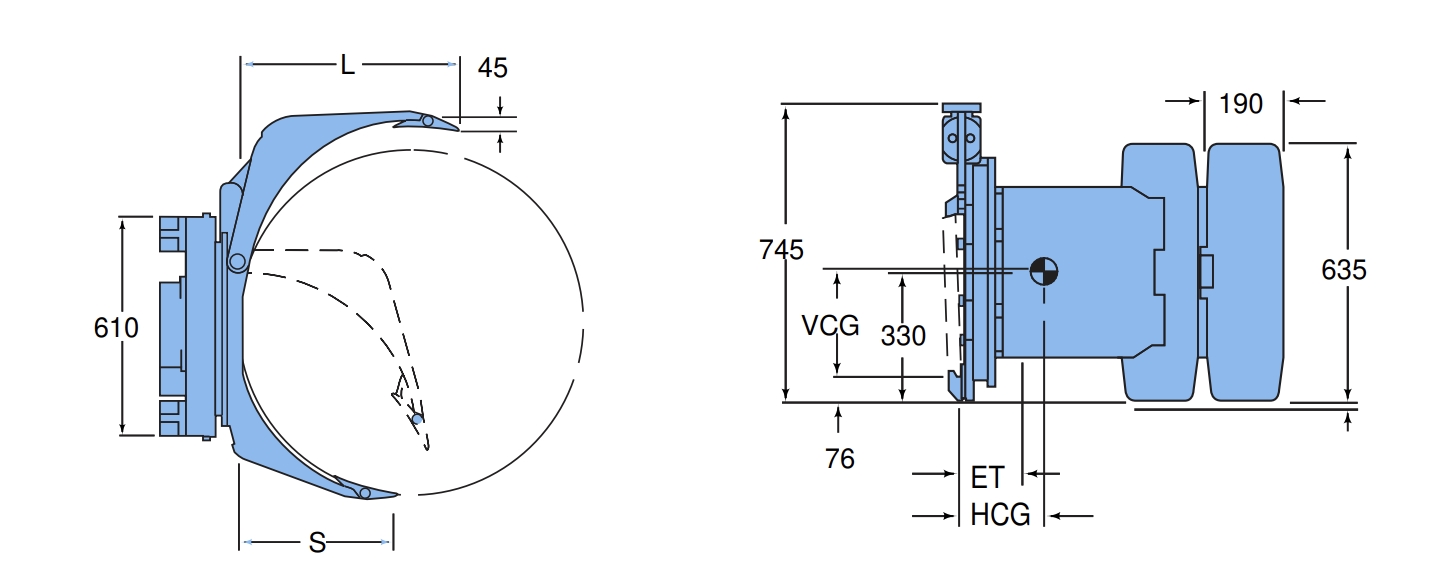

Catalog Order No. | Capacity (kg) | Roll Range (mm) | Mounting Class | Long Arm Length (mm) | Short Arm Length (mm) | Vertical Center Of Gravity VCG(mm) | Weight (kg) | Effective Thickness ET(mm) | Horizontal Center of Gravity HCG(mm) |
CF-RC-1.3TF-F1150 | 1300 | 330-1150 | II | 680 | 510 | 320 | 340 | 135 | 215 |
CF-RC-1.2TF-F1300 | 1300 | 410-1300 | II | 790 | 570 | 320 | 350 | 135 | 220 |
CF-RC-1.1TF-F1500 | 1100 | 450-1500 | II | 900 | 670 | 325 | 430 | 150 | 270 |
CF-RC-1TF-F1600 | 1000 | 560-1600 | II | 950 | 720 | 325 | 450 | 150 | 290 |
All above models are for 1.5~2.5T forklifts.
Two additional hydraulic functions needed
Contact pads are offered according to different handling tasks program
It is a perfect forklift attachment for paper mill,printing and package factory.With this roll clamp,you can easily handling and stacking all kinds of paper rolls without using pallets.This paper roll clamp can meet the need of high efficiency, safety and damage free during roll handling and stacking. Rotating 360 degrees in both direction makes the paper roll clamp more flexible.
Catalog Order No. | Capacity (kg) | Roll Range (mm) | Mounting Class | Long Arm Length (mm) | Short Arm Length (mm) | Vertical Center Of Gravity VCG(mm) | Weight (kg) | Effective Thickness ET(mm) | Horizontal Center of Gravity HCG(mm) |
CF-RC-1.3TF-F1150 | 1300 | 330-1150 | II | 680 | 510 | 320 | 340 | 135 | 215 |
CF-RC-1.2TF-F1300 | 1300 | 410-1300 | II | 790 | 570 | 320 | 350 | 135 | 220 |
CF-RC-1.1TF-F1500 | 1100 | 450-1500 | II | 900 | 670 | 325 | 430 | 150 | 270 |
CF-RC-1TF-F1600 | 1000 | 560-1600 | II | 950 | 720 | 325 | 450 | 150 | 290 |
All above models are for 1.5~2.5T forklifts.
Two additional hydraulic functions needed
Contact pads are offered according to different handling tasks program
