CF-H Series
CF-ATTS

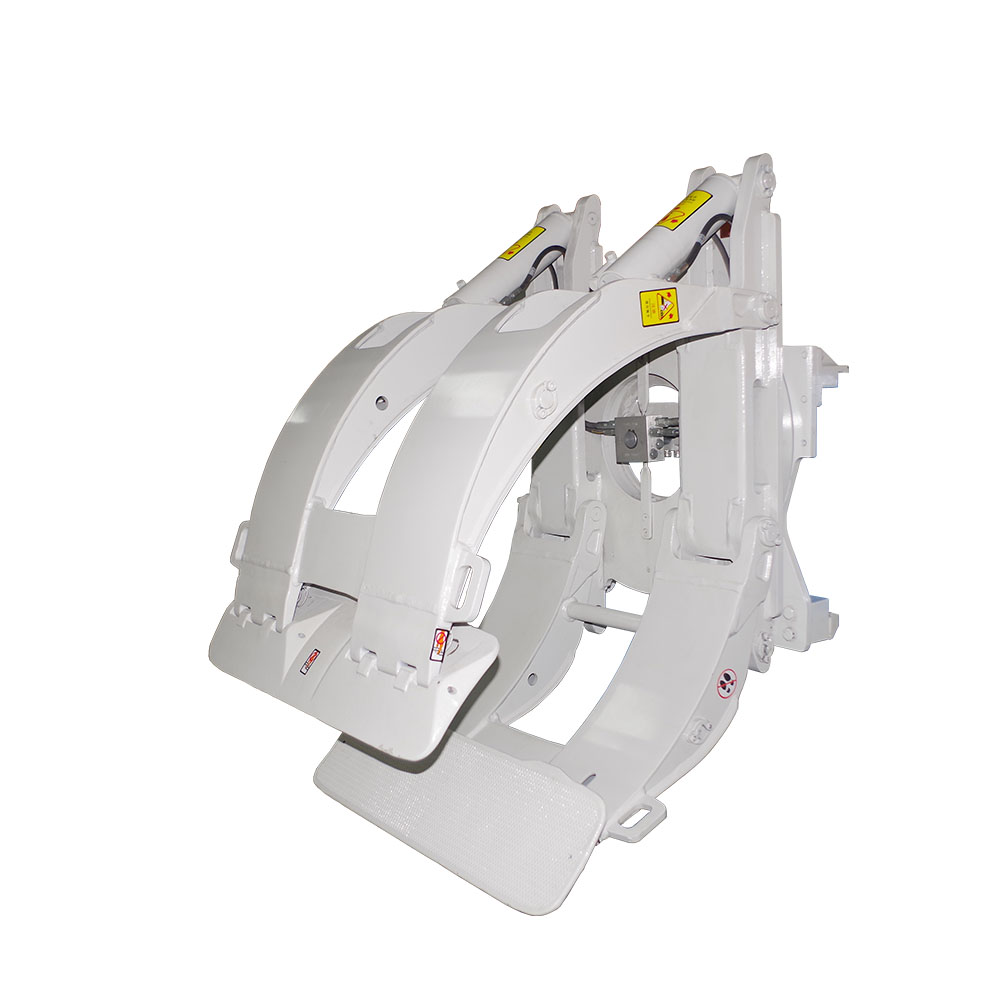

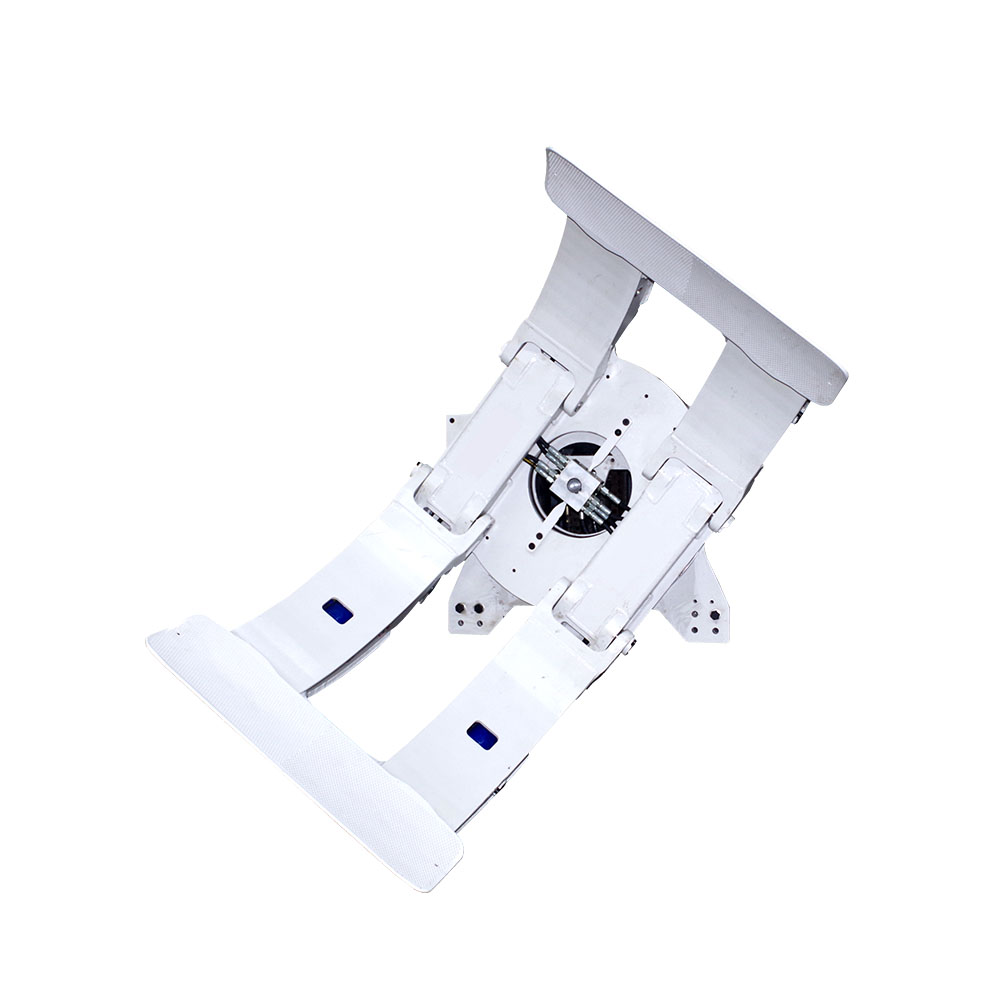

Forklift paper roll clamps arm is circular shape, it is very suitable for the cylindrical surface of the paper roll, and the clamp arm uses hydraulic drive to ensure that the paper roll does not fall. Ordinary handling methods can cause varying degrees of damage to the paper roll, but the paper roll clamp can minimize the damage of the paper roll. Different materials of paper rolls use different contact pads, please contact our sales for more details.

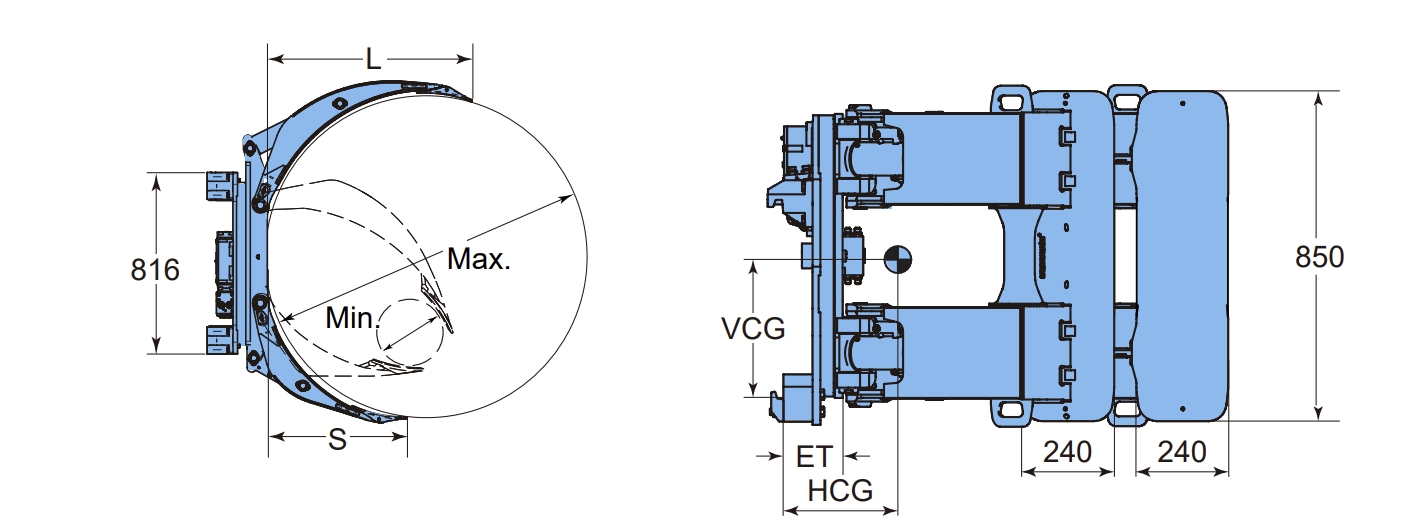

Model | Capacity (kg) | Roll Range (mm) | Mounting Class | Long Arm Length (mm) | Short Arm Length (mm) | Vertical Center Of Gravity VCG(mm) | Weight (kg) | Effective Thickness ET(mm) | Horizontal Center of Gravity HCG(mm) |
CF-RC-2TG-P1300 | 2000 | 250-1300 | II/III | 830 | 560 | 345 | 675 | 195/235 | 285/325 |
CF-RC-2TG-P1600 | 2000 | 350-1600 | II/III | 950 | 770 | 355 | 755 | 180/215 | 300/340 |
CF-RC-2TG-P1830 | 1700 | 380-1830 | III | 1130 | 920 | 360 | 885 | 235 | 445 |
CF-RC-2TG-P1350 | 2000 | 310-1350 | II/III | 830 | 560 | 345 | 655 | 195 | 285 |
CF-RC-2.7TG-P1350 | 2700 | 330-1350 | III | 850 | 560 | 345 | 760 | 195 | 270 |
CF-RC-2.7TG-P1520 | 2700 | 250-1520 | III | 950 | 690 | 350 | 830 | 195 | 305 |
All above models are for 2~4.5T forklifts.
Roll clamps are hook-on type installation.
With more diameter size, loading capacity will be less.
Forklift paper roll clamps arm is circular shape, it is very suitable for the cylindrical surface of the paper roll, and the clamp arm uses hydraulic drive to ensure that the paper roll does not fall. Ordinary handling methods can cause varying degrees of damage to the paper roll, but the paper roll clamp can minimize the damage of the paper roll. Different materials of paper rolls use different contact pads, please contact our sales for more details.
Model | Capacity (kg) | Roll Range (mm) | Mounting Class | Long Arm Length (mm) | Short Arm Length (mm) | Vertical Center Of Gravity VCG(mm) | Weight (kg) | Effective Thickness ET(mm) | Horizontal Center of Gravity HCG(mm) |
CF-RC-2TG-P1300 | 2000 | 250-1300 | II/III | 830 | 560 | 345 | 675 | 195/235 | 285/325 |
CF-RC-2TG-P1600 | 2000 | 350-1600 | II/III | 950 | 770 | 355 | 755 | 180/215 | 300/340 |
CF-RC-2TG-P1830 | 1700 | 380-1830 | III | 1130 | 920 | 360 | 885 | 235 | 445 |
CF-RC-2TG-P1350 | 2000 | 310-1350 | II/III | 830 | 560 | 345 | 655 | 195 | 285 |
CF-RC-2.7TG-P1350 | 2700 | 330-1350 | III | 850 | 560 | 345 | 760 | 195 | 270 |
CF-RC-2.7TG-P1520 | 2700 | 250-1520 | III | 950 | 690 | 350 | 830 | 195 | 305 |
All above models are for 2~4.5T forklifts.
Roll clamps are hook-on type installation.
With more diameter size, loading capacity will be less.
