CF-HDBS2
CF-ATTS

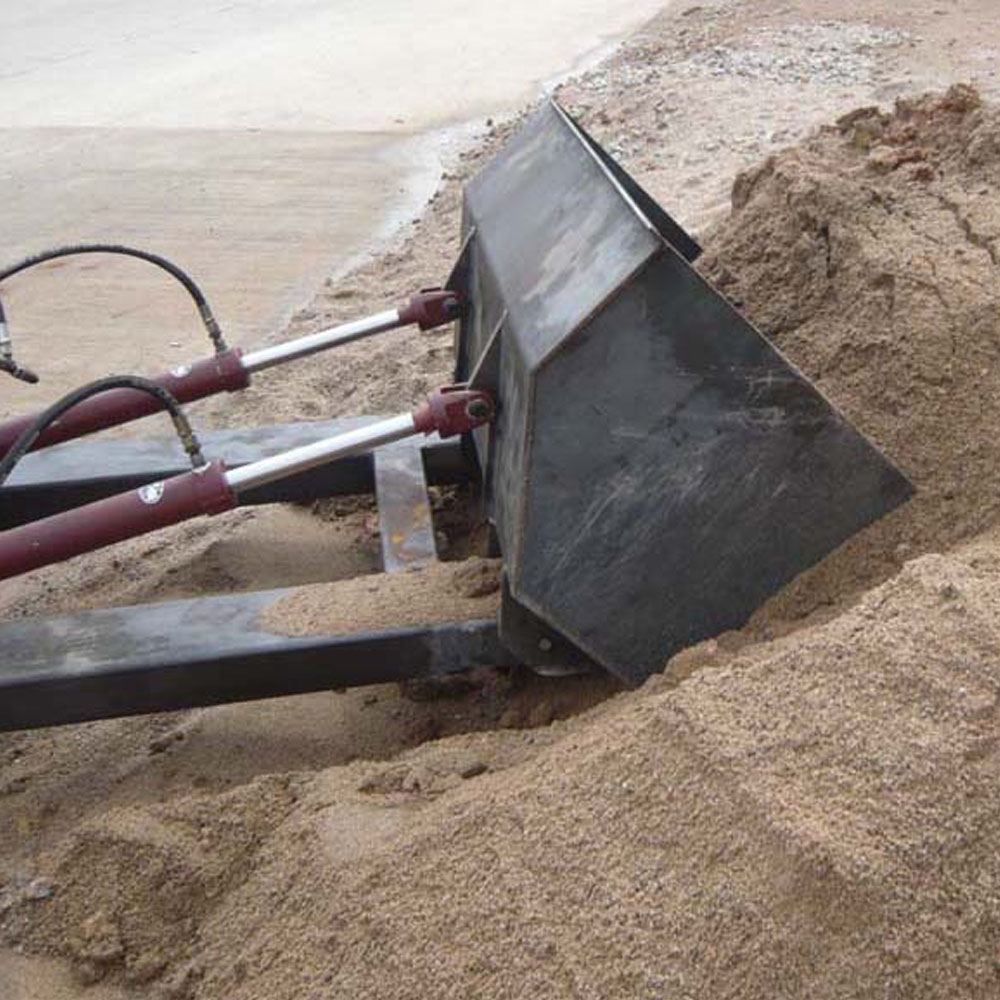

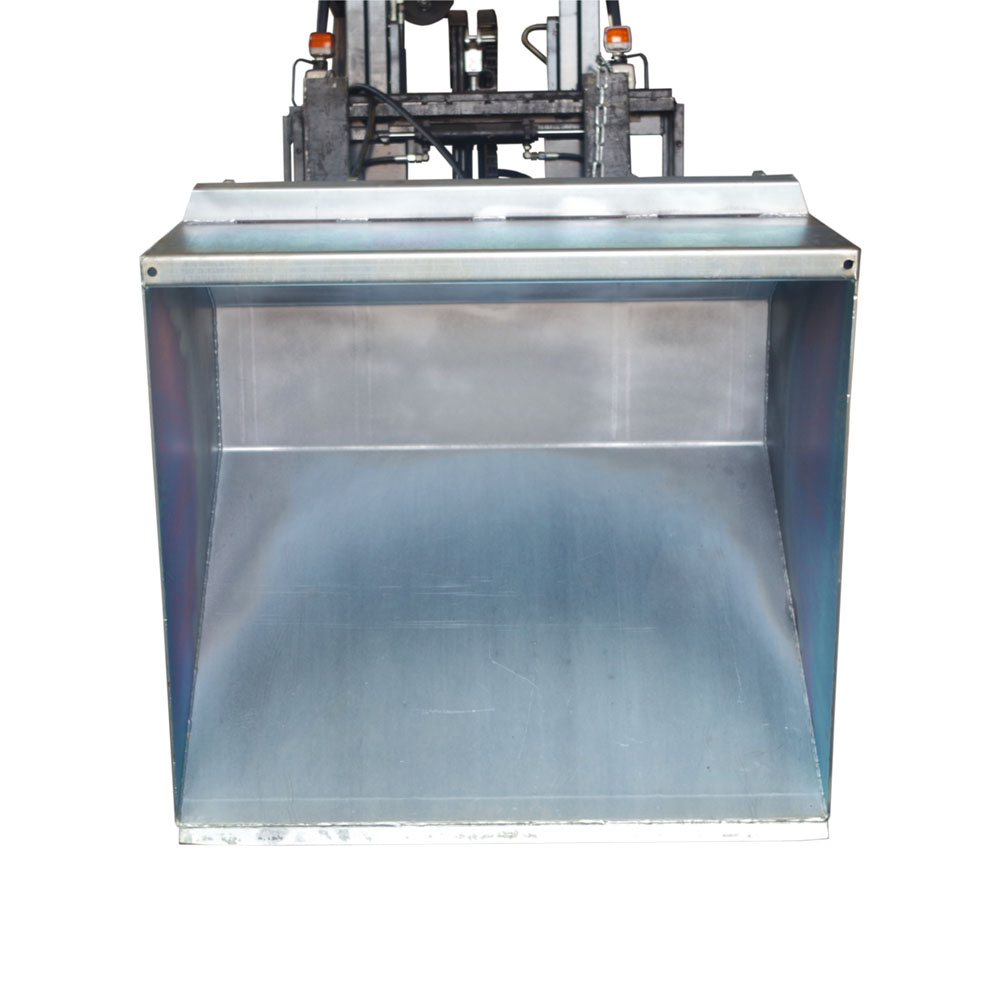

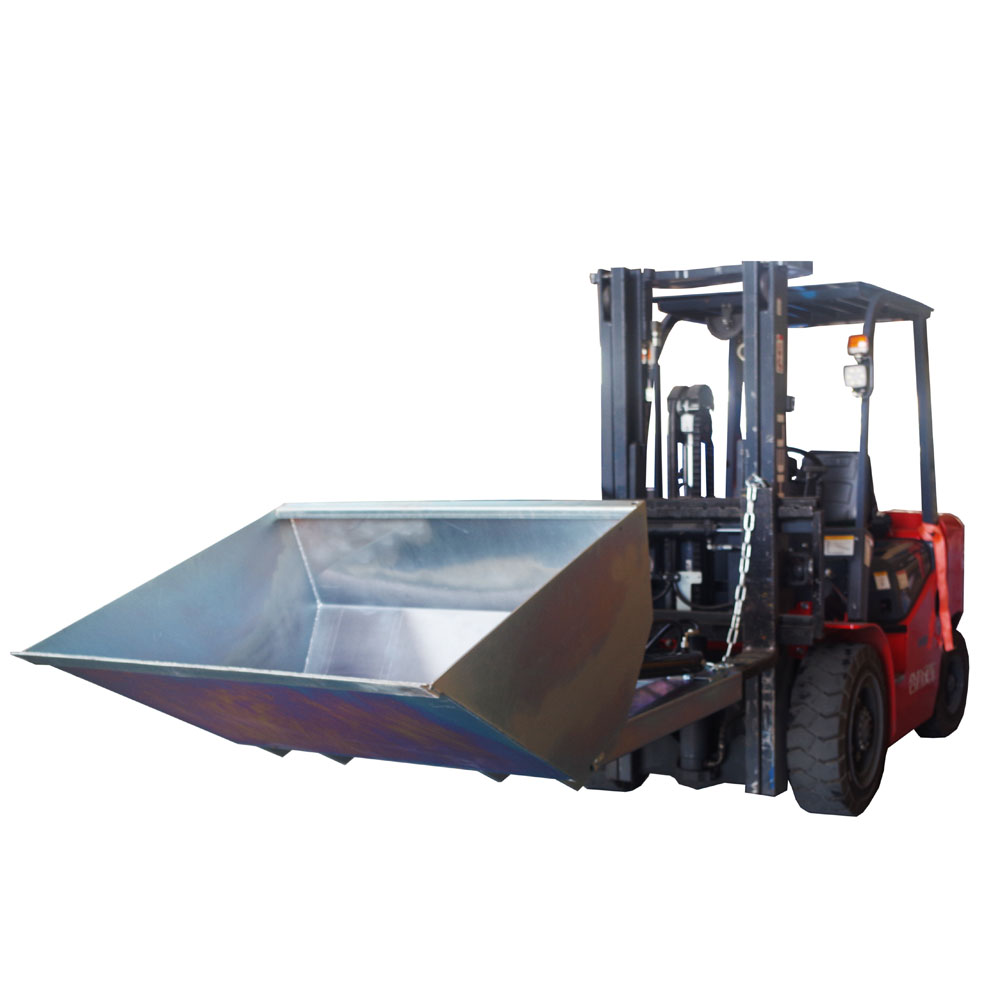

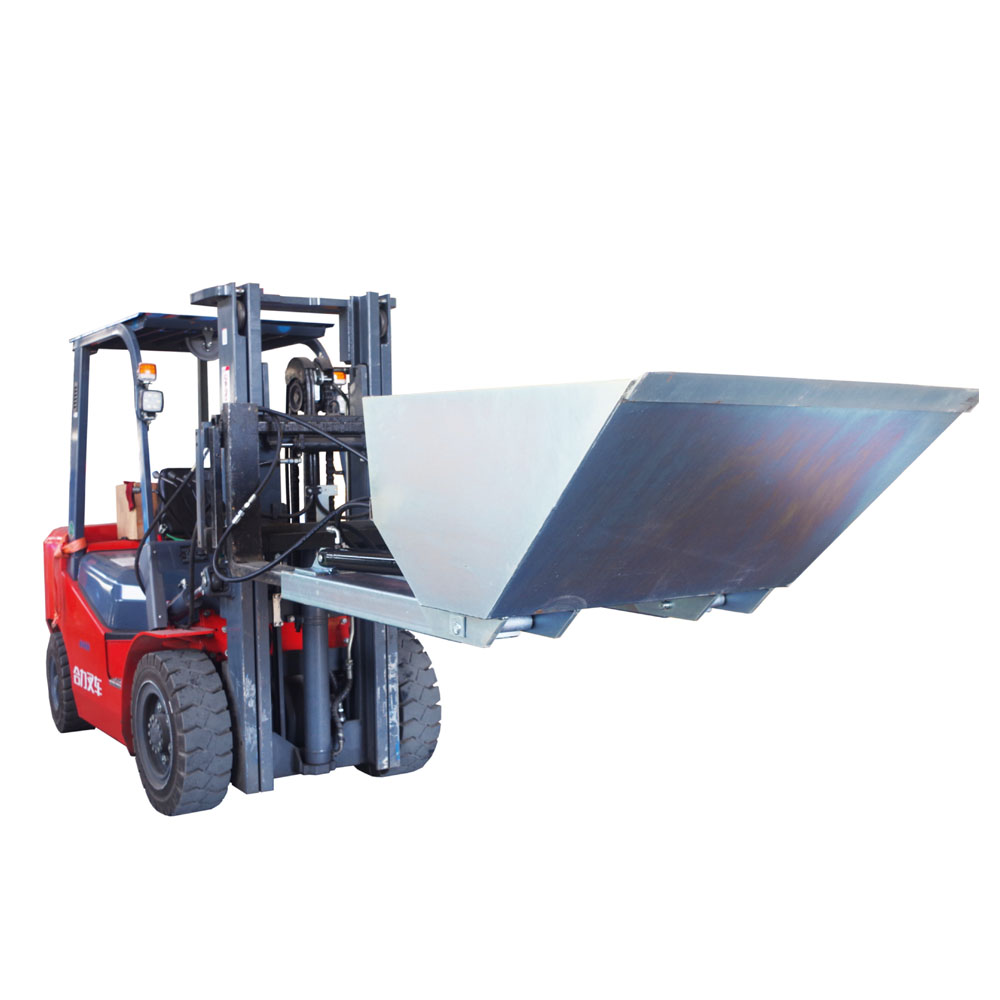

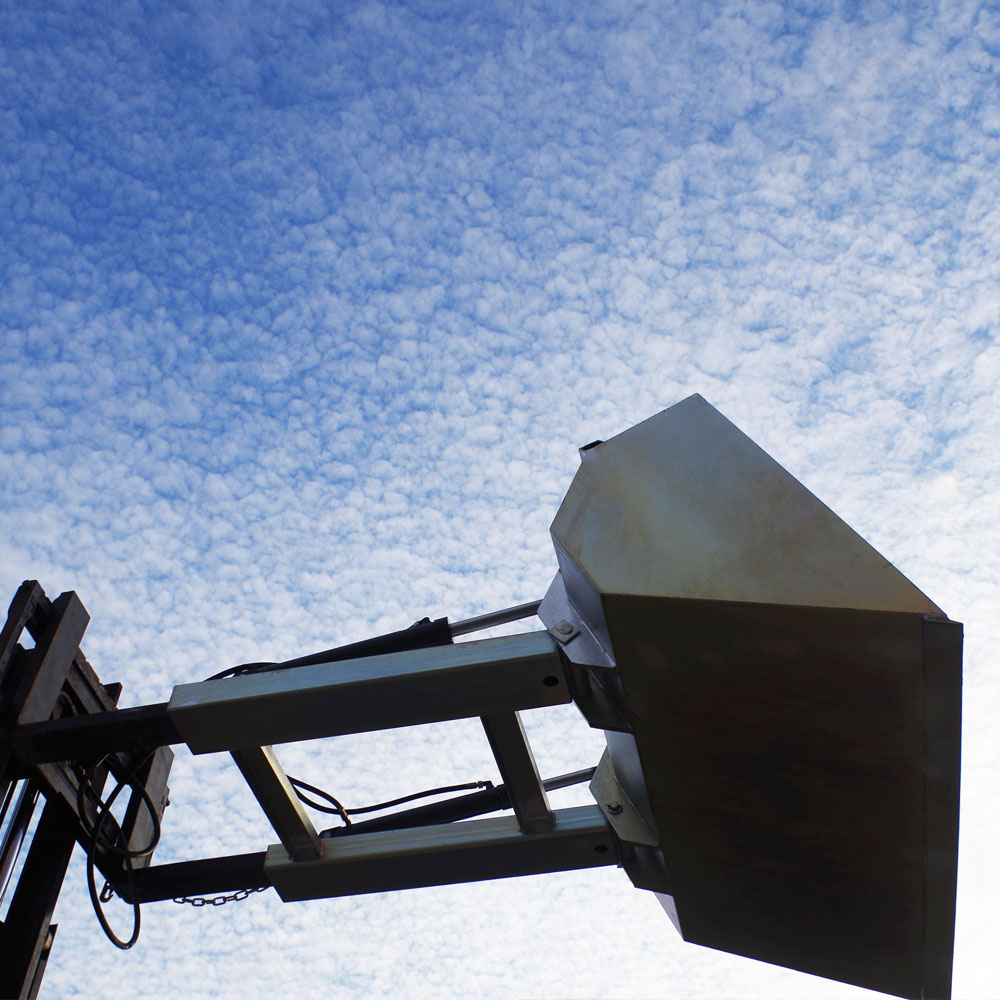

The CF-HDBS forklift loader bucket attachment is a slip-on attachment allowing quick connection to the forklift with the use of “quick connect” hydraulic couplings. The hydraulic operation allows for full backwards tilt making the bucket suitable for liquid products.
This bucket is manufactured with a hardened steel wear edge and has a galvanised finish.
| Model | Capacity (m³) | Widht (mm) | Weight (kg) | Pocket Size(mm) | Pocket Center(mm) | SWL(kg) | HCG(mm) | VCG(mm) |
| CF-HDBS2-12 | 0.50 | 1200 | 315 | 185x65 | 750 | 1000 | 1050 | 165 |
| CF-HDBS2-14 | 0.60 | 1400 | 335 | 185x65 | 750 | 1000 | 1070 | 160 |
| CF-HDBS2-16 | 0.65 | 1600 | 350 | 185x65 | 750 | 1000 | 1100 | 150 |
| CF-HDBS2-18 | 0.75 | 1800 | 390 | 185x65 | 750 | 1000 | 1120 | 140 |
| CF-HDBS2-20 | 0.85 | 2000 | 405 | 185x65 | 750 | 1000 | 1140 | 130 |
The CF-HDBS forklift loader bucket attachment is a slip-on attachment allowing quick connection to the forklift with the use of “quick connect” hydraulic couplings. The hydraulic operation allows for full backwards tilt making the bucket suitable for liquid products.
This bucket is manufactured with a hardened steel wear edge and has a galvanised finish.
| Model | Capacity (m³) | Widht (mm) | Weight (kg) | Pocket Size(mm) | Pocket Center(mm) | SWL(kg) | HCG(mm) | VCG(mm) |
| CF-HDBS2-12 | 0.50 | 1200 | 315 | 185x65 | 750 | 1000 | 1050 | 165 |
| CF-HDBS2-14 | 0.60 | 1400 | 335 | 185x65 | 750 | 1000 | 1070 | 160 |
| CF-HDBS2-16 | 0.65 | 1600 | 350 | 185x65 | 750 | 1000 | 1100 | 150 |
| CF-HDBS2-18 | 0.75 | 1800 | 390 | 185x65 | 750 | 1000 | 1120 | 140 |
| CF-HDBS2-20 | 0.85 | 2000 | 405 | 185x65 | 750 | 1000 | 1140 | 130 |
