CF-LSD
CF-ATTS

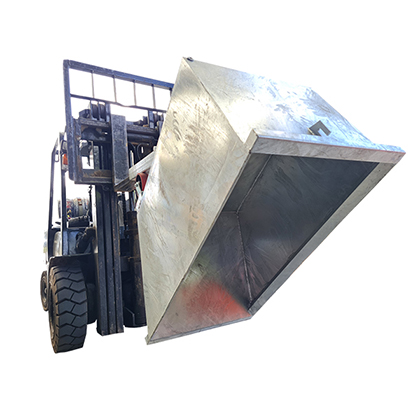

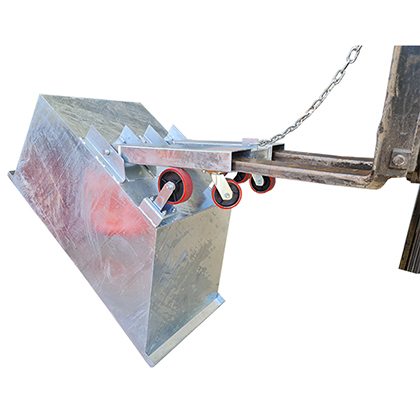

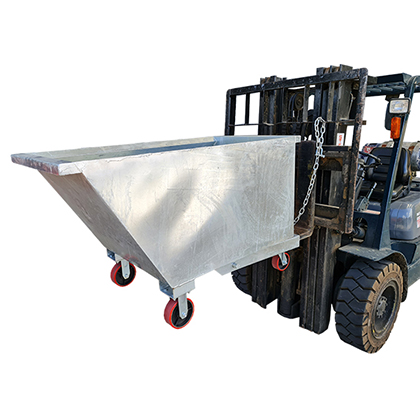

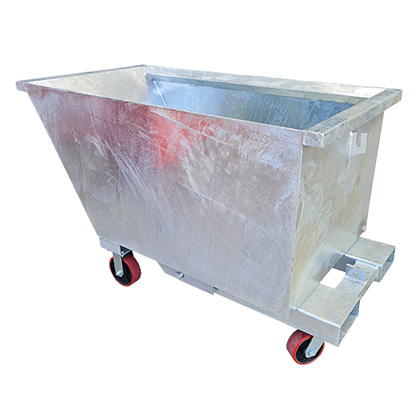

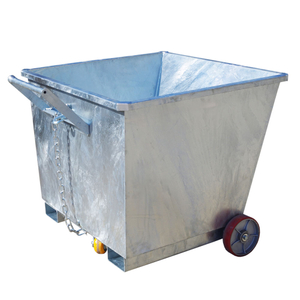

The CF-LSD Low Profile Tipping Bins are compact bins designed for use in confined spaces. These units are well suited to production machinery such as punching machines for the collection of waste etc. These heavy-duty bins are self-dumping, meaning the Forklift operator can empty the bin without leaving the driver seat.
Working Load Limit 1000kg
Options available:
Crane Lugs
Drain Valve and Strainer
Cast Iron or Rubber Wheels
| Model | Capacity (cubic/meter) | Unit Weight (kg) | Size L x W x H (mm) | Pocket Size (mm) | Pocket Centres (mm) |
|---|---|---|---|---|---|
| CF-LSD3 | 0.2 | 80 | 1185 x 710 x 400 | 165 x 65 | 405 |
| CF-LSD4 | 0.3 | 90 | 1245 x 710 x 500 | 165 x 65 | 405 |
| CF-LSD5 | 0.4 | 100 | 1300 x 710 x 600 | 165 x 65 | 405 |
| CF-LSD6 | 0.5 | 110 | 1360 x 710 x 700 | 165 x 65 | 405 |
The CF-LSD Low Profile Tipping Bins are compact bins designed for use in confined spaces. These units are well suited to production machinery such as punching machines for the collection of waste etc. These heavy-duty bins are self-dumping, meaning the Forklift operator can empty the bin without leaving the driver seat.
Working Load Limit 1000kg
Options available:
Crane Lugs
Drain Valve and Strainer
Cast Iron or Rubber Wheels
| Model | Capacity (cubic/meter) | Unit Weight (kg) | Size L x W x H (mm) | Pocket Size (mm) | Pocket Centres (mm) |
|---|---|---|---|---|---|
| CF-LSD3 | 0.2 | 80 | 1185 x 710 x 400 | 165 x 65 | 405 |
| CF-LSD4 | 0.3 | 90 | 1245 x 710 x 500 | 165 x 65 | 405 |
| CF-LSD5 | 0.4 | 100 | 1300 x 710 x 600 | 165 x 65 | 405 |
| CF-LSD6 | 0.5 | 110 | 1360 x 710 x 700 | 165 x 65 | 405 |
