CF-SD
CF-ATTS

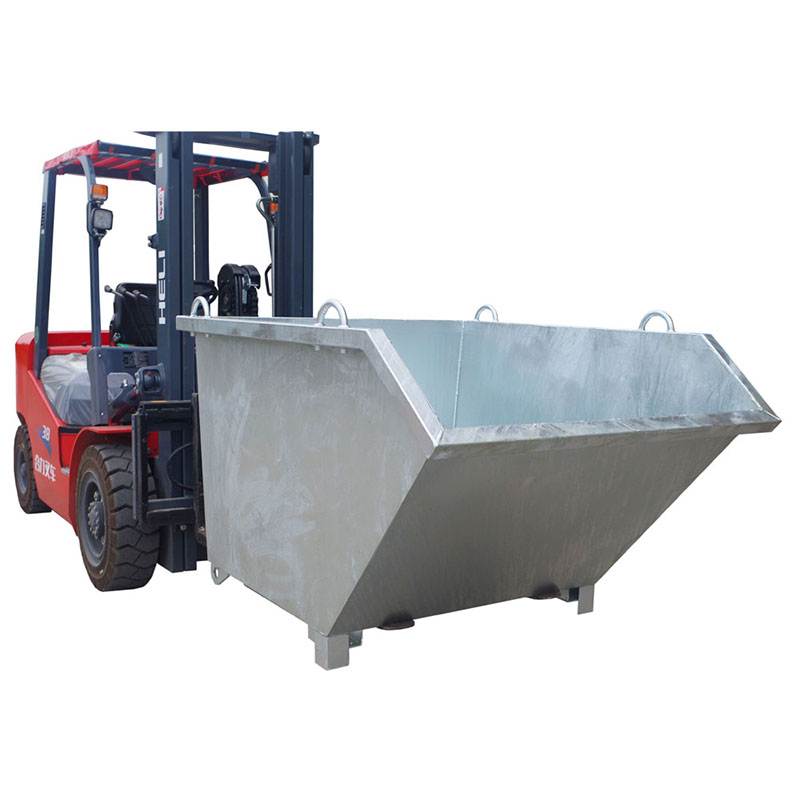

The economical CF-WSD bin is a self dumping bin suitable for most waste handling applications.
• These large self dumping tipping bins are suitable for any waste and rubbish application
• Heavy duty constuction with self dumping ability, the forklift empties the bin without the forklift operator having to leave the drivers seat
• Supplied with 4 crane lugs (top) and 2 upending lugs (underneath)
• Available in 4 standard sizes
• Drain plug fitted as standard

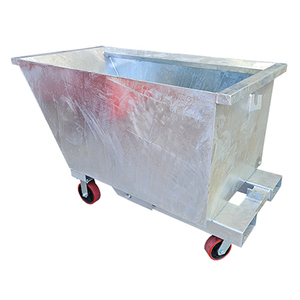

• Optional wheel kits available
• Safe Working Load: 1500kg
• HCG: 580mm
• Finish: Hot Dipped Galvanised
• Fork Pocket Size: 185x75mm
• Fork Pocket Centres: 360mm (CF-WSD9)
• Fork Pocket Centres: 380mm (CF-WSD12)
• Fork Pocket Centres: 680mm (CF-WSD15&CF-WSD18)

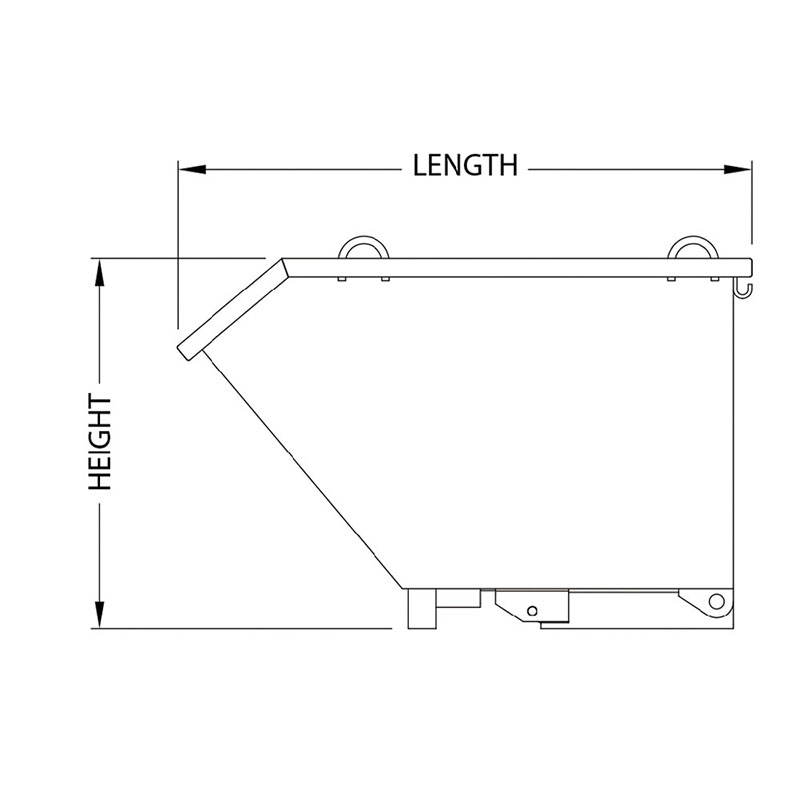

Type | Capacity | Lmm) | W(mm) | H(mm) | Fork Pocket Size(mm) | Fork Pocket Center(mm) | Weight(kg) |
CF-WSD9 | 0.95 | 1010 | 1570 | 1010 | 185x75 | 360 | 164 |
CF-WSD12 | 1.25 | 1310 | 1570 | 1010 | 185x75 | 380 | 188 |
CF-WSD15 | 1.55 | 1510 | 1570 | 1010 | 185x75 | 680 | 235 |
CF-WSD18 | 1.95 | 1910 | 1570 | 1010 | 185x75 | 680 | 255 |
The economical CF-WSD bin is a self dumping bin suitable for most waste handling applications.
• These large self dumping tipping bins are suitable for any waste and rubbish application
• Heavy duty constuction with self dumping ability, the forklift empties the bin without the forklift operator having to leave the drivers seat
• Supplied with 4 crane lugs (top) and 2 upending lugs (underneath)
• Available in 4 standard sizes
• Drain plug fitted as standard
• Optional wheel kits available
• Safe Working Load: 1500kg
• HCG: 580mm
• Finish: Hot Dipped Galvanised
• Fork Pocket Size: 185x75mm
• Fork Pocket Centres: 360mm (CF-WSD9)
• Fork Pocket Centres: 380mm (CF-WSD12)
• Fork Pocket Centres: 680mm (CF-WSD15&CF-WSD18)
Type | Capacity | Lmm) | W(mm) | H(mm) | Fork Pocket Size(mm) | Fork Pocket Center(mm) | Weight(kg) |
CF-WSD9 | 0.95 | 1010 | 1570 | 1010 | 185x75 | 360 | 164 |
CF-WSD12 | 1.25 | 1310 | 1570 | 1010 | 185x75 | 380 | 188 |
CF-WSD15 | 1.55 | 1510 | 1570 | 1010 | 185x75 | 680 | 235 |
CF-WSD18 | 1.95 | 1910 | 1570 | 1010 | 185x75 | 680 | 255 |
