CF-SRBG
CF-ATTS

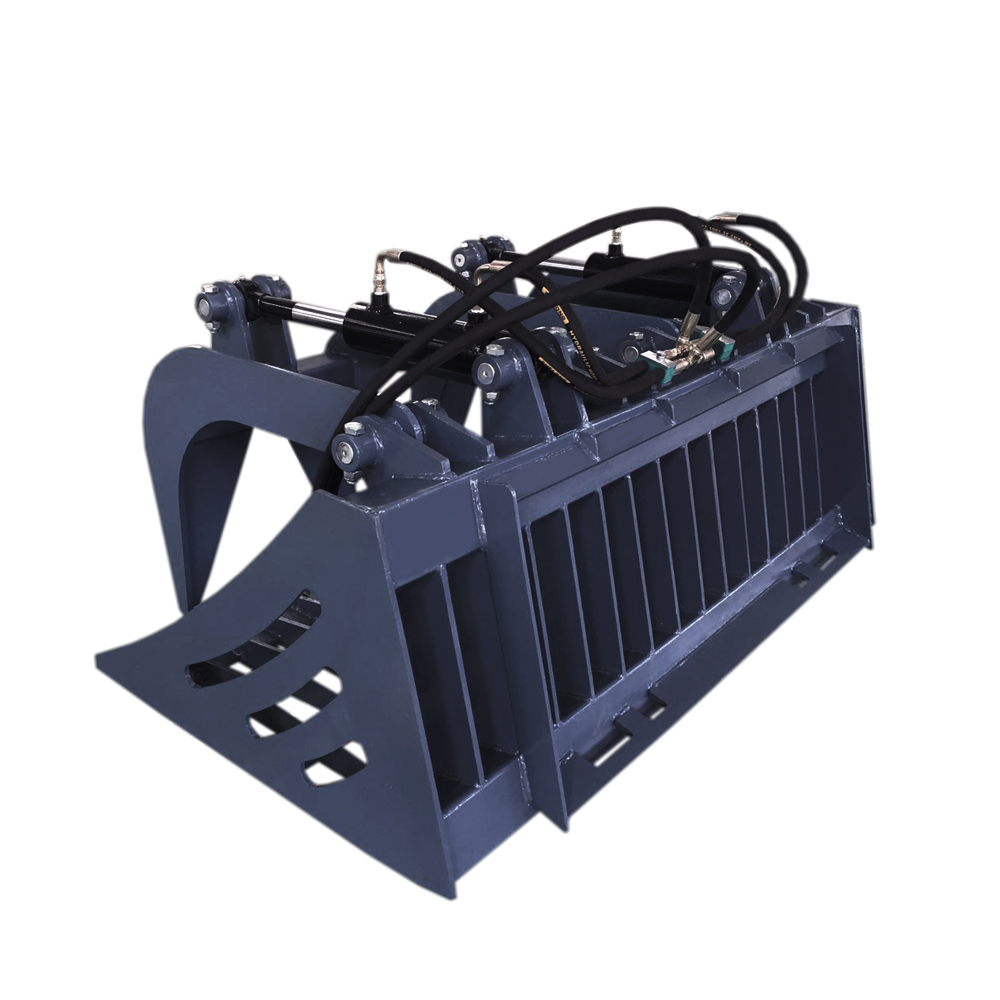

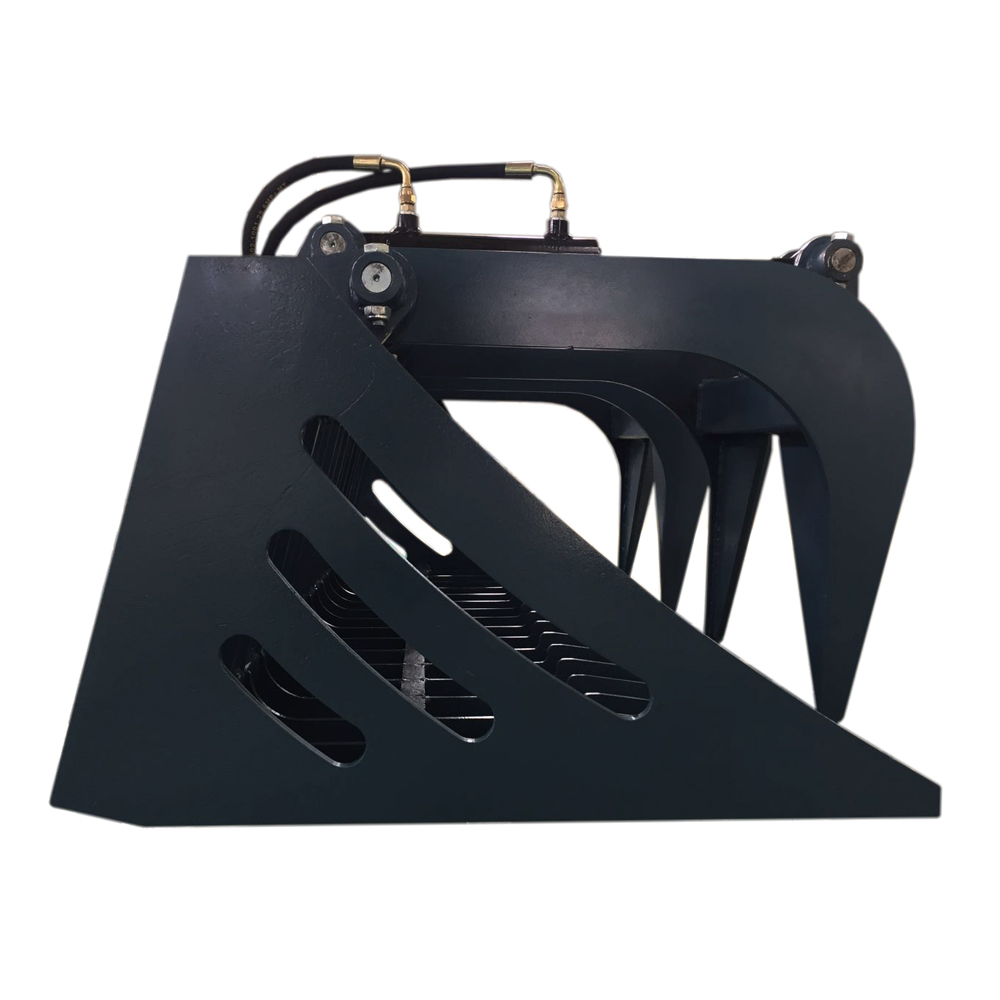

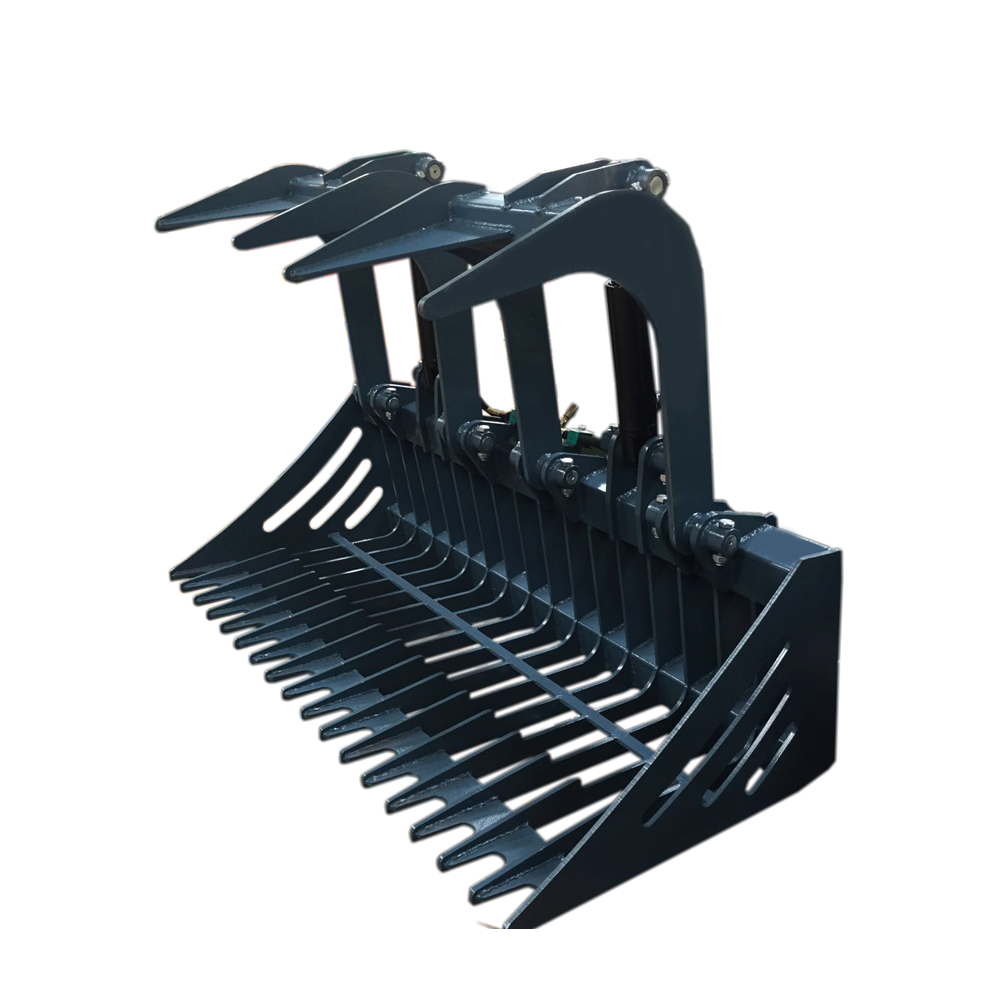

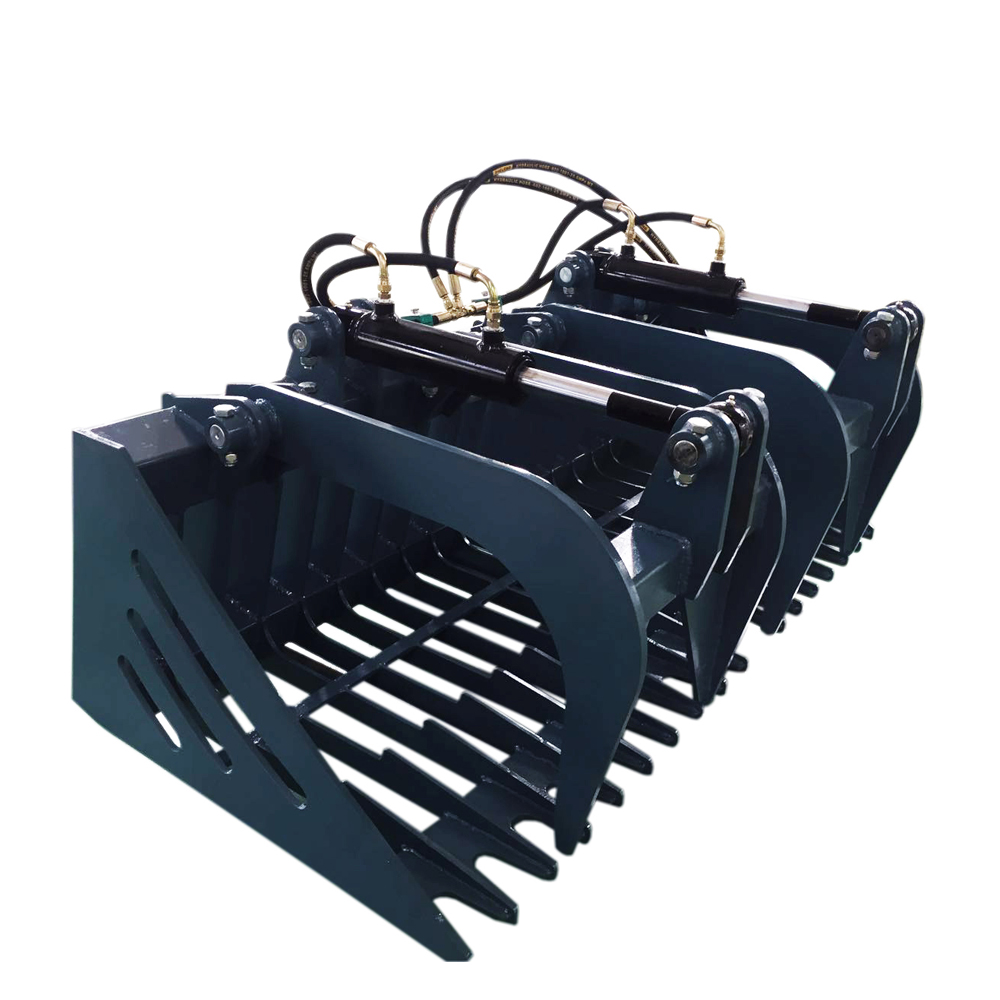

This skid steer rock grapple bucket is an extremely versatile attachment. Grapple buckets combine the sifting prowess of rock buckets with strong twin cyliner, dual independent grapple arms. Pick up rocks, clean up job-sites, clear bruch, dress yards, carry logs and firwood.
With certain bucket tines, grapple tines, enclosed cylinders and grease fitting on pivot points, this grapple bucket is ready for the hard work.
The cylinder protection cover is optional according to customers' request.
| Model | Clamp No. | Width(mm) | Teeth Thickness/mm | Opening Range(OR)/mm | Weight(kg) |
| CF-SRBG59 | 2 | 1500mm | 10 | 0-980 | 272 |
| CF-SRBG62 | 2 | 1575 | 10 | 0-980 | 290 |
| CF-SRBG66 | 2 | 1675 | 10 | 0-980 | 305 |
| CF-SRBG68 | 2 | 1725 | 10 | 0-980 | 310 |
| CF-SRBG72 | 2 | 1830 | 10 | 0-980 | 315 |
| CF-SRBG78 | 2 | 1980 | 10 | 0-980 | 320 |
| CF-SRBG84 | 2 | 2135 | 10 | 0-980 | 338 |
This skid steer rock grapple bucket is an extremely versatile attachment. Grapple buckets combine the sifting prowess of rock buckets with strong twin cyliner, dual independent grapple arms. Pick up rocks, clean up job-sites, clear bruch, dress yards, carry logs and firwood.
With certain bucket tines, grapple tines, enclosed cylinders and grease fitting on pivot points, this grapple bucket is ready for the hard work.
The cylinder protection cover is optional according to customers' request.
| Model | Clamp No. | Width(mm) | Teeth Thickness/mm | Opening Range(OR)/mm | Weight(kg) |
| CF-SRBG59 | 2 | 1500mm | 10 | 0-980 | 272 |
| CF-SRBG62 | 2 | 1575 | 10 | 0-980 | 290 |
| CF-SRBG66 | 2 | 1675 | 10 | 0-980 | 305 |
| CF-SRBG68 | 2 | 1725 | 10 | 0-980 | 310 |
| CF-SRBG72 | 2 | 1830 | 10 | 0-980 | 315 |
| CF-SRBG78 | 2 | 1980 | 10 | 0-980 | 320 |
| CF-SRBG84 | 2 | 2135 | 10 | 0-980 | 338 |
