CF-SRBGA
CF-ATTS

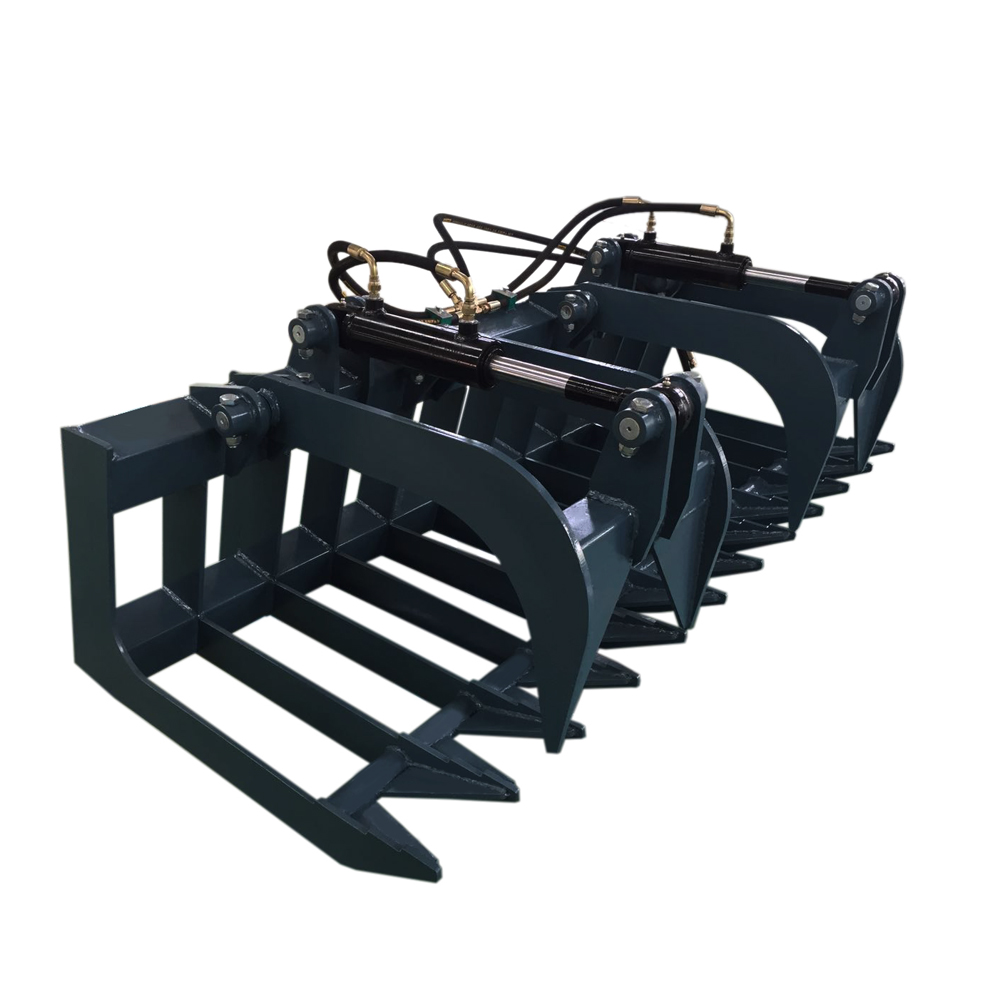

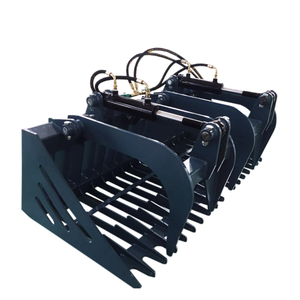

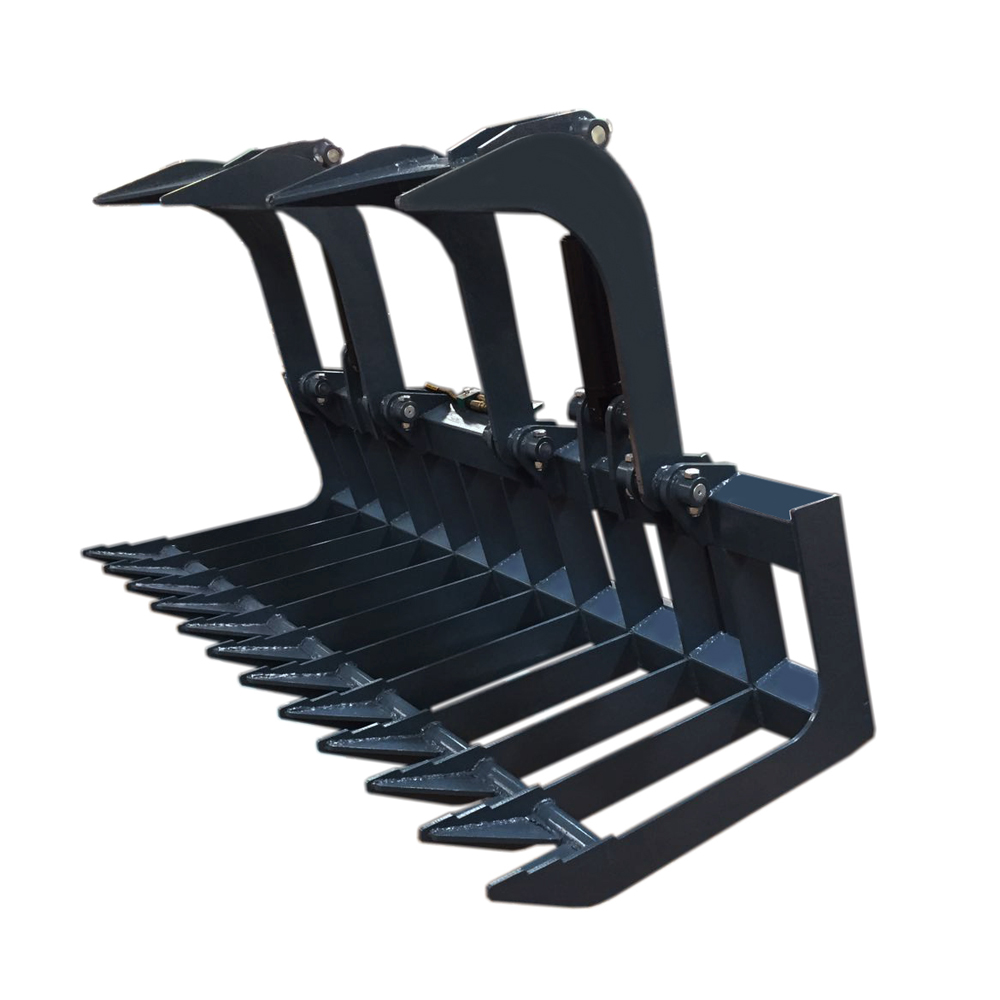

The root grapple is idea for picking up and moving small logs, brush, debris and other odd shaped or hard to lift material. It's efficient light weight design will not tax your loaders' power allowing you to work faster.
The independent grapples make it easy to move difficult and uneven loads. The serrated leading edge provides exceptional grip and can easily tear through small roots and brush. This grapple is not intended for heavier duty, commercial grade work to include digging or pulling trees, rocks, roots from the ground.
Model | Clamp No. | Width(mm) | Teeth Thickness/mm | Opening Range(OR)/mm | Weight(kg) |
CF-SRBGA59 | 2 | 1500mm | 10 | 0-1010 | 272 |
CF-SRBGA62 | 2 | 1575 | 10 | 0-1010 | 290 |
CF-SRBGA66 | 2 | 1675 | 10 | 0-1010 | 305 |
CF-SRBGA68 | 2 | 1725 | 10 | 0-1010 | 310 |
CF-SRBGA72 | 2 | 1830 | 10 | 0-1010 | 315 |
CF-SRBGA78 | 2 | 1980 | 10 | 0-1010 | 320 |
CF-SRBGA84 | 2 | 2135 | 10 | 0-1010 | 338 |
The root grapple is idea for picking up and moving small logs, brush, debris and other odd shaped or hard to lift material. It's efficient light weight design will not tax your loaders' power allowing you to work faster.
The independent grapples make it easy to move difficult and uneven loads. The serrated leading edge provides exceptional grip and can easily tear through small roots and brush. This grapple is not intended for heavier duty, commercial grade work to include digging or pulling trees, rocks, roots from the ground.
Model | Clamp No. | Width(mm) | Teeth Thickness/mm | Opening Range(OR)/mm | Weight(kg) |
CF-SRBGA59 | 2 | 1500mm | 10 | 0-1010 | 272 |
CF-SRBGA62 | 2 | 1575 | 10 | 0-1010 | 290 |
CF-SRBGA66 | 2 | 1675 | 10 | 0-1010 | 305 |
CF-SRBGA68 | 2 | 1725 | 10 | 0-1010 | 310 |
CF-SRBGA72 | 2 | 1830 | 10 | 0-1010 | 315 |
CF-SRBGA78 | 2 | 1980 | 10 | 0-1010 | 320 |
CF-SRBGA84 | 2 | 2135 | 10 | 0-1010 | 338 |
