CF-PU/PP/PPS
CF-ATTS
The Push Pull attachment reduces warehouses or factories’ pallets cost because the cargo will be transferred on cheap slip sheets instead of expensive pallets.

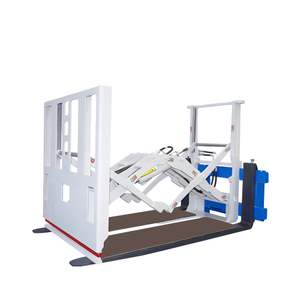

The Push Pull attachment has two different types. One is quick mounting type which can be installed in a forklift directly without take off forklift forks. In fact the forks bear the whole quick mounting Push Pull. The other is regular type which will be hooked on the carriage of forklift, but two forks have to be taken off.
Push Pull forklift attachment are used in various industries such as food, beverage, glassware, building material, agricultural, paper, chemical and the automotive parts industry. Custom push pull attachment is available.

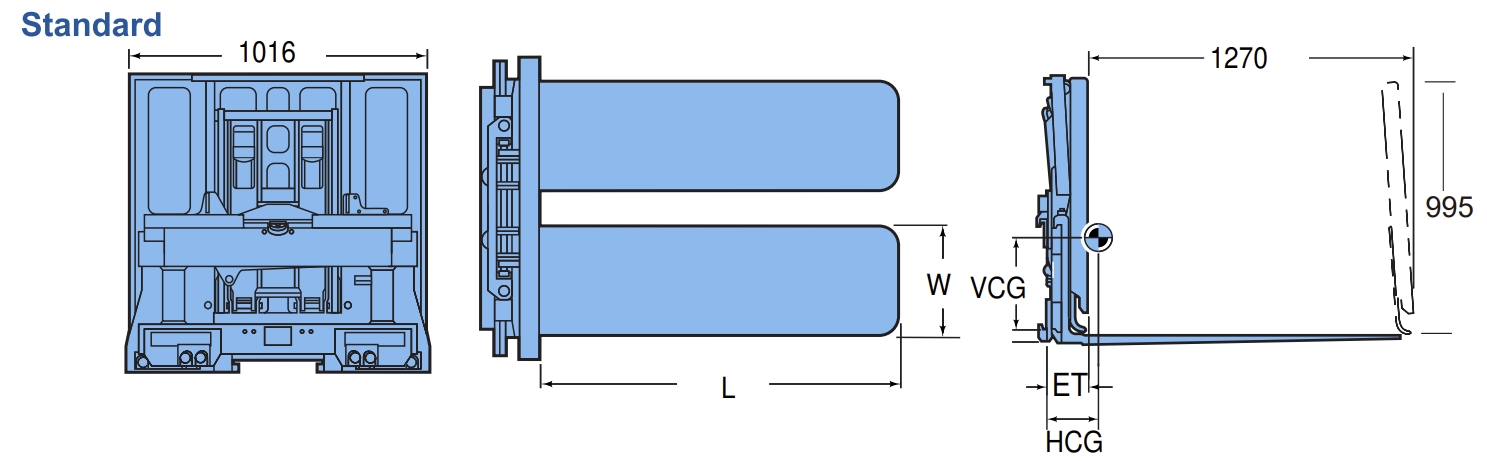

Model | Loading Capacity (kg@mm) | Mounting Class | Platen size W x L (mm) | Stroke (mm) | Min. Forklift Carriage Width (mm) | Weight (kg) | ET(mm) |
Push | |||||||
CF-PU-1.6TE-B455 | 1600@600 | II | 455x1220 | 1270 | 790 | 300 | 165 |
CF-PU-1.6TE-B380 | 1600@600 | II | 380X1220 | 1270 | 790 | 290 | 165 |
CF-PU-2TE-B455 | 2000@600 | II | 455x1220 | 1270 | 790 | 315 | 165 |
CF-PU-2TE-B380 | 2000@600 | II | 380X1220 | 1270 | 790 | 300 | 165 |
Push Pull | |||||||
CF-PP-1.6TE-B455 | 1600@600 | II | 455x1220 | 1270 | 790 | 345 | 165 |
CF-PP-1.6TE-B380 | 1600@600 | II | 380X1220 | 1270 | 790 | 335 | 165 |
CF-PP-2TE-B455 | 2000@600 | II | 455x1220 | 1270 | 790 | 360 | 165 |
CF-PP-2TE-B380 | 2000@600 | II | 380X1220 | 1270 | 790 | 345 | 165 |

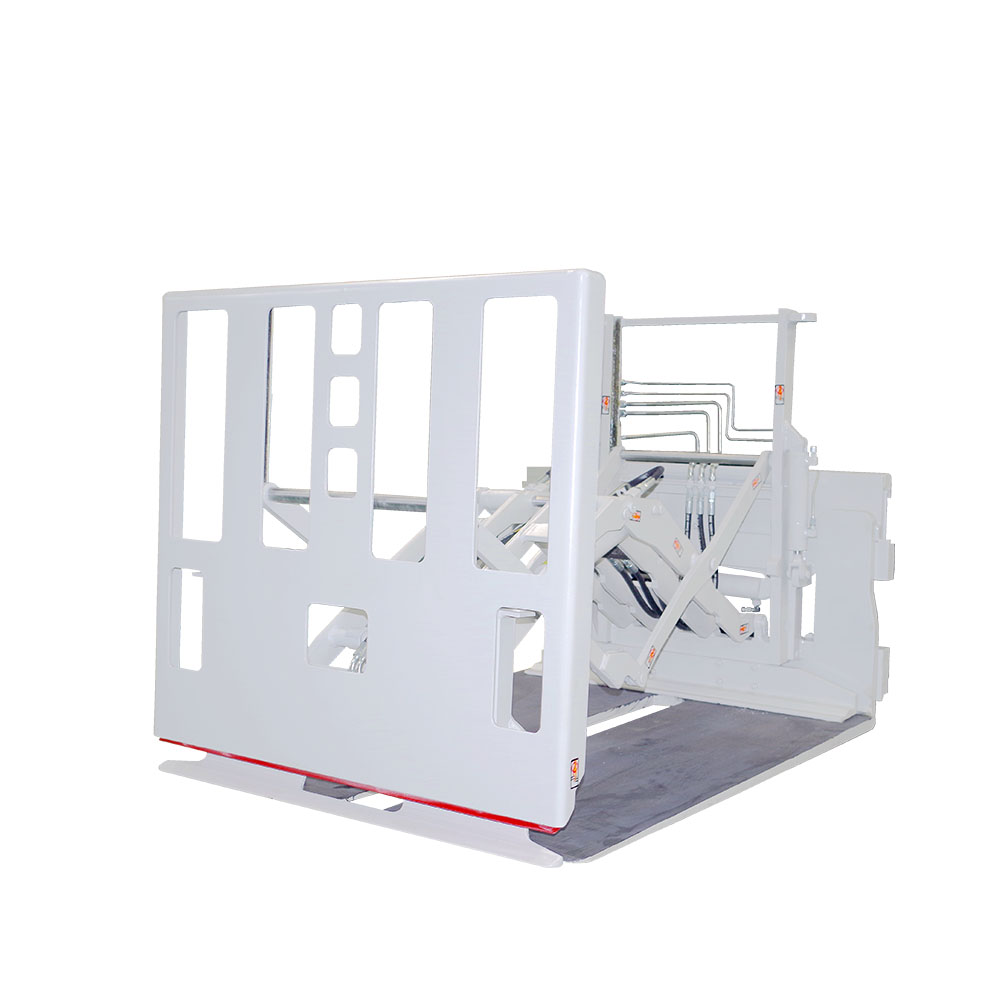

Slip sheet saving Push Pull | |||||||
CF-PPS-1.6TE-B455 | 1600@600 | II | 455x1220 | 1270 | 790 | 425 | 235 |
CF-PPS-1.6TE-B380 | 1600@600 | II | 380X1220 | 1270 | 790 | 410 | 235 |
CF-PPS-2TE-B455 | 2000@600 | II | 455x1220 | 1270 | 790 | 435 | 235 |
CF-PPS-2TE-B380 | 2000@600 | II | 380X1220 | 1270 | 790 | 425 | 235 |
The Push Pull attachment reduces warehouses or factories’ pallets cost because the cargo will be transferred on cheap slip sheets instead of expensive pallets.
The Push Pull attachment has two different types. One is quick mounting type which can be installed in a forklift directly without take off forklift forks. In fact the forks bear the whole quick mounting Push Pull. The other is regular type which will be hooked on the carriage of forklift, but two forks have to be taken off.
Push Pull forklift attachment are used in various industries such as food, beverage, glassware, building material, agricultural, paper, chemical and the automotive parts industry. Custom push pull attachment is available.
Model | Loading Capacity (kg@mm) | Mounting Class | Platen size W x L (mm) | Stroke (mm) | Min. Forklift Carriage Width (mm) | Weight (kg) | ET(mm) |
Push | |||||||
CF-PU-1.6TE-B455 | 1600@600 | II | 455x1220 | 1270 | 790 | 300 | 165 |
CF-PU-1.6TE-B380 | 1600@600 | II | 380X1220 | 1270 | 790 | 290 | 165 |
CF-PU-2TE-B455 | 2000@600 | II | 455x1220 | 1270 | 790 | 315 | 165 |
CF-PU-2TE-B380 | 2000@600 | II | 380X1220 | 1270 | 790 | 300 | 165 |
Push Pull | |||||||
CF-PP-1.6TE-B455 | 1600@600 | II | 455x1220 | 1270 | 790 | 345 | 165 |
CF-PP-1.6TE-B380 | 1600@600 | II | 380X1220 | 1270 | 790 | 335 | 165 |
CF-PP-2TE-B455 | 2000@600 | II | 455x1220 | 1270 | 790 | 360 | 165 |
CF-PP-2TE-B380 | 2000@600 | II | 380X1220 | 1270 | 790 | 345 | 165 |
Slip sheet saving Push Pull | |||||||
CF-PPS-1.6TE-B455 | 1600@600 | II | 455x1220 | 1270 | 790 | 425 | 235 |
CF-PPS-1.6TE-B380 | 1600@600 | II | 380X1220 | 1270 | 790 | 410 | 235 |
CF-PPS-2TE-B455 | 2000@600 | II | 455x1220 | 1270 | 790 | 435 | 235 |
CF-PPS-2TE-B380 | 2000@600 | II | 380X1220 | 1270 | 790 | 425 | 235 |
