CF-PPQ
CF-ATTS
The goods are stacked on paper or plastic slip sheets, and the pusher has a pressure strip and fork plate, which presses the slip sheet and pulls the goods back together with slip sheet to the fork plates. When unloading, it can also be pushed out with the slip sheet. The push pull is convenient and fast, saving pallets and saving manual handling costs.

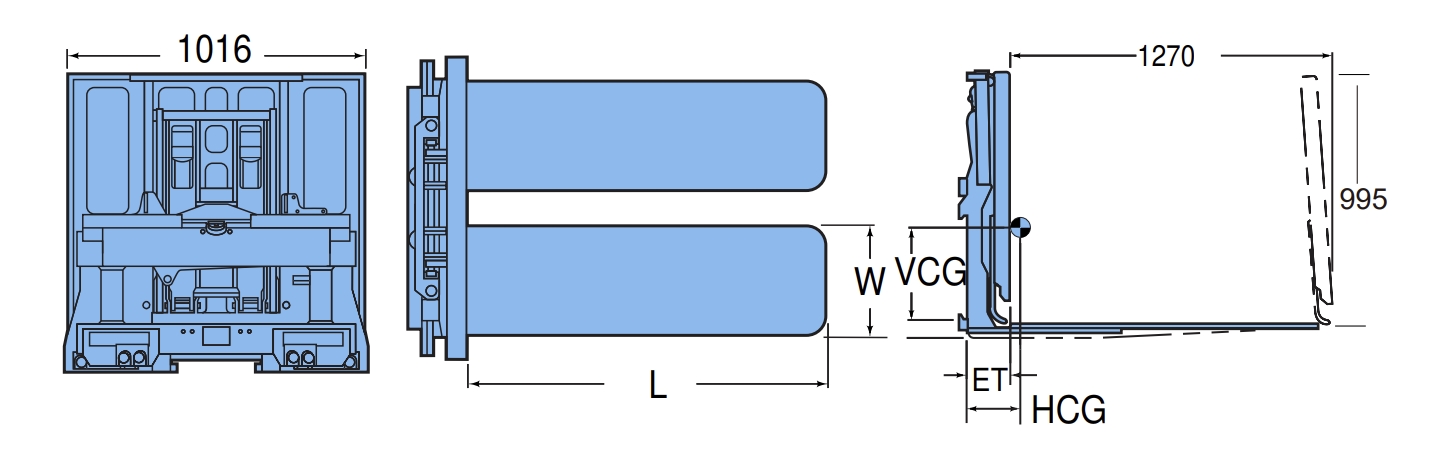

Model | Capacity (kg@mm) | Mounting Class | Platern Size WxL (mm) | Stroke (mm) | Mininum Truck Carriage Width (mm) | Effective Thickness ET(mm) |
CF-PPQ-1.6TE-B455 | 1600@600 | II | 455x1220 | 1270 | 790 | 165 |
CF-PPQ-1.6TE-B380 | 1600@600 | II | 380x1220 | 1270 | 790 | 165 |
CF-PPQ-2TE-B455 | 2000@600 | II | 455x1220 | 1270 | 790 | 165 |
CF-PPQ-2TE-B380 | 2000@600 | II | 380x1220 | 1270 | 790 | 165 |
The goods are stacked on paper or plastic slip sheets, and the pusher has a pressure strip and fork plate, which presses the slip sheet and pulls the goods back together with slip sheet to the fork plates. When unloading, it can also be pushed out with the slip sheet. The push pull is convenient and fast, saving pallets and saving manual handling costs.
Model | Capacity (kg@mm) | Mounting Class | Platern Size WxL (mm) | Stroke (mm) | Mininum Truck Carriage Width (mm) | Effective Thickness ET(mm) |
CF-PPQ-1.6TE-B455 | 1600@600 | II | 455x1220 | 1270 | 790 | 165 |
CF-PPQ-1.6TE-B380 | 1600@600 | II | 380x1220 | 1270 | 790 | 165 |
CF-PPQ-2TE-B455 | 2000@600 | II | 455x1220 | 1270 | 790 | 165 |
CF-PPQ-2TE-B380 | 2000@600 | II | 380x1220 | 1270 | 790 | 165 |
