CF-DG720
CF-ATTS
Main Features:

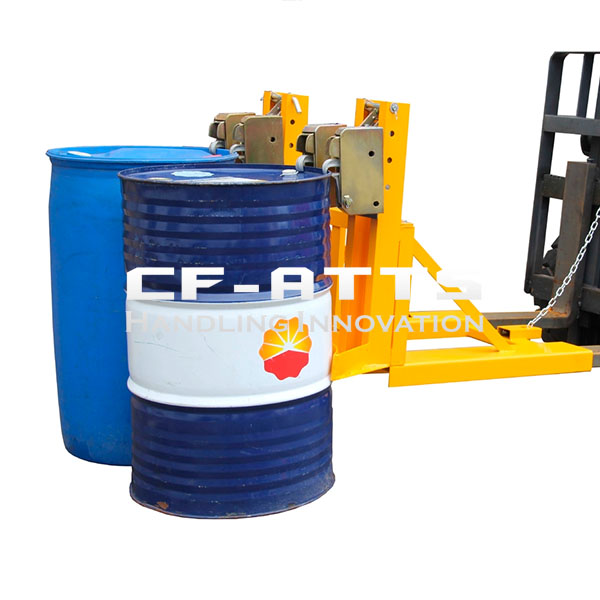

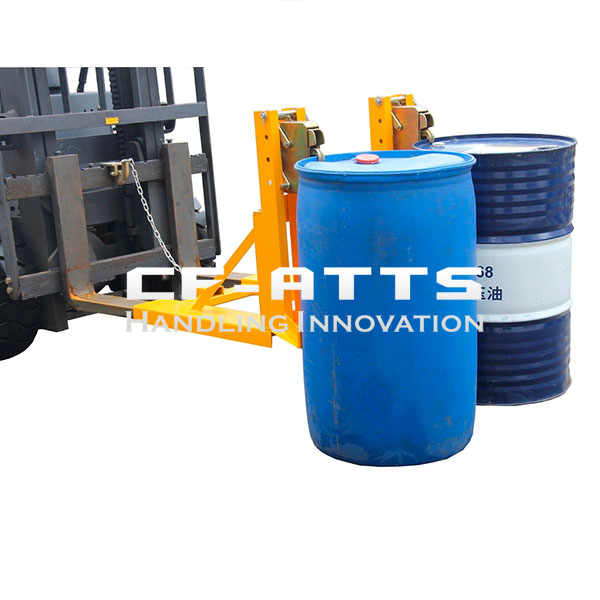

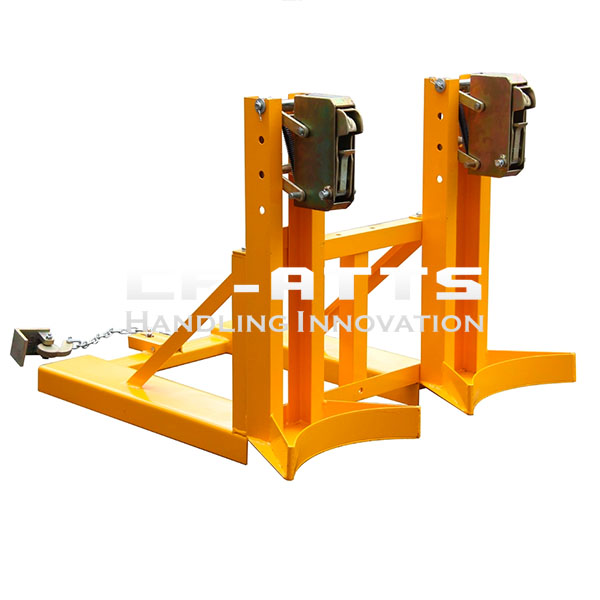

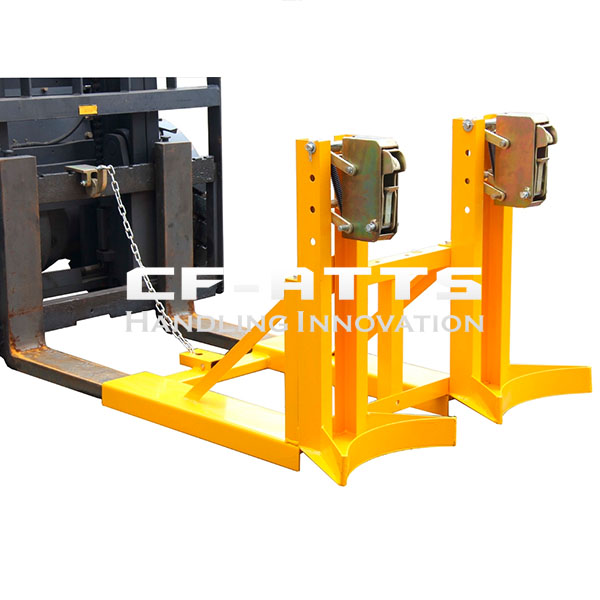

Purely mechanical structure design, convenient to work with forklift truck; can automatically move 2 drums at one time just with forklift truck’s movement without any other force
With tlocking chain to the truck to insue that the attachment will not fall off when the forklift drives through slope or uneven ground.
Full automatic mechanical operation to suit various types of drums; each drum will be gripped tight by auto-adjustable double-eagle-gripper unit which will not only ease the stress put on the edge of drum but also ensure reliable transporting and stacking partly-damaged drums or unevenly-placed drums
It can handle more kinds of drums like plastic and steel drums
| Model | CF-DG720 |
| Loading Capacity | 360kg*2 |
| Unit Weight (kg) | 67kg |
| Outline Dimension (mm) | 1030mm*1020mm*850mm |
| Eagle-gripper Adjustable Height (mm) | 600mm-750mm |
| Single Fork Sleeve Size (mm) | 150mm*55mm |
| Outer Width of Double -Fork Sleeve (mm) | 750mm |
| Fork Sleeve Length (mm) | 750mm |
