CF-CYL-00
CF-ATTS

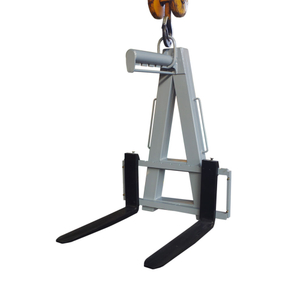

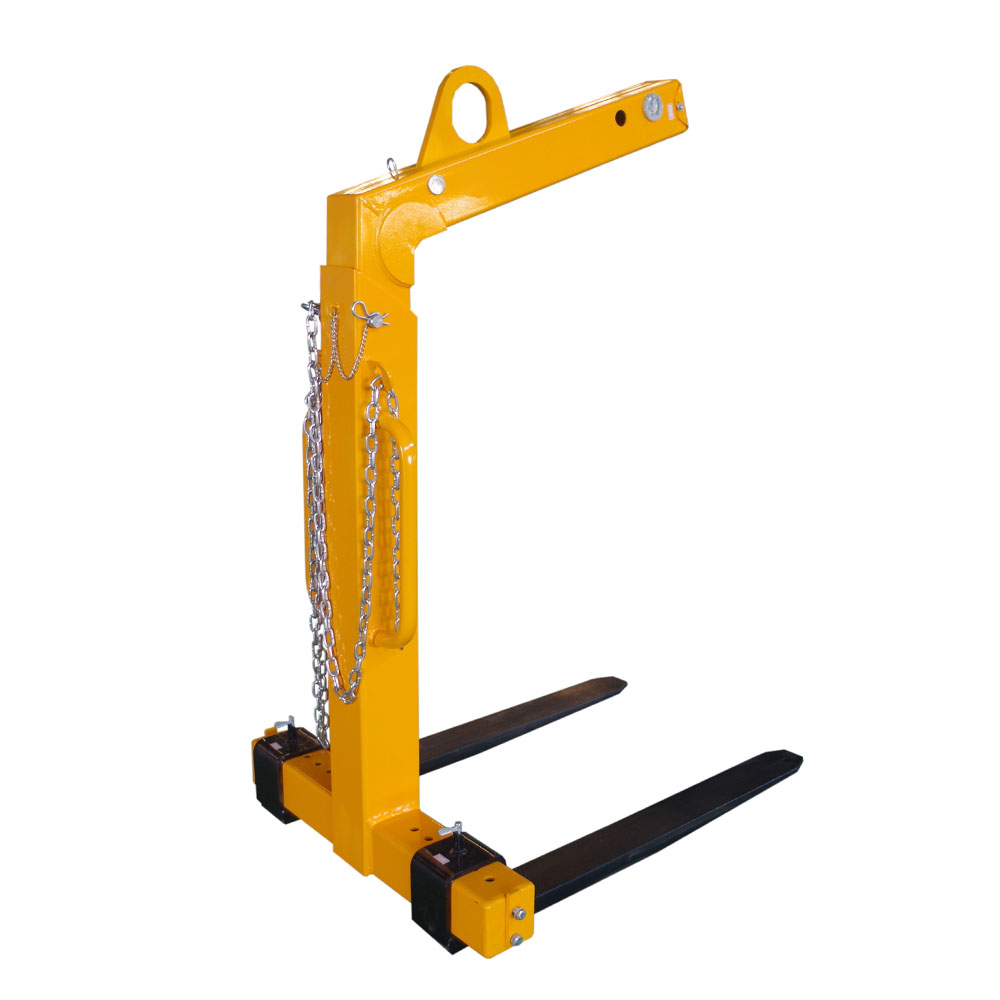

The self levelling pallet crane forks in this range come with the added benifit of a high quality double spring mechanism which provides smooth and reliable self balancing action and ensures the forks are level when loaded.
These pallet lifters are perfectly equipped with adjustable tines and height adjustability. Both model's balancing systems engage when their shackle are manually hooked into the appropriate notch.
| Model | WLL(kg) | Adjustable Fork Width(mm) | Hook Height(mm) | Effective Height(mm) | Fork Size(mm) | Overall Size(mm) | Weight(kg) |
| CF-CYL10 | 1000kg | 350-900 | 1420-1920 | 1100-1600 | 100x30x1000 | 1120x920x1530 | 140 |
| CF-CYL20 | 2000kg | 400-900 | 1655-2355 | 1300-2000 | 120x40x1000 | 1140x920x1775 | 220 |
| CF-CYL30 | 3000kg | 450-900 | 1720-2420 | 1300-2000 | 120x50x1000 | 1140x920x1850 | 280 |
| CF-CYL50 | 5000kg | 530-1000 | 1710-2410 | 1300-2000 | 150x60x1000 | 1160x1020x1850 | 380 |
The self levelling pallet crane forks in this range come with the added benifit of a high quality double spring mechanism which provides smooth and reliable self balancing action and ensures the forks are level when loaded.
These pallet lifters are perfectly equipped with adjustable tines and height adjustability. Both model's balancing systems engage when their shackle are manually hooked into the appropriate notch.
| Model | WLL(kg) | Adjustable Fork Width(mm) | Hook Height(mm) | Effective Height(mm) | Fork Size(mm) | Overall Size(mm) | Weight(kg) |
| CF-CYL10 | 1000kg | 350-900 | 1420-1920 | 1100-1600 | 100x30x1000 | 1120x920x1530 | 140 |
| CF-CYL20 | 2000kg | 400-900 | 1655-2355 | 1300-2000 | 120x40x1000 | 1140x920x1775 | 220 |
| CF-CYL30 | 3000kg | 450-900 | 1720-2420 | 1300-2000 | 120x50x1000 | 1140x920x1850 | 280 |
| CF-CYL50 | 5000kg | 530-1000 | 1710-2410 | 1300-2000 | 150x60x1000 | 1160x1020x1850 | 380 |
