CF-FTDB
CF-ATTS
This Digging Buckets is designed to telehandler, giving it easy to place materials in hard-to-reach areas like elevated positions and back high walls.The Digging bucket increases worksite productivity and every worksite should have one.

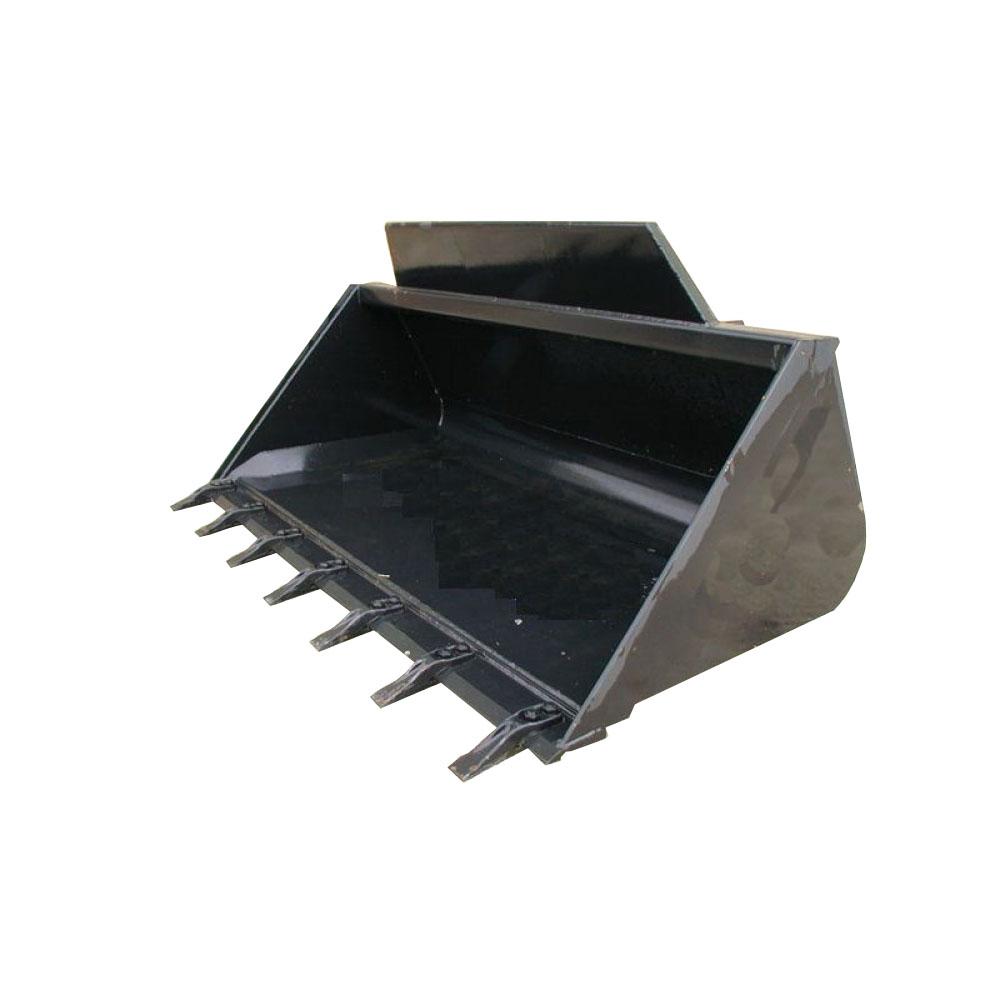

This range of Heavy Duty Digging buckets matches the profile and shape of the Rolled Rehandling Bucket but it is built to a much higher specification. Where our standard buckets are made from 5mm plate, this digging bucket is made from 6mm, has full length side gussets, 130 x 12mm heavy duty side stiffeners and extra wear plates on the underside. All models come as standard with a bolt on reversible toe plate. Alternatively, digging teeth can be fitted upon request.
Features:
• Support Straps, 150 x 12mm run continuously around/across the bucket
• Side Gussets, full length, adds strength whilst protecting against material sticking
• Side Stiffeners, 130 x 12mm ultra heavy duty down either side
• Leading Edge, protects against undue wear and tear, bolt on reversible
• Rolled Profile, reduces amount of material able to stick to the back of the bucket
Model | Width(mm) | Height(mm) | Depth(mm) | m³ | CuFt | Weight(kg) |
CF-FTDB23W | 2450 | 750 | 770 | 0.89 | 32 | 400 |
CF-FTDB24W | 2450 | 840 | 1000 | 1.50 | 53 | 550 |
CF-FTDB23 | 2286 | 750 | 770 | 0.84 | 30 | 360 |
CF-FTDB24 | 2286 | 840 | 1000 | 1.41 | 50 | 510 |
CF-FTDB23A | 2133 | 750 | 770 | 0.79 | 28 | 340 |
CF-FTDB24A | 2133 | 840 | 1000 | 1.30 | 46 | 490 |
CF-FTDB235 | 1980 | 750 | 770 | 0.73 | 26 | 330 |
CF-FTDB245 | 1980 | 840 | 1000 | 1.21 | 43 | 475 |
