CFHDW
CF-ATTS

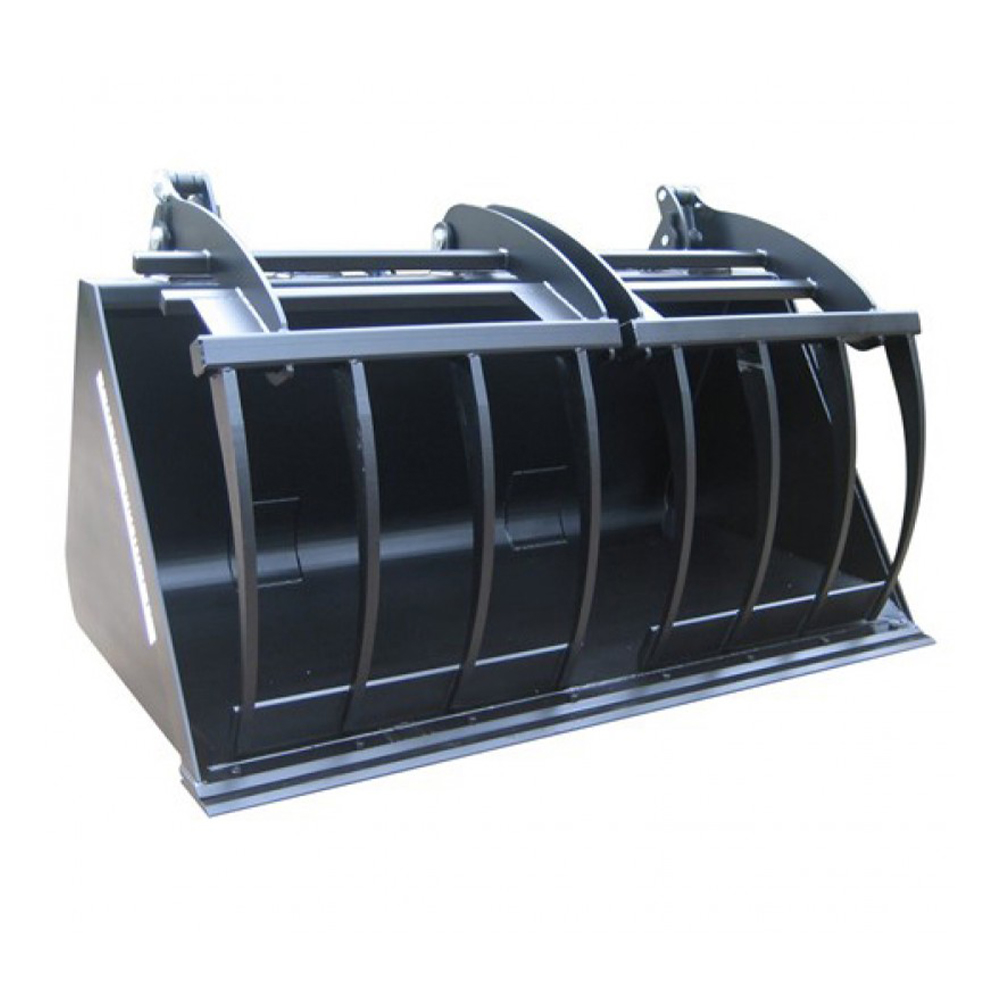

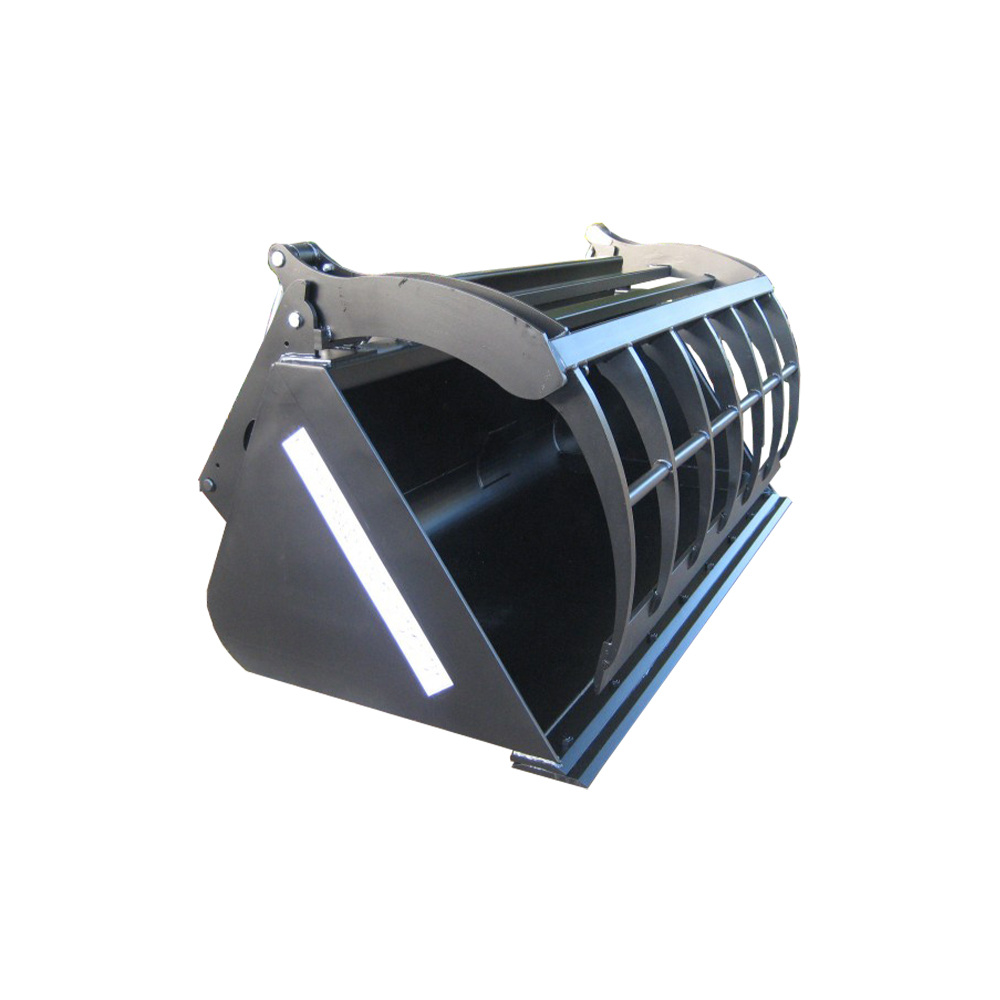

This Telehandler Waste Grapple Bucket has been designed working closely with our customers to come up with an extremely heavy duty product that will cope with the toughest of applications.

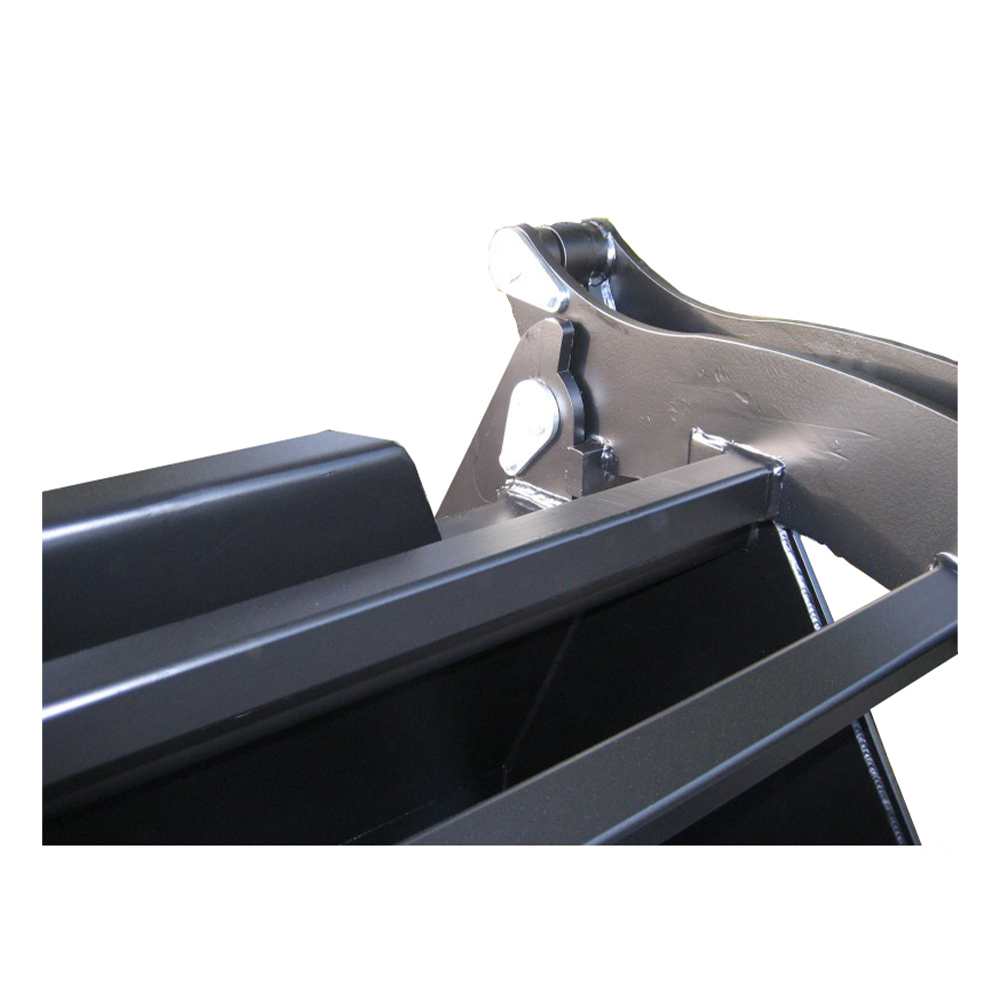

The range offers a host of extras to ensure it's right for your application. The grab is made with 38mm Ø high grade zinc plated pins, open & close stops and a profile design based on our heavy duty fork & grab range.
Features:
• Ram Stops, Protect the ram from over extensions of grab
• High Grade Pins, 38mm DIA with retaining bolt
• Support Straps, p130 x 12mm down either side

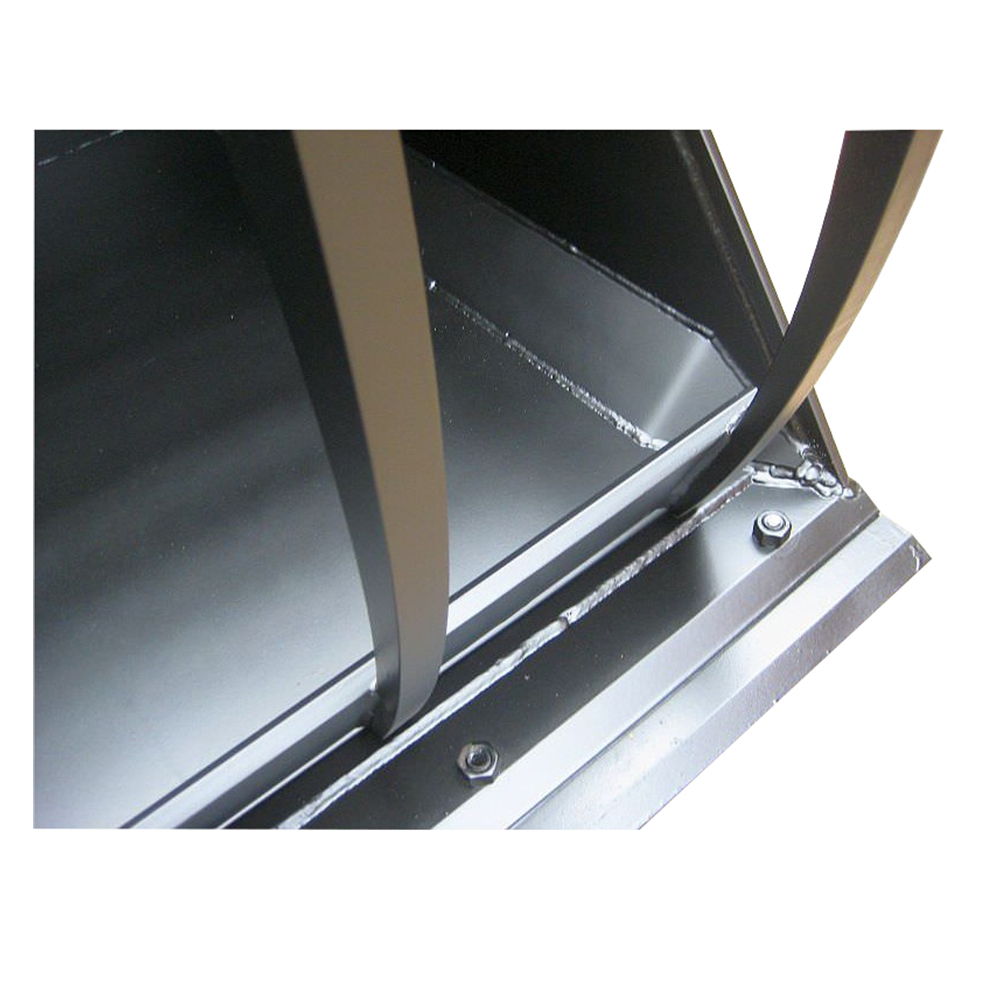

• Leading Edge, bolt on protects against undue wear and tear across the front edge. Weld on across the grab tines
| Model | Width(mm) | Height(mm) | Depth(mm) | m³ | CuFt | Weight(kg) |
| CFHDW40W | 2450 | 900 | 770 | 0.89 | 32 | 853 |
| CFHDW41W | 2450 | 990 | 1000 | 1.50 | 53 | 915 |
| CFHDW42W | 2450 | 1050 | 1060 | 1.80 | 64 | 945 |
| CFHDW40 | 2286 | 900 | 770 | 0.84 | 30 | 817 |
| CFHDW41 | 2286 | 990 | 1000 | 1.41 | 50 | 875 |
| CFHDW42 | 2286 | 1050 | 1060 | 1.69 | 60 | 907 |
Optional Extras
| Model | Description |
| SG | Split grab (not independentlycontrolled) |
| RP | Bolt on box protection for rams |
| BG01 | Full width split guard (incorporates hoses |
