CF-CR-00
CF-ATTS

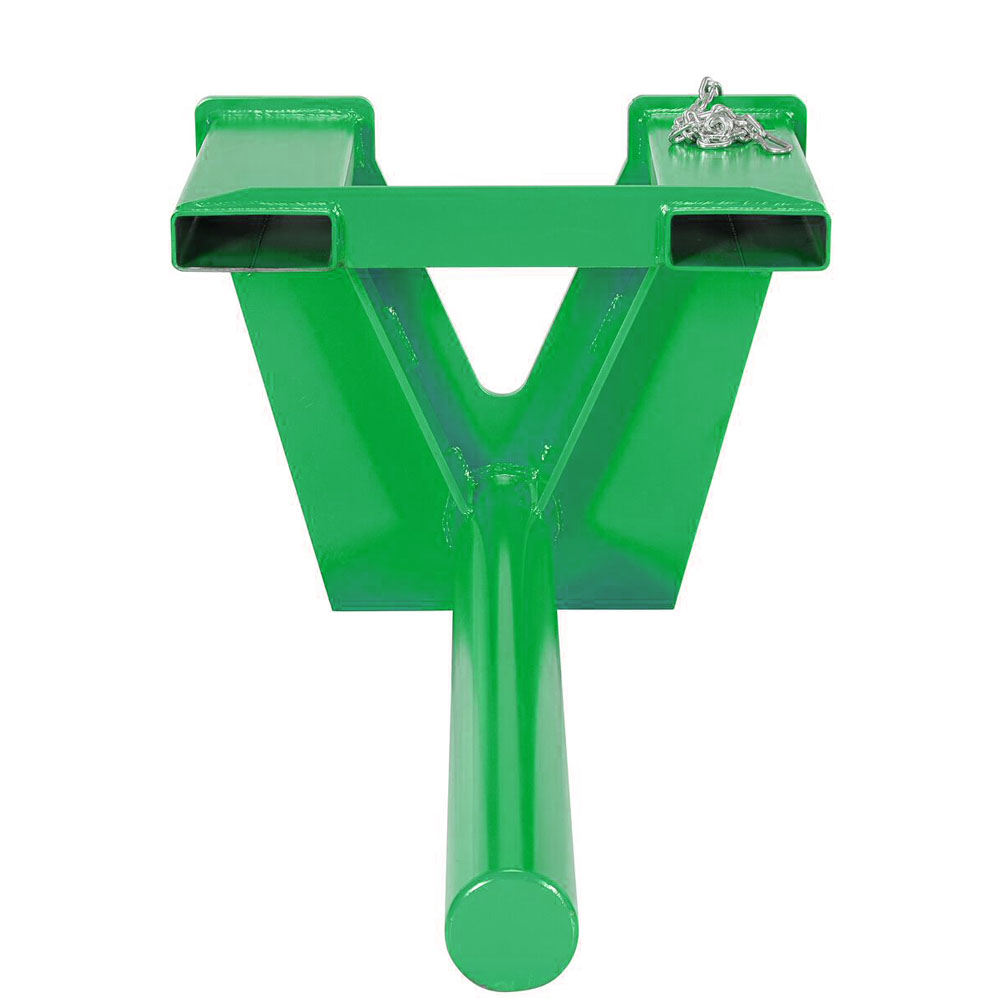

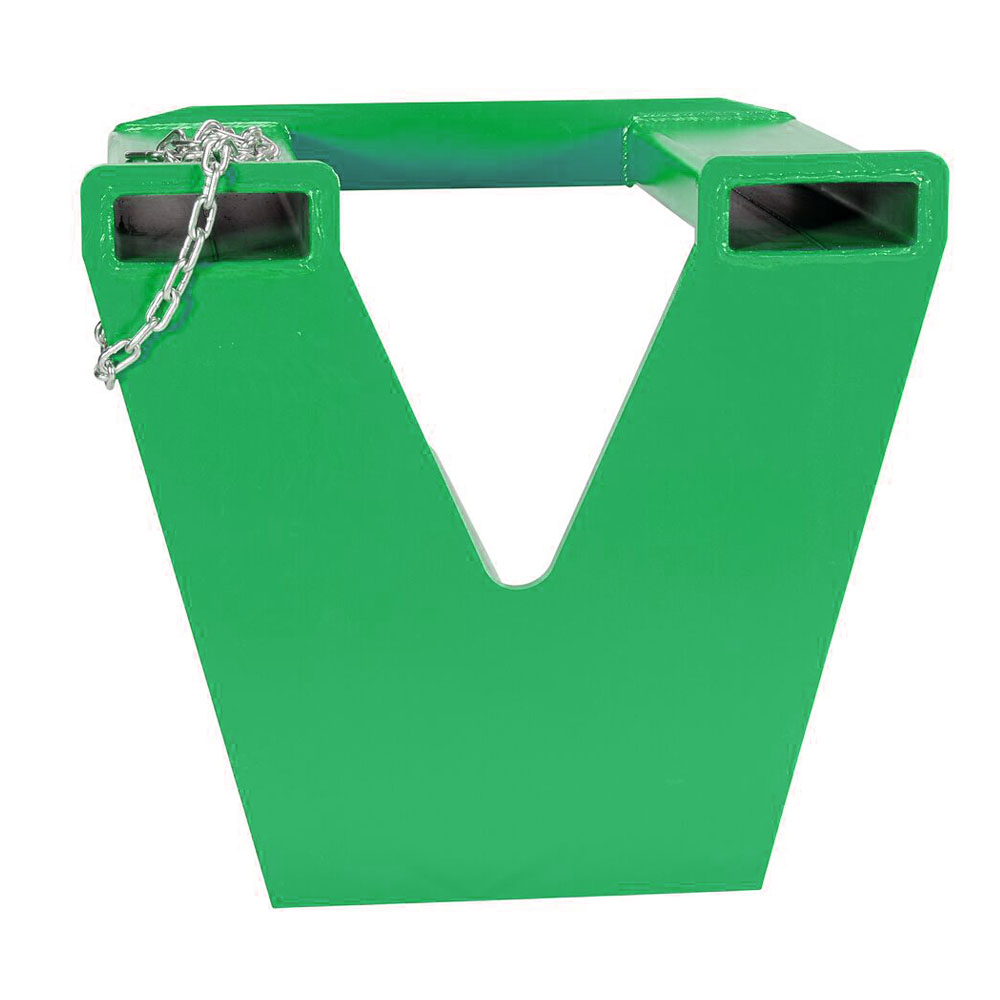

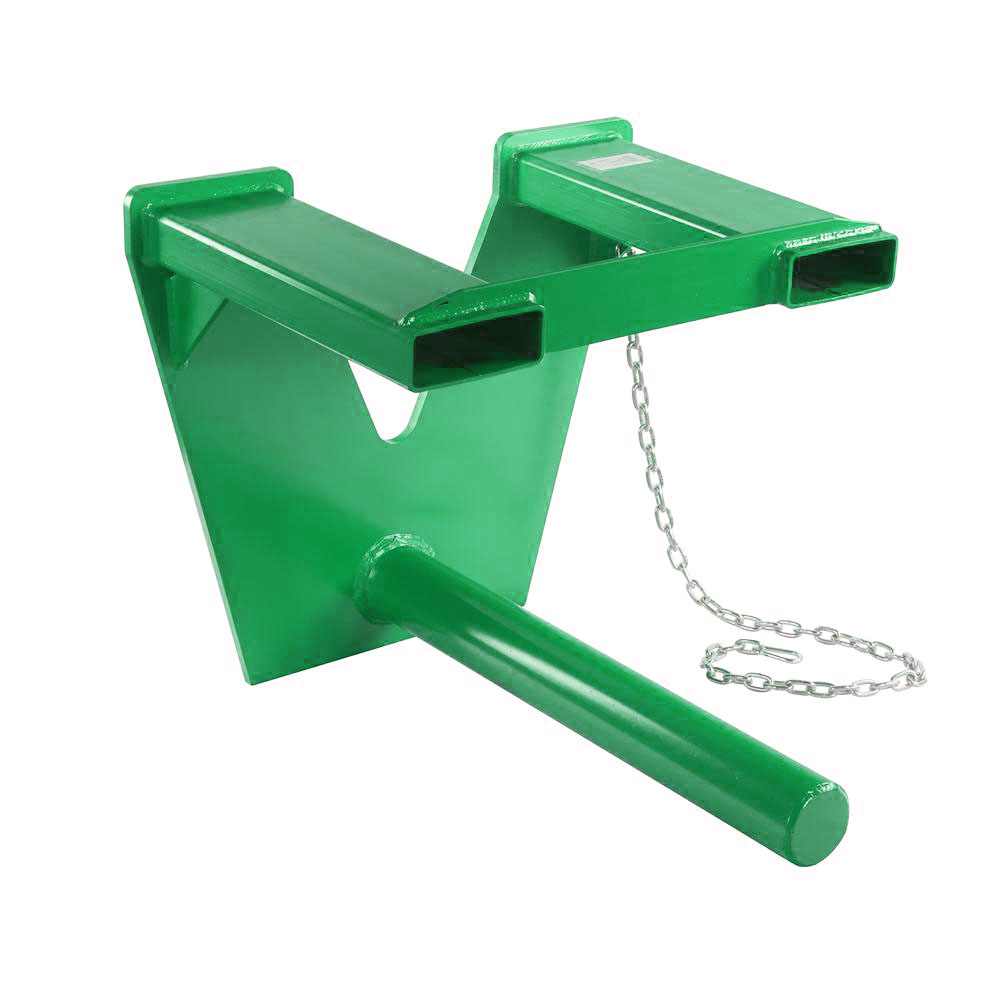

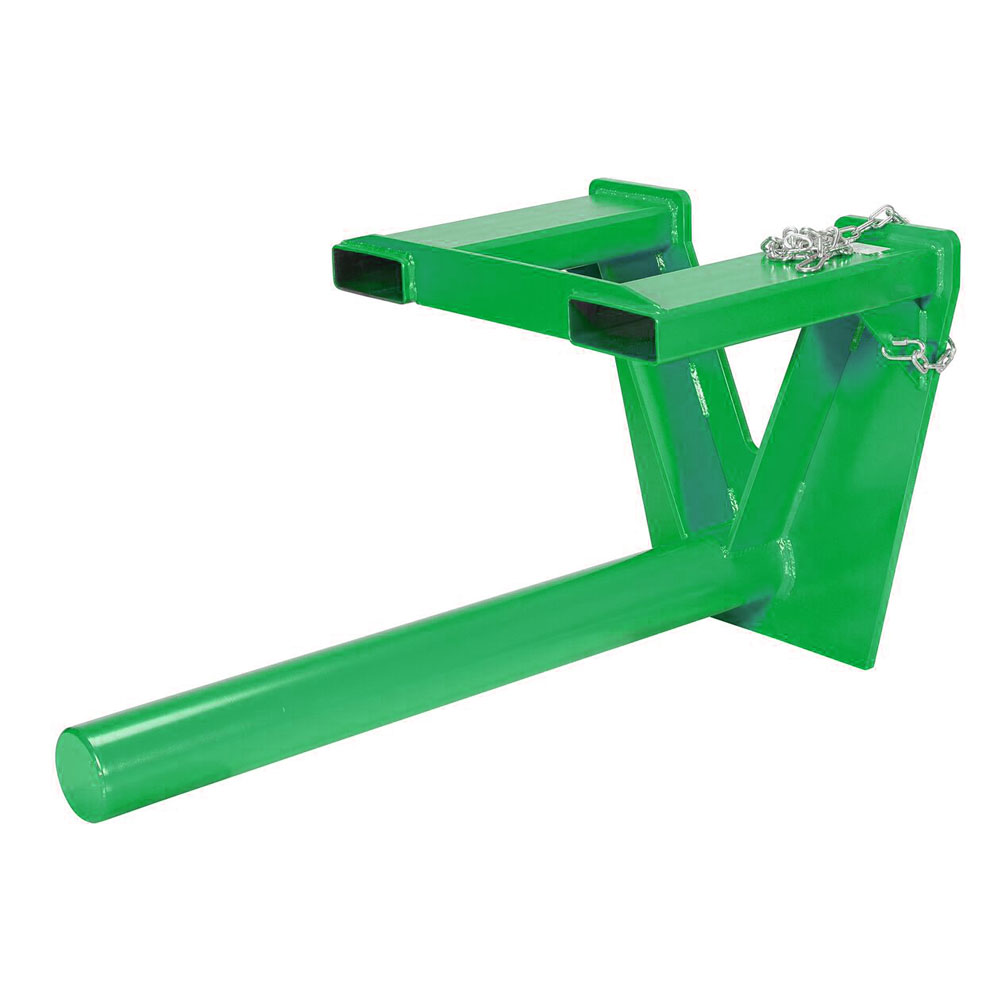

Fork mounted coil rams are used to pick up slit coils and master coils and place them in coil racks. These forklift attachments for lifting can be used to easily lift and carry many types of coiled material. Unless you have an overhead crane coil rams for forklifts are a necessity if you are handling and storing coils.
Forklift coil lifters come in a variety of sizes and capacities. Lengths from 610mm to 1530mm and capacity up to 3000kg.
Note: Thers is roughly 450mm from the top of the ram to the bottom of the sleeves. Use that to determine if there is enough room to support your coil diameter.
Other sizes are available!
| Model | Length(mm) | Pole Dia.(mm) | Capacity(kg) | Weight(kg) |
| CF-CR-610-3 | 610 | 90 | 3000 | 141 |
| CF-CR-910-3 | 910 | 90 | 3000 | 205 |
| CF-CR-1220-3 | 1220 | 90 | 3000 | 380 |
| CF-CR-1530-3 | 1530 | 90 | 3000 | 410 |
Fork mounted coil rams are used to pick up slit coils and master coils and place them in coil racks. These forklift attachments for lifting can be used to easily lift and carry many types of coiled material. Unless you have an overhead crane coil rams for forklifts are a necessity if you are handling and storing coils.
Forklift coil lifters come in a variety of sizes and capacities. Lengths from 610mm to 1530mm and capacity up to 3000kg.
Note: Thers is roughly 450mm from the top of the ram to the bottom of the sleeves. Use that to determine if there is enough room to support your coil diameter.
Other sizes are available!
