CF-SRP Series
CF-ATTS

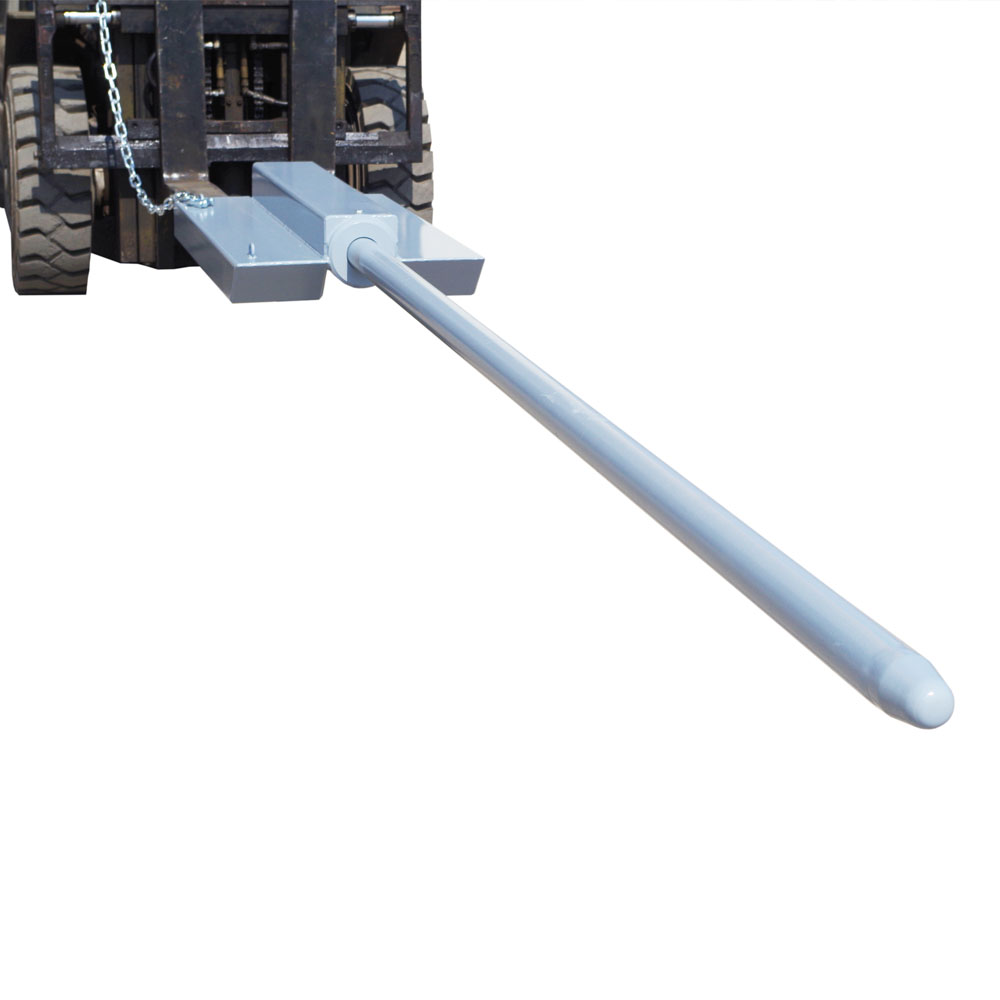

· This forklift roll prong is ideal for lifting rolls of carpet, fabric, cable and other coil products
· Quick to attach - only requires the connection of a safety chain to the forklift load guard to prevent unintentional disengagement
· Prong is made from solid steel
· Enamel paint finish
Niot
| Model | Fork Pocket Size(mm) | Fork Pocket Center(mm) | Prong Dia.(mm) | Prong Length(mm) | SWL(kg) | Weight |
| CF-SRP-2N-40-1200 | 190x65 | 345 | 40 | 1200 | 200@600mm | 91 |
| CF-SRP-2N-50-1800 | 190x65 | 345 | 50 | 1800 | 250@900mm | 106 |
| CF-SRP-2N-60-2800 | 190x65 | 345 | 60 | 2800 | 340@1400mm | 141 |
| CF-SRP-2N-70-2800 | 190x65 | 345 | 70 | 2800 | 510@1400mm | 163 |
| CF-SRP-2N-80-2800 | 190x65 | 345 | 80 | 2800 | 850@1400mm | 194 |
| CF-SRP-3N-100-2800 | 180x80 | 360 | 100 | 2800 | 1700@1400mm | 328 |
Other prong lengths available on request!
Note: Pls note the Safe Working Load shown has been calculated at the centre of the prong. If the product being lifted exceeds the length of the prong, pls contact us for a revised Safe Working Load.
· This forklift roll prong is ideal for lifting rolls of carpet, fabric, cable and other coil products
· Quick to attach - only requires the connection of a safety chain to the forklift load guard to prevent unintentional disengagement
· Prong is made from solid steel
· Enamel paint finish
Niot
| Model | Fork Pocket Size(mm) | Fork Pocket Center(mm) | Prong Dia.(mm) | Prong Length(mm) | SWL(kg) | Weight |
| CF-SRP-2N-40-1200 | 190x65 | 345 | 40 | 1200 | 200@600mm | 91 |
| CF-SRP-2N-50-1800 | 190x65 | 345 | 50 | 1800 | 250@900mm | 106 |
| CF-SRP-2N-60-2800 | 190x65 | 345 | 60 | 2800 | 340@1400mm | 141 |
| CF-SRP-2N-70-2800 | 190x65 | 345 | 70 | 2800 | 510@1400mm | 163 |
| CF-SRP-2N-80-2800 | 190x65 | 345 | 80 | 2800 | 850@1400mm | 194 |
| CF-SRP-3N-100-2800 | 180x80 | 360 | 100 | 2800 | 1700@1400mm | 328 |
Other prong lengths available on request!
Note: Pls note the Safe Working Load shown has been calculated at the centre of the prong. If the product being lifted exceeds the length of the prong, pls contact us for a revised Safe Working Load.
