CF-SRP Series
CF-ATTS

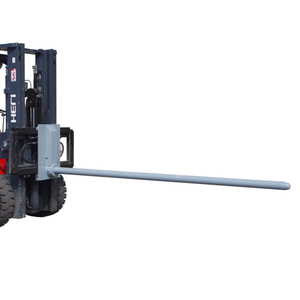

Slip on roll prongs are quick and easy to mount on any forklift, although they are better suited to larger capacity forklifts due to the extended load center created by the fork tines. This roll prong is ideal for lifting rolls of carpet, fabric, cable and other coil products
Quick to attach - only requires the connection of a safety chain to the forklift load guard to prevent unintentional disengagement
Prong is made from solid steel
Enamel paint finish
| Model | Fork Pocket Size(mm) | Fork Pocket Center(mm) | Prong Dia.(mm) | Prong Length(mm) | SWL(kg) | Weight |
| CF-SRP-2N-40-1200 | 190x65 | 345 | 40 | 1200 | 200@600mm | 91 |
| CF-SRP-2N-50-1800 | 190x65 | 345 | 50 | 1800 | 250@900mm | 106 |
| CF-SRP-2N-60-2800 | 190x65 | 345 | 60 | 2800 | 340@1400mm | 141 |
| CF-SRP-2N-70-2800 | 190x65 | 345 | 70 | 2800 | 510@1400mm | 163 |
| CF-SRP-2N-80-2800 | 190x65 | 345 | 80 | 2800 | 850@1400mm | 194 |
| CF-SRP-3N-100-2800 | 190x65 | 360 | 100 | 2800 | 1700@1400mm | 328 |
Other prong lengths available on request!
Note: Pls note the Safe Working Load shown has been calculated at the centre of the prong. If the product being lifted exceeds the length of the prong, pls contact us for a revised Safe Working Load.
Slip on roll prongs are quick and easy to mount on any forklift, although they are better suited to larger capacity forklifts due to the extended load center created by the fork tines. This roll prong is ideal for lifting rolls of carpet, fabric, cable and other coil products
Quick to attach - only requires the connection of a safety chain to the forklift load guard to prevent unintentional disengagement
Prong is made from solid steel
Enamel paint finish
| Model | Fork Pocket Size(mm) | Fork Pocket Center(mm) | Prong Dia.(mm) | Prong Length(mm) | SWL(kg) | Weight |
| CF-SRP-2N-40-1200 | 190x65 | 345 | 40 | 1200 | 200@600mm | 91 |
| CF-SRP-2N-50-1800 | 190x65 | 345 | 50 | 1800 | 250@900mm | 106 |
| CF-SRP-2N-60-2800 | 190x65 | 345 | 60 | 2800 | 340@1400mm | 141 |
| CF-SRP-2N-70-2800 | 190x65 | 345 | 70 | 2800 | 510@1400mm | 163 |
| CF-SRP-2N-80-2800 | 190x65 | 345 | 80 | 2800 | 850@1400mm | 194 |
| CF-SRP-3N-100-2800 | 190x65 | 360 | 100 | 2800 | 1700@1400mm | 328 |
Other prong lengths available on request!
Note: Pls note the Safe Working Load shown has been calculated at the centre of the prong. If the product being lifted exceeds the length of the prong, pls contact us for a revised Safe Working Load.
