CF-FCH
CF-ATTS

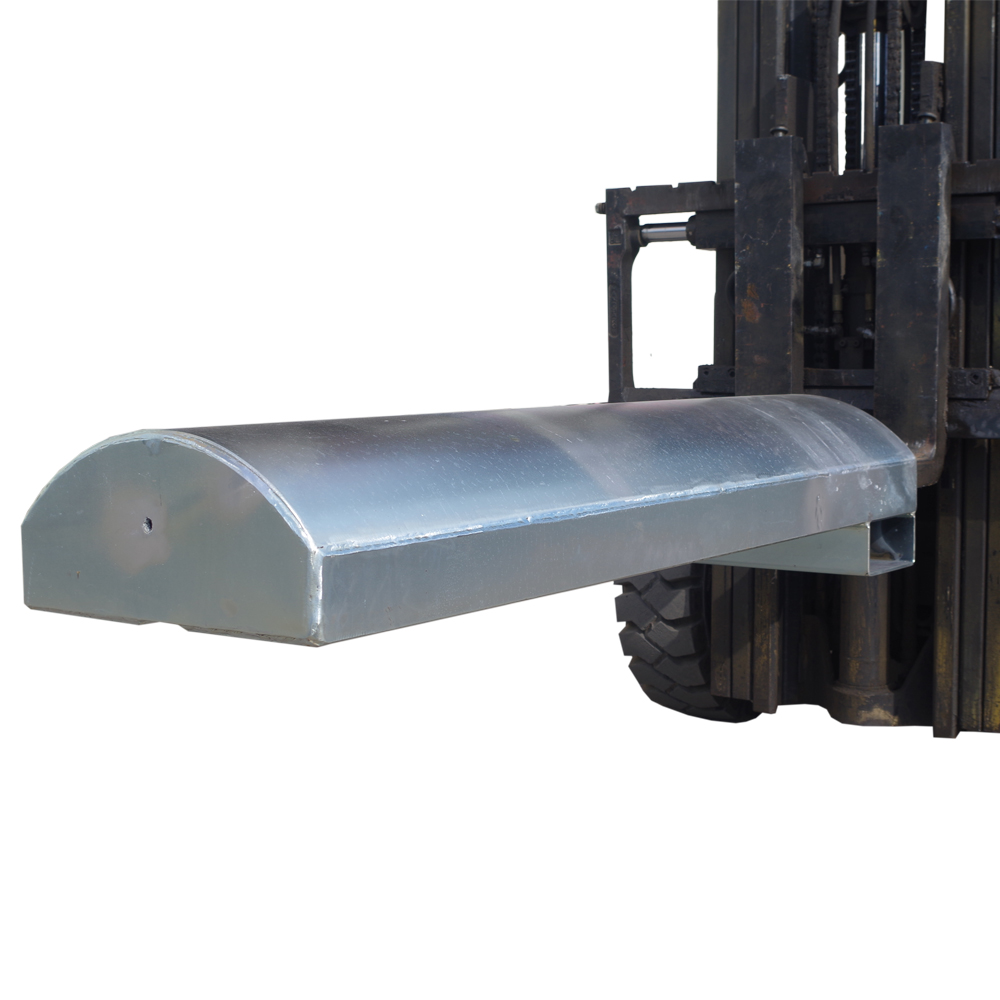

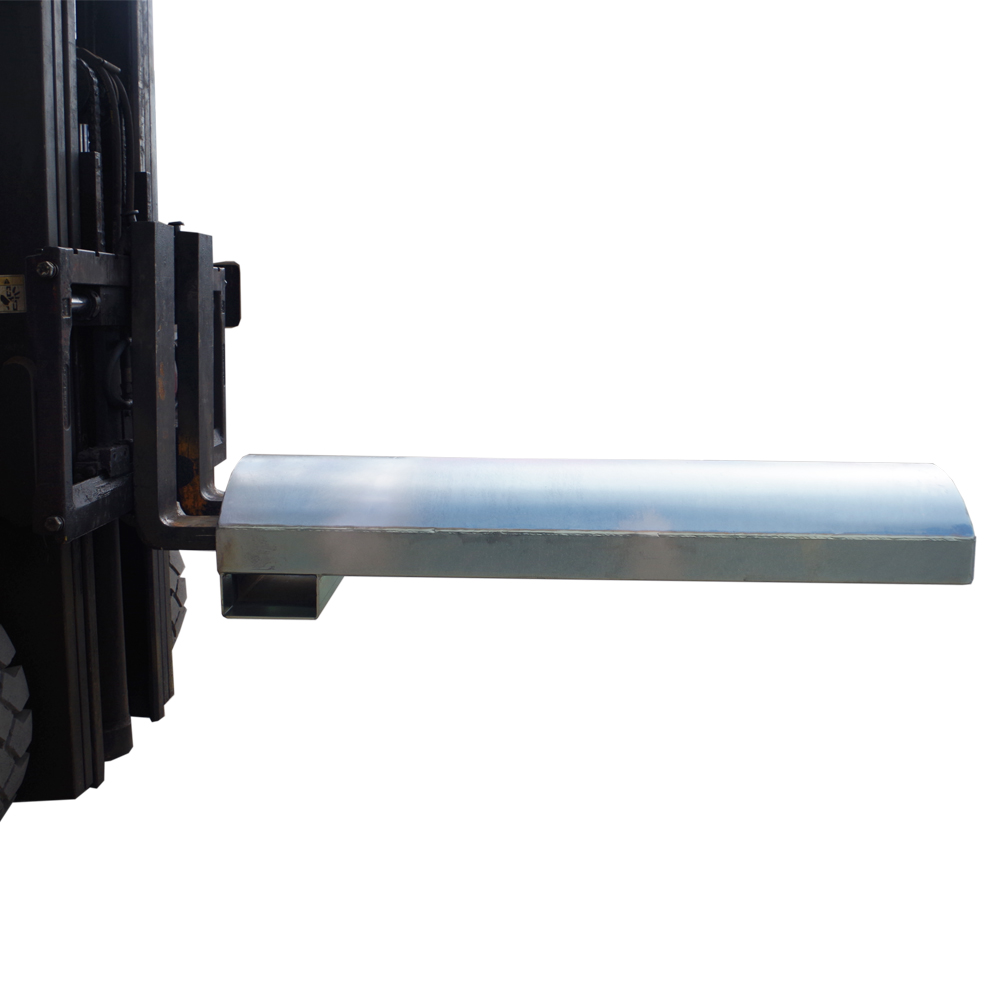

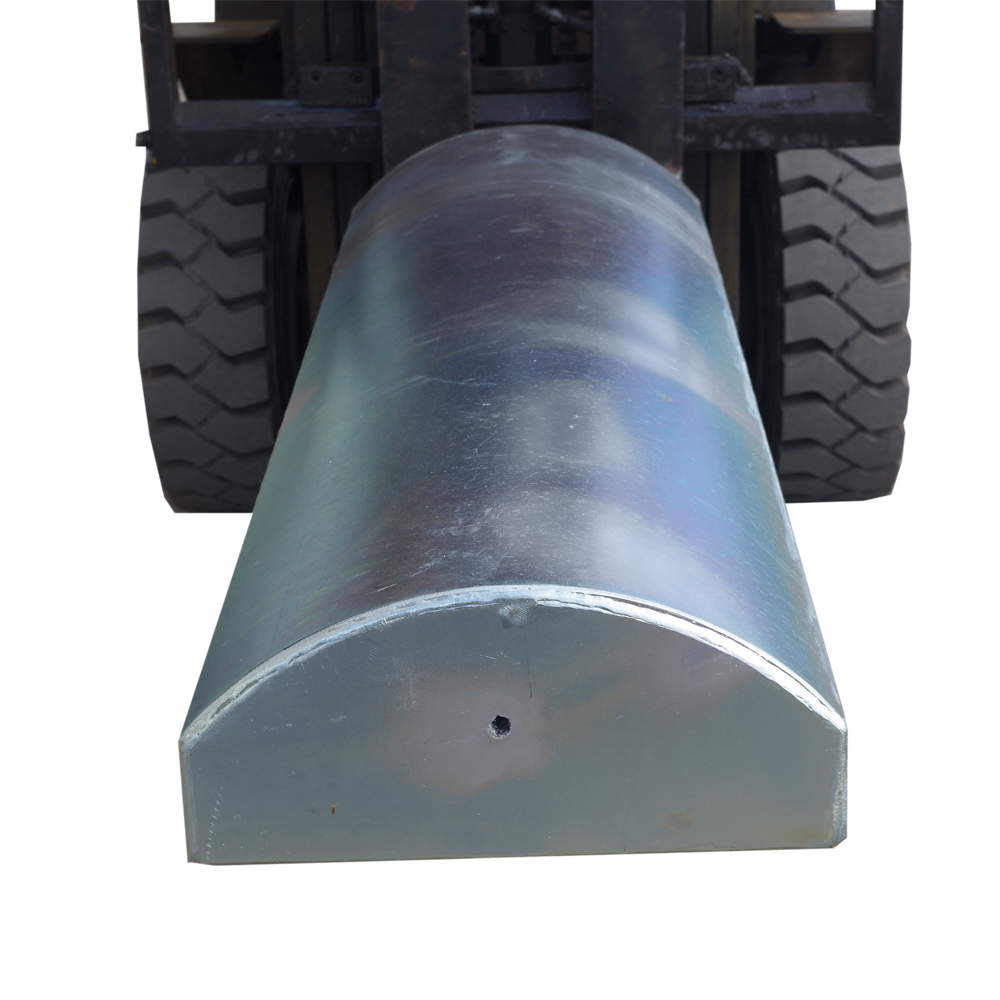

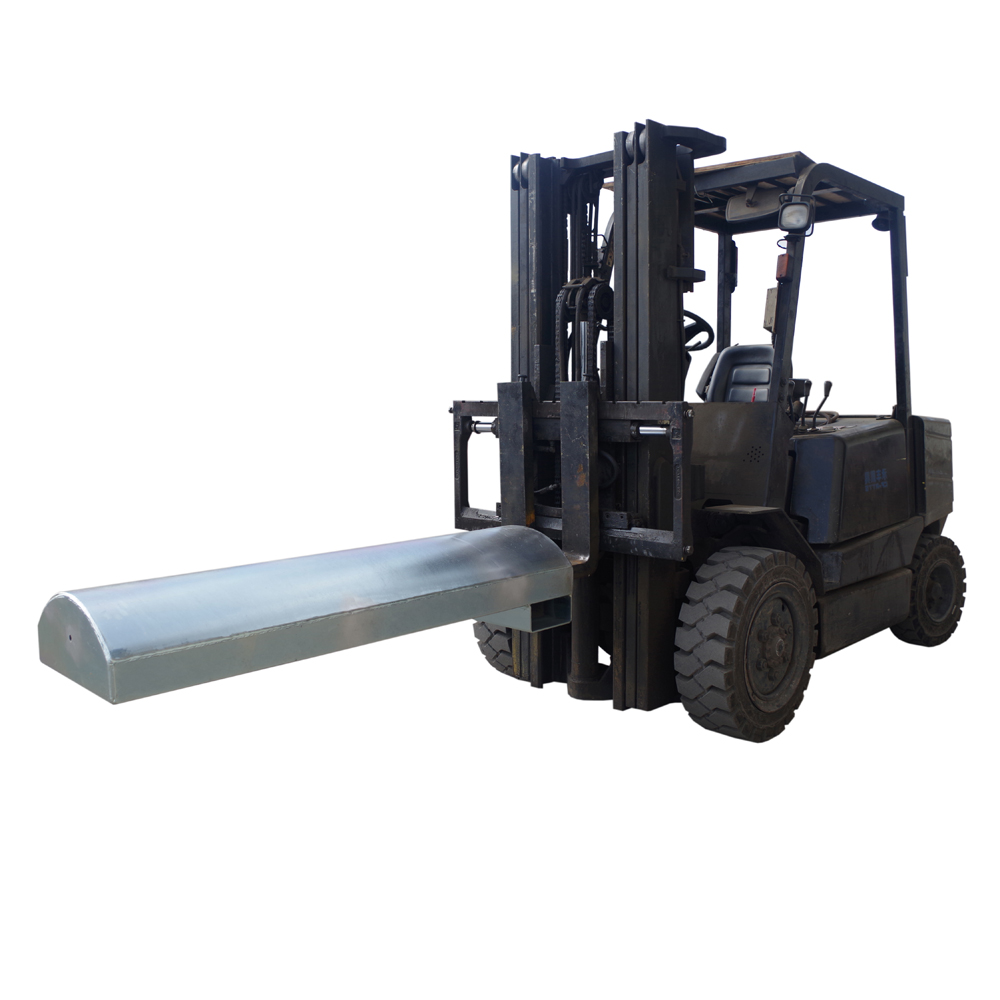

This forklift coil handling extension support slips over both forks simultaneously which enables easier carrying of larger steel coils and rolls of wire.
The coil handling support slips over both forks simultaneously which gives a greater bearing area.

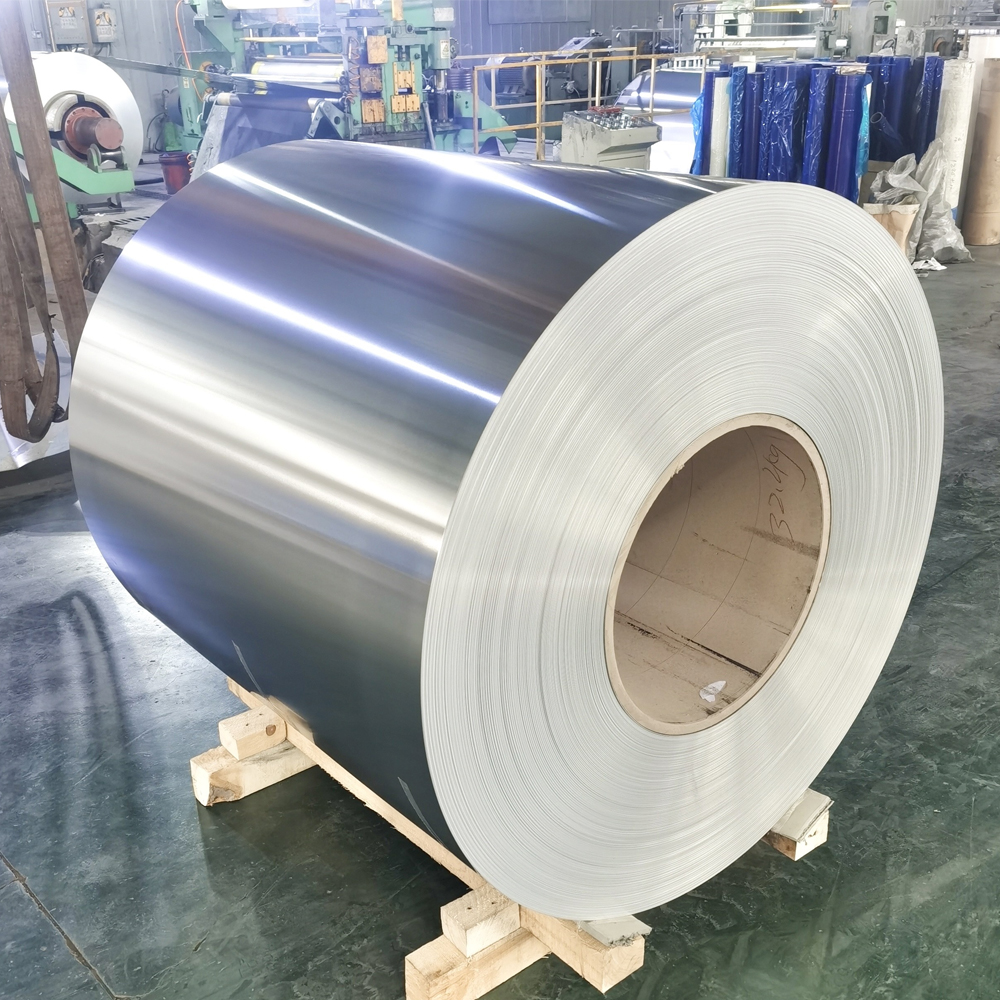

This allows for the carrying of larger steel coils, rolls of wire, sheet polythene etc.
By using this forklift coil attachment, product damage to the internal core of the rolls caused by the forklift forks is prevented.
The extension lengths available are: 1525mm (minimum fork length required 1050mm) and 1830mm (minimum fork length required 1200mm).
Model | Capacity (kg) | Sleeve Length (mm) | Min Fork Length (mm) | Max Fork Size (mm) |
CF-FCH 100-1525 | 2000 | 1525 | 1050 | 100 x 60 |
CF-FCH 100-1830 | 2000 | 1830 | 1200 | 100 x 60 |
CF-FCH 125-1525 | 2000 | 1525 | 1050 | 130 x 60 |
CF-FCH 125-1830 | 2000 | 1830 | 1200 | 130 x 60 |
CF-FCH 150-1525 | 2000 | 1525 | 1050 | 160 x 70 |
CF-FCH 150-1830 | 2000 | 1830 | 1200 | 160 x 70 |
