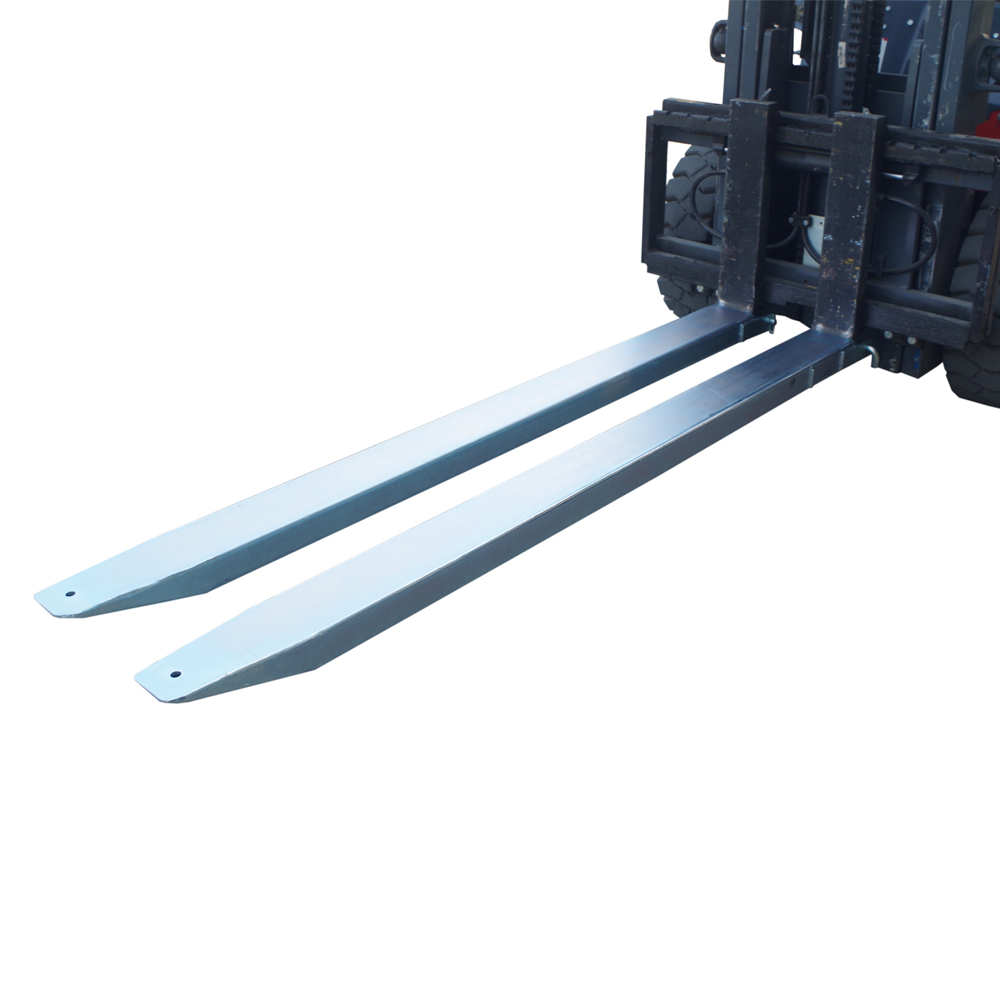

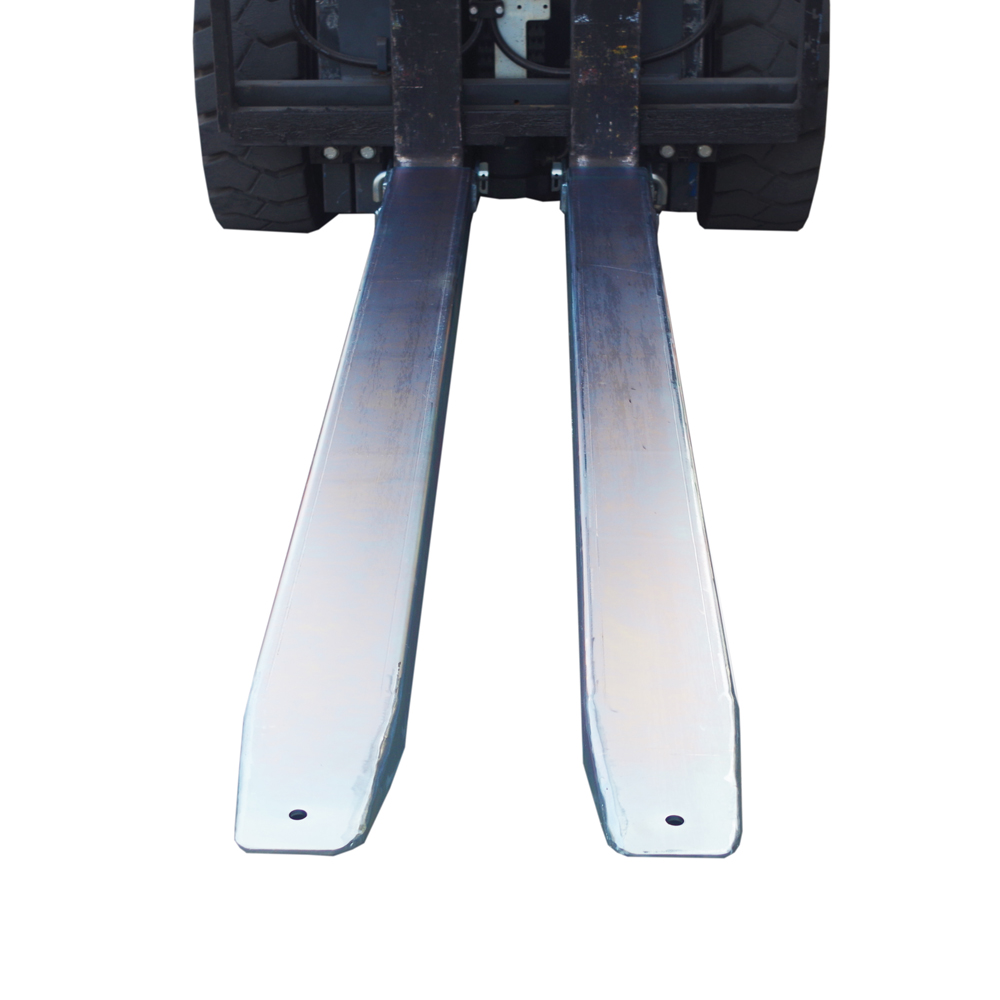

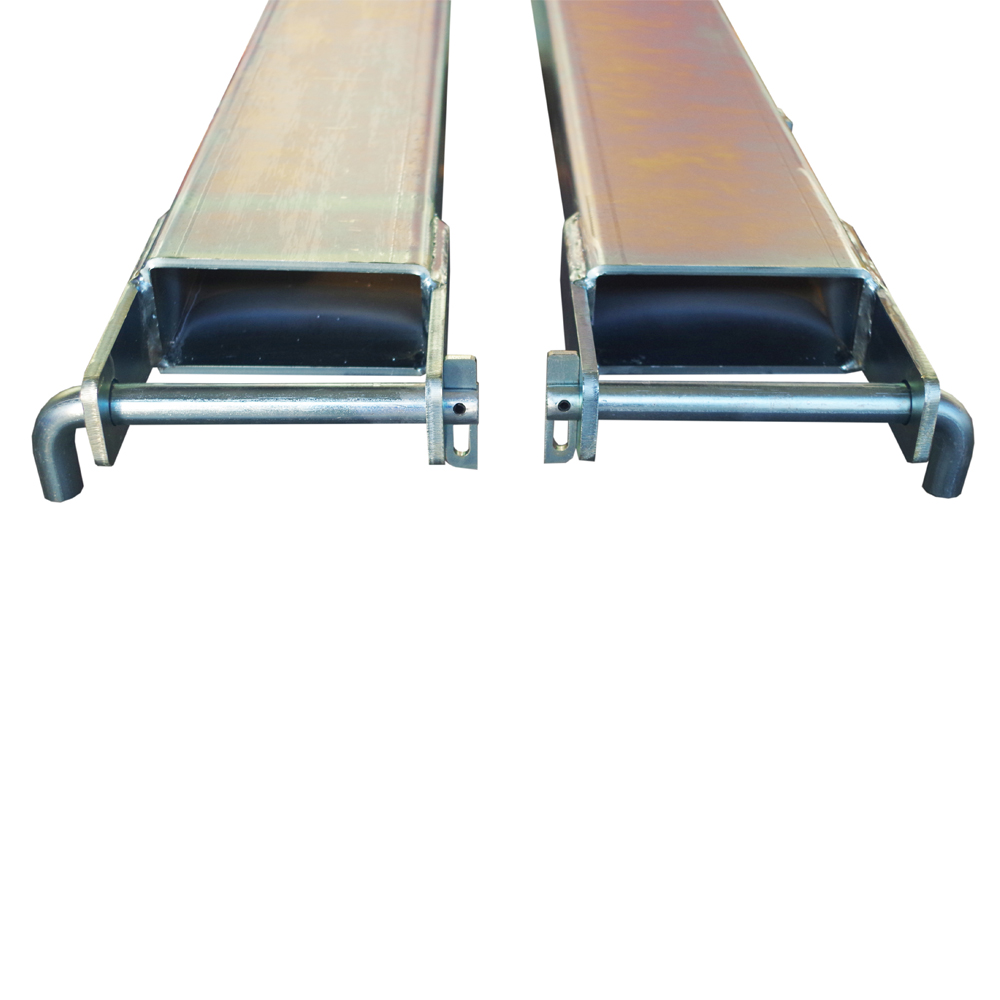

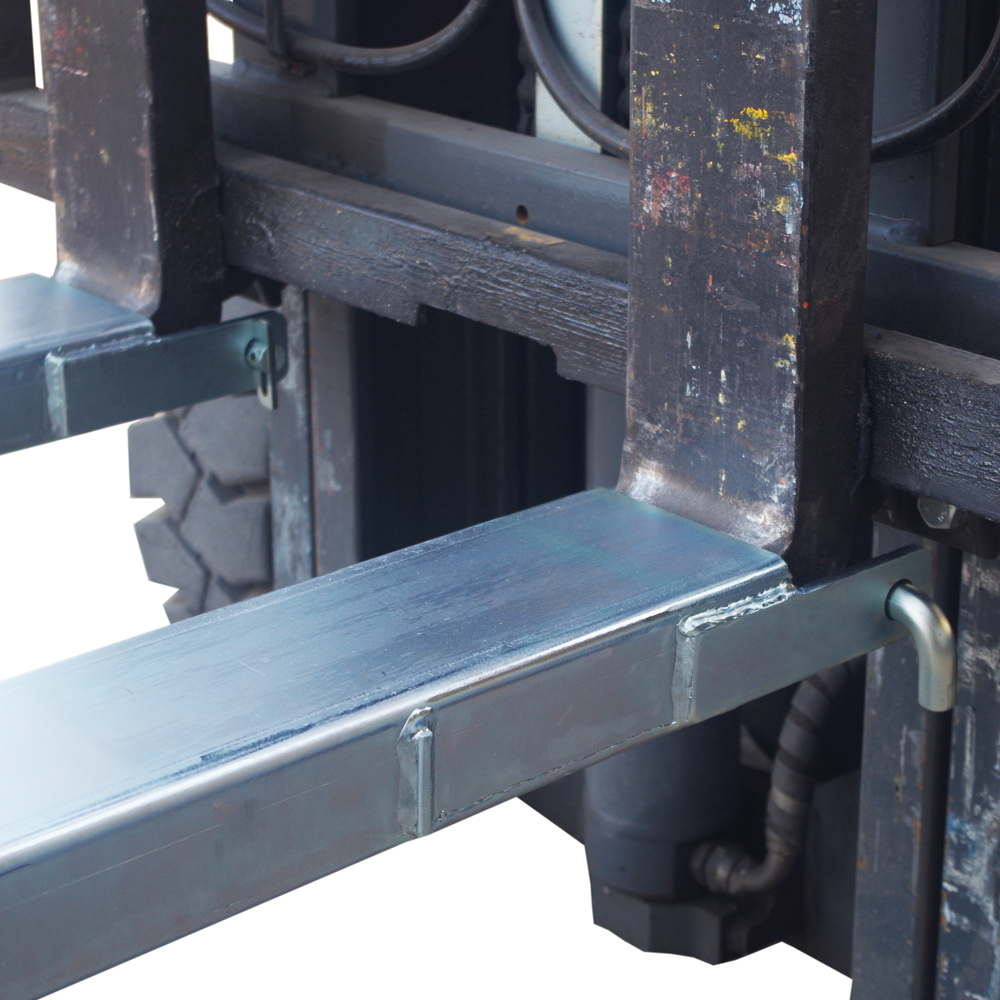

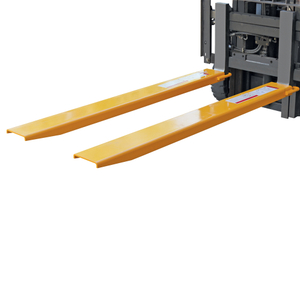

CF-FS Fork Extension Slipper

Fork Extension Slippers/ Tines have been designed with a slim profile to extend the flexibility of forklifts.
Availability:
Quantity:
  • CF-FS

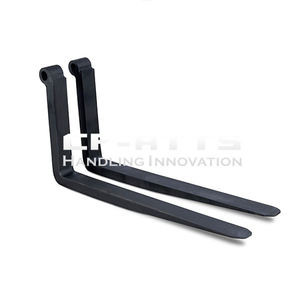

  • CF-ATTS

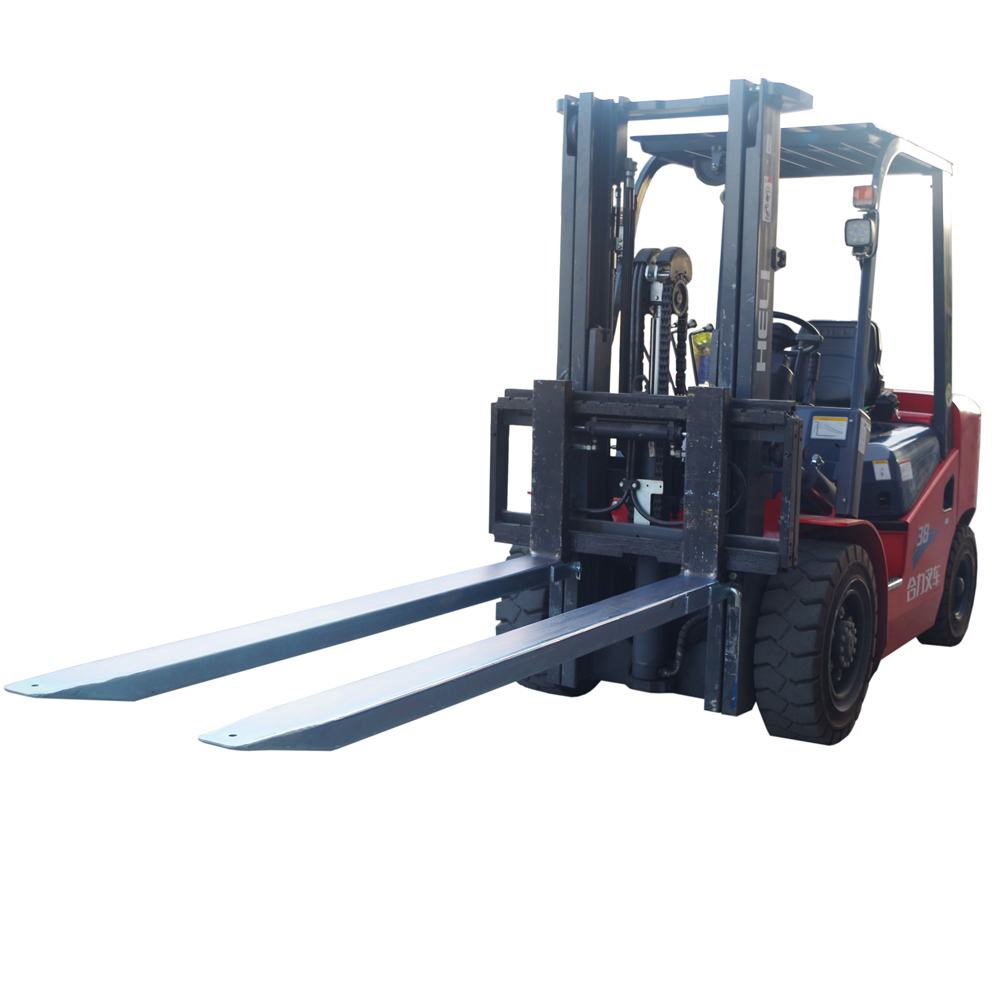

  • Fork slippers extend the versatility of your lift truck

  • The *SWL shown here is the maximum, however it varies depending on forklift capacity - refer to load chart provided on fork slippers and forklift capacity

  • Galvanised Finish

  • Load Centre: 600mm


Fork Extension Slippers/ Tines have been designed with a slim profile to extend the flexibility of forklifts. Our Fork Extension Slippers/ Tines extend the versatility of the fork truck

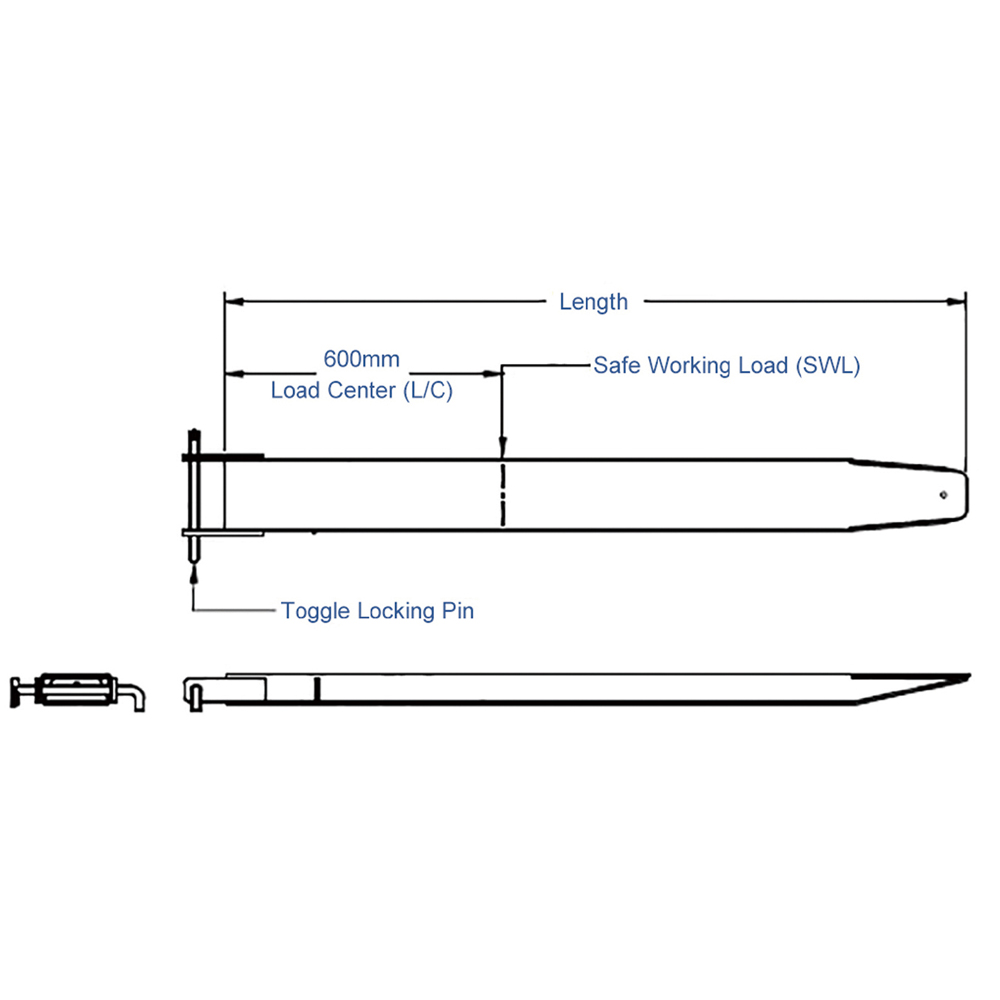

The safe working load (SWL) is measured per pair at 600mm load centre

These slim profile slippers have been designed and manufactured in accordance with AS2359.15 which requires the slippers used for general usage to be not longer than 167% of the supporting tine's length.



ModelLength(mm)To suit Max Tin size(mm)SWL@600mm(kg)Weight/pair(kg)
CF-FS1-161600100x45300050
CF-FS1-181800100x45300056
CF-FS1-212100100x45300066
CF-FS1-242400100x45300075
CF-FS2-161600130x50450060
CF-FS2-181800130x50450066
CF-FS2-212100130x50450078
CF-FS2-242400130x50450088
CF-FS3-161600155x55650091
CF-FS3-181800155x556500102
CF-FS3-212100155x556500119
CF-FS3-242400155x556500136
CF-FS3-303000155x556500170
CF-FS4-181800160x658500133
CF-FS4-212100160x658500155
CF-FS4-242400160x658500177
CF-FS4-303000160x658500221
