CF-DDU50
CF-ATTS

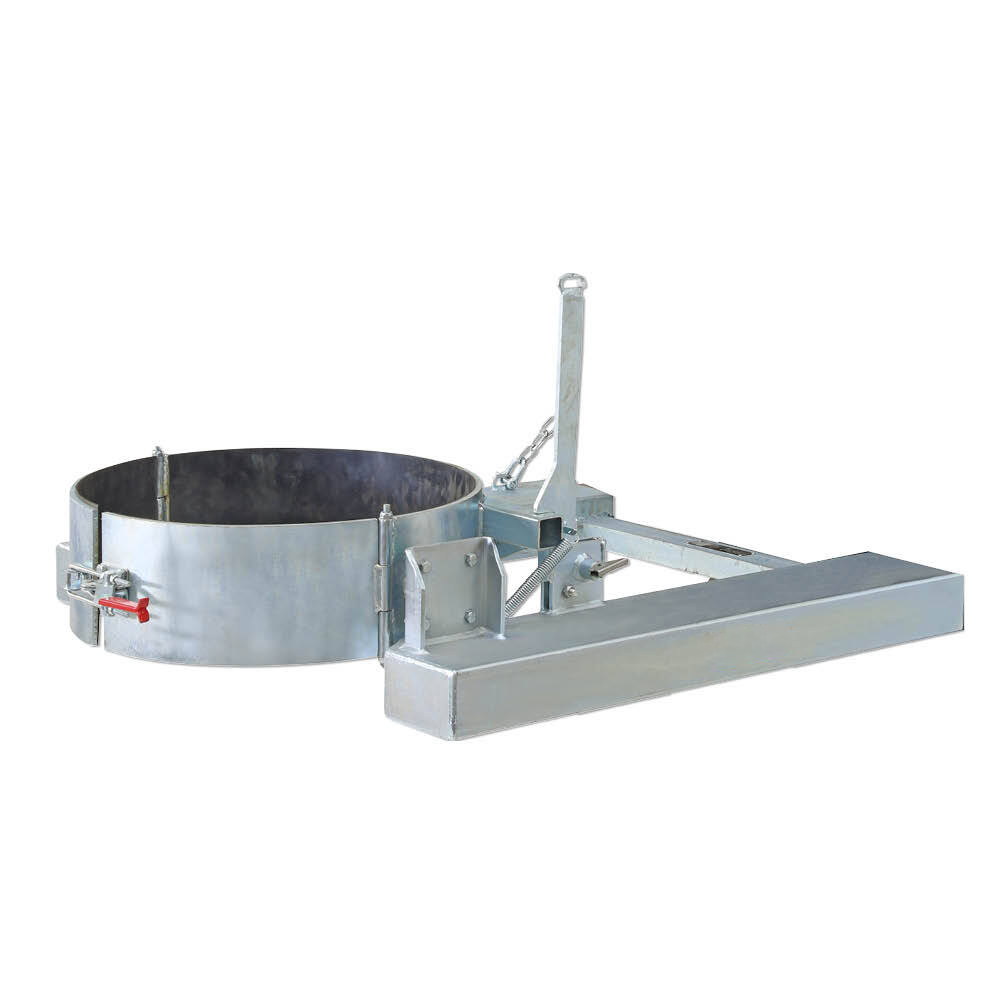

This forklift drum dumper is designed for fast and economical 205 litre drum emptying. A belly strap with an eccentric lock holds the drum firmly in position.
To release the drum, the operator pulls the draw chord from the drivers seat. With the centre of gravity forward of the pivot, the drum tips forward 180 degrees plus automatically.
This attachment is ideal for scrap and waste products. The standards finish of this unit is enamel painted.
Working Load Limit (WLL) 500kg
Pocket size 185 x 60mm
Pocket centres 840mm
Load Centre 950mm
Unit Weight 85kg
180 degree plus rotation
Horizontal centre of gravity 685mm
| Model | WLL (kg) | Fork Pocket Size (mm) | Load Centre (mm) | Unit Weight (kg) |
| CF-DDU50 | 500 | 180 x 60 | 950 | 85 |
This forklift drum dumper is designed for fast and economical 205 litre drum emptying. A belly strap with an eccentric lock holds the drum firmly in position.
To release the drum, the operator pulls the draw chord from the drivers seat. With the centre of gravity forward of the pivot, the drum tips forward 180 degrees plus automatically.
This attachment is ideal for scrap and waste products. The standards finish of this unit is enamel painted.
Working Load Limit (WLL) 500kg
Pocket size 185 x 60mm
Pocket centres 840mm
Load Centre 950mm
Unit Weight 85kg
180 degree plus rotation
Horizontal centre of gravity 685mm
| Model | WLL (kg) | Fork Pocket Size (mm) | Load Centre (mm) | Unit Weight (kg) |
| CF-DDU50 | 500 | 180 x 60 | 950 | 85 |
