CF-DC-GR2/HPP
CF-ATTS

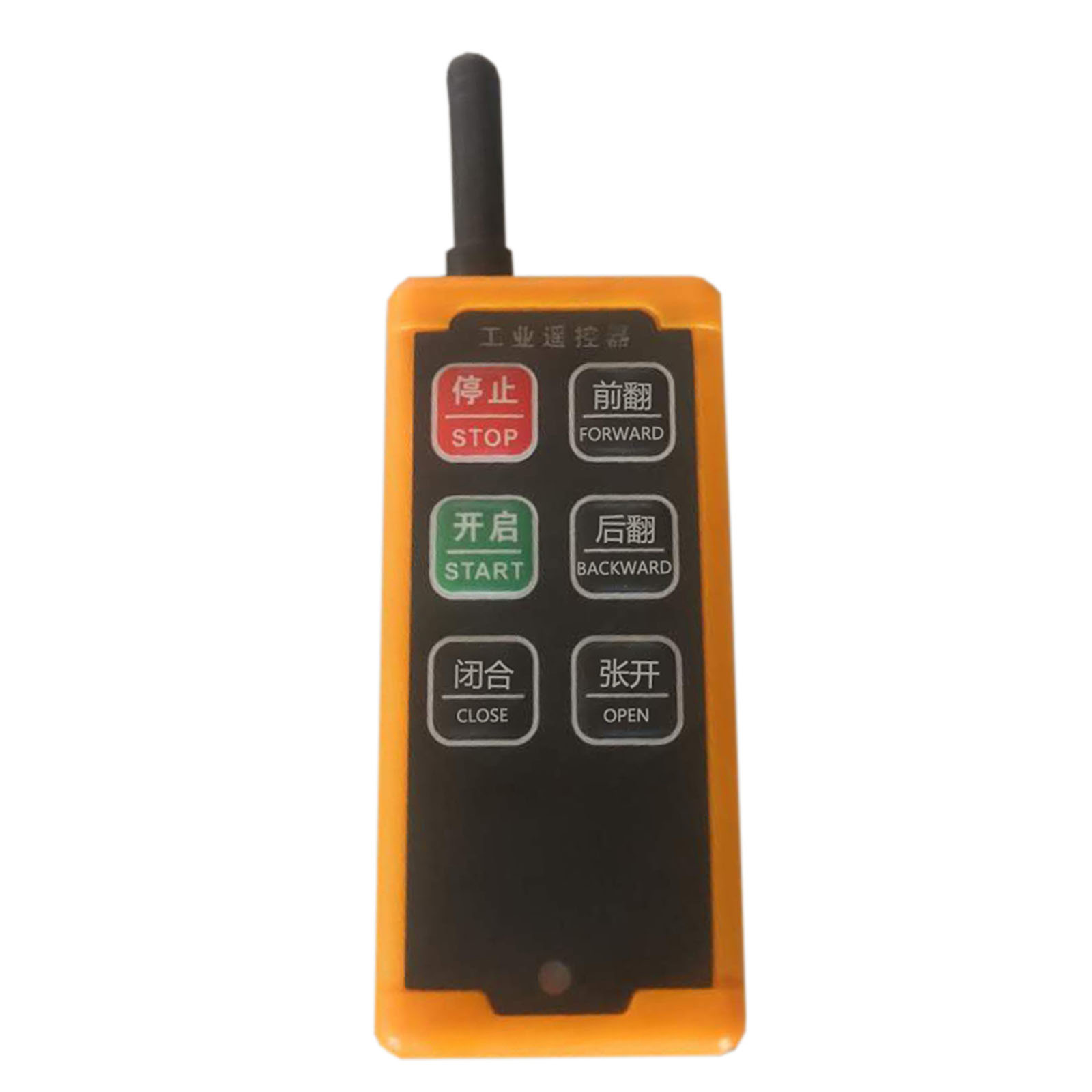

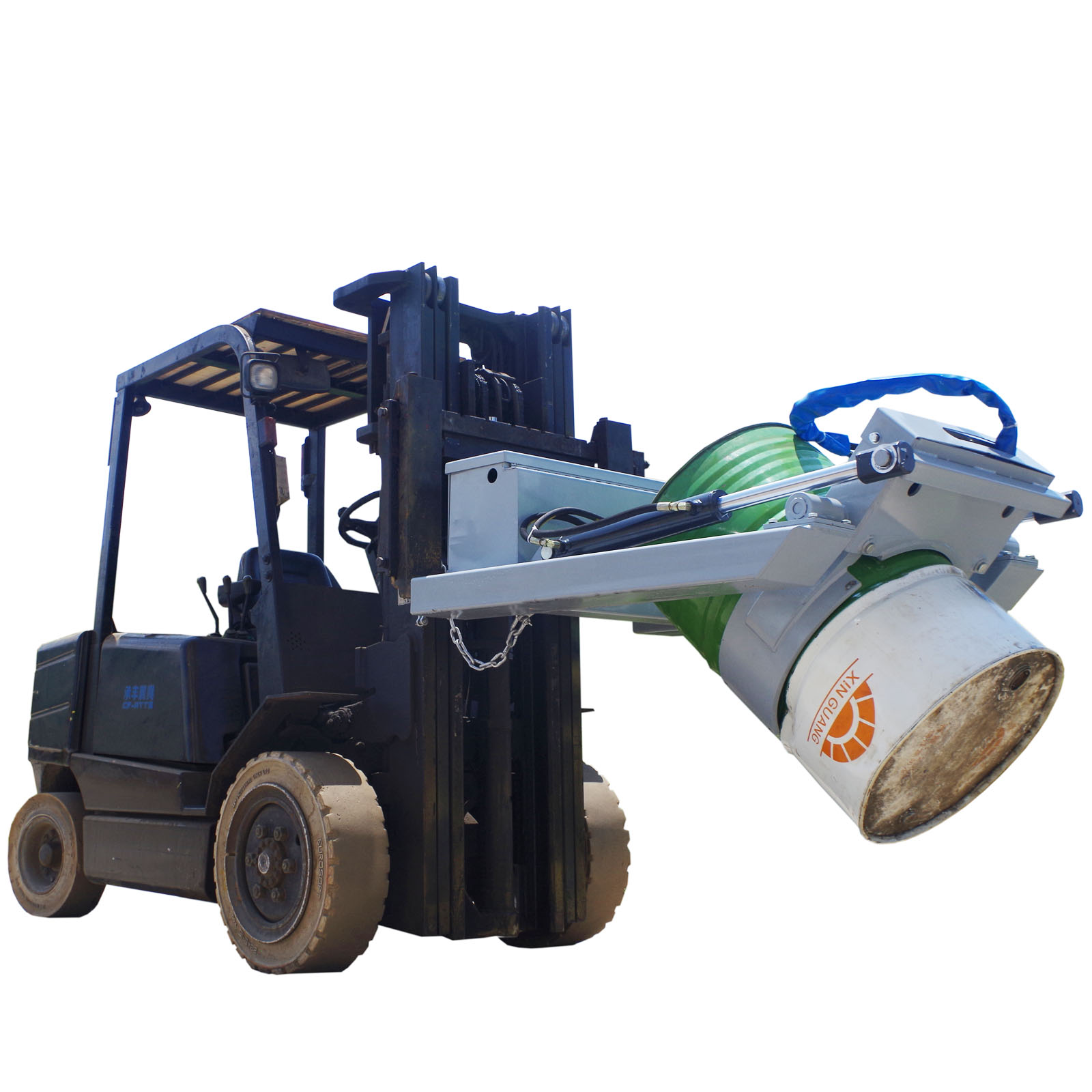

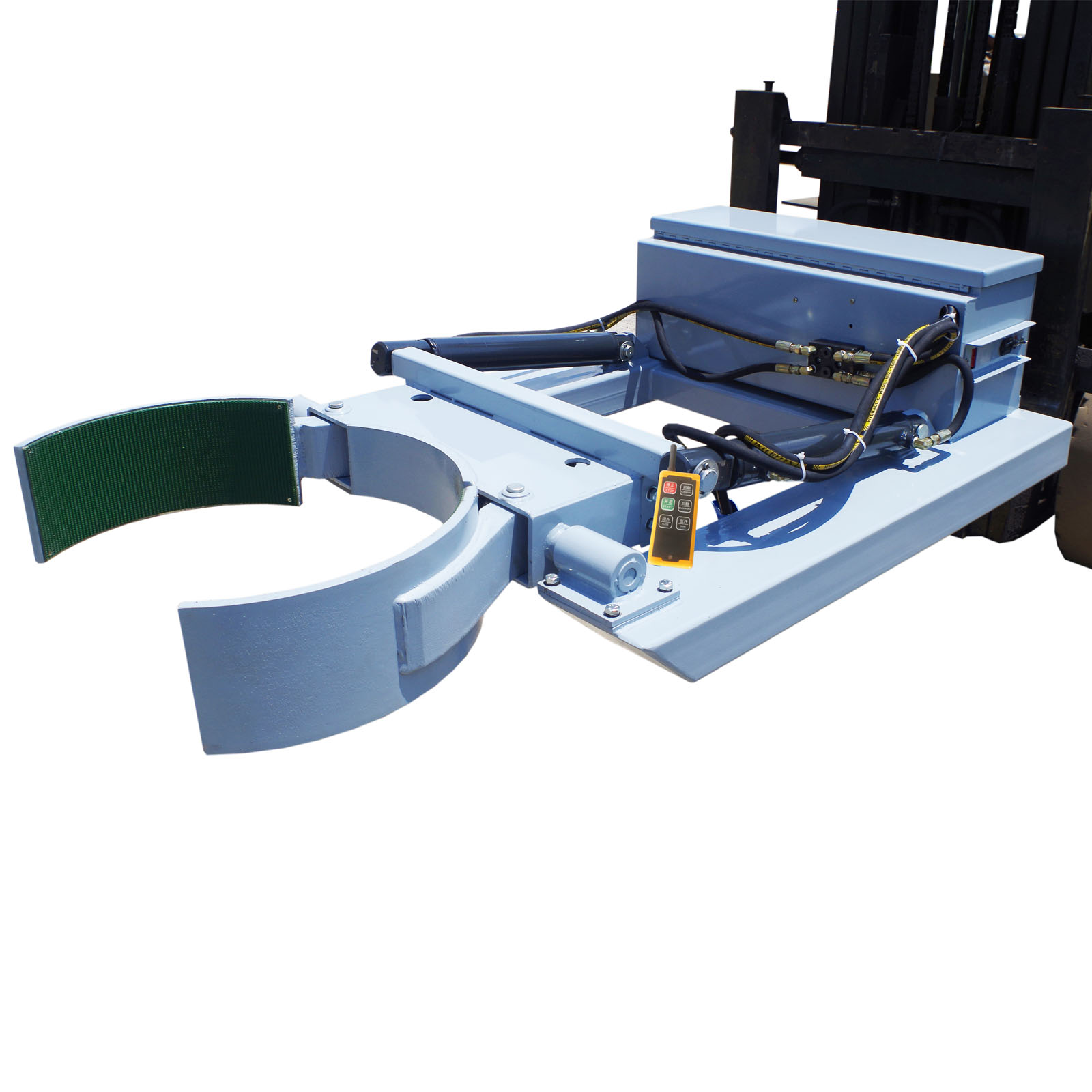

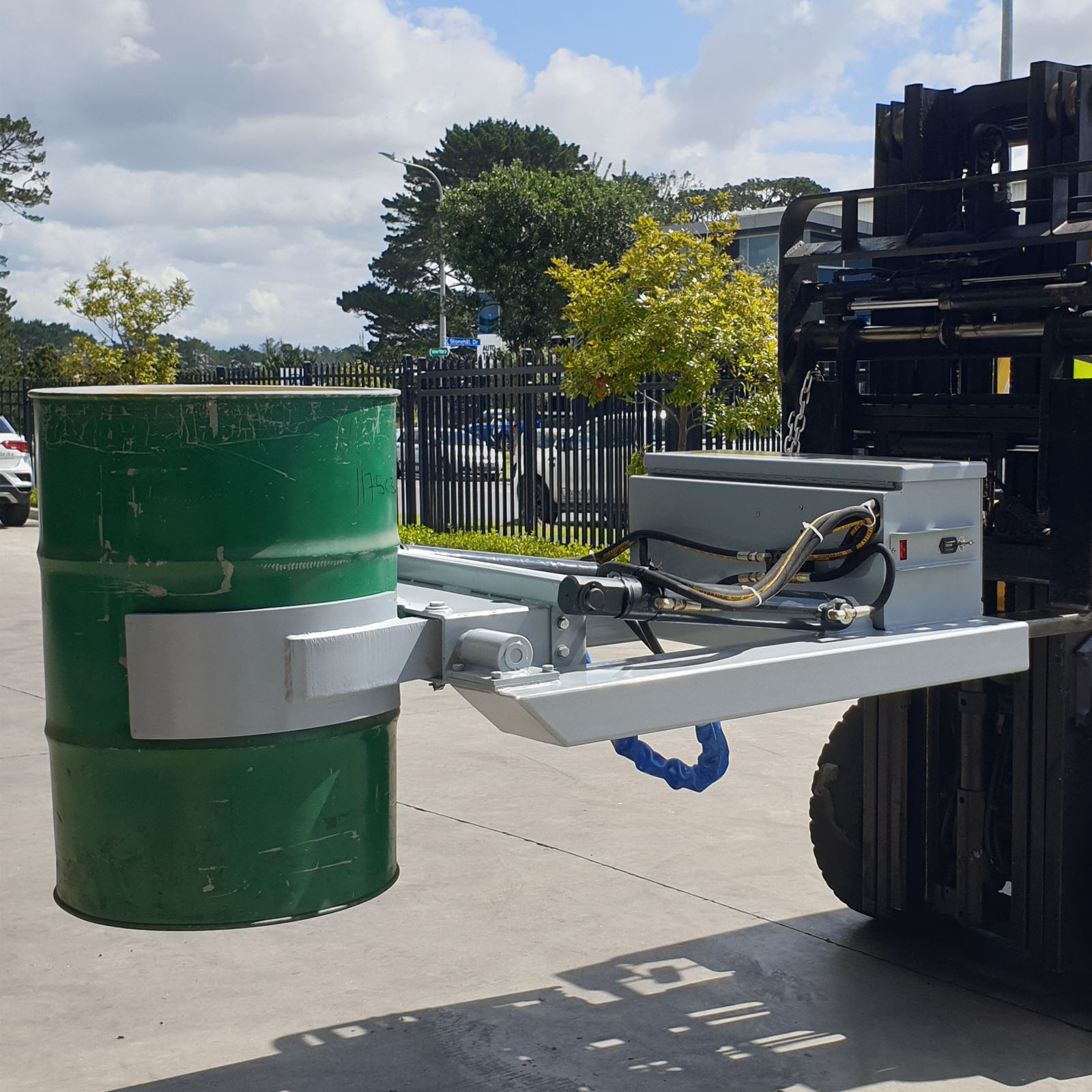

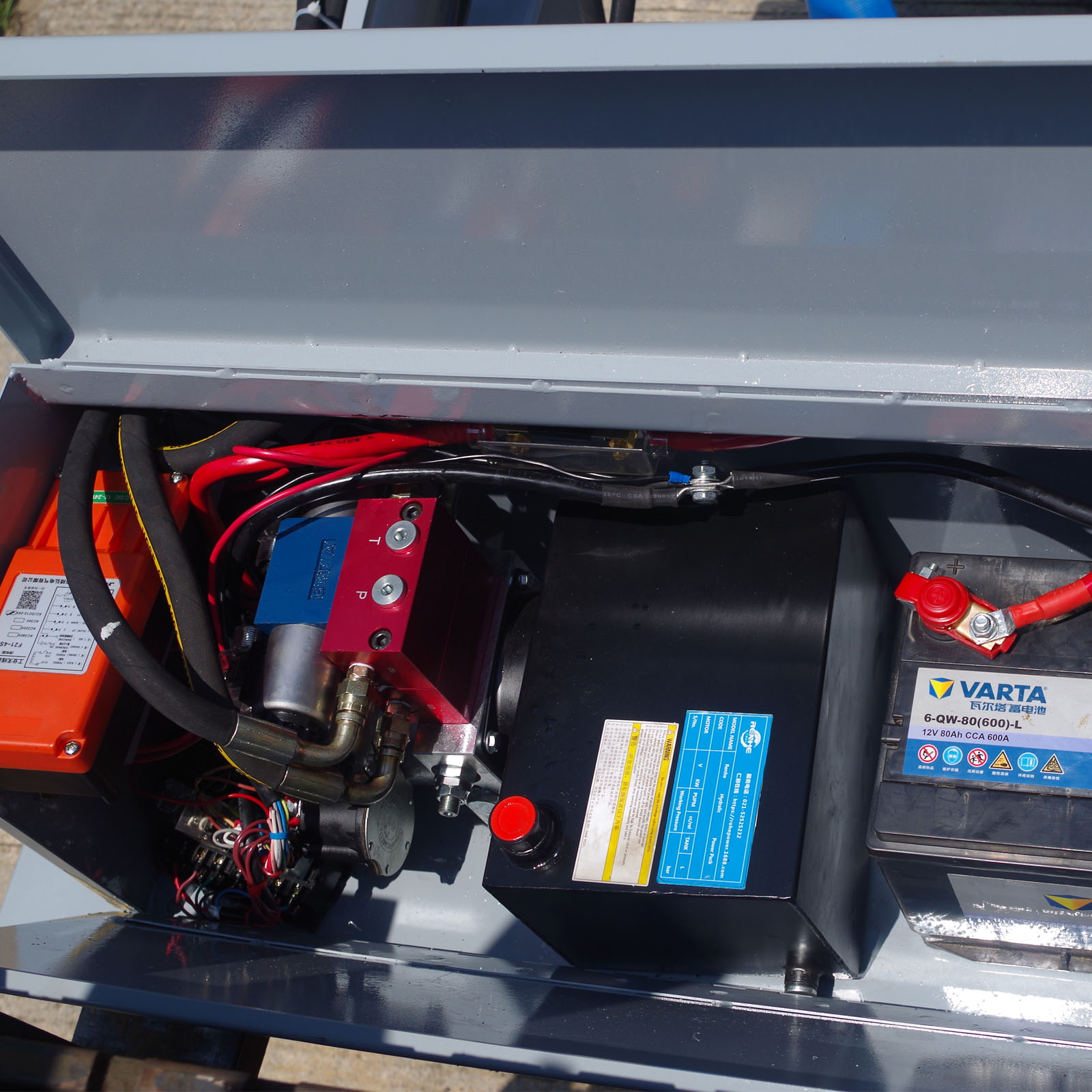

The type CF-HDR-GR2 hydraulic drum rotator is a heavy-duty 205L drum lifter with hydraulic grab/rotation ability. The battery/electric hydraulic powerpack eliminates the need to connect to the forklift’s hydraulic system. This self contained unit includes a 12 volt hydraulic pump, 105ah industrial battery and pulse battery charger. Operation of the HPP is by push button crane pendant connected to a 4m control cable allowing the forklift operator to work the attachment from the driver’s seat.
This lifter is able to pick a single drum from a pallet of 4 without disturbing the other 3 drums. The standard finish is painted enamel..
Working Load Limit: 1000kg
Rotation: 135 degree
Load Centre: 1307mm
Fork Pocket Size: 185x65mm
Fork Pocket Centre: 874mm
Unit Weight: 295kg
The type CF-HDR-GR2 hydraulic drum rotator is a heavy-duty 205L drum lifter with hydraulic grab/rotation ability. The battery/electric hydraulic powerpack eliminates the need to connect to the forklift’s hydraulic system. This self contained unit includes a 12 volt hydraulic pump, 105ah industrial battery and pulse battery charger. Operation of the HPP is by push button crane pendant connected to a 4m control cable allowing the forklift operator to work the attachment from the driver’s seat.
This lifter is able to pick a single drum from a pallet of 4 without disturbing the other 3 drums. The standard finish is painted enamel..
Working Load Limit: 1000kg
Rotation: 135 degree
Load Centre: 1307mm
Fork Pocket Size: 185x65mm
Fork Pocket Centre: 874mm
Unit Weight: 295kg
