CF-SDP-55
CF-ATTS

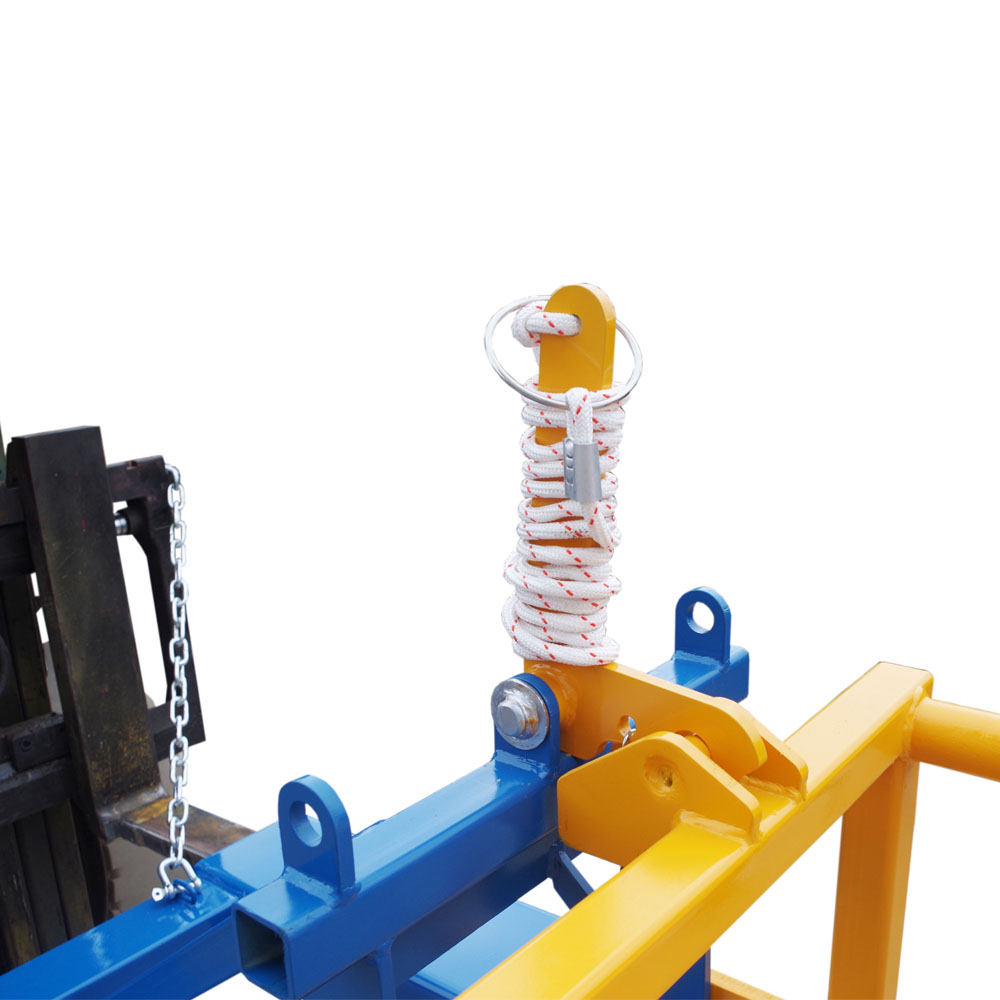

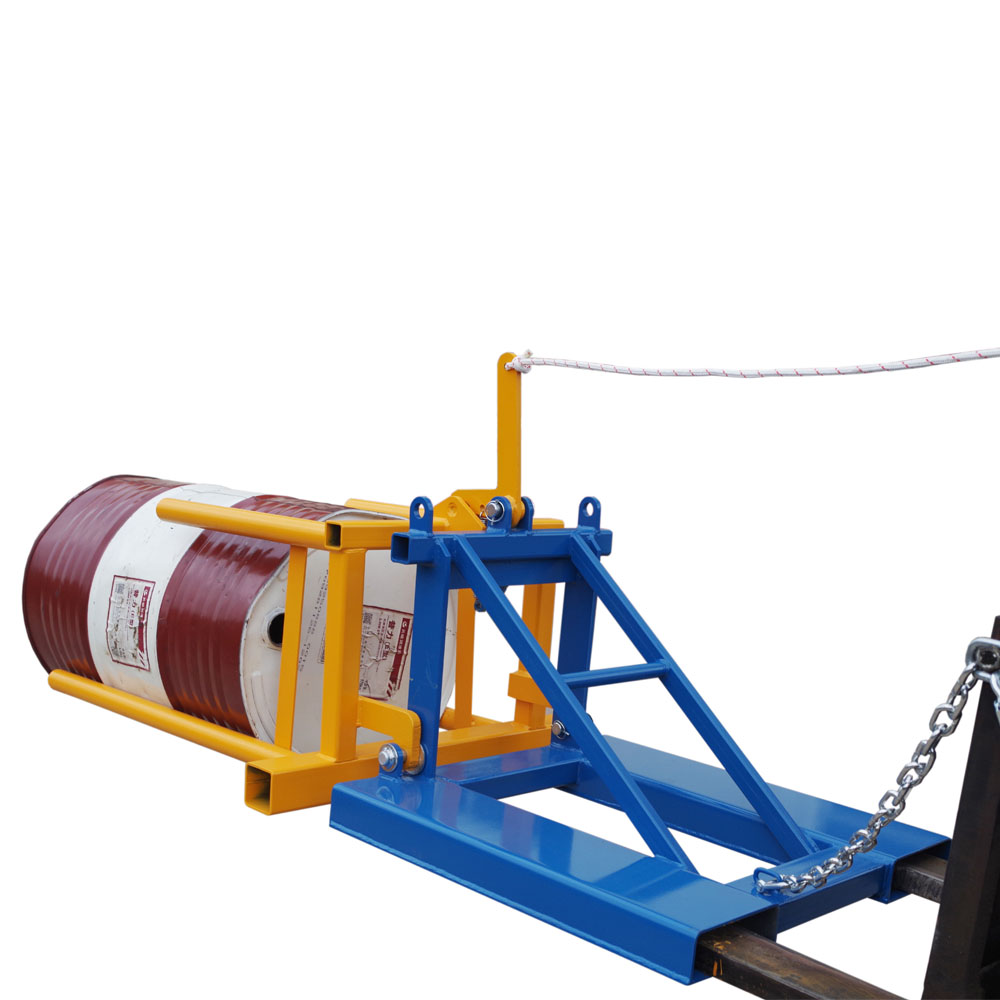

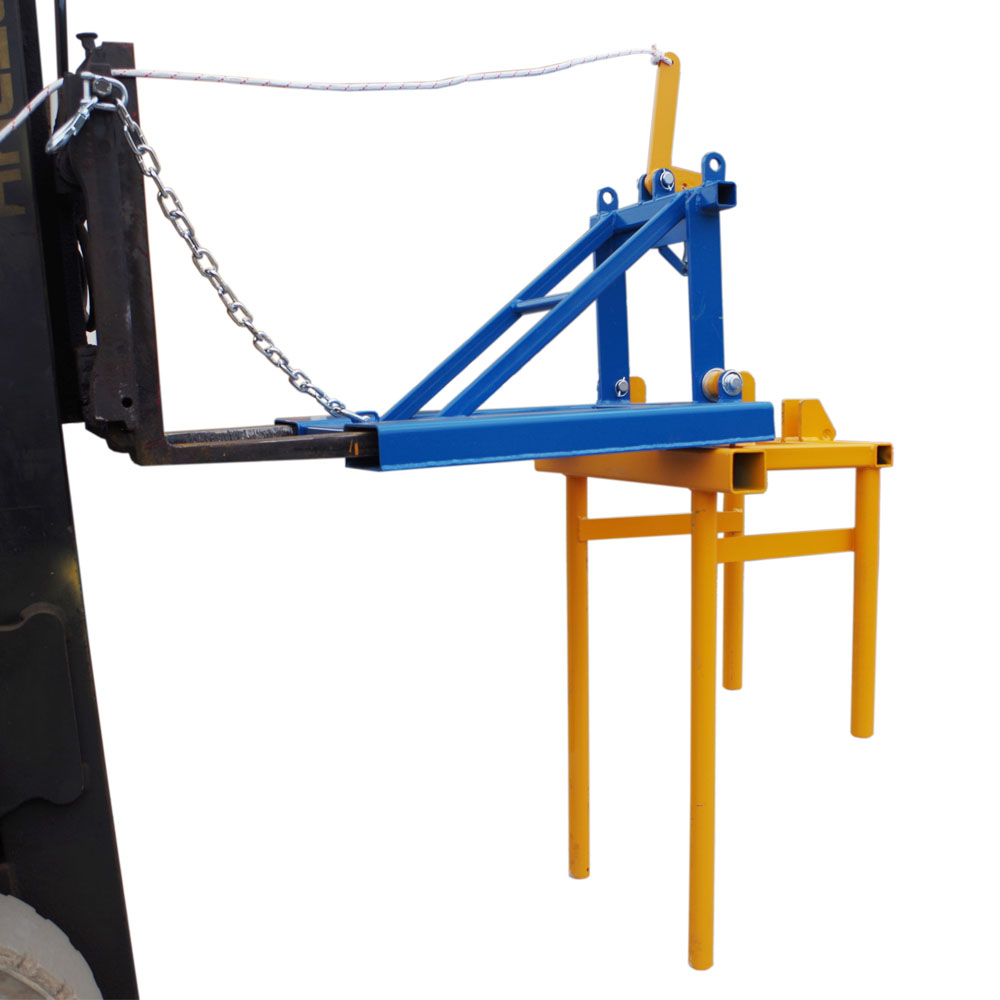

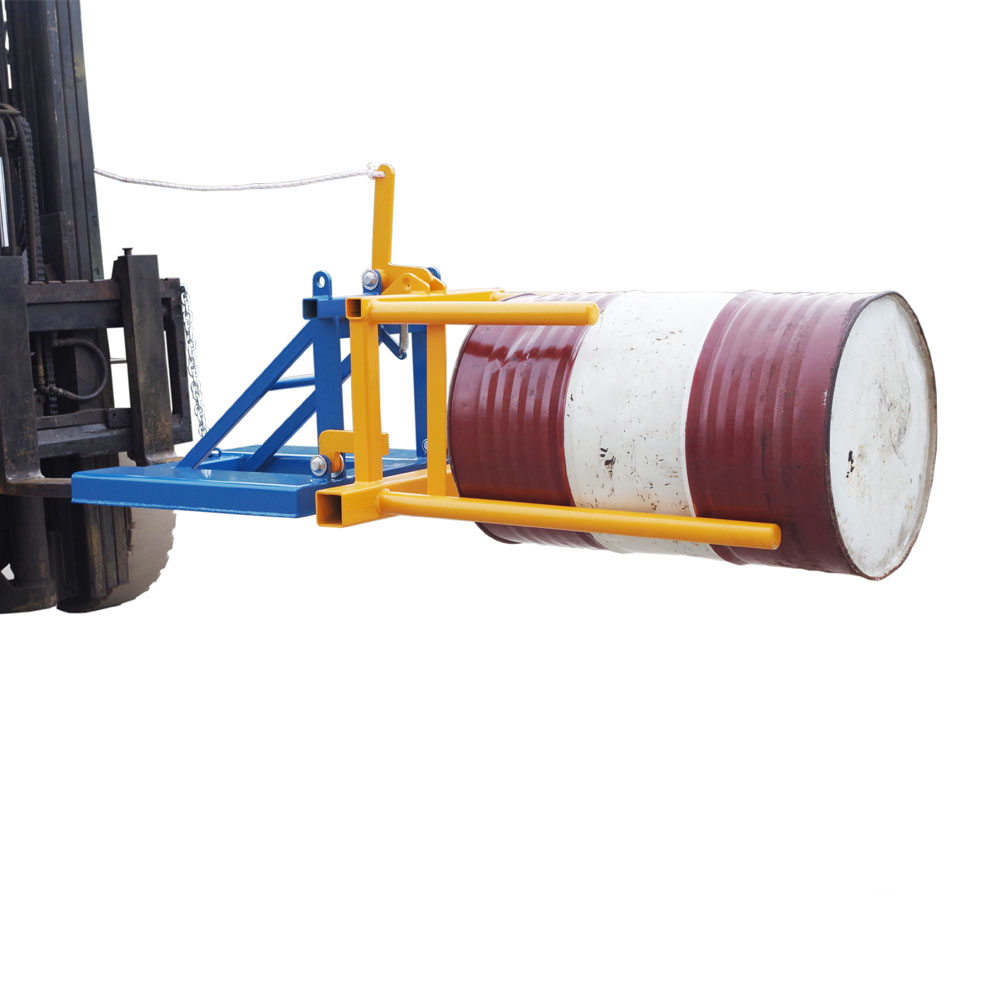

Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa. Positive latching system ensures safe handling of drums weighing up to 360kg. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position. Latching system will engage to allow horizontal positioning of drum. It's now ready to slide into the rack. Mechanical operation relies on fork truck to rotate and lift drums. Units now feature a welded spacer to protect drum fixtures from damage when rotating.
Fork Pockets Size: 160x60mm
Fork Pocket Center: 650mm
SWL: 360kg
Unit Weight: 132kg
