CF-CDR40C
CF-ATTS

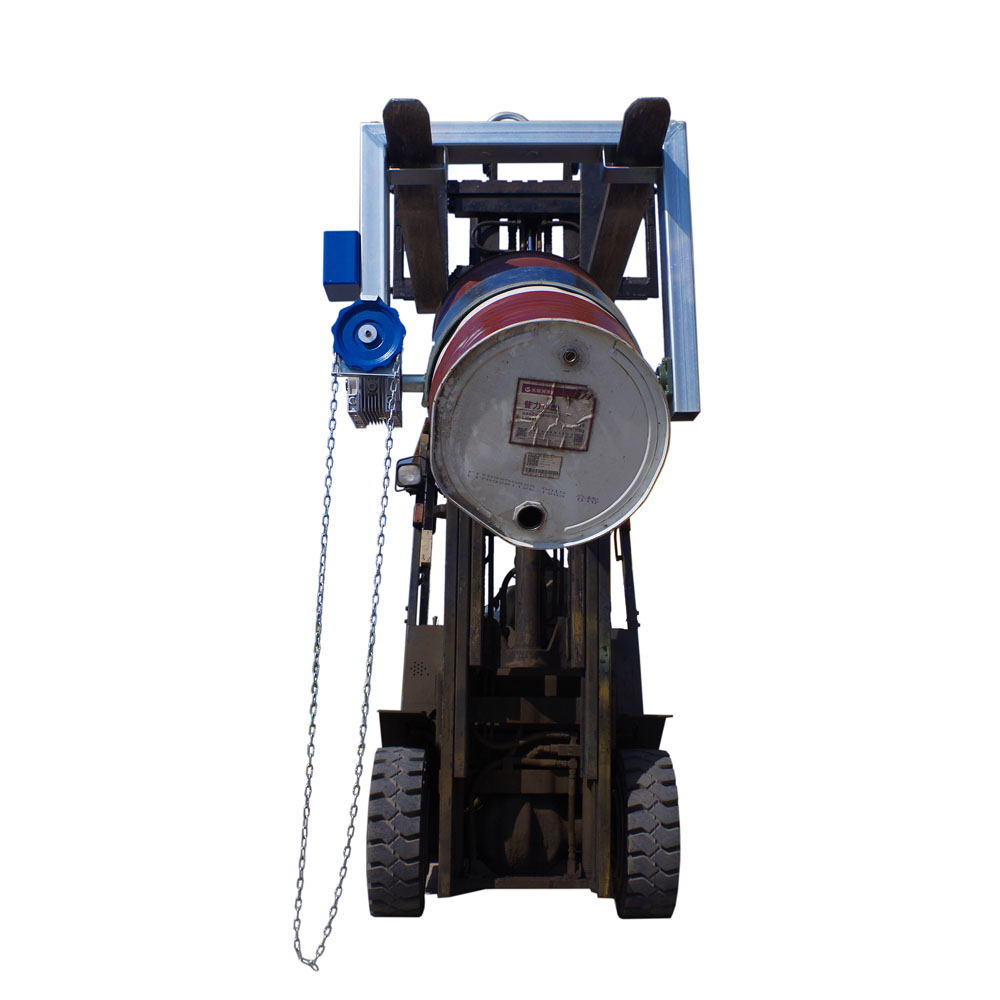

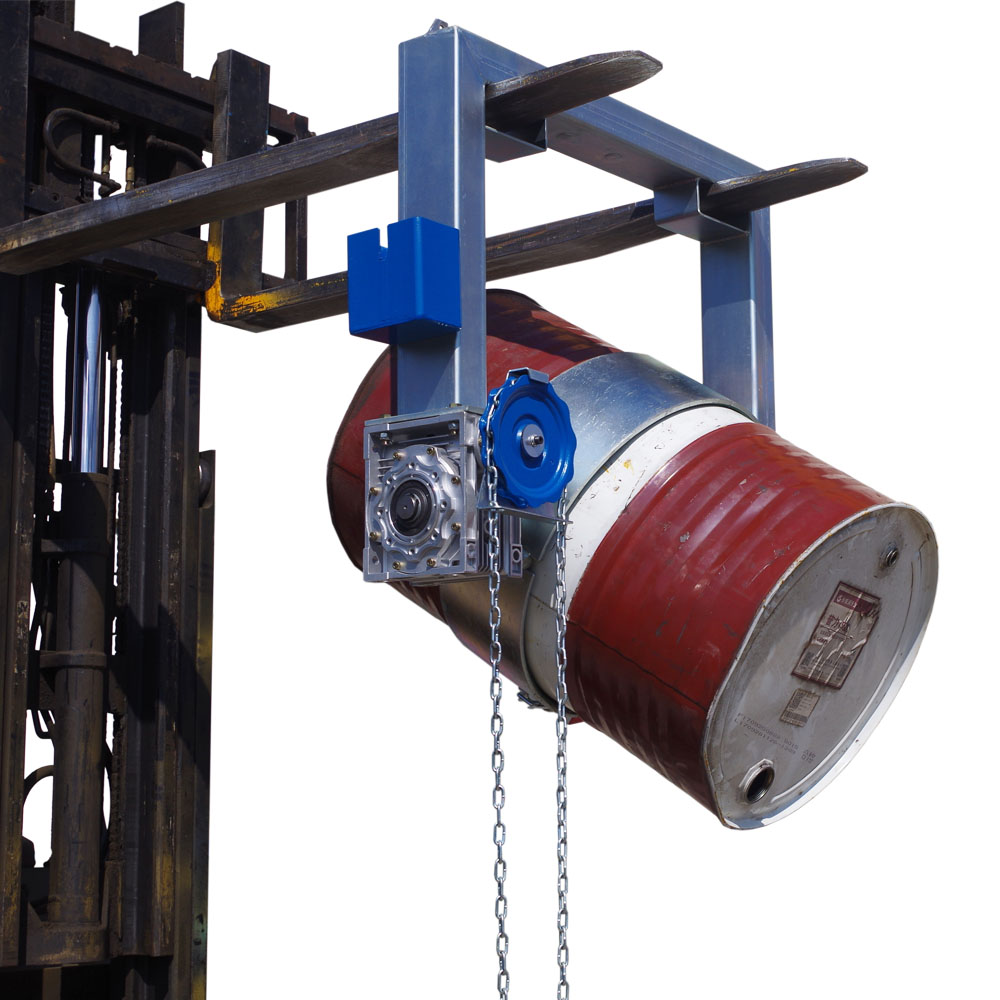

This versatile drum rotator is designed to lift and rotate a 205 litre steel drum 360 degrees by an overhead crane or forklift.
Rotation of the drum is controlled throughout the operation by the chain driven gearbox which locks the drum in position when the operator stops pulling the chain, preventing dangerous and uncontrolled movements.
Can be lifted using an overhead crane or forklift
Suitable for drum rotation up to 3m above ground height
Empties a standard 205 litre drum with minimal effort
Rotation carried out via a hand chain

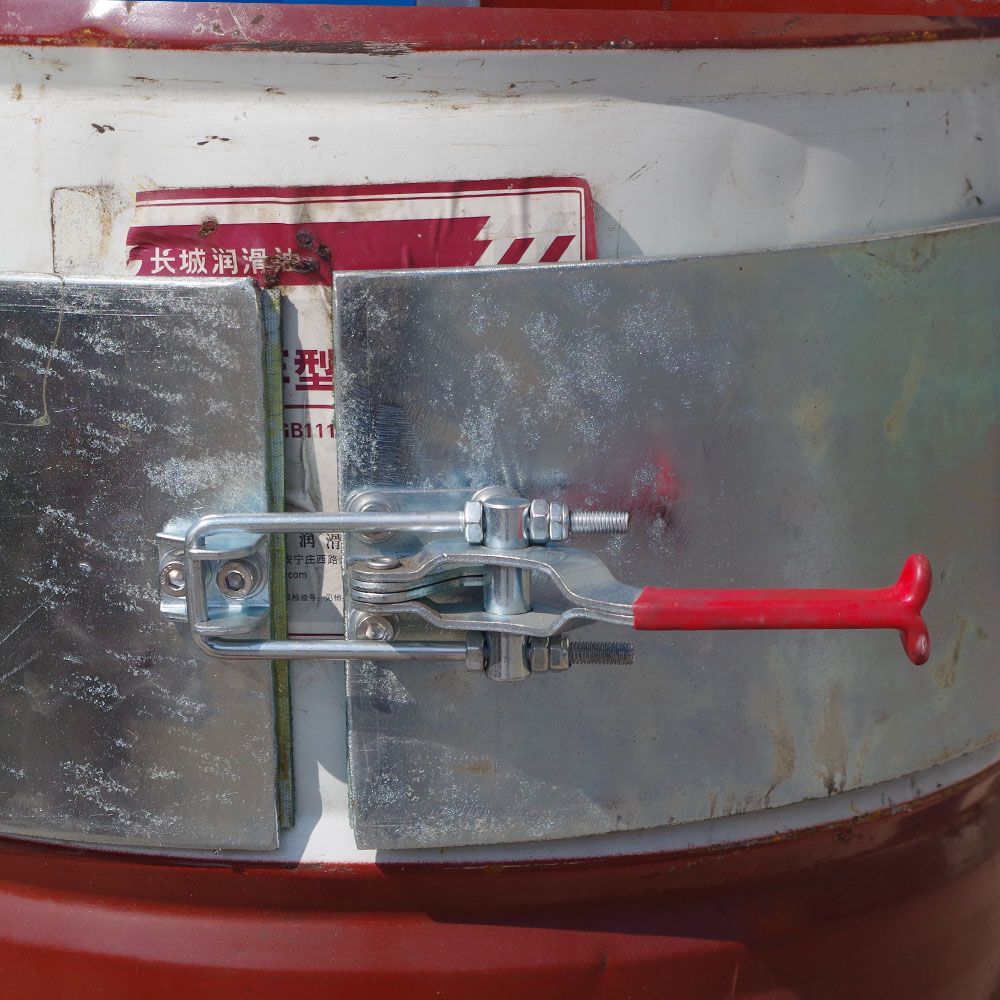

Eccentric lock secures drum in position
Locking pin prevents accidental release during tipping cycle

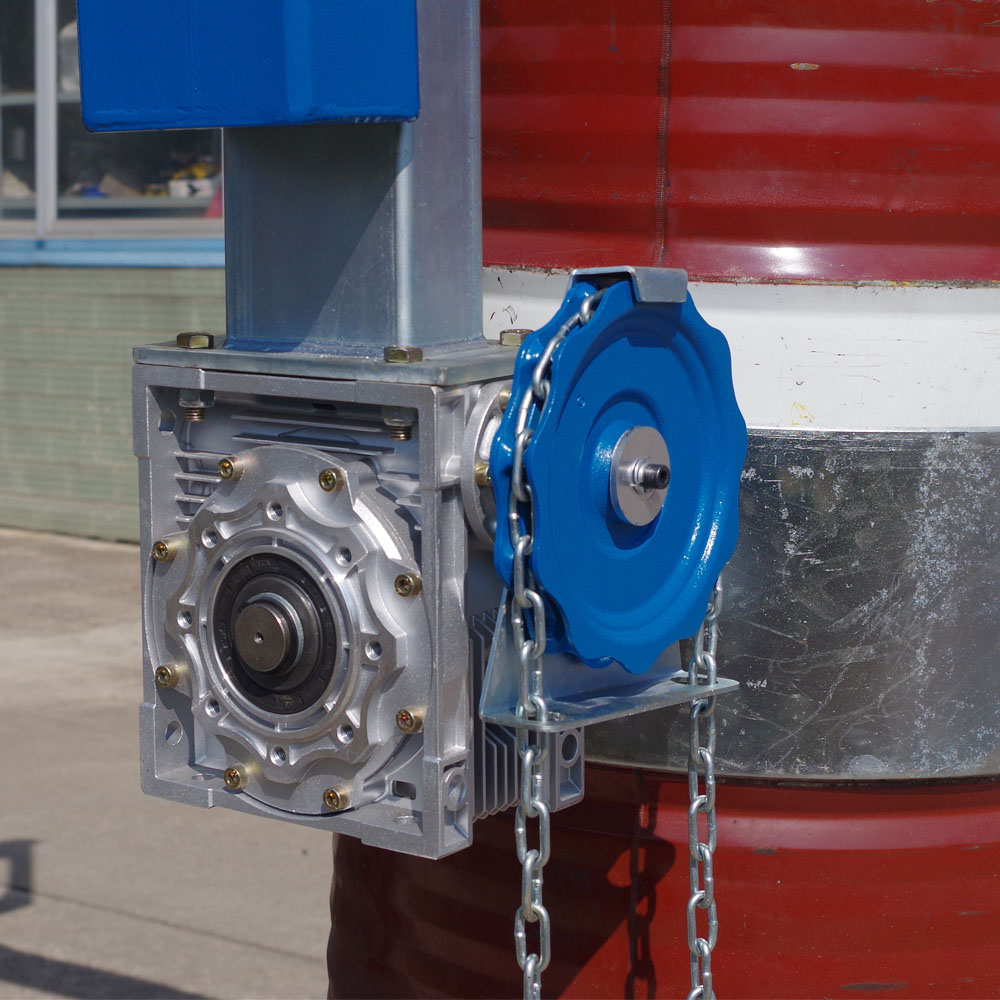

Large worm drive gearbox provides automatic braking.
| Model | WLL (kg) | Rotation | Fork Pocket Size (mm) | Fork Pocket Centres (mm) | Unit Weight (kg) | Finish |
| CF-CDR40C | 400 | 360 degree | 160 x 65 | 615 | 75 | Zinc |
