CF-FJBA40
CF-ATTS

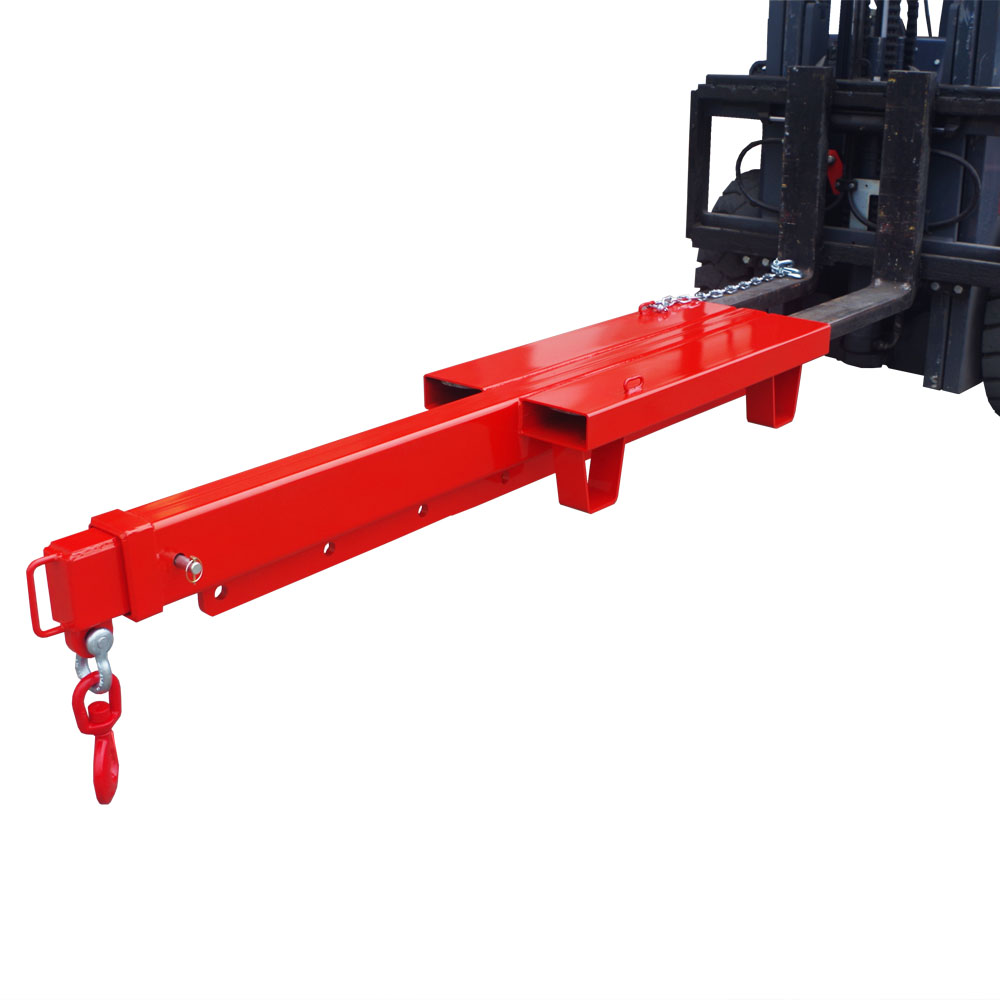

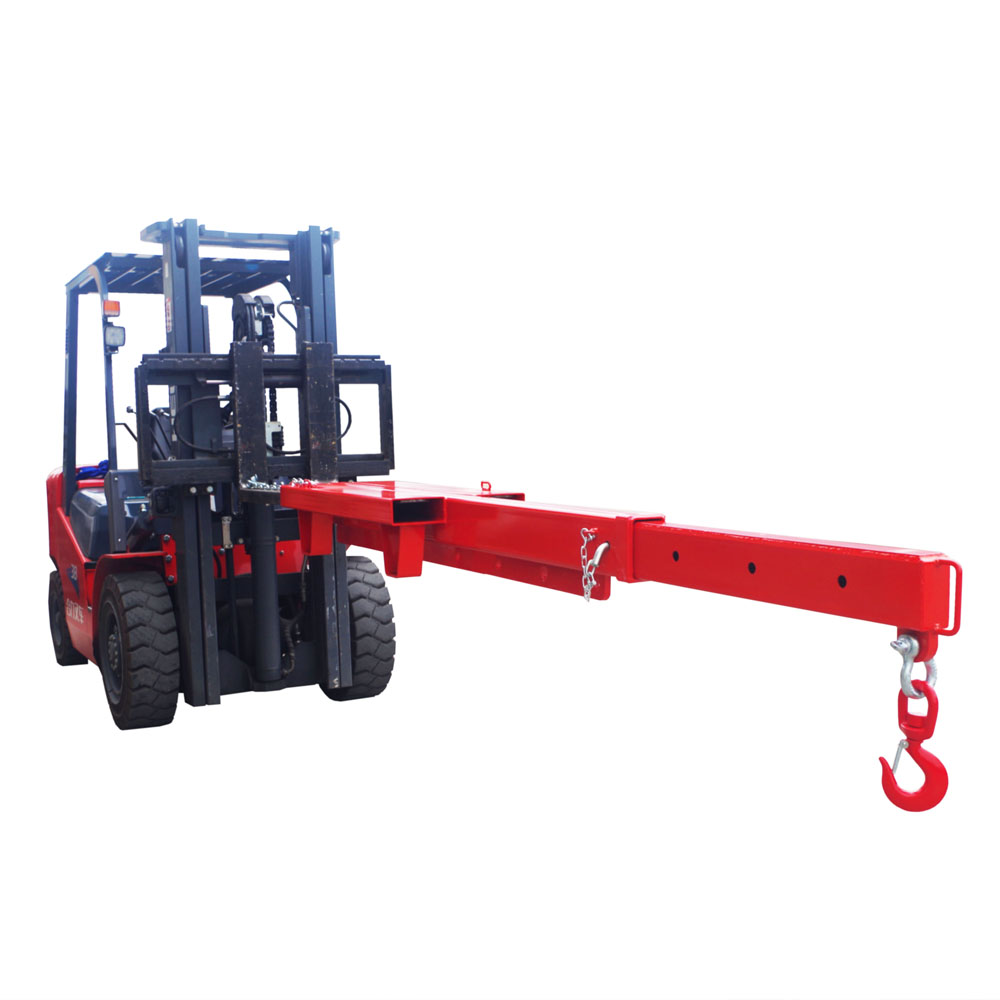

With the added benefit of a manually extendable jib arm, our Extendable Forklift Jib gives an overall lifting reach of 3000mm (2000mm when closed), making it ideal for handling extra long loads.
The jib comes with a multitude of different lifting positions on the underside which allows complete flexability when it comes to handling loads at different lengths

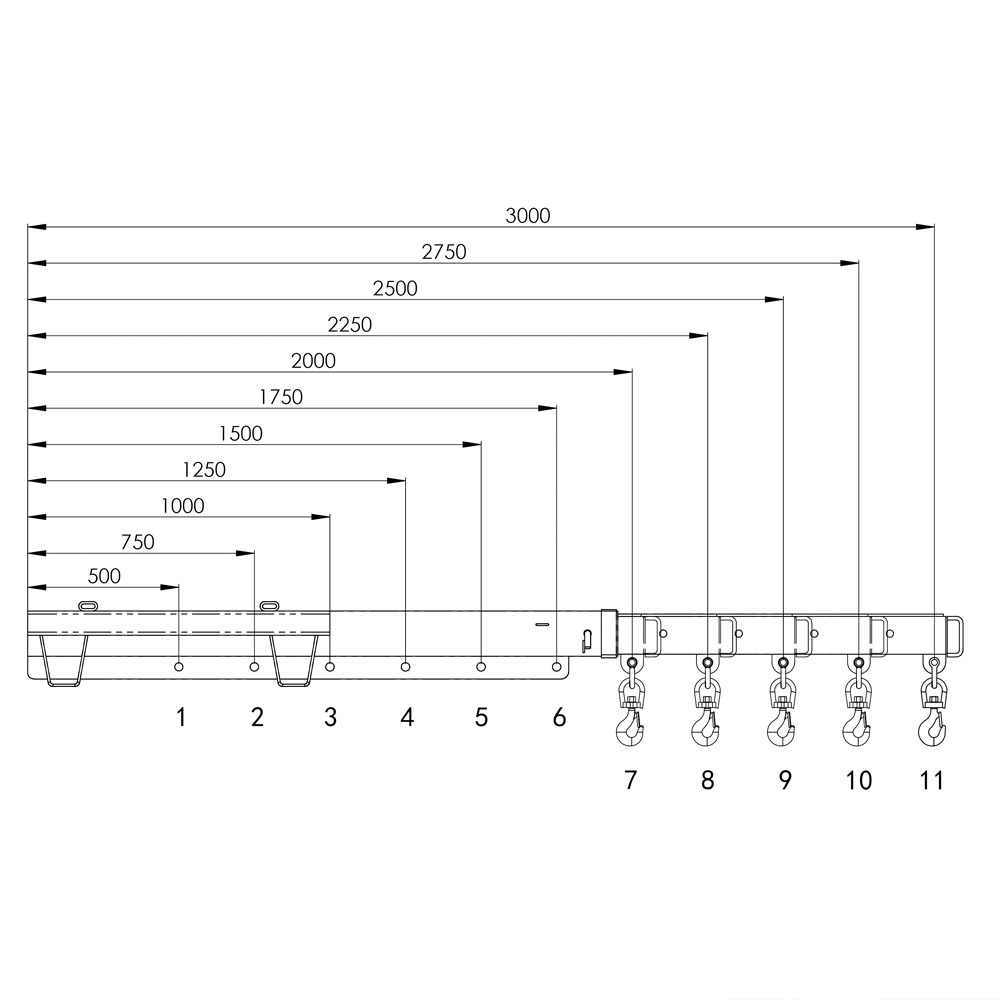

| Model | LC 500 mm 1 | LC 750 mm 2 | LC 1000 mm 3 | LC 1250 mm 4 | LC 1500 mm 5 | LC 1750 mm 6 | LC 2000 mm 7 | LC 2250 mm 8 | LC 2500 mm 9 | LC 2750 mm 10 | LC 3000 mm 11 | Fork Pocket Center | Fork Pocket Size | Weight |
| kg | kg | kg | kg | kg | kg | kg | kg | kg | kg | kg | mm | mm | kg | |
| CF-FJBA20 | 2000 | 1800 | 1600 | 1200 | 900 | 600 | 500 | 400 | 350 | 280 | 200 | 280 | 170x70 | 151 |
| CF-FJBA40 | 4000 | 3800 | 3200 | 2500 | 1900 | 1100 | 975 | 850 | 650 | 500 | 400 | 280 | 170x70 | 156 |
With the added benefit of a manually extendable jib arm, our Extendable Forklift Jib gives an overall lifting reach of 3000mm (2000mm when closed), making it ideal for handling extra long loads.
The jib comes with a multitude of different lifting positions on the underside which allows complete flexability when it comes to handling loads at different lengths
| Model | LC 500 mm 1 | LC 750 mm 2 | LC 1000 mm 3 | LC 1250 mm 4 | LC 1500 mm 5 | LC 1750 mm 6 | LC 2000 mm 7 | LC 2250 mm 8 | LC 2500 mm 9 | LC 2750 mm 10 | LC 3000 mm 11 | Fork Pocket Center | Fork Pocket Size | Weight |
| kg | kg | kg | kg | kg | kg | kg | kg | kg | kg | kg | mm | mm | kg | |
| CF-FJBA20 | 2000 | 1800 | 1600 | 1200 | 900 | 600 | 500 | 400 | 350 | 280 | 200 | 280 | 170x70 | 151 |
| CF-FJBA40 | 4000 | 3800 | 3200 | 2500 | 1900 | 1100 | 975 | 850 | 650 | 500 | 400 | 280 | 170x70 | 156 |
