CF-TJAS25
CF-ATTS

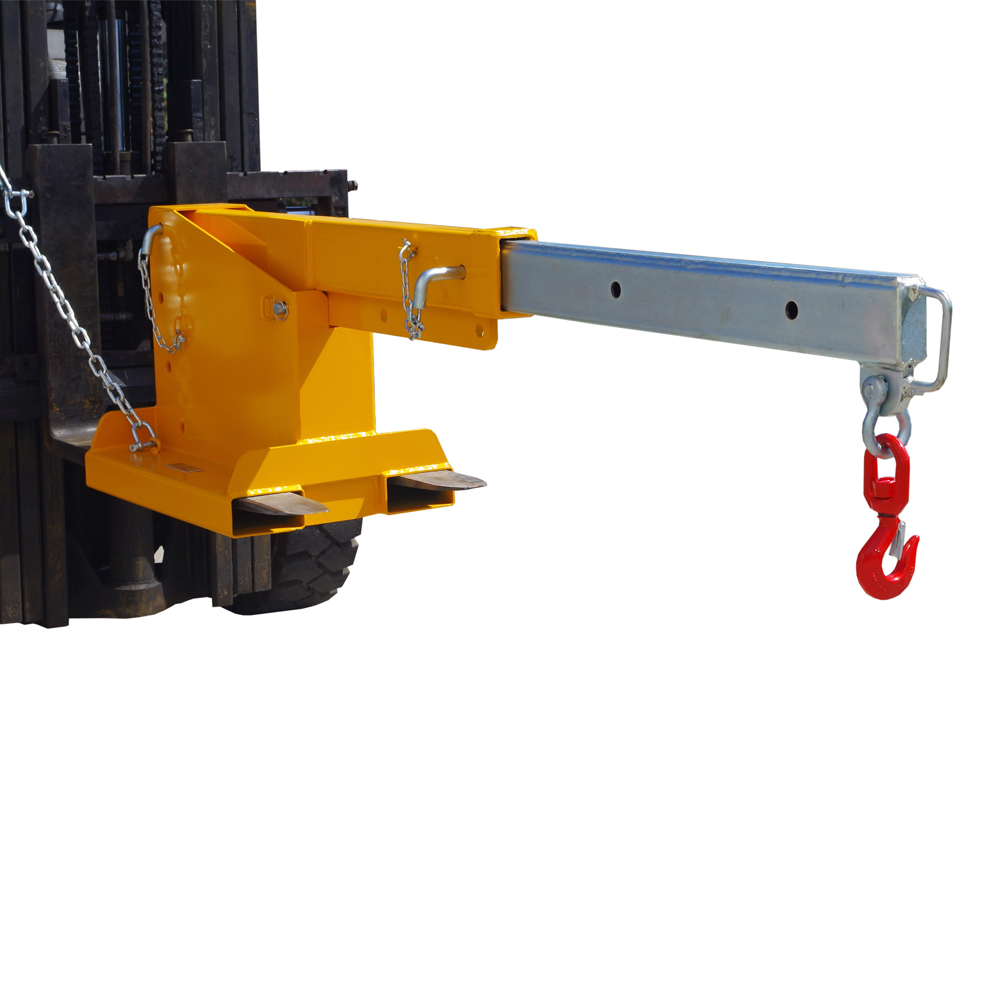

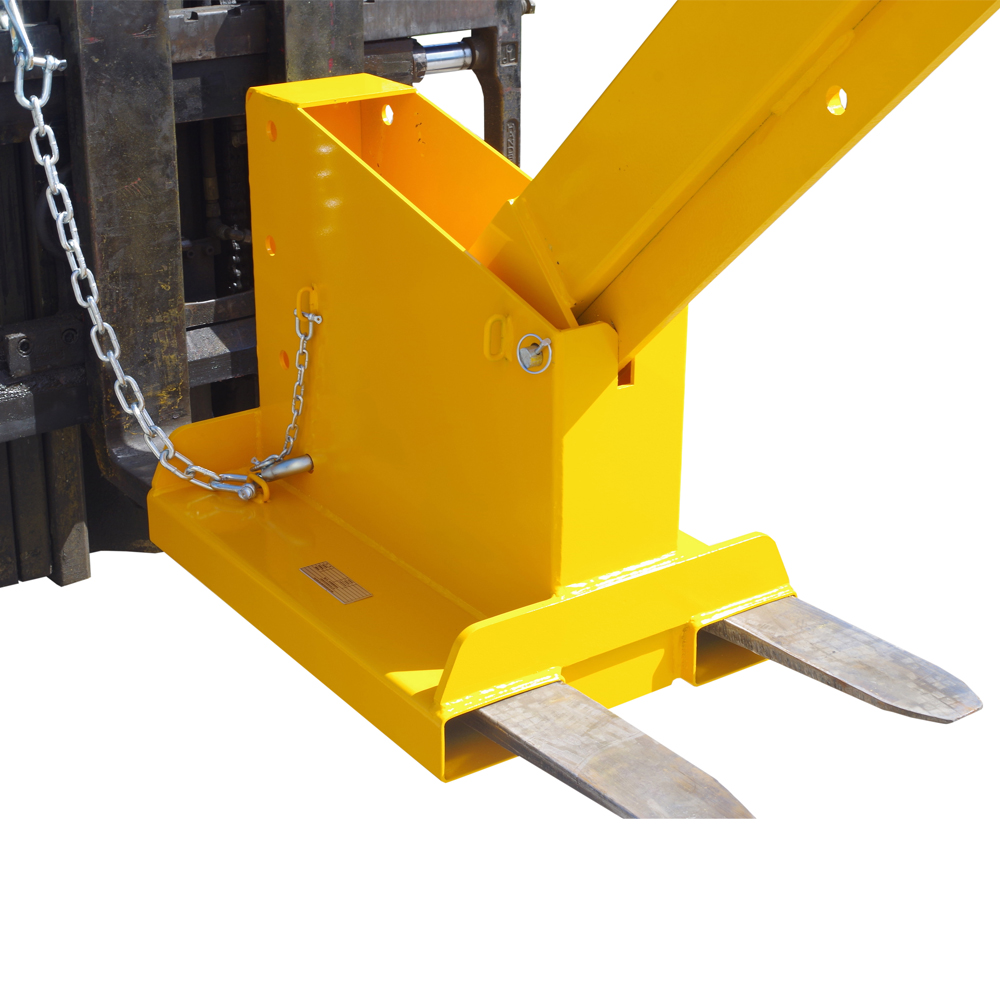

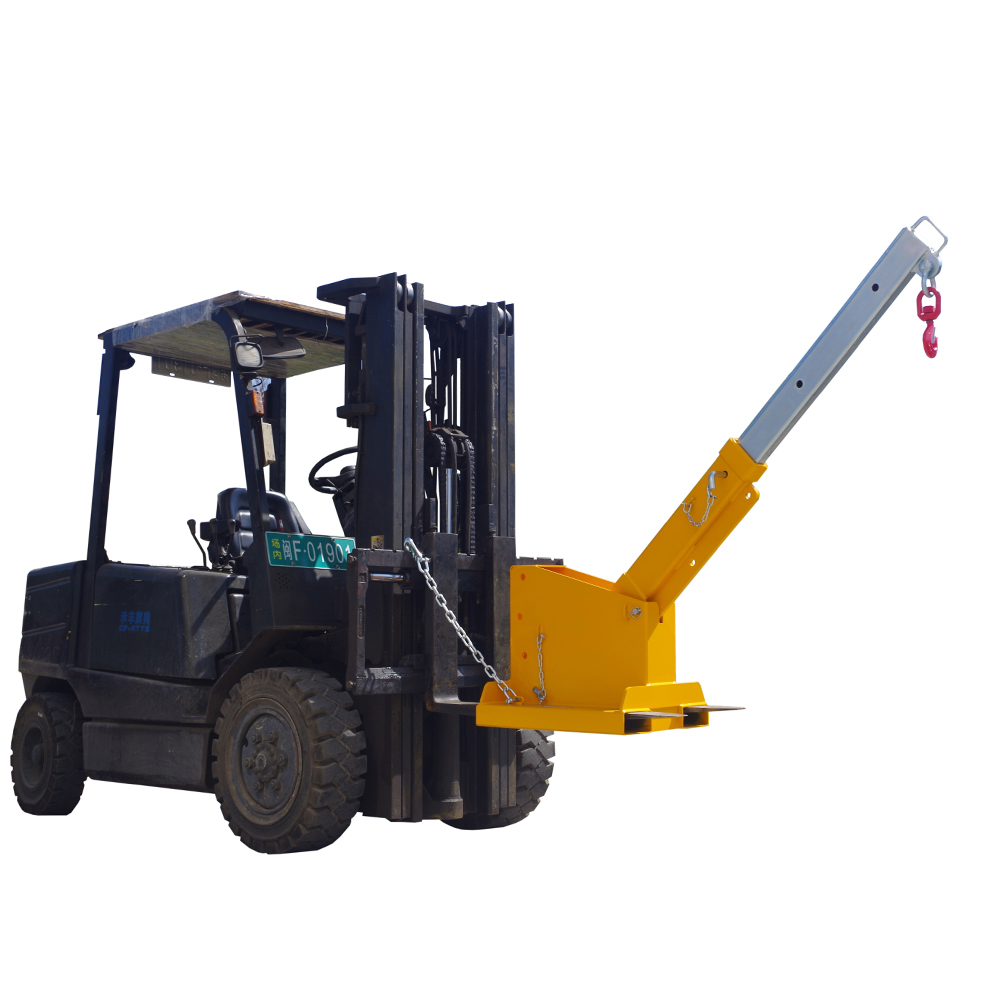

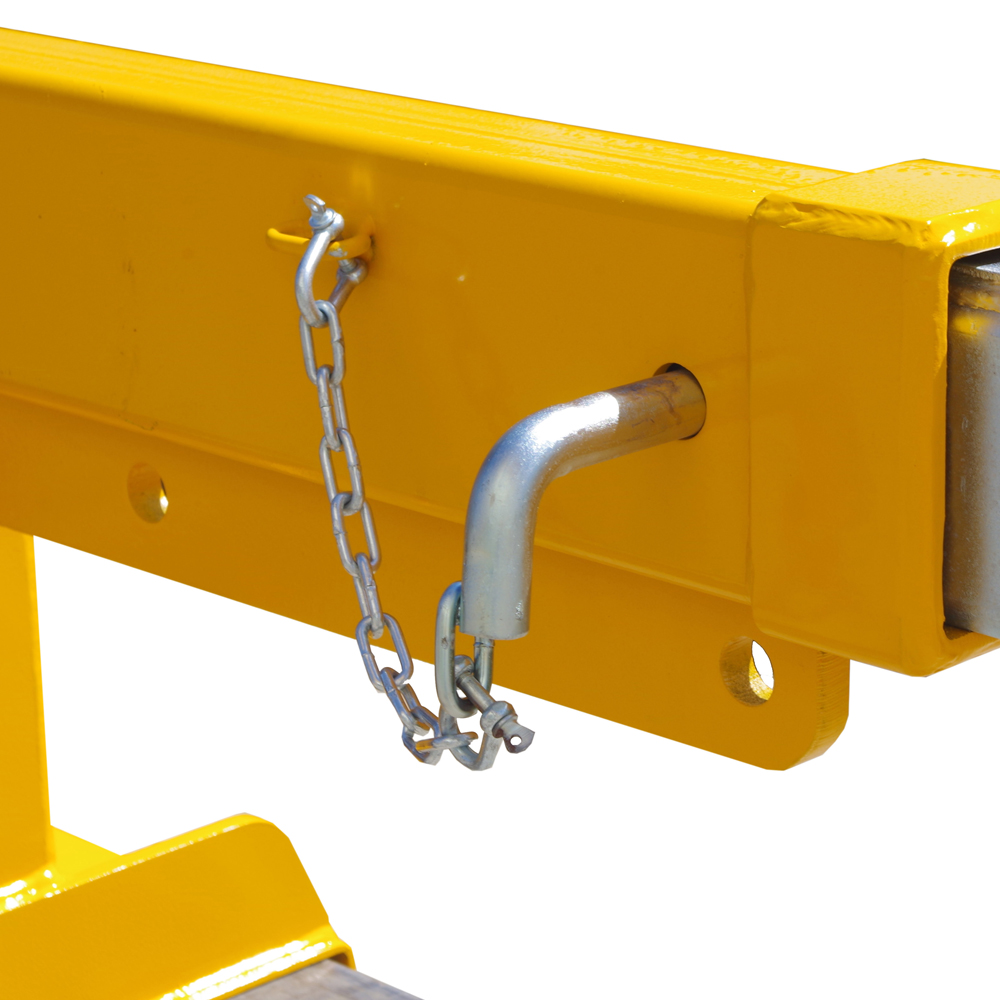

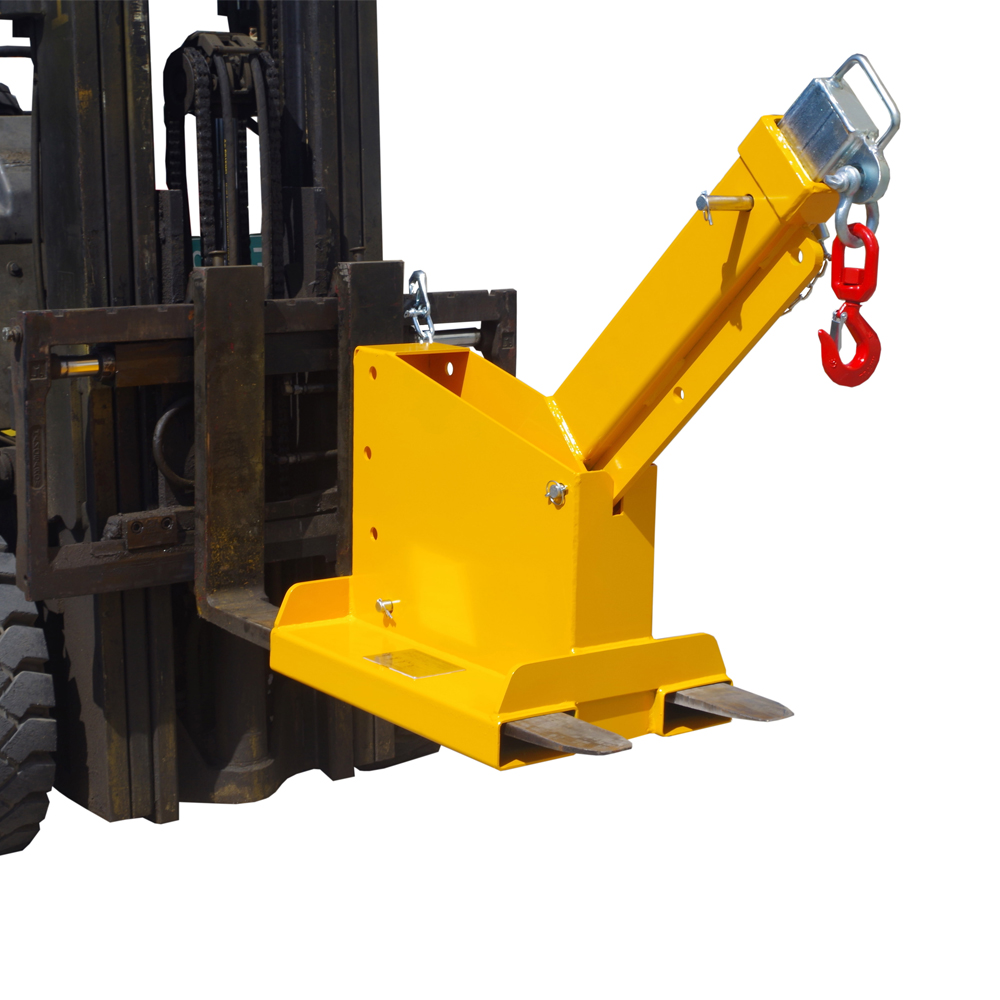

The type CF-TJAS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with a Jib attachment. A maximum height of 1.4 metres can be gained while the Jib can be fully extended to 2.02 metres. This slip-on attachment is held to the Forklift by a safety chain.
The Jibs overall length when closed is 1.35 metres.
SPECIFICATIONS:
Safe Working Load (SWL) 2500kg Max.
Unit Weight 130kg
Load Centre 825mm
Pocket Size 165 x 65mm
Pocket Centres 337 mm
Horizontal C of G 650mm
Vertical C of G 300mm
The type CF-TJAS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with a Jib attachment. A maximum height of 1.4 metres can be gained while the Jib can be fully extended to 2.02 metres. This slip-on attachment is held to the Forklift by a safety chain.
The Jibs overall length when closed is 1.35 metres.
