CF-KA300
CF-ATTS

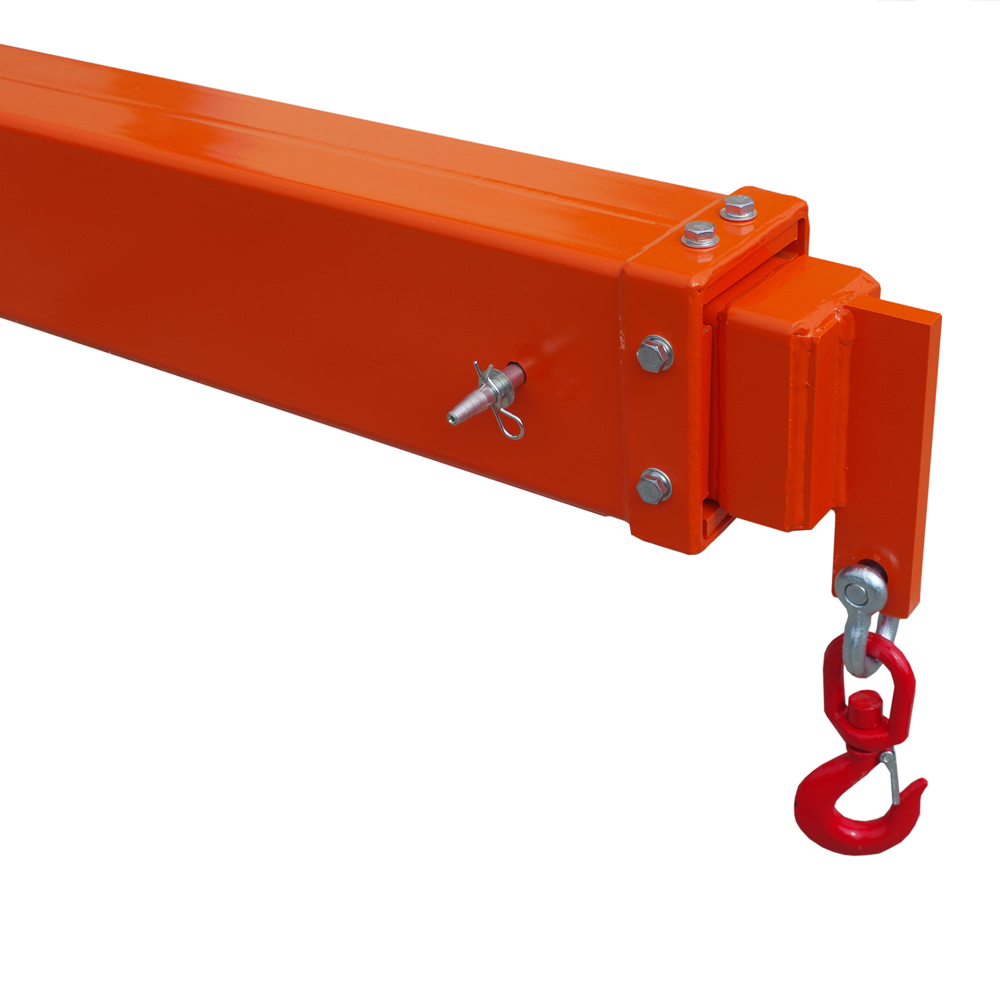

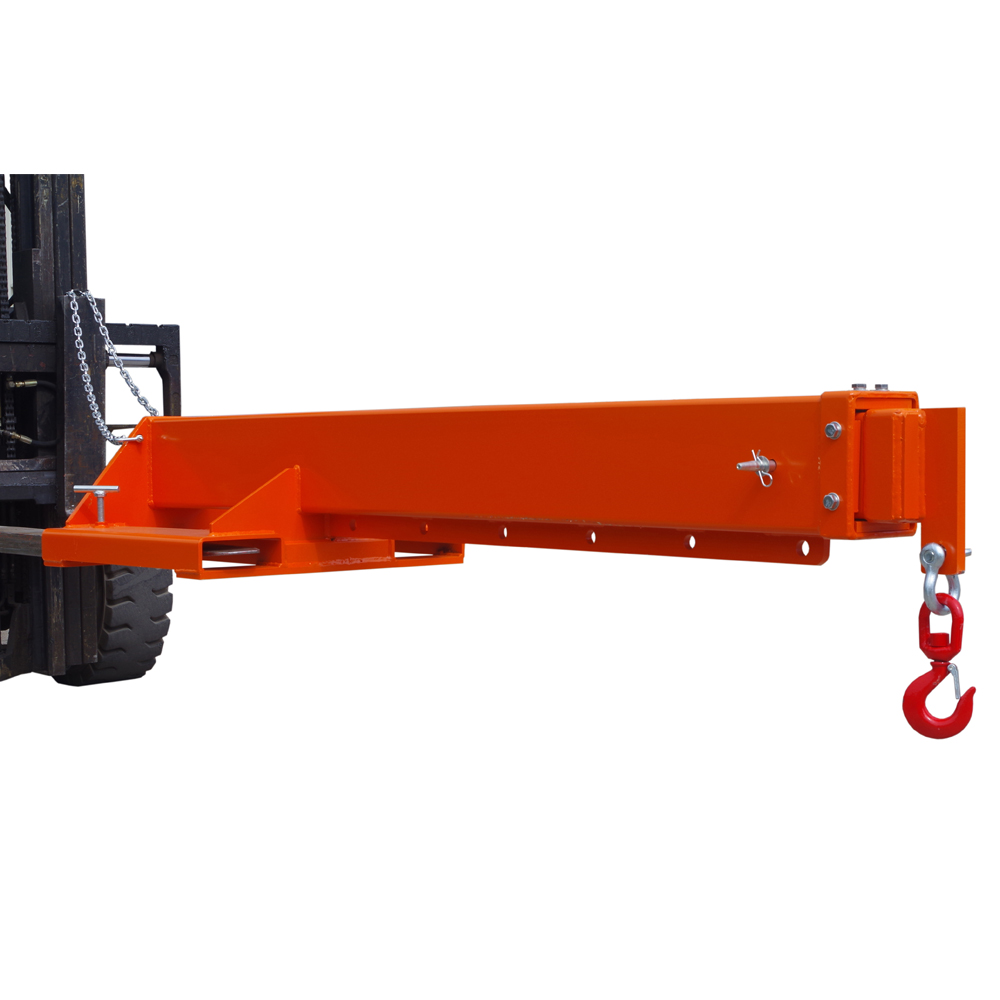

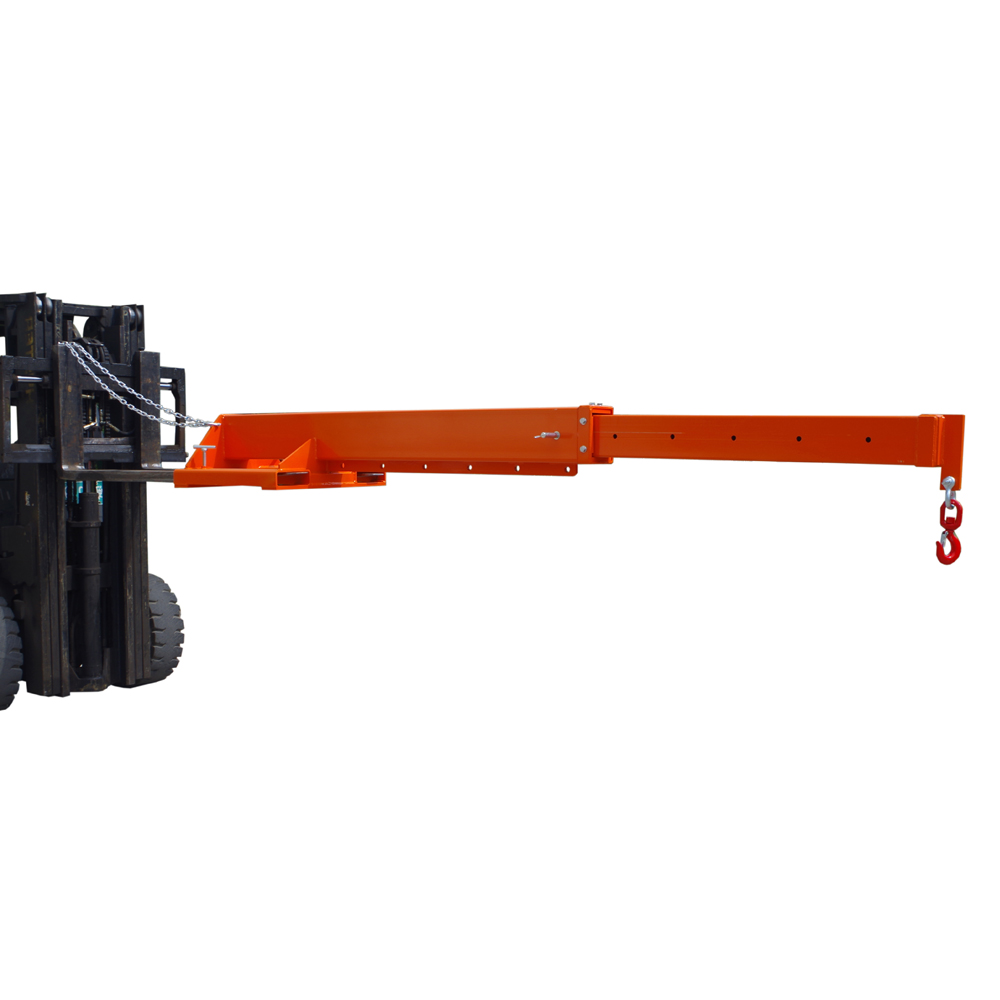

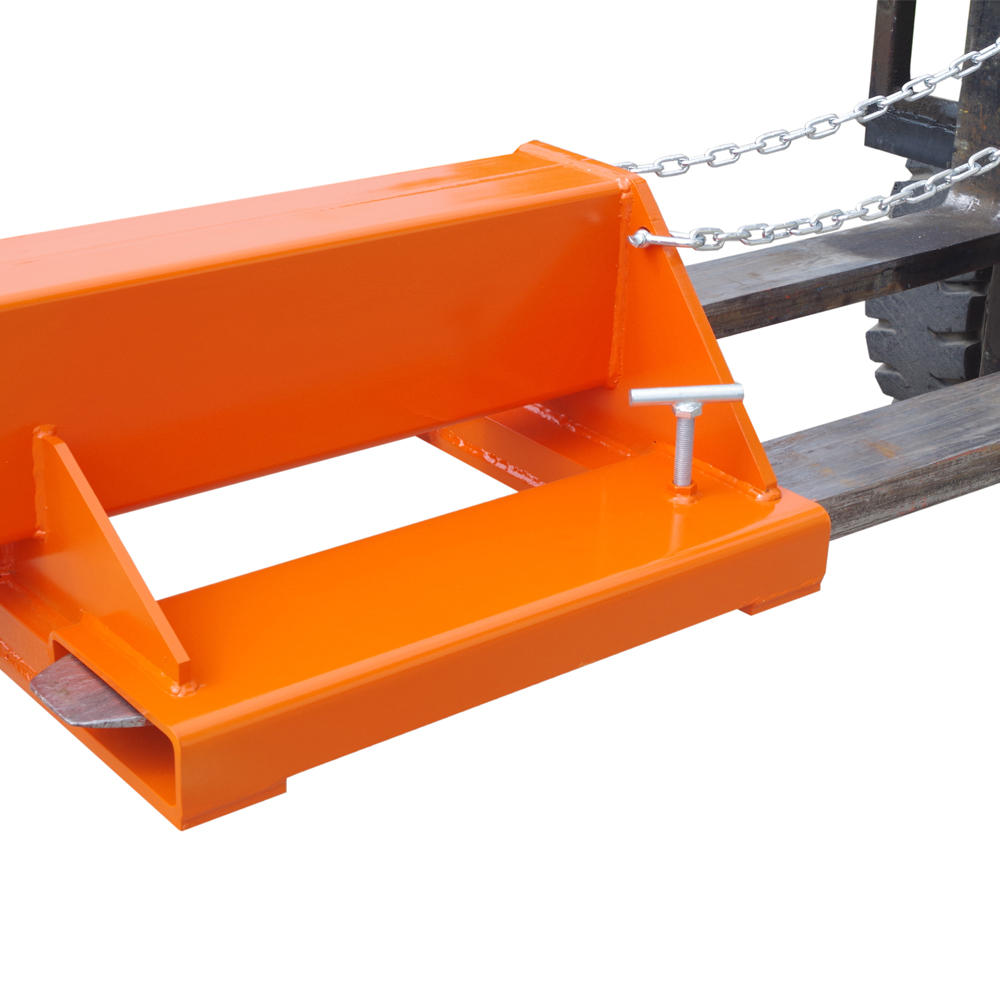

With the Fork Mounted Adjustable Hoist Jib Boom Crane, you can lift heavy loads easily. This attachment is especially advantageous if you work in a warehouse or factory. This mobile crane is made to support a load capacity of up to 3000kg so that you can pick up plenty of materials and containers. Featuring a double-fork design, so it fits most pallet forks. Just slide the hoisting hook over your pallet forks to attach it through the fork pockets. Then, clamp them down with the thumbscrews for extra security and safety. Next, attach the hook to the payload. The hook points are positioned 228mm apart from the base of the boom, spanning from 762mm to 3500mm, allowing you to control the center of mass precisely. You're all set to start lifting! The boom telescopes from a starting length of 2134mm to3500mm, allowing you to place your payload further than you have ever been able to.
Overall Height: 368mm
Boom Length: 2000mm
Overall Width: 640mm
Telescopoic Length: 2134-3500mm
Fork Pocket Size: 180x60mm
Fork Pocket Center: 460mm
Unit Weight: 179kg
With the Fork Mounted Adjustable Hoist Jib Boom Crane, you can lift heavy loads easily. This attachment is especially advantageous if you work in a warehouse or factory. This mobile crane is made to support a load capacity of up to 3000kg so that you can pick up plenty of materials and containers. Featuring a double-fork design, so it fits most pallet forks. Just slide the hoisting hook over your pallet forks to attach it through the fork pockets. Then, clamp them down with the thumbscrews for extra security and safety. Next, attach the hook to the payload. The hook points are positioned 228mm apart from the base of the boom, spanning from 762mm to 3500mm, allowing you to control the center of mass precisely. You're all set to start lifting! The boom telescopes from a starting length of 2134mm to3500mm, allowing you to place your payload further than you have ever been able to.
Overall Height: 368mm
Boom Length: 2000mm
Overall Width: 640mm
Telescopoic Length: 2134-3500mm
Fork Pocket Size: 180x60mm
Fork Pocket Center: 460mm
Unit Weight: 179kg
