CF-TEJ
CF-ATTS

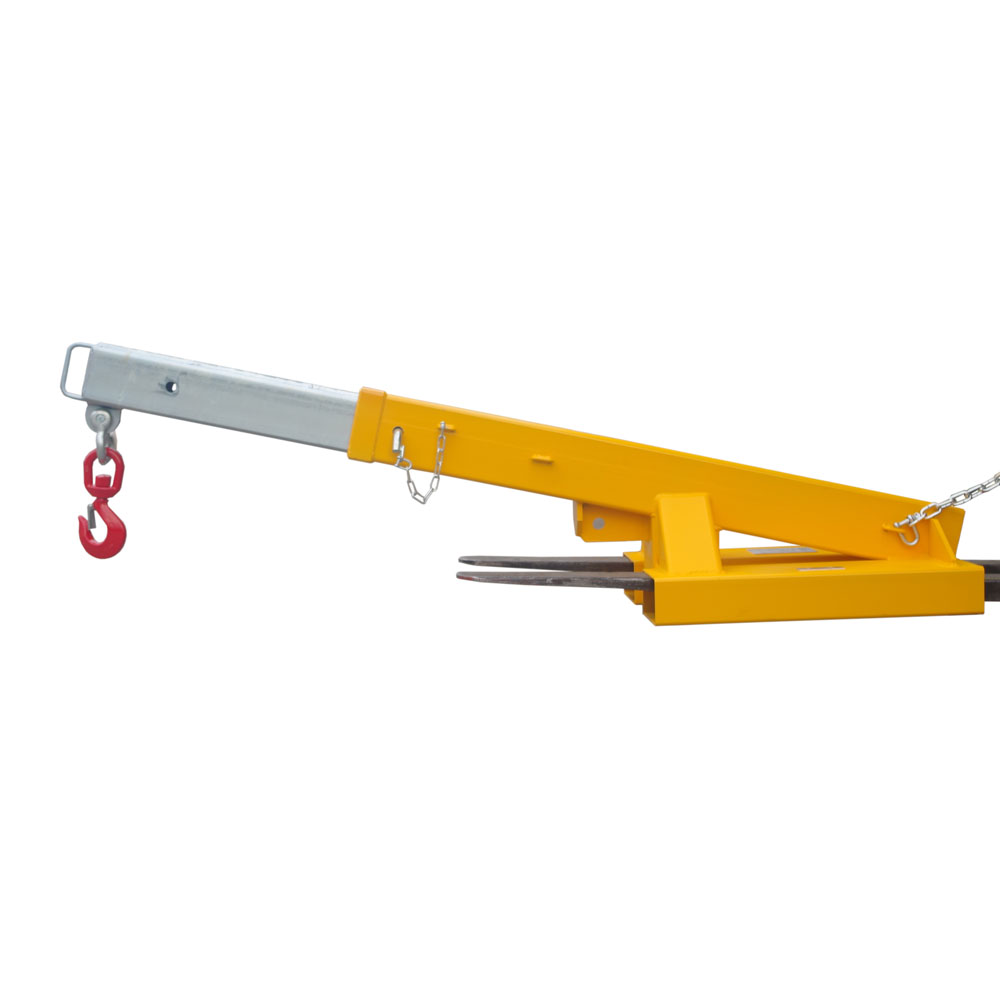

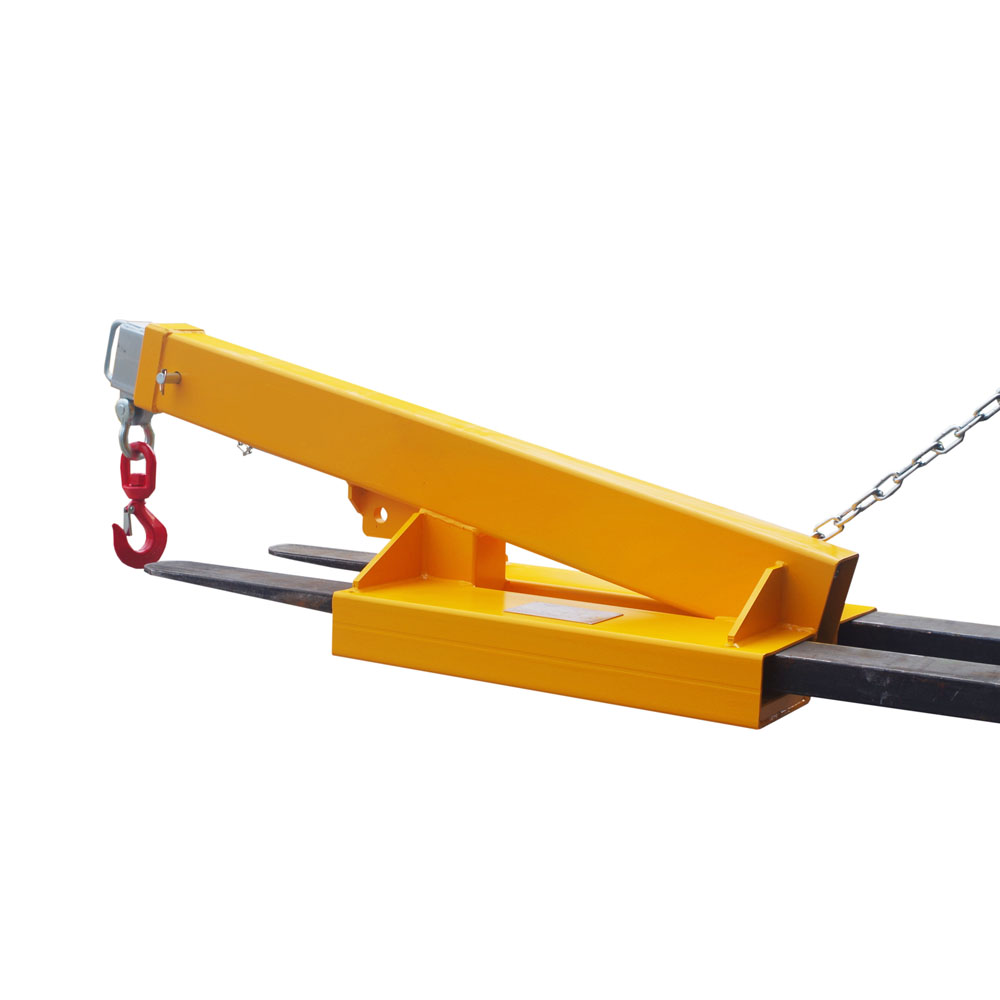

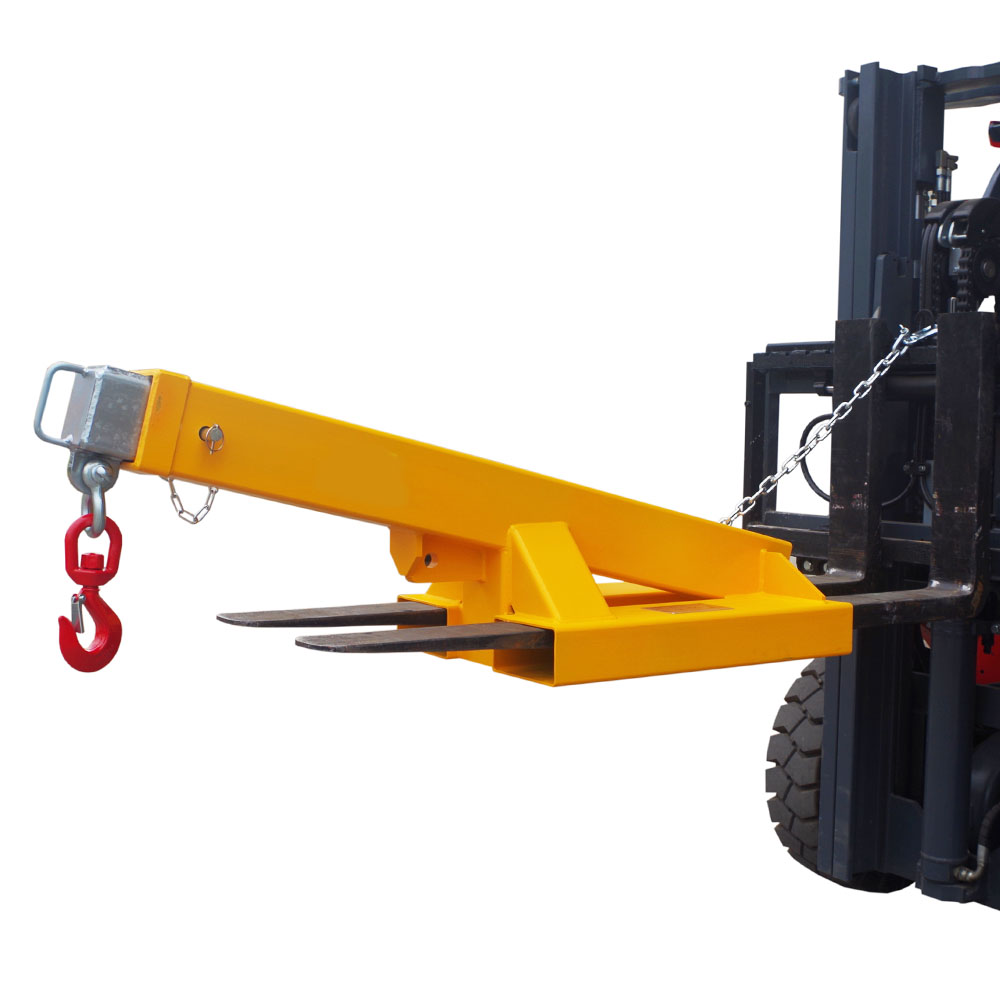

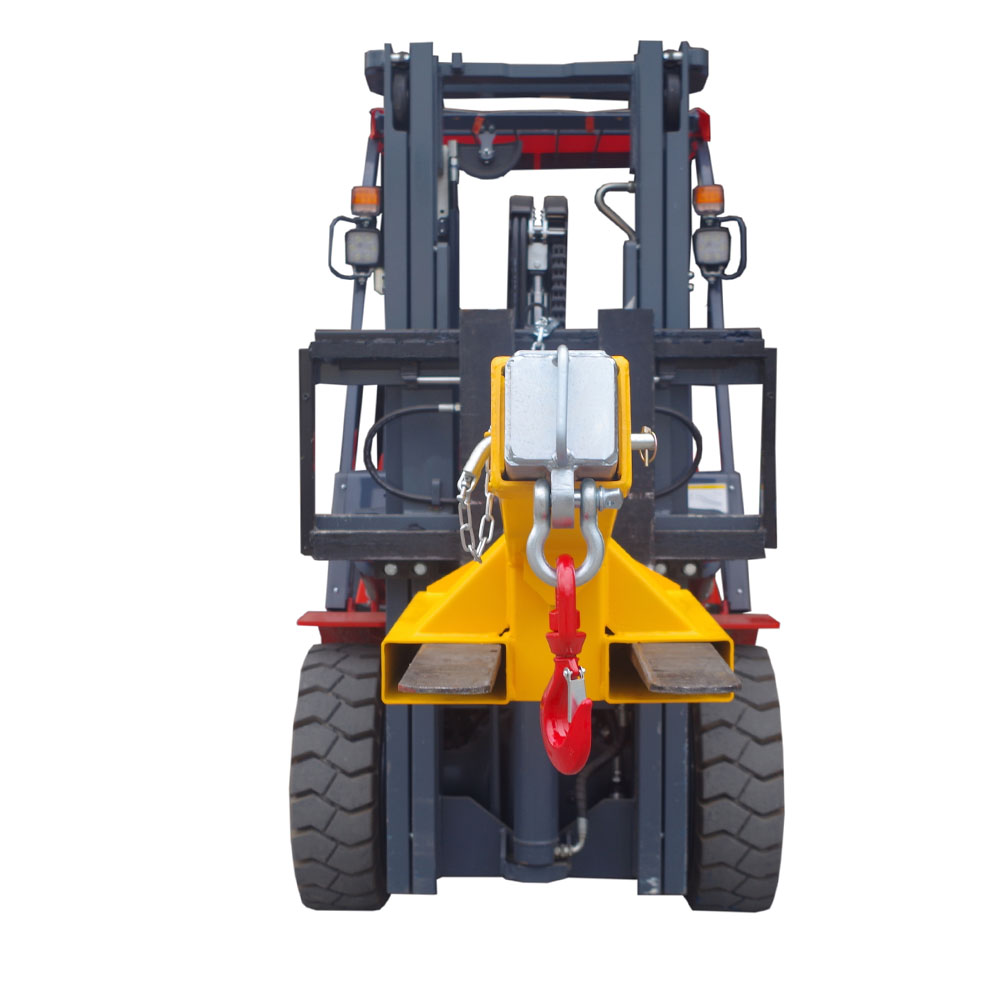

This tilting extension jib is designed as an affordable general purpose jib able to manoeuvre in confined spaces. This slip-on jib is held to the forklift by a safety chain. Please contact CF for loading specifications of each model.
| Model | Max. SWL(kg) | Fork Pocket Size(mm) | Fork Pocket Center(mm) | HCG(mm) | VCG(mm) | Weight(kg) |
| CF-TEJ350 | 3500 | 185x65 | 300 | 580 | 110 | 115 |
| CF-TEJ470 | 4700 | 185x65 | 350 | 600 | 120 | 140 |
| CF-TEJ750 | 7500 | 230x110 | 875 | 680 | 105 | 390 |
This tilting extension jib is designed as an affordable general purpose jib able to manoeuvre in confined spaces. This slip-on jib is held to the forklift by a safety chain. Please contact CF for loading specifications of each model.
| Model | Max. SWL(kg) | Fork Pocket Size(mm) | Fork Pocket Center(mm) | HCG(mm) | VCG(mm) | Weight(kg) |
| CF-TEJ350 | 3500 | 185x65 | 300 | 580 | 110 | 115 |
| CF-TEJ470 | 4700 | 185x65 | 350 | 600 | 120 | 140 |
| CF-TEJ750 | 7500 | 230x110 | 875 | 680 | 105 | 390 |
