CF-TJAL25
CF-ATTS

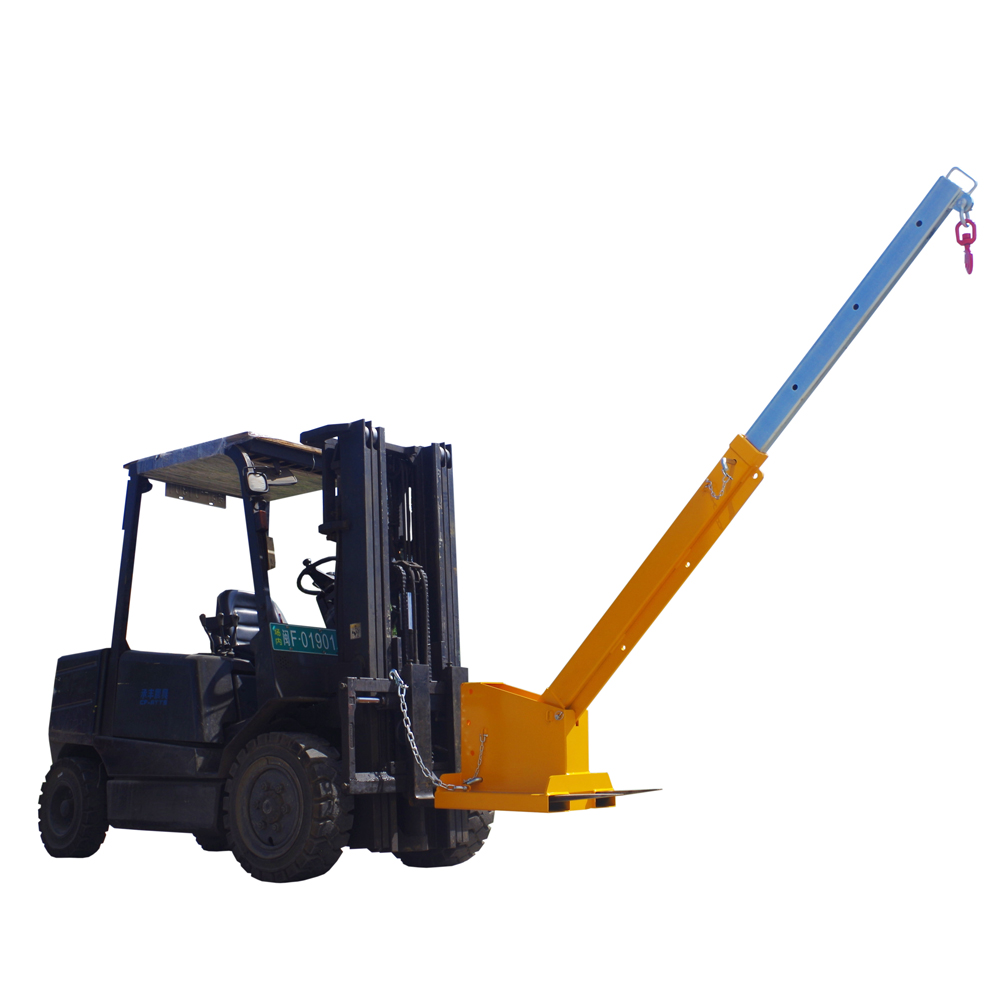

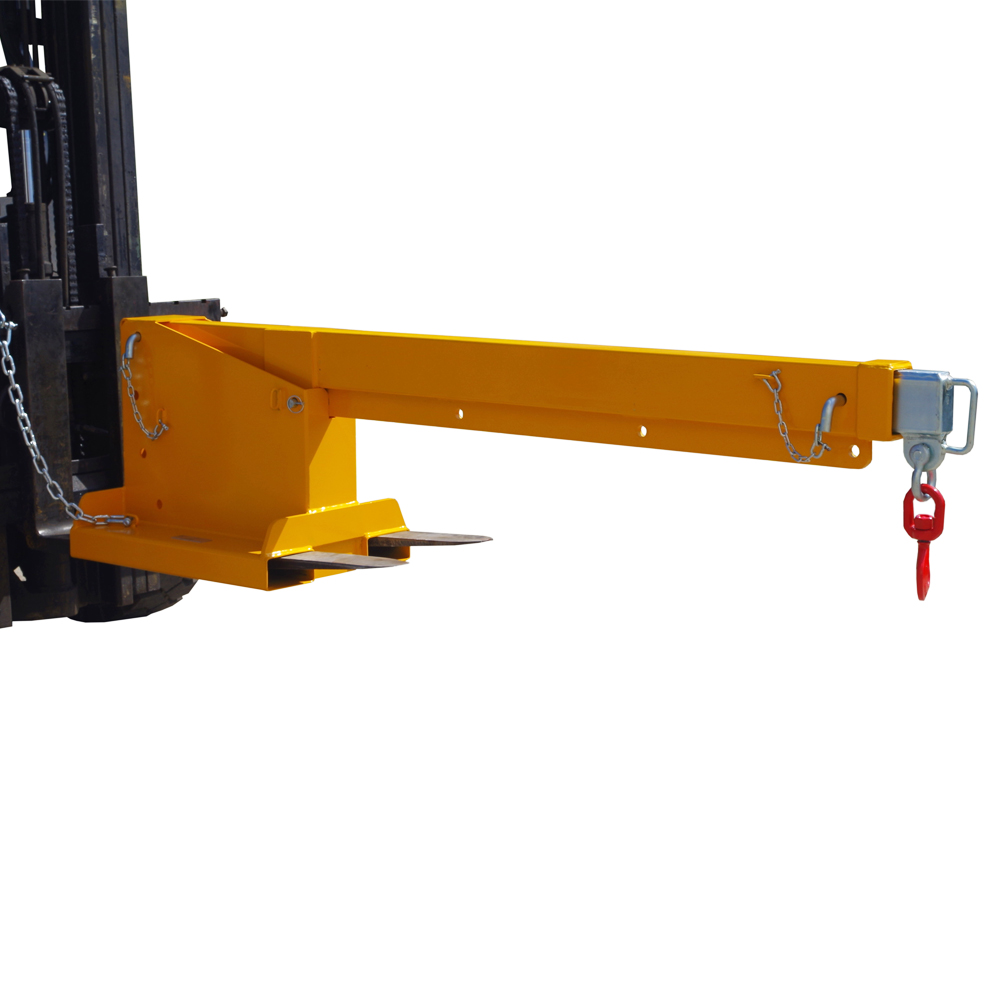

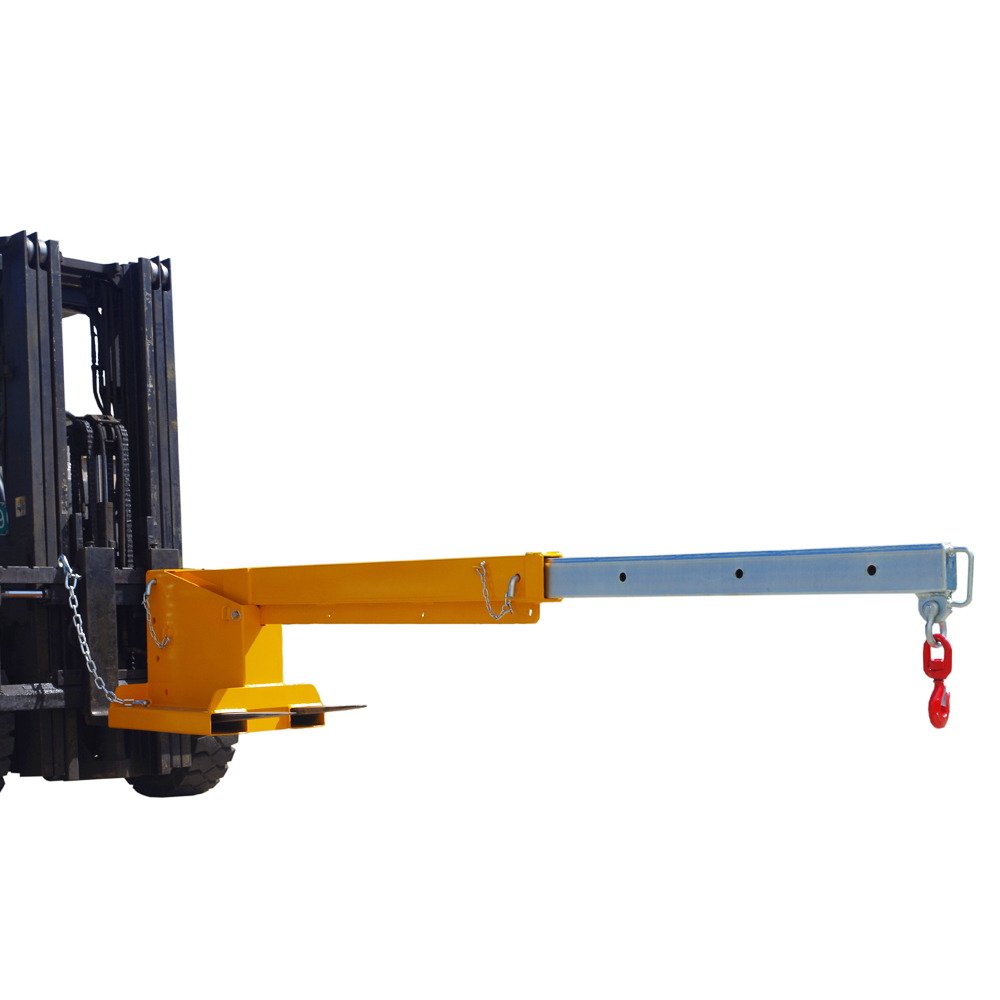

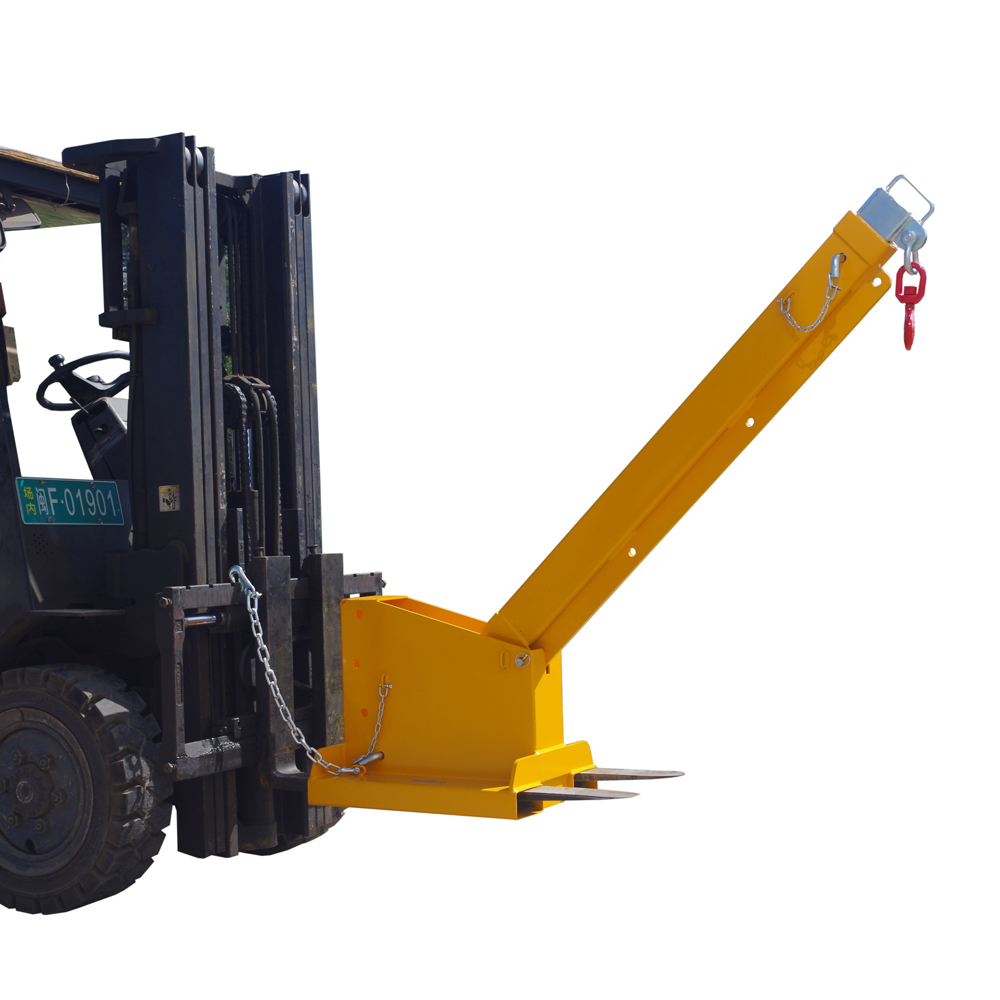

The type CF-TJAL25 Tilt Jib (Long) is the most versatile Forklift Jib attachment in our range, allowing extra height to 2.48 metres, with a 3.58 metre reach when fully extended. This slip-on attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2.15 metres.
SPECIFICATIONS:
Safe Working Load (SWL) 2500kg Max.
Unit Weight 180kg
Load Centre 1005mm
Pocket Size 165 x 65
Pocket Centres 337 mm
Horizontal C of G 1010mm
Vertical C of G 225mm
The type CF-TJAL25 Tilt Jib (Long) is the most versatile Forklift Jib attachment in our range, allowing extra height to 2.48 metres, with a 3.58 metre reach when fully extended. This slip-on attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2.15 metres.
SPECIFICATIONS:
Safe Working Load (SWL) 2500kg Max.
Unit Weight 180kg
Load Centre 1005mm
Pocket Size 165 x 65
Pocket Centres 337 mm
Horizontal C of G 1010mm
Vertical C of G 225mm
